Exhaust System
Exhaust System
Exhaust System
- Exploded View

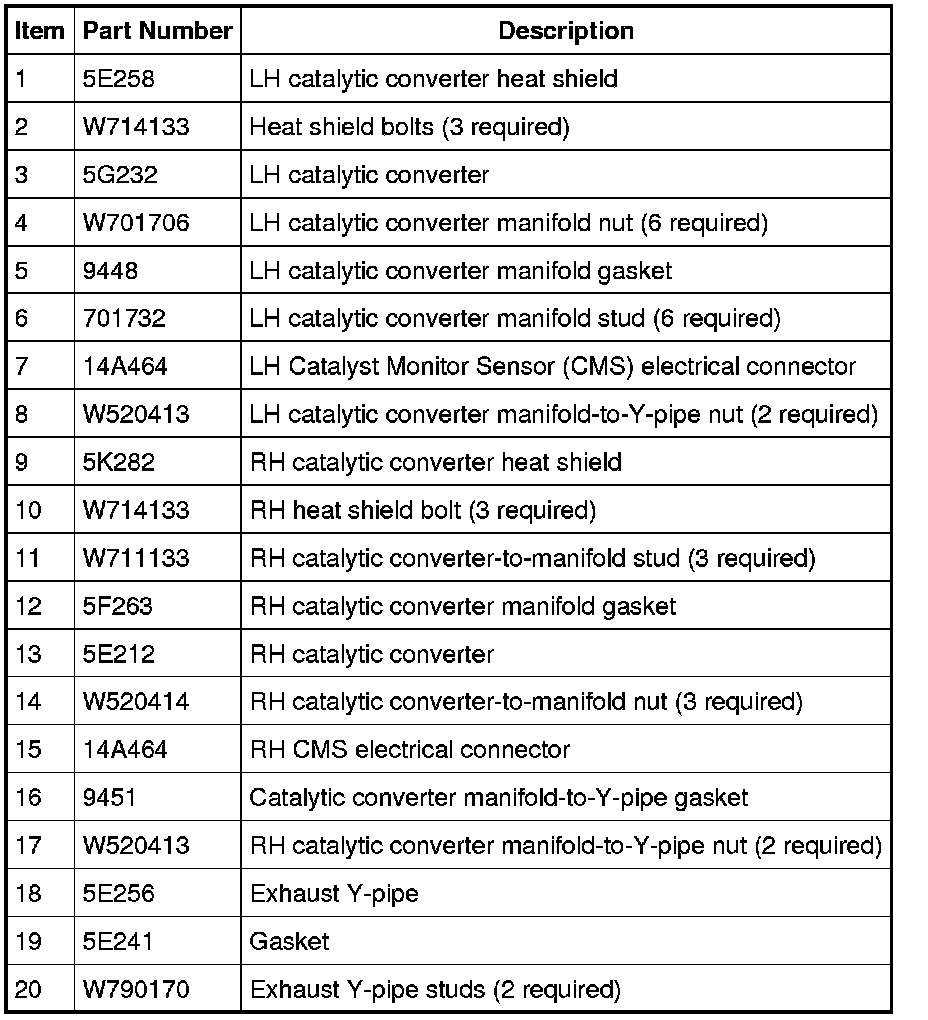

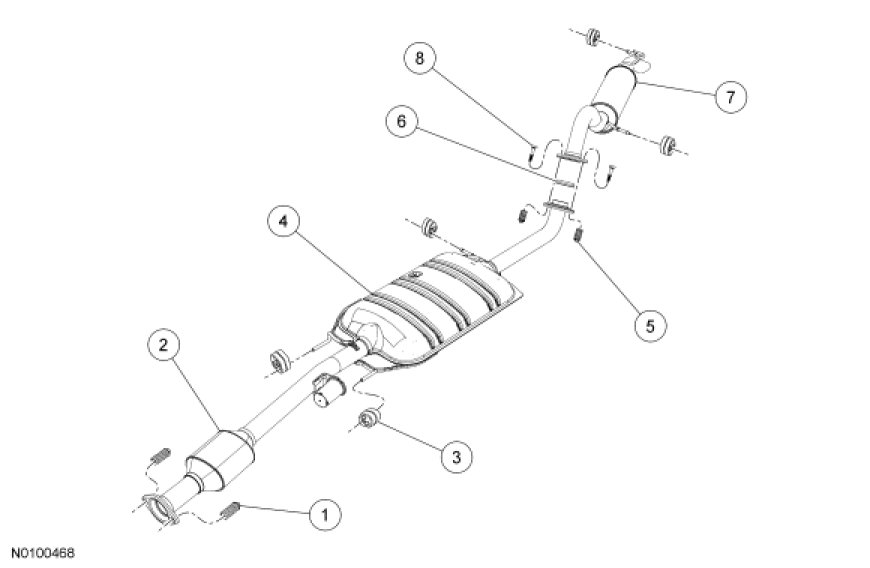

2.5L

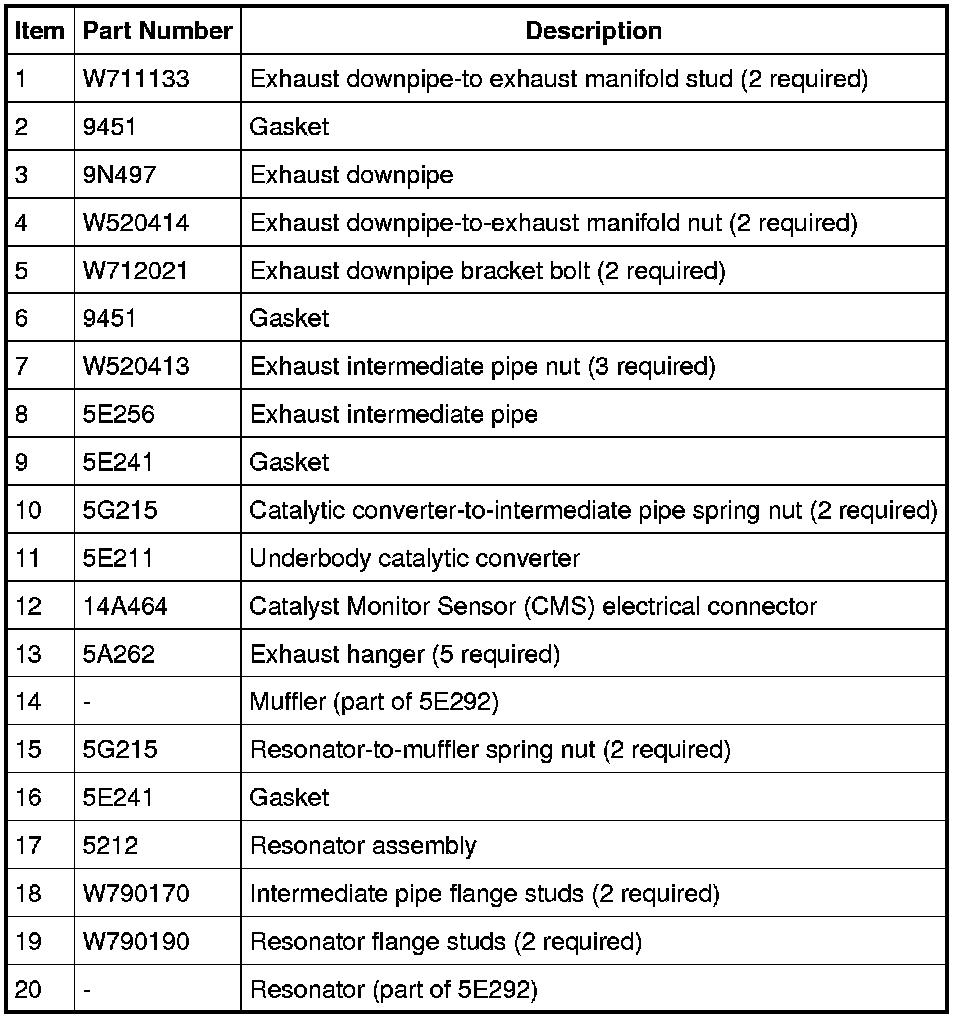

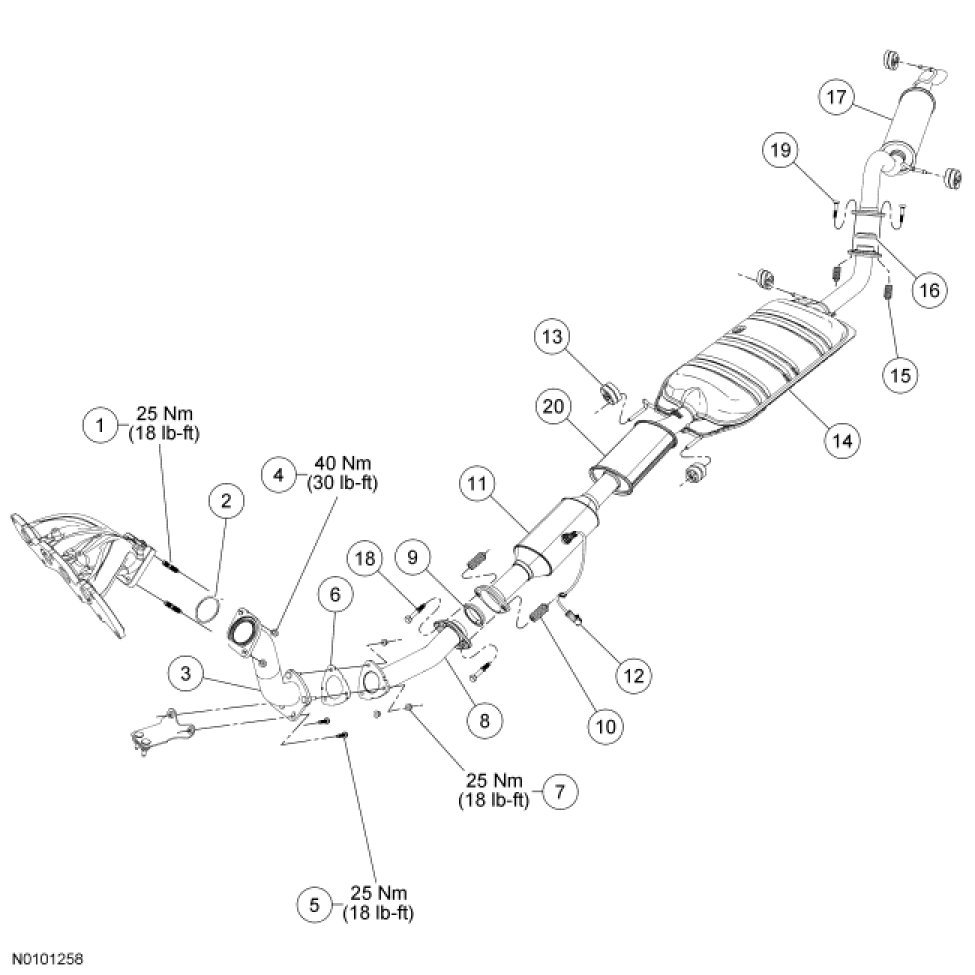

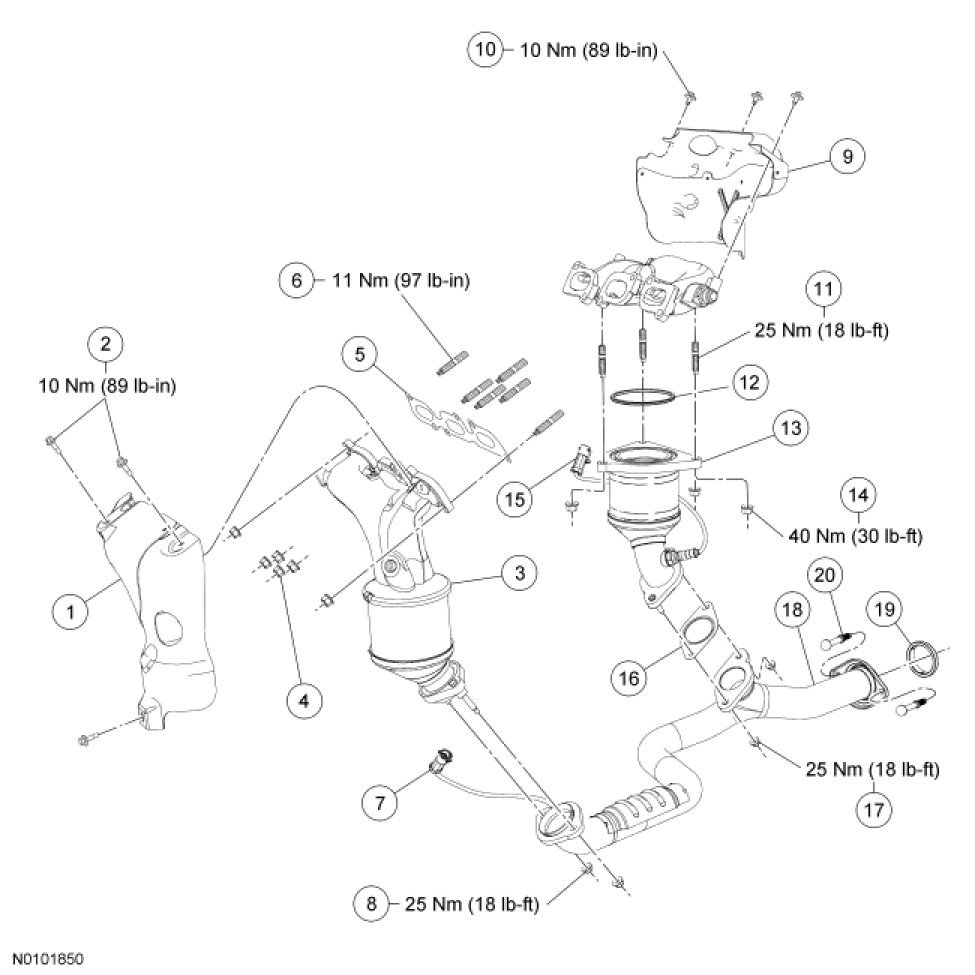

3.0L (View 1 of 2)

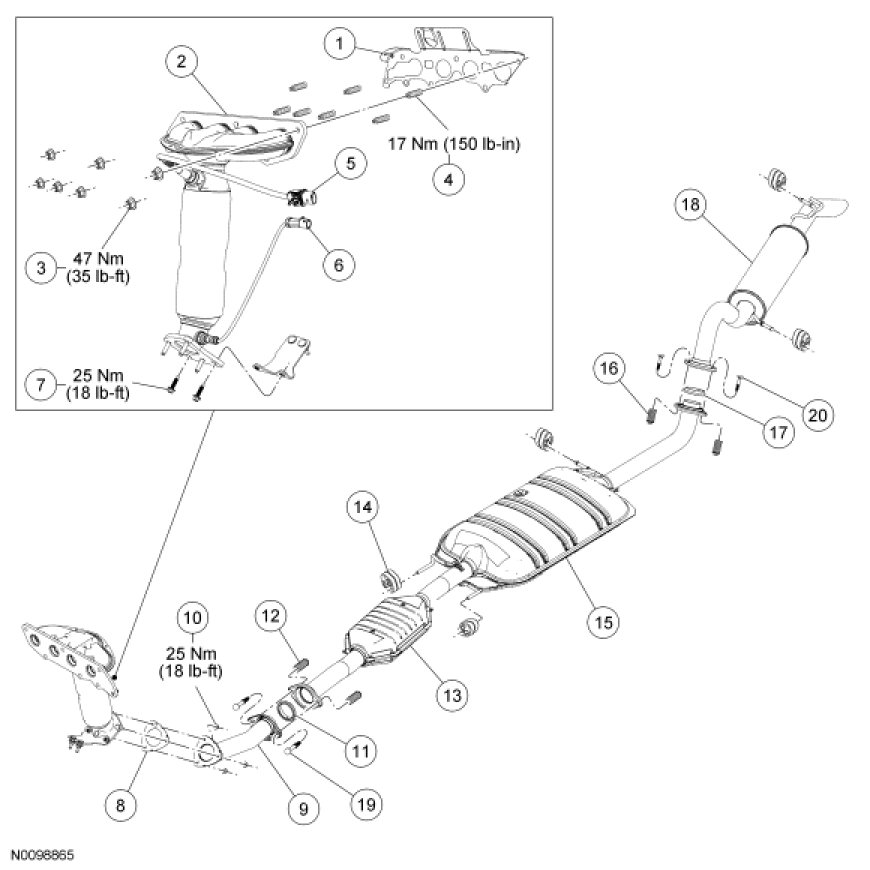

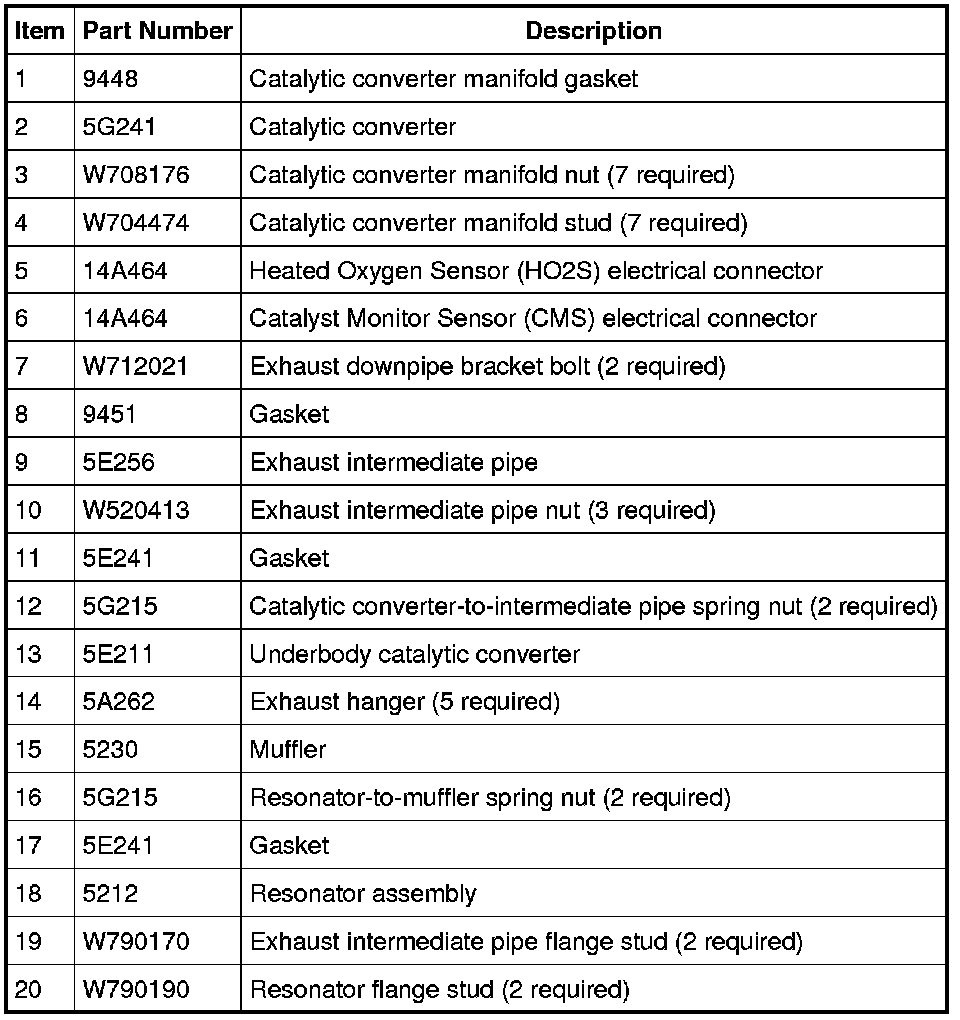

3.0L (View 2 of 2)

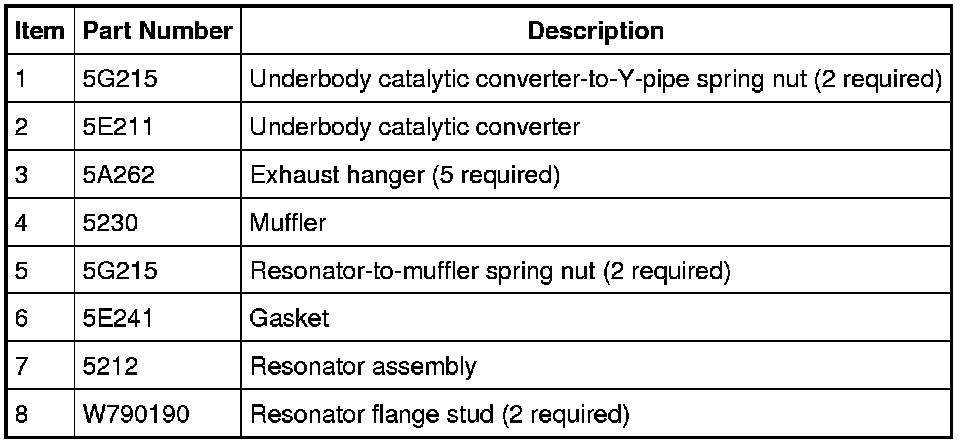

2.5L Hybrid
