Impact Sensor
>>

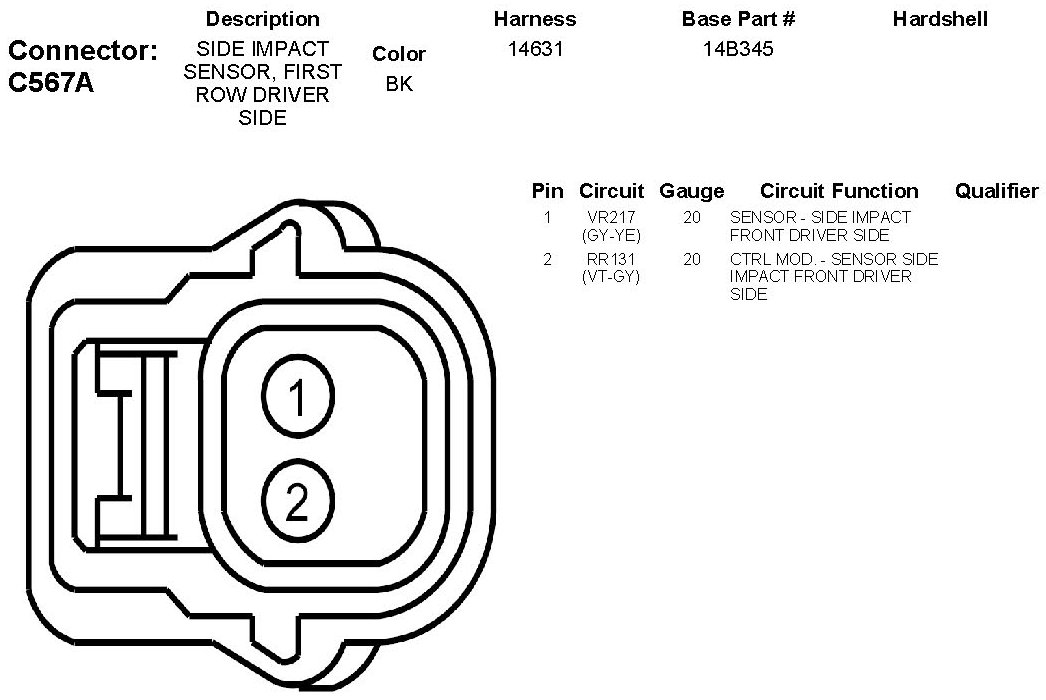

Side Impact Sensor, First Row Driver Side
Side Impact Sensor, First Row Driver Side
