Home >> Ford >> 2010 >> Explorer 4WD V6-4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Accessory Protocol Interface Module (APIM)

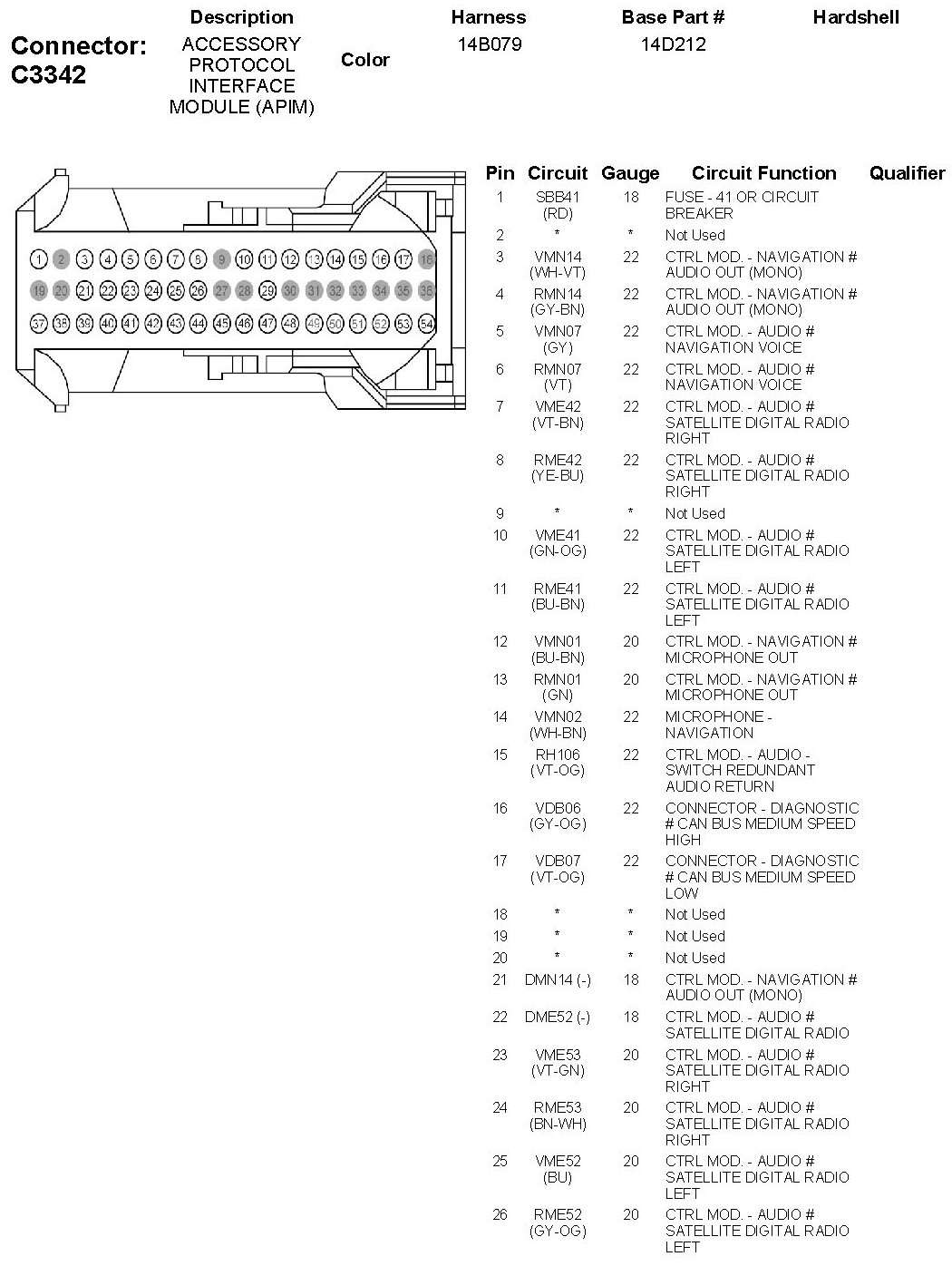

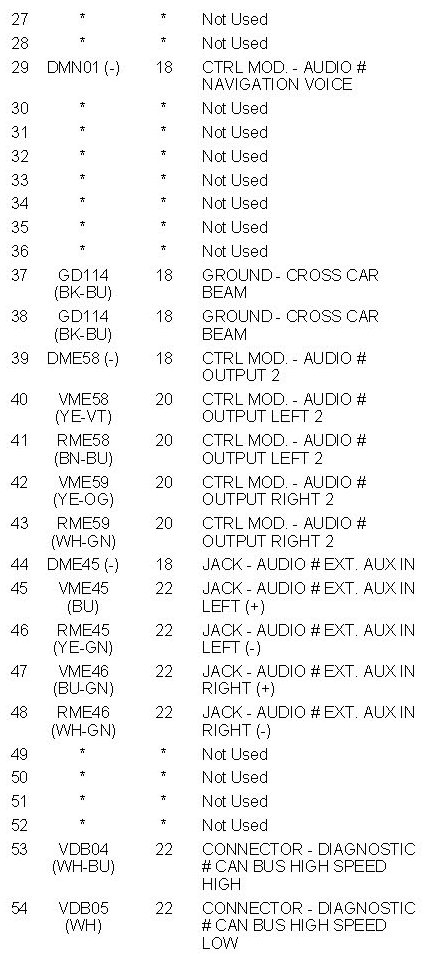

Accessory Protocol Interface Module (APIM)
