Home >> Ford >> 2010 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Air Filter Element

Air Filter Element




Intake Air System Components - Exploded View

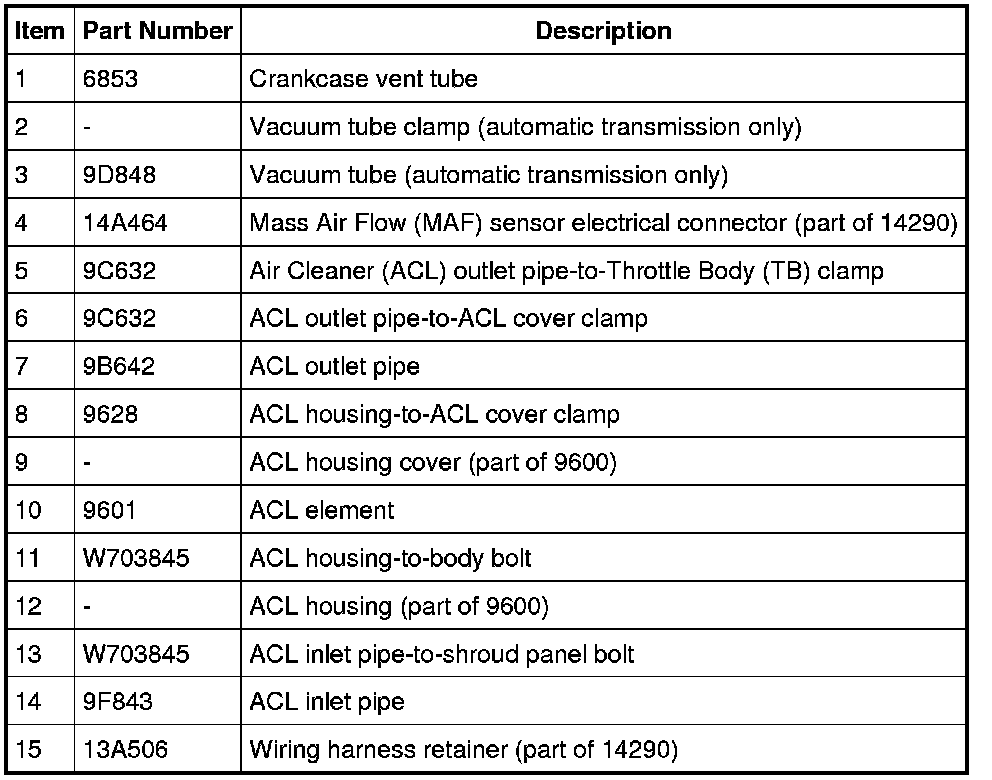

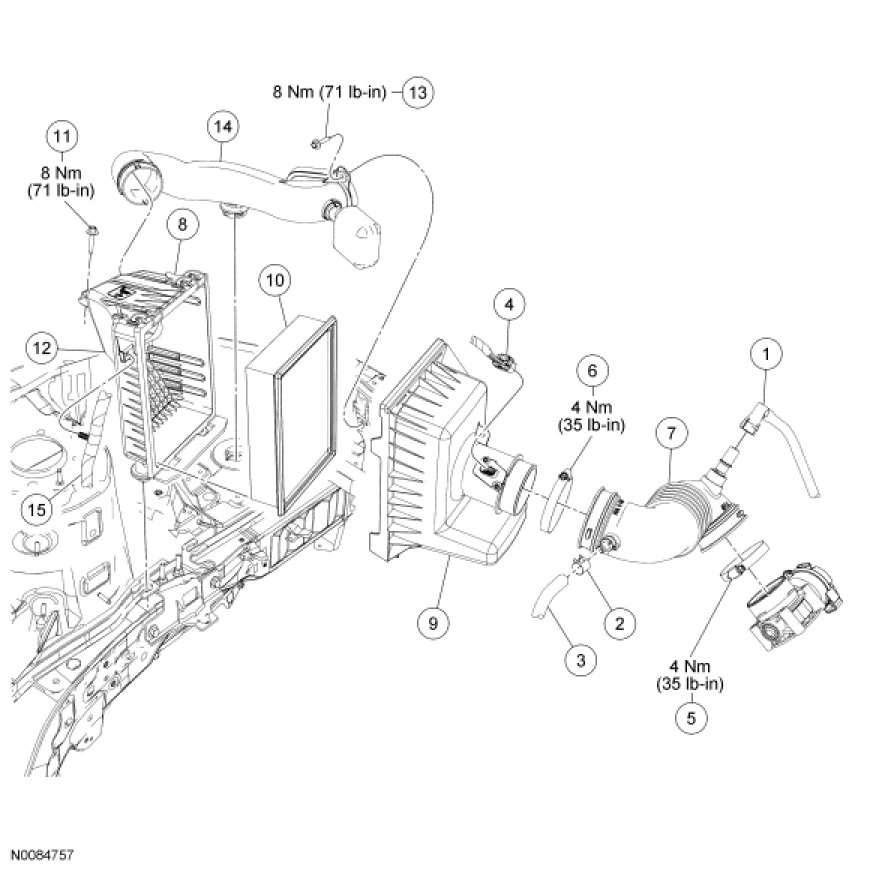

Air Cleaner Assembly, Intake Pipe and Outlet Pipe

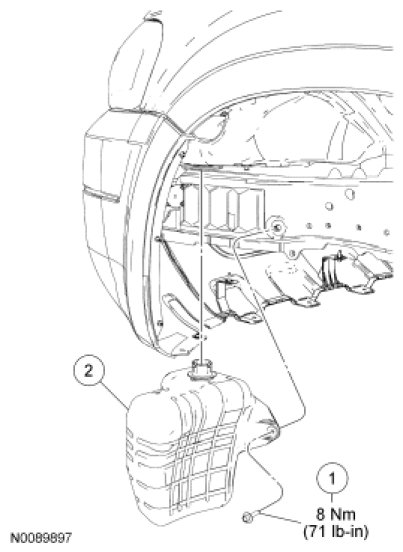

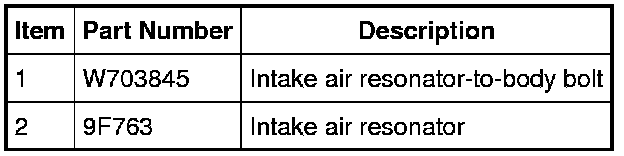

Intake Air Resonator
