Home >> Ford >> 2010 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Front Controls Interface Module (FCIM)

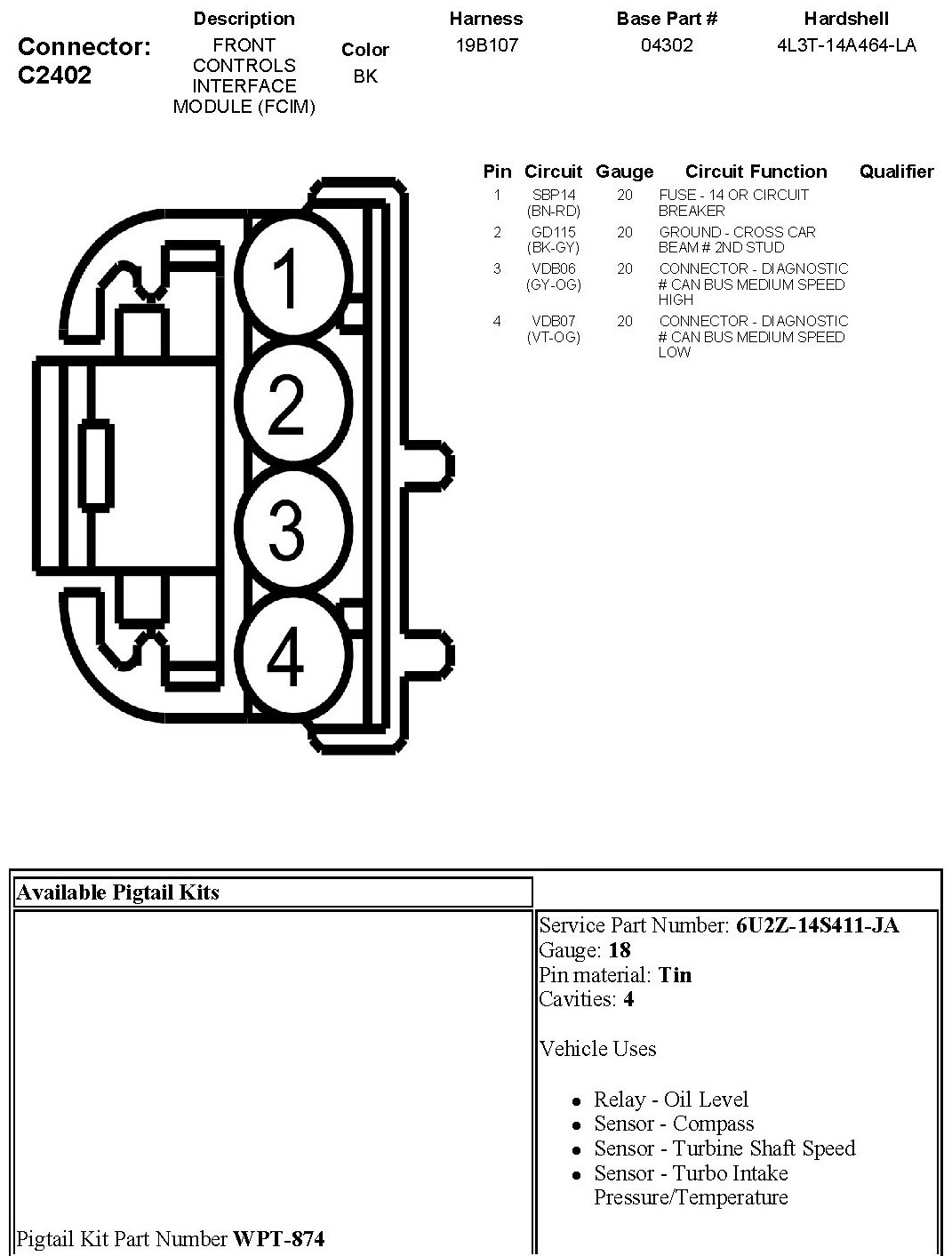

Front Controls Interface Module (FCIM)
