Home >> Ford >> 2010 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Accessory Protocol Interface Module (APIM)

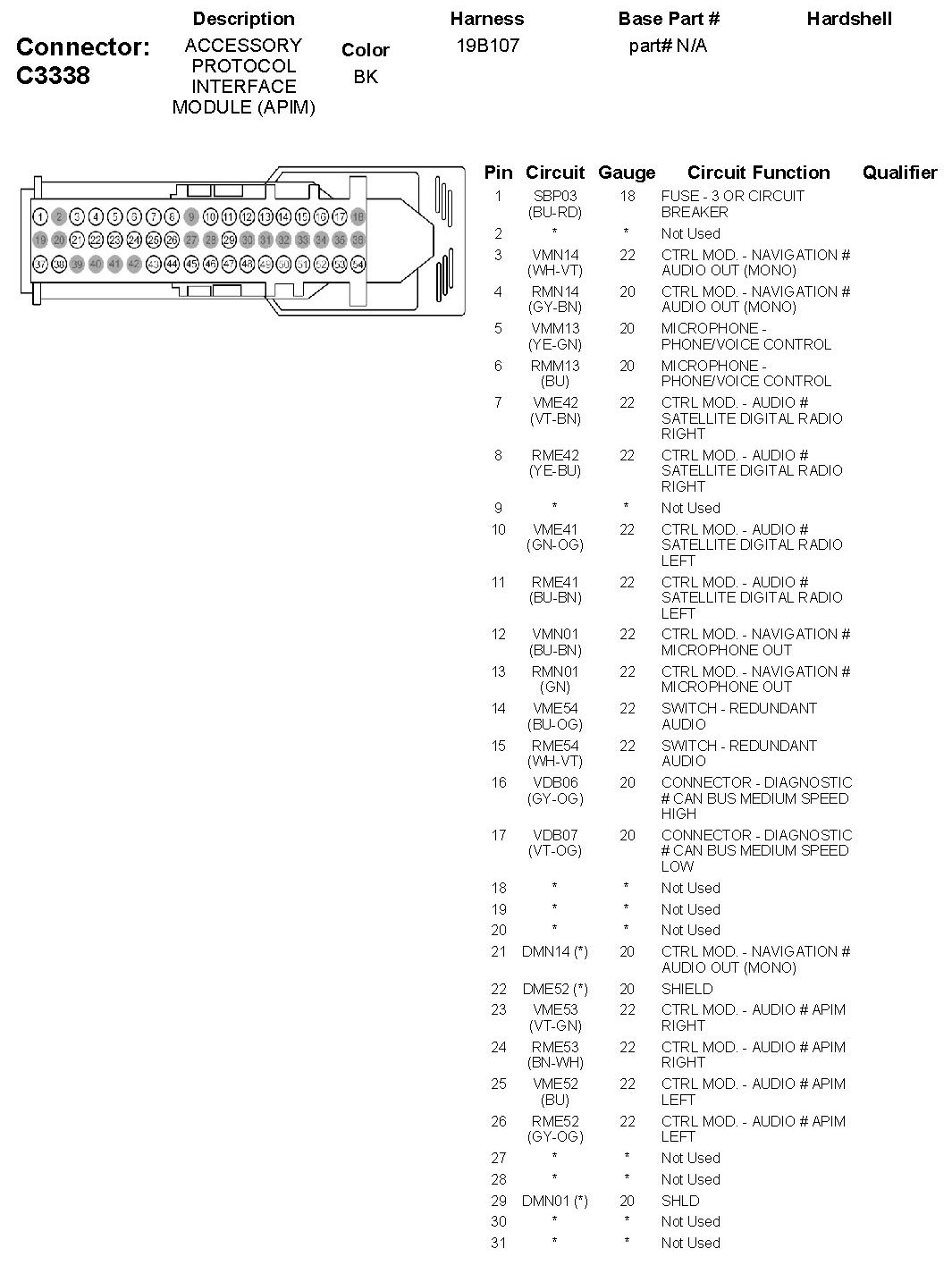

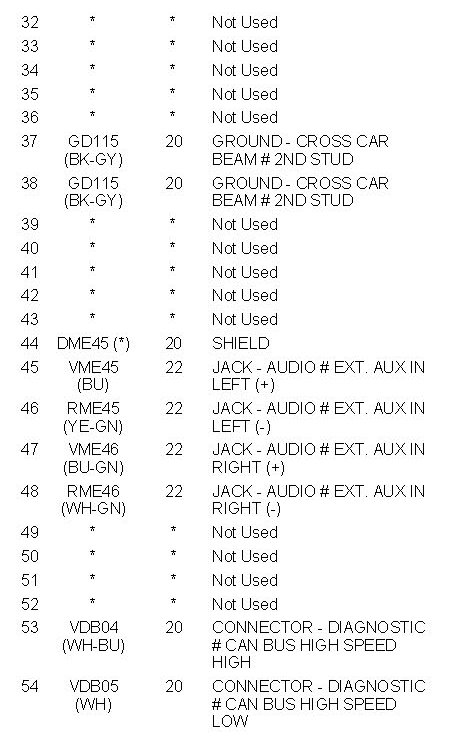

Accessory Protocol Interface Module (APIM)
