Taurus X FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

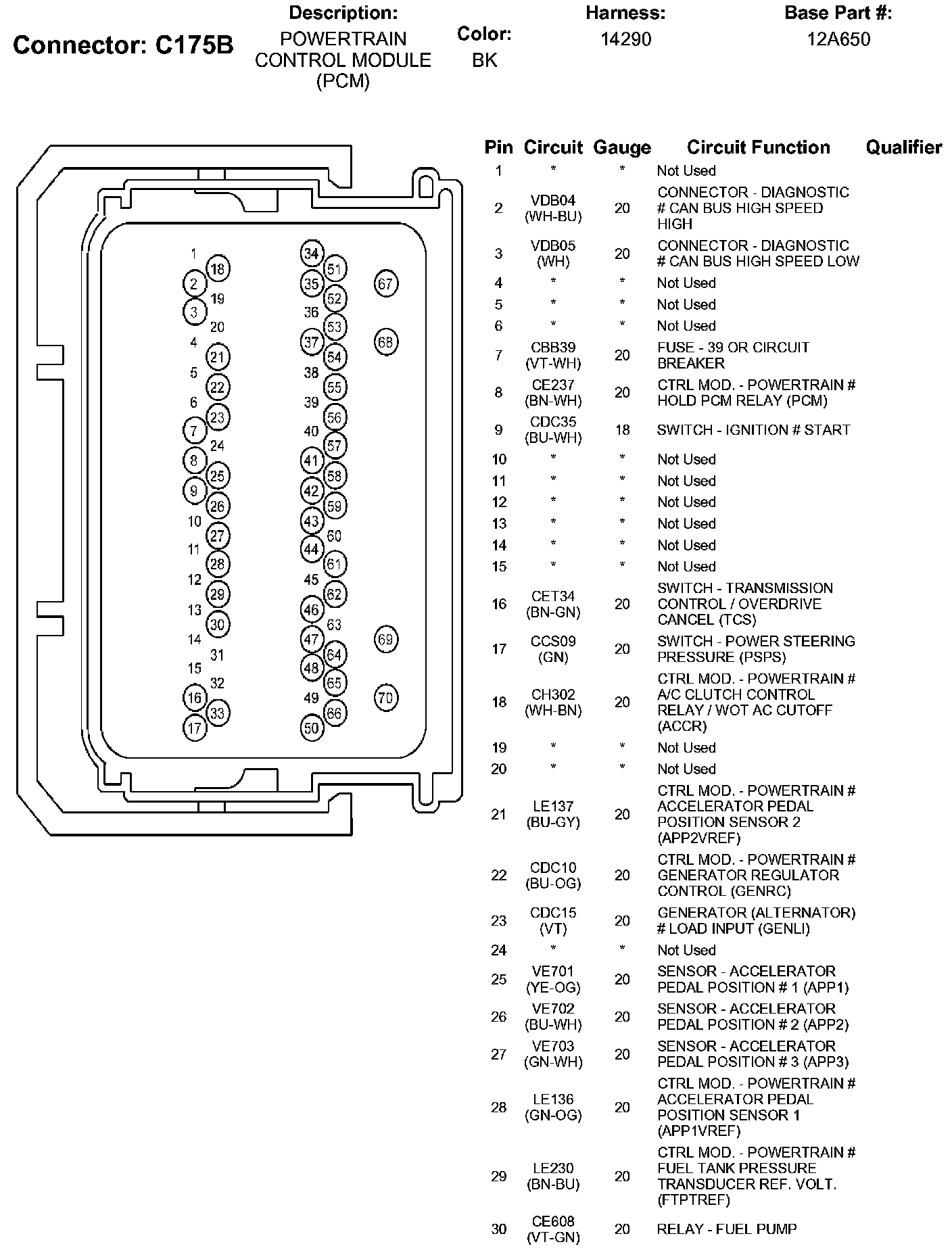

C175B Part 1:

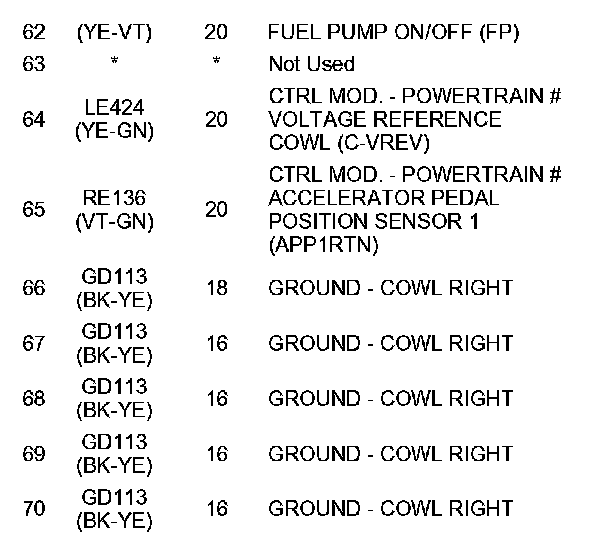

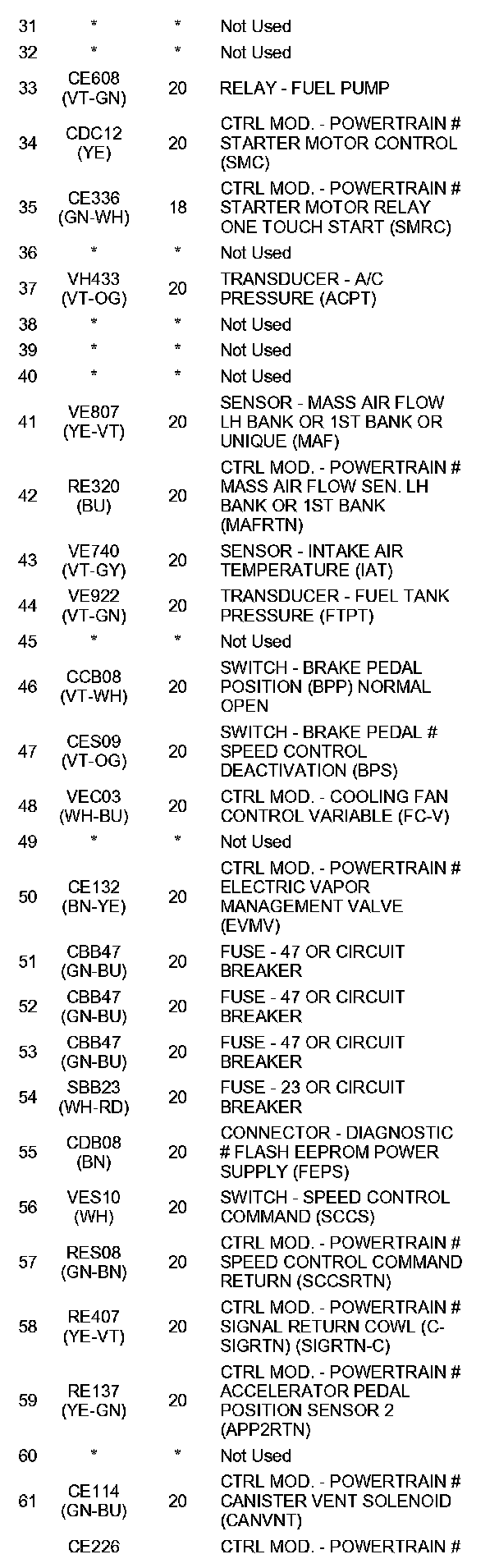

C175B Part 2:
C175C Part 3:

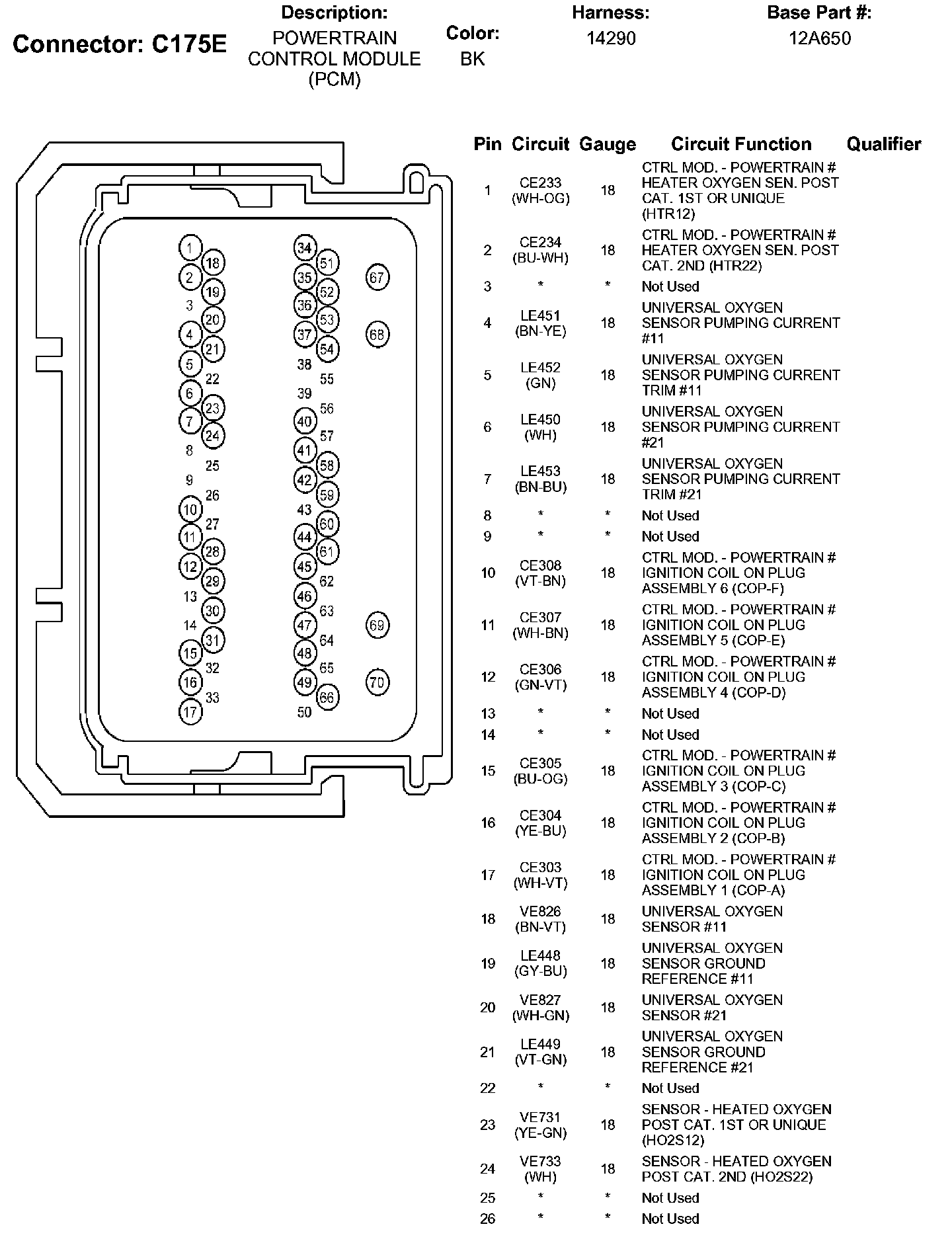

C175E Part 1:

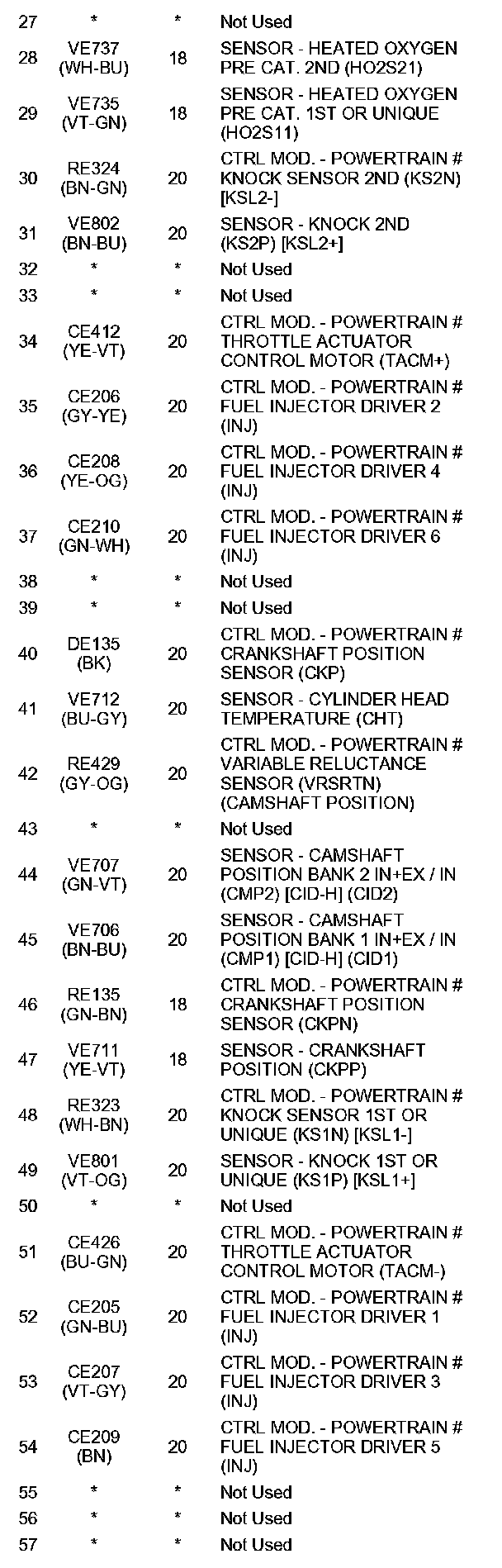

C175E Part 2:

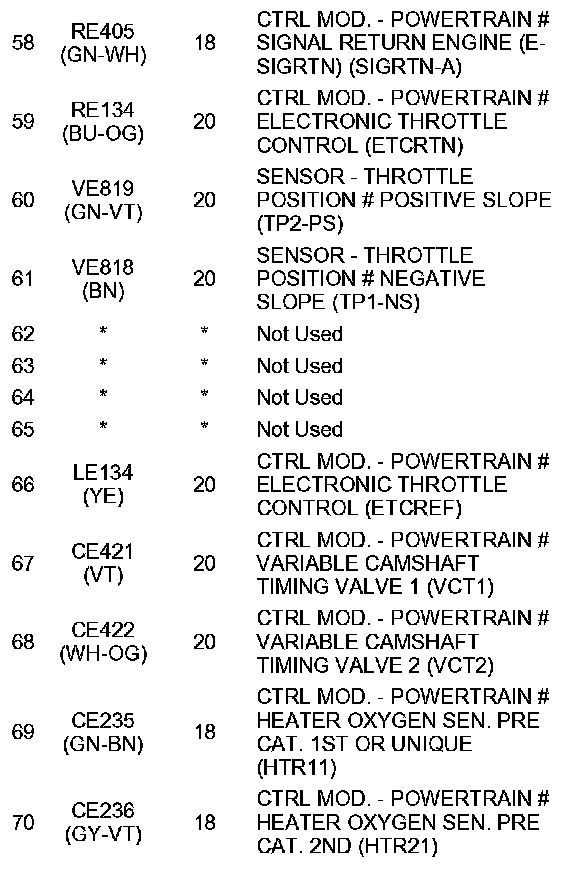

C175E Part 3:

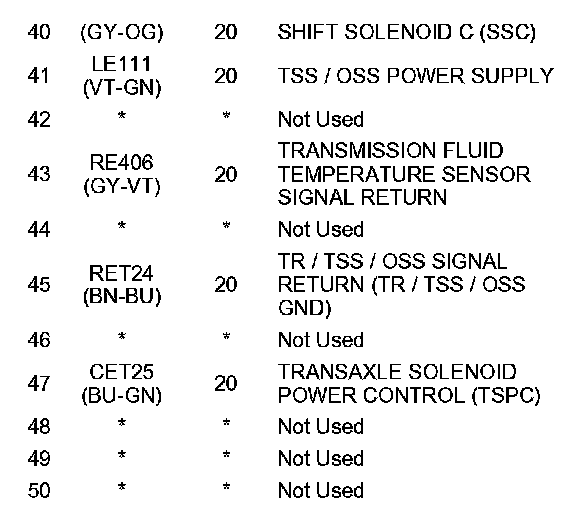

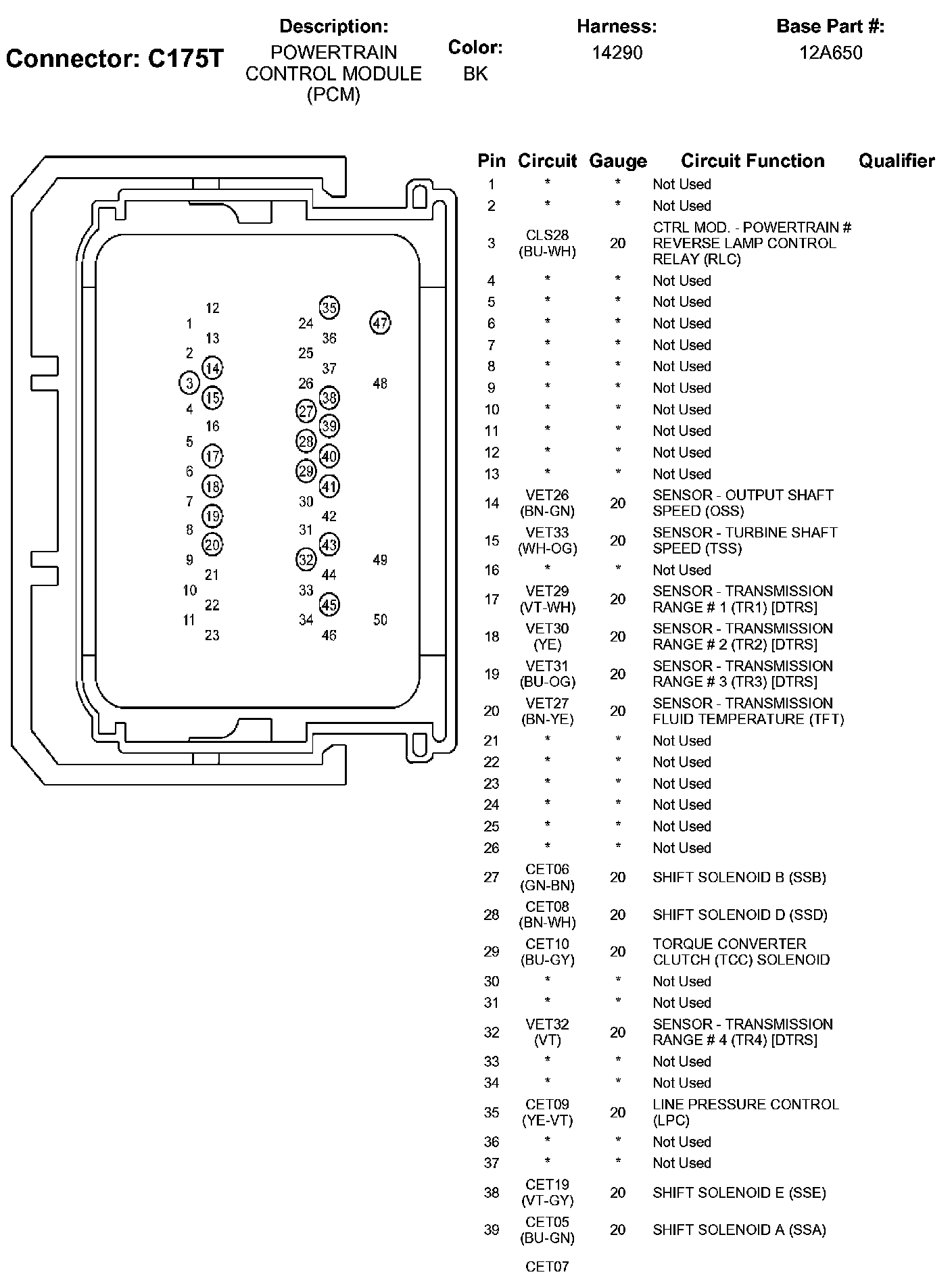

C175T Part 1:
C175T Part 2:
