Exhaust System

Exhaust System - Exploded View

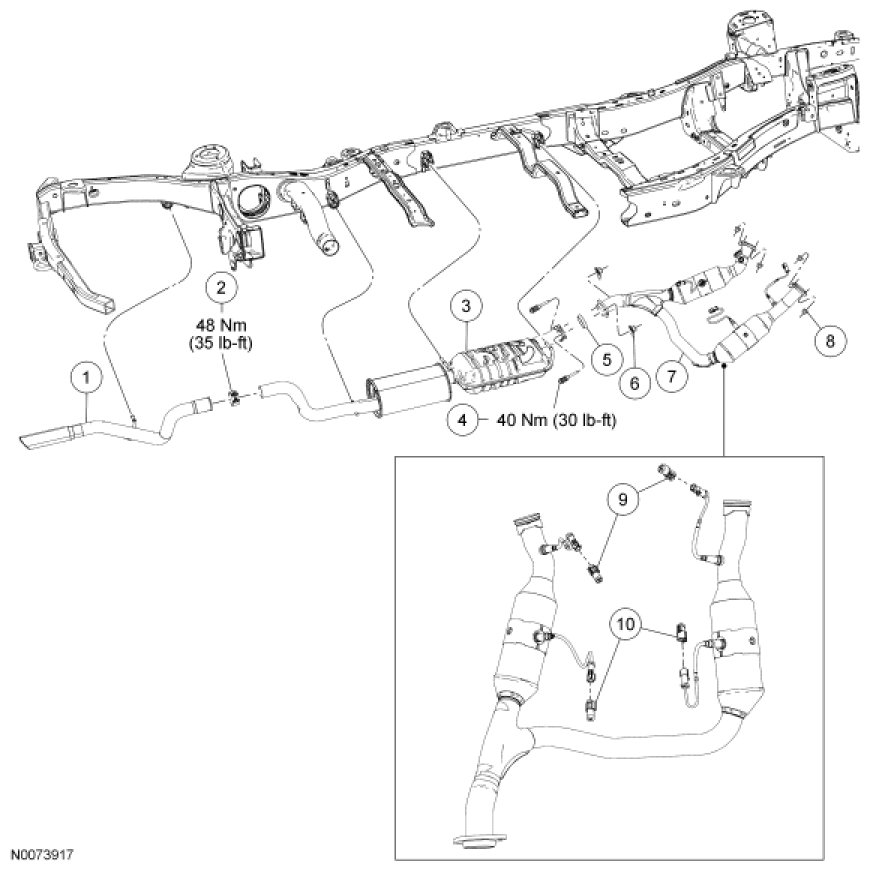

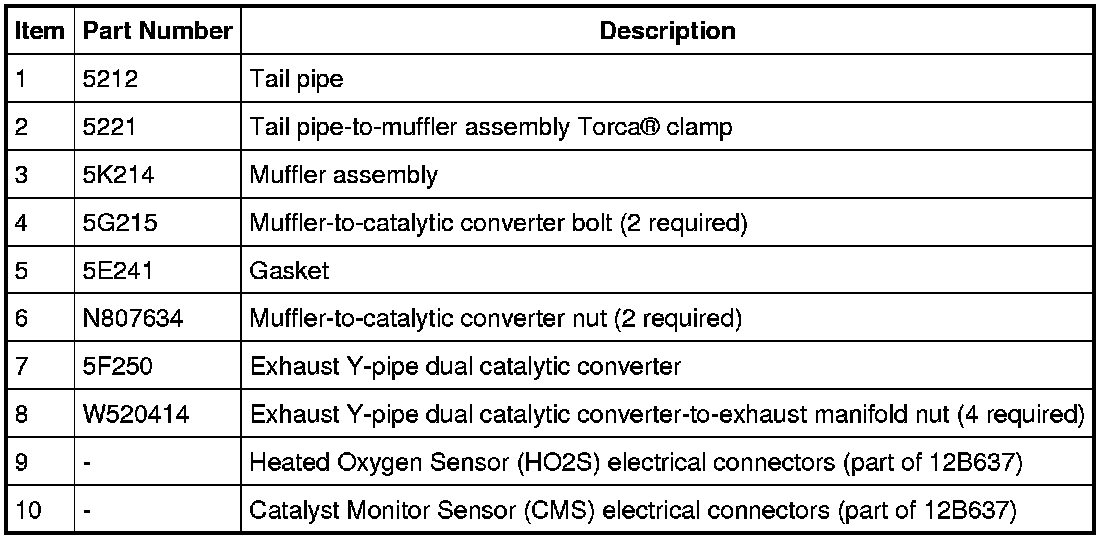

4.0L Explorer Sport Trac

NOTE: Vehicle body removed for clarity.

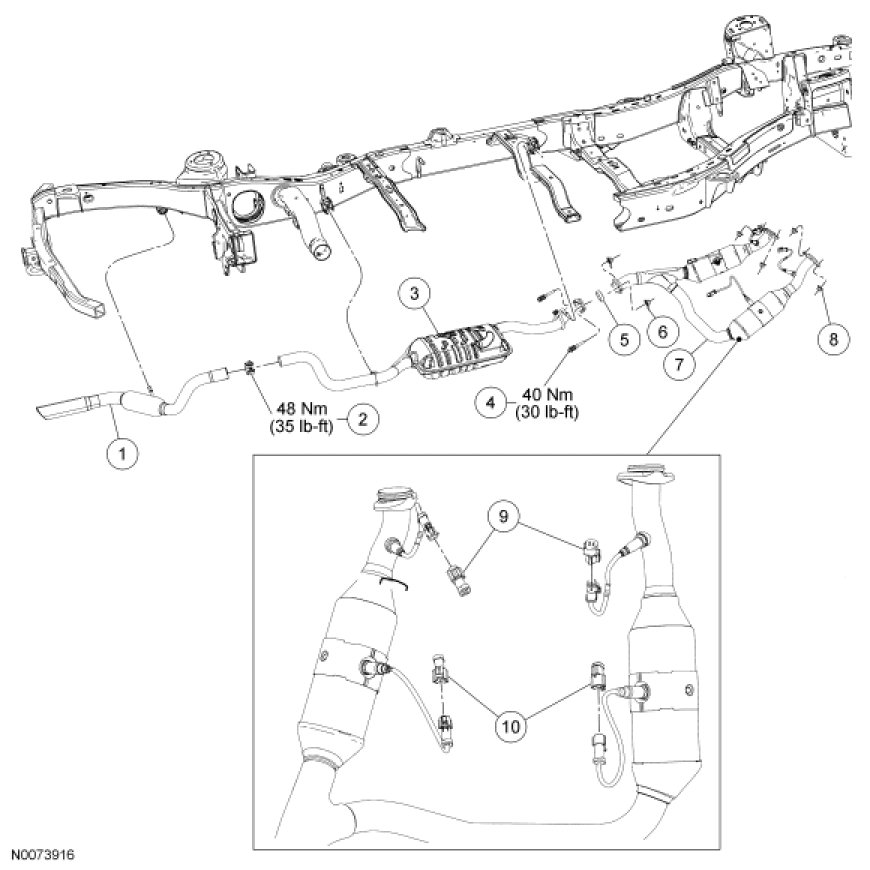

4.6L Explorer Sport Trac

NOTE: Vehicle body removed for clarity.

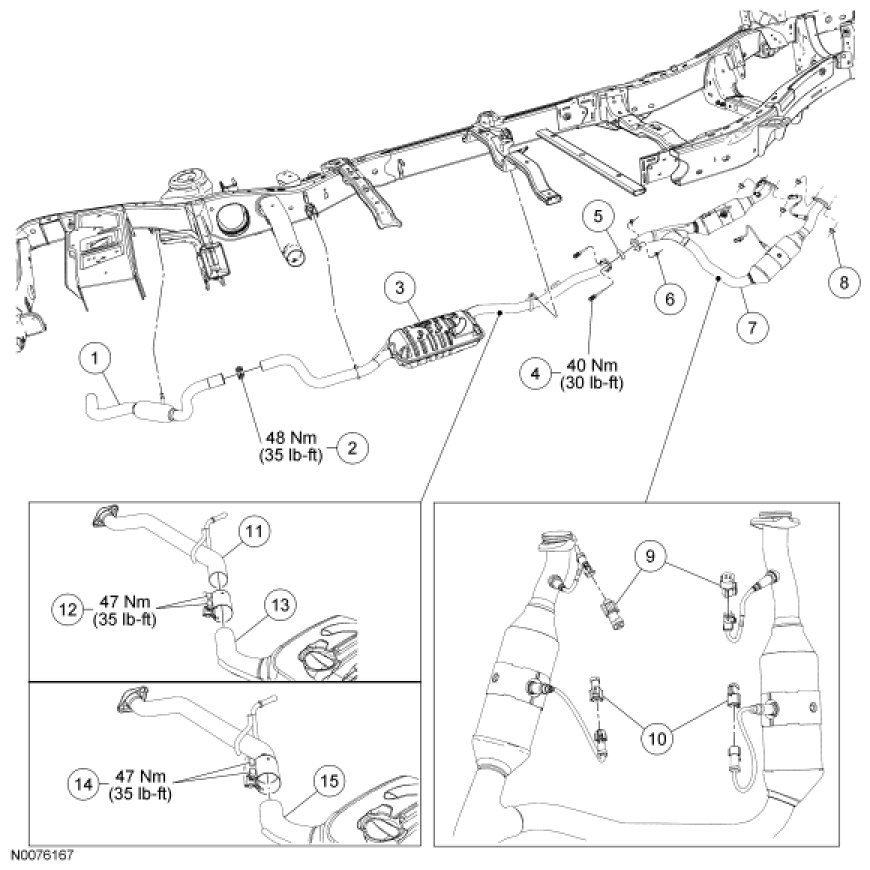

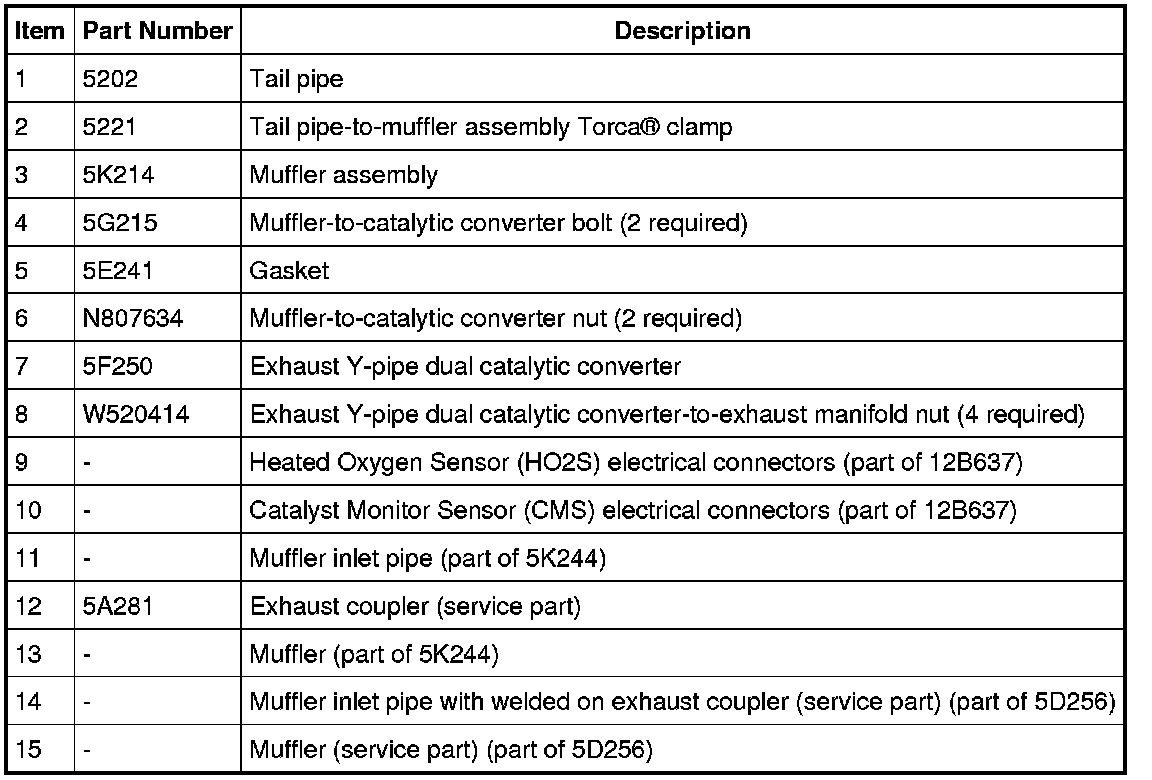

4.0L Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.

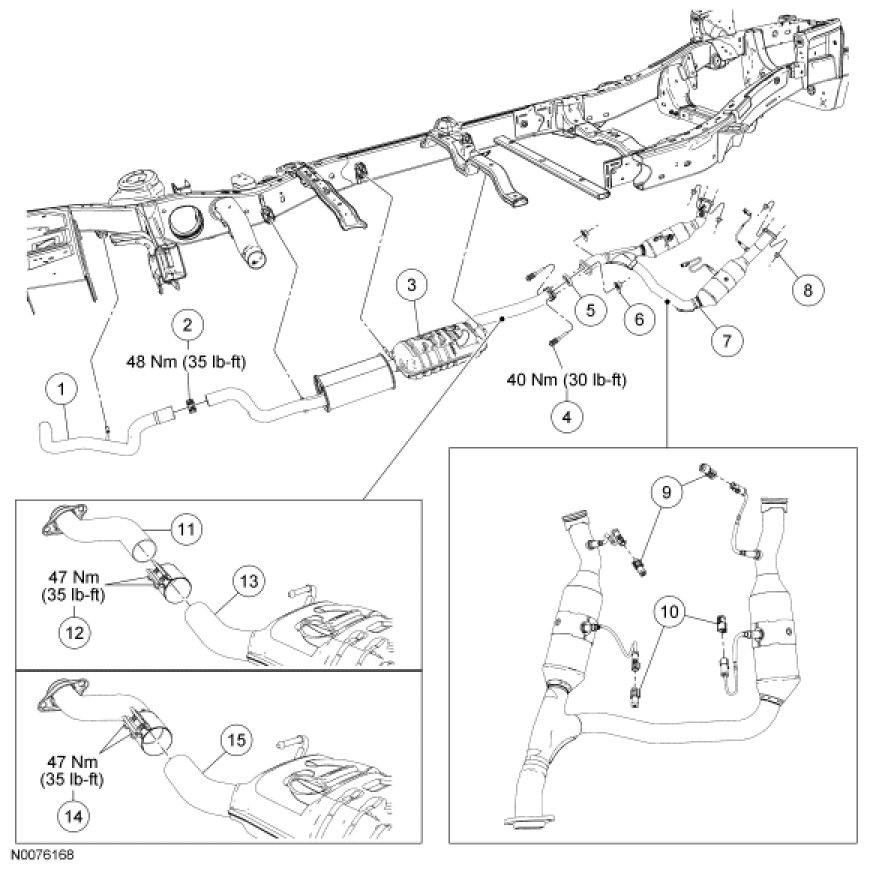

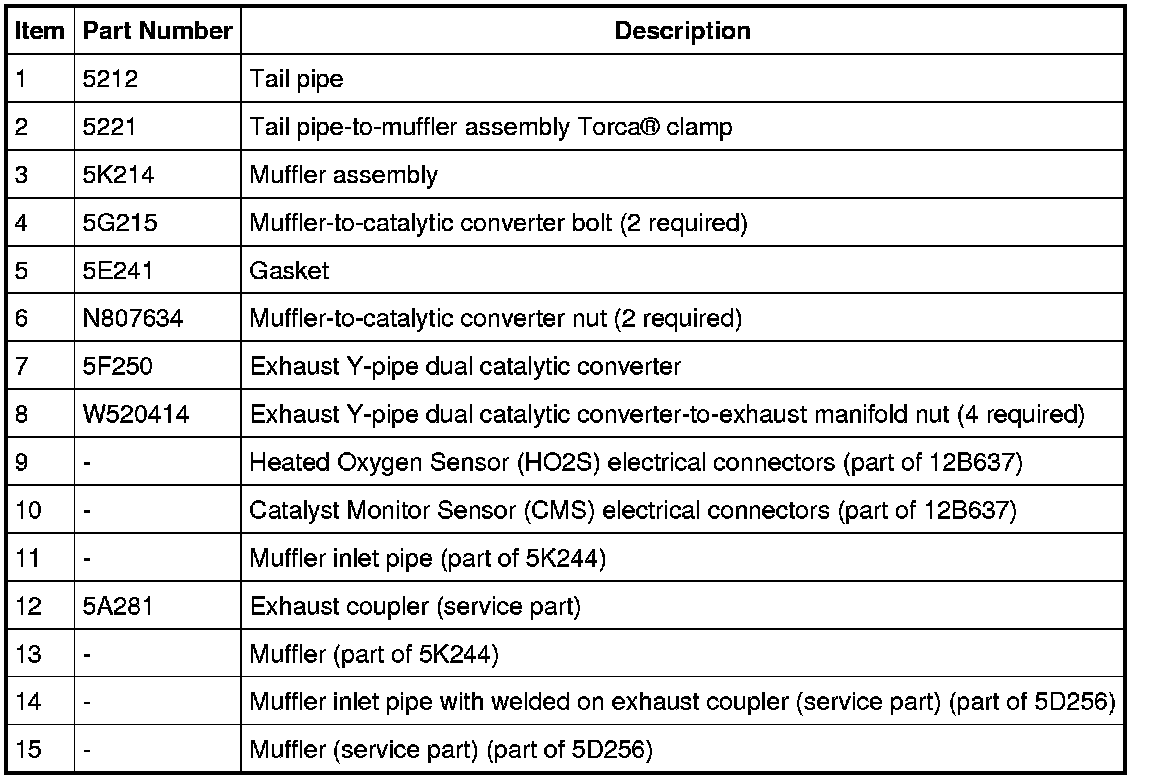

4.6L Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.










1. For additional information, refer to the procedures.
