Home >> Ford >> 2009 >> Escape 2WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Front Display Interface Module (FDIM)

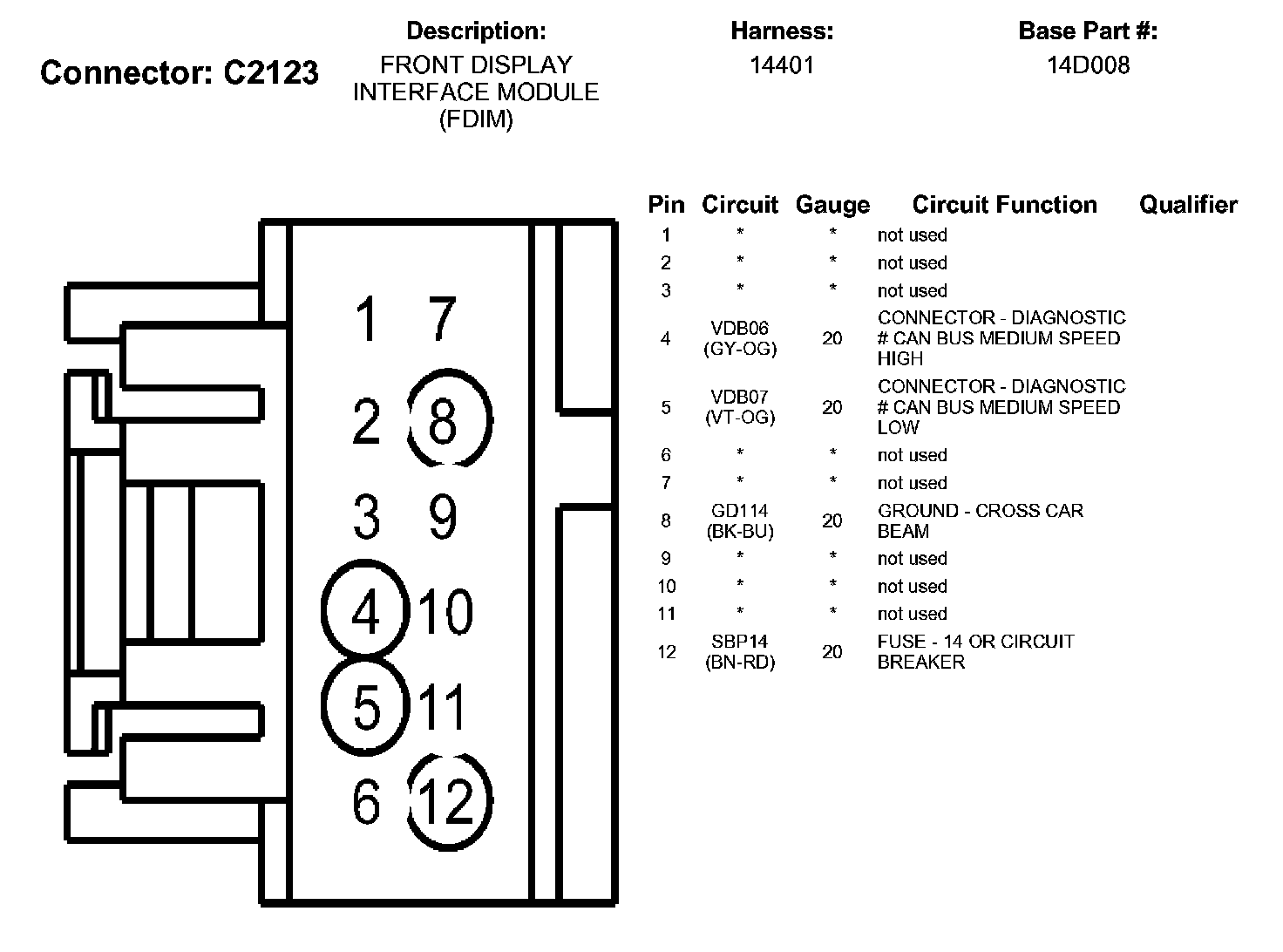

Front Display Interface Module (FDIM)
