Home >> Ford >> 2009 >> Escape 2WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

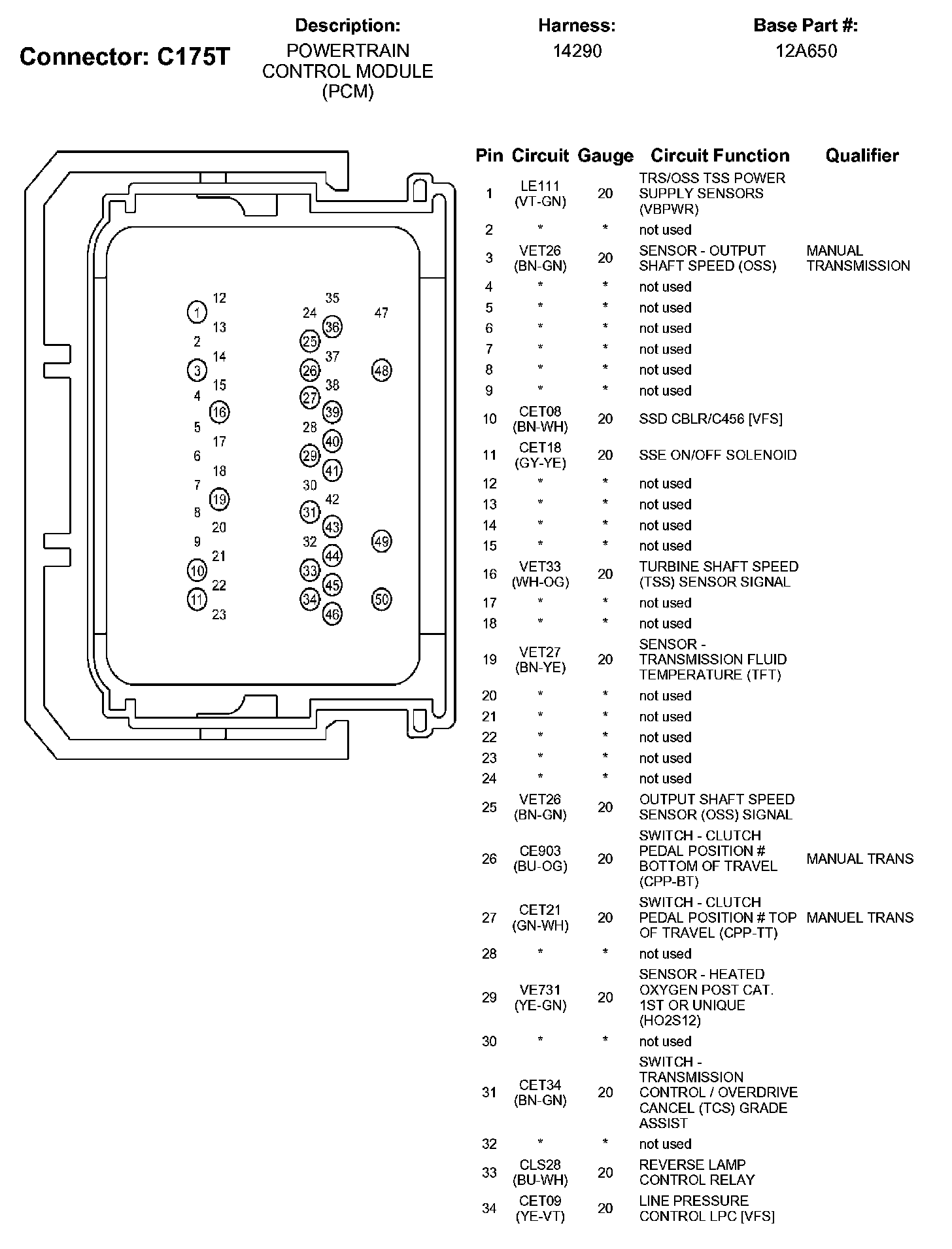

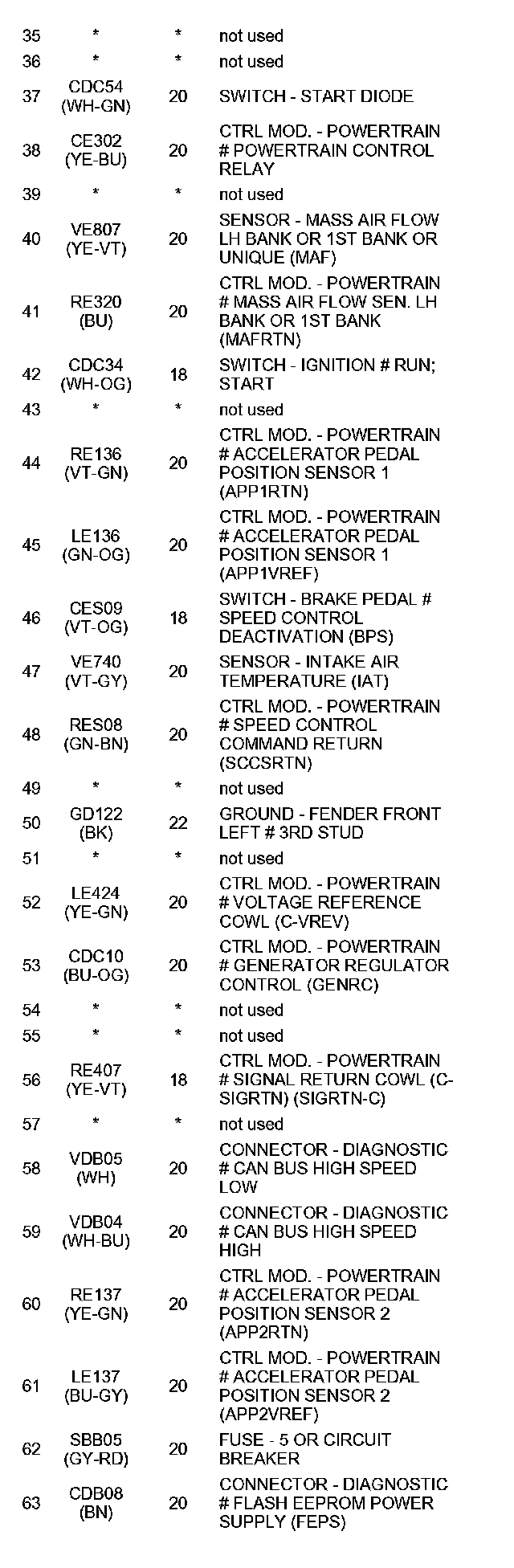

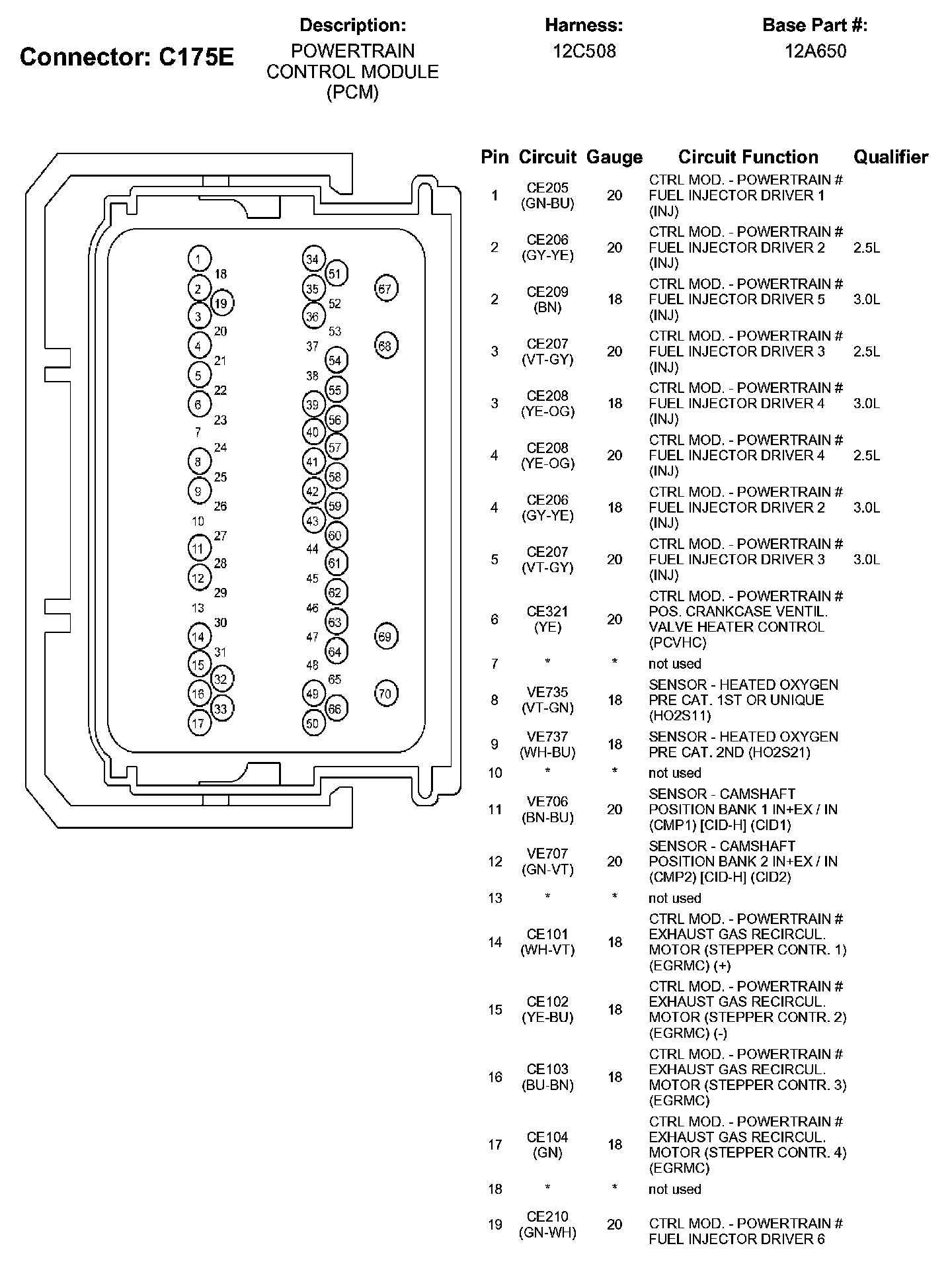

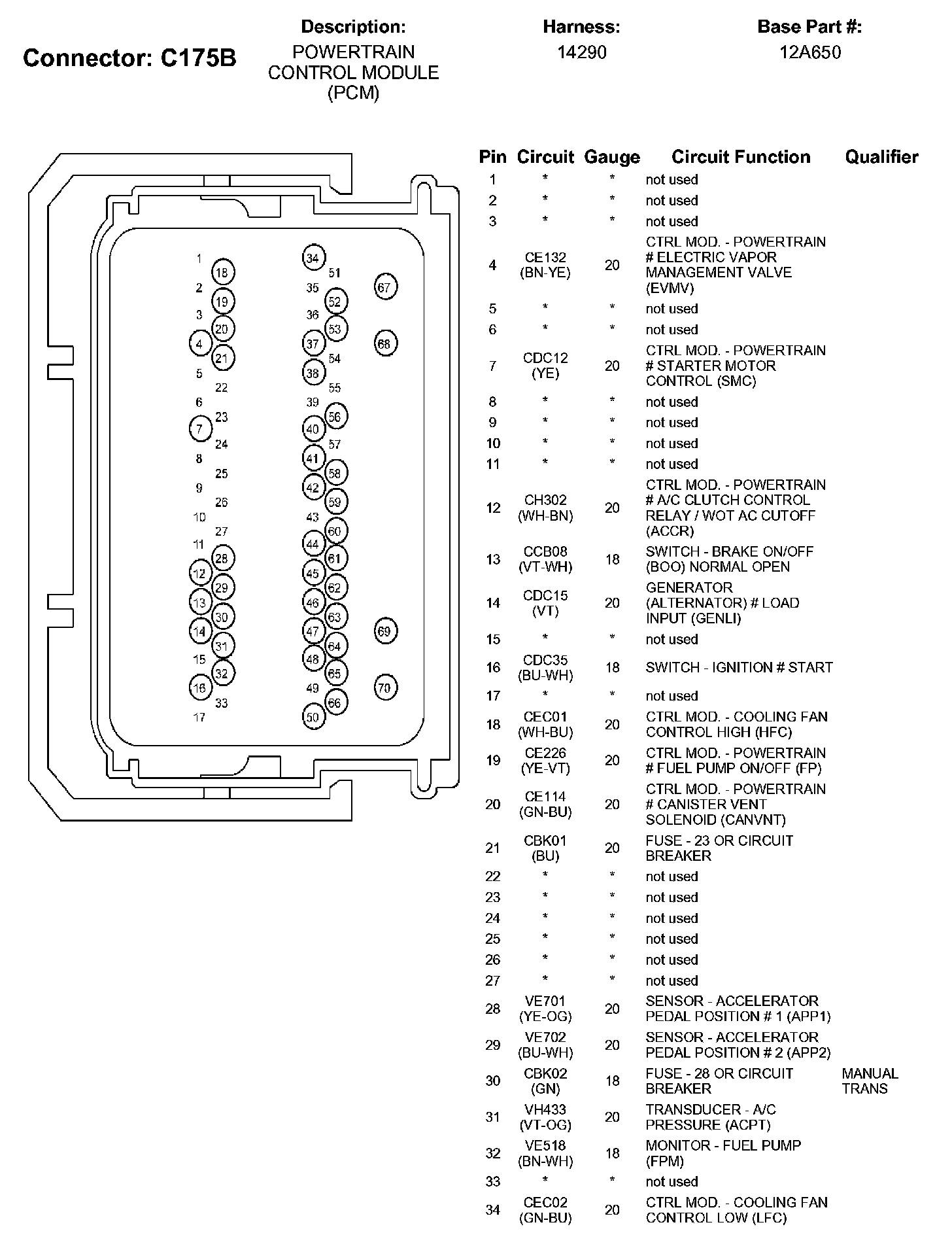

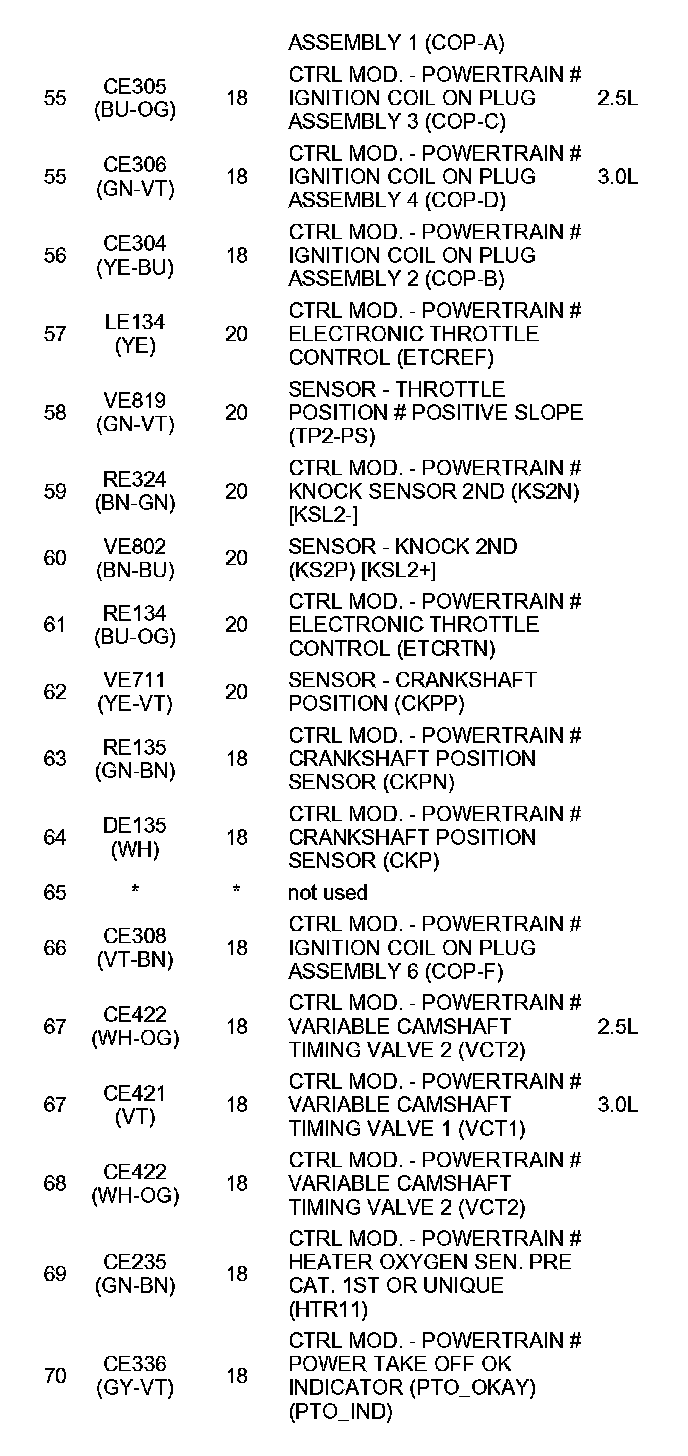

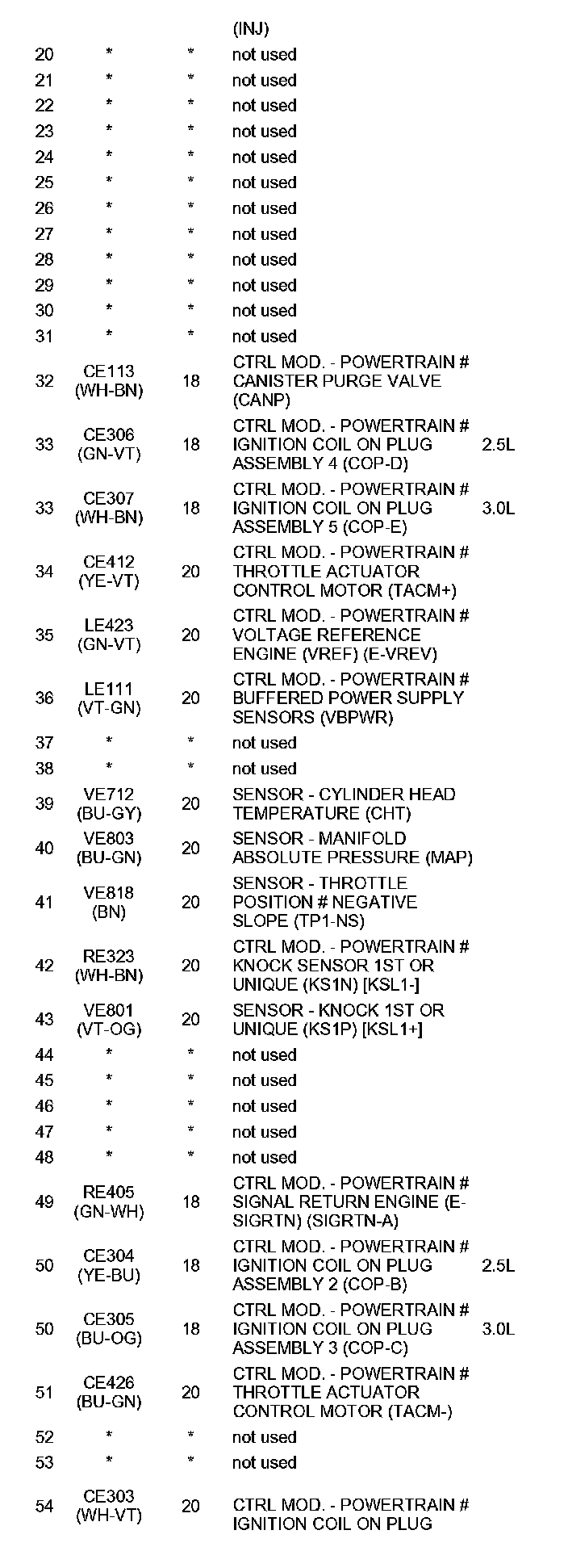

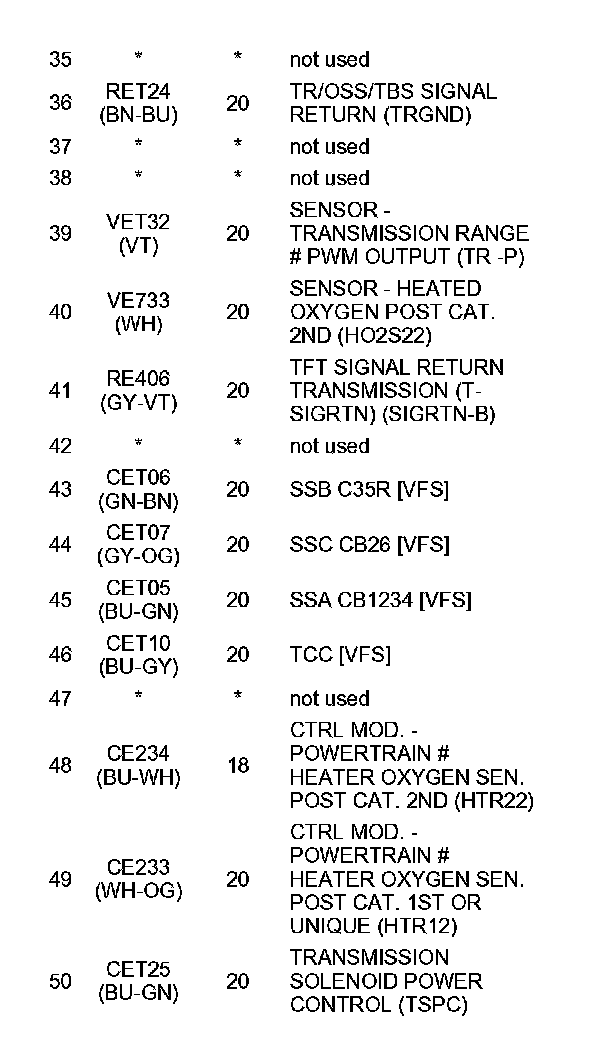

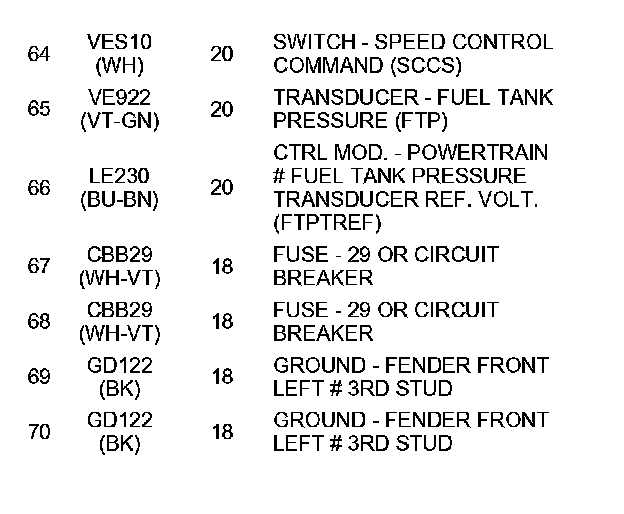

Engine Control Module

Part 1:



Part 2:



Part 3:



Part 1:



Part 2:



Part 3:



Part 1:



Part 2:
