Home >> Ford >> 2009 >> Escape 2WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Audio Control Module (ACM)

Audio Control Module (ACM)

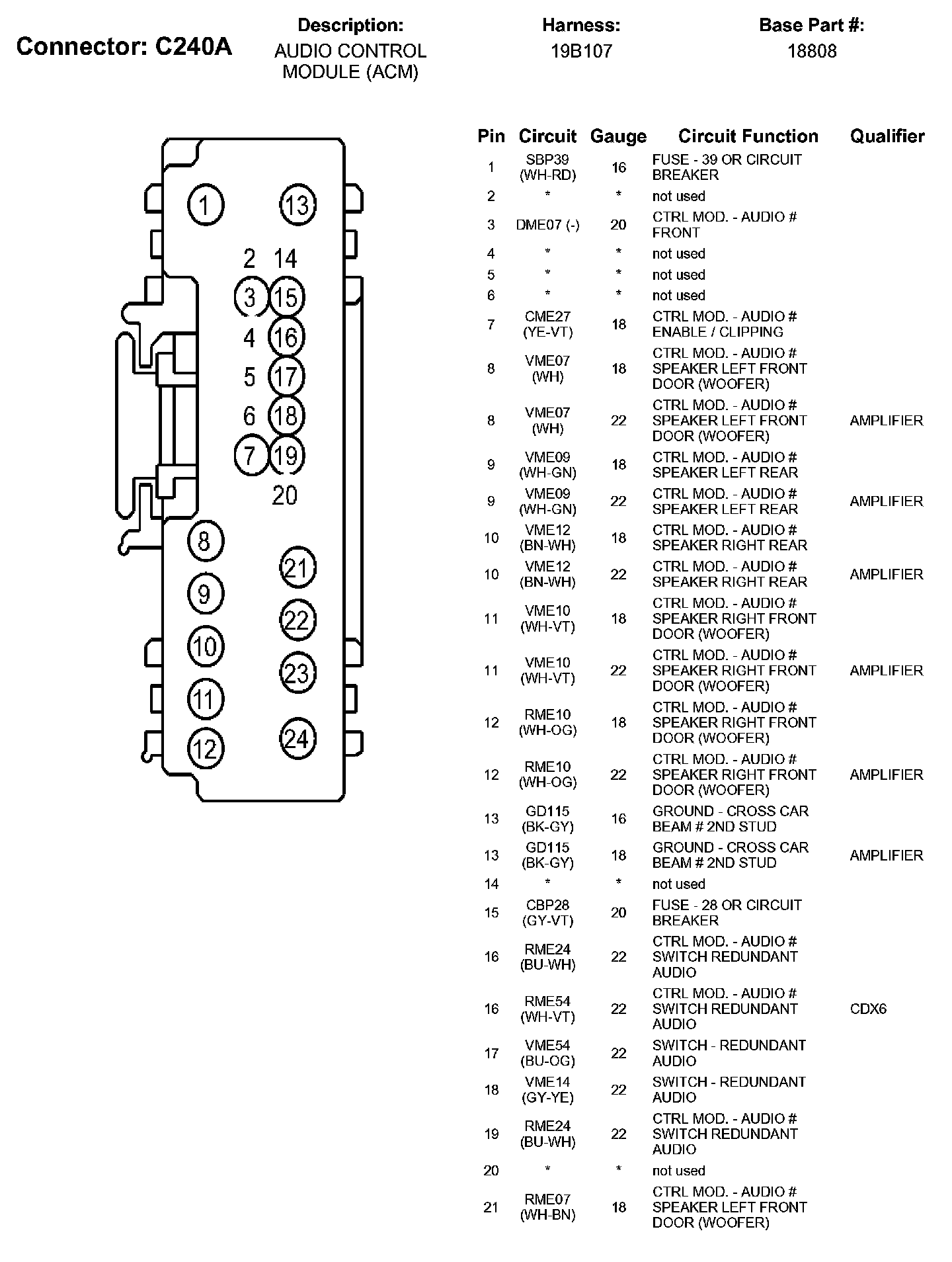

C240A Part 1:

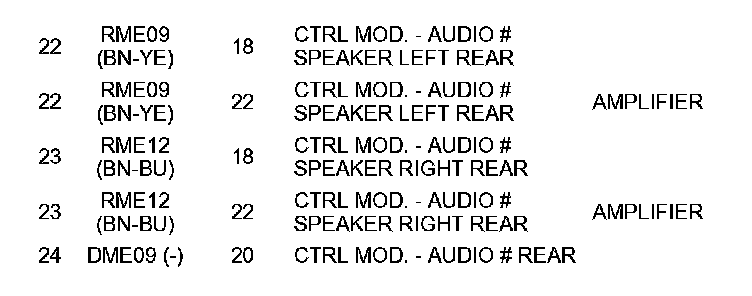

C240A Part 2:

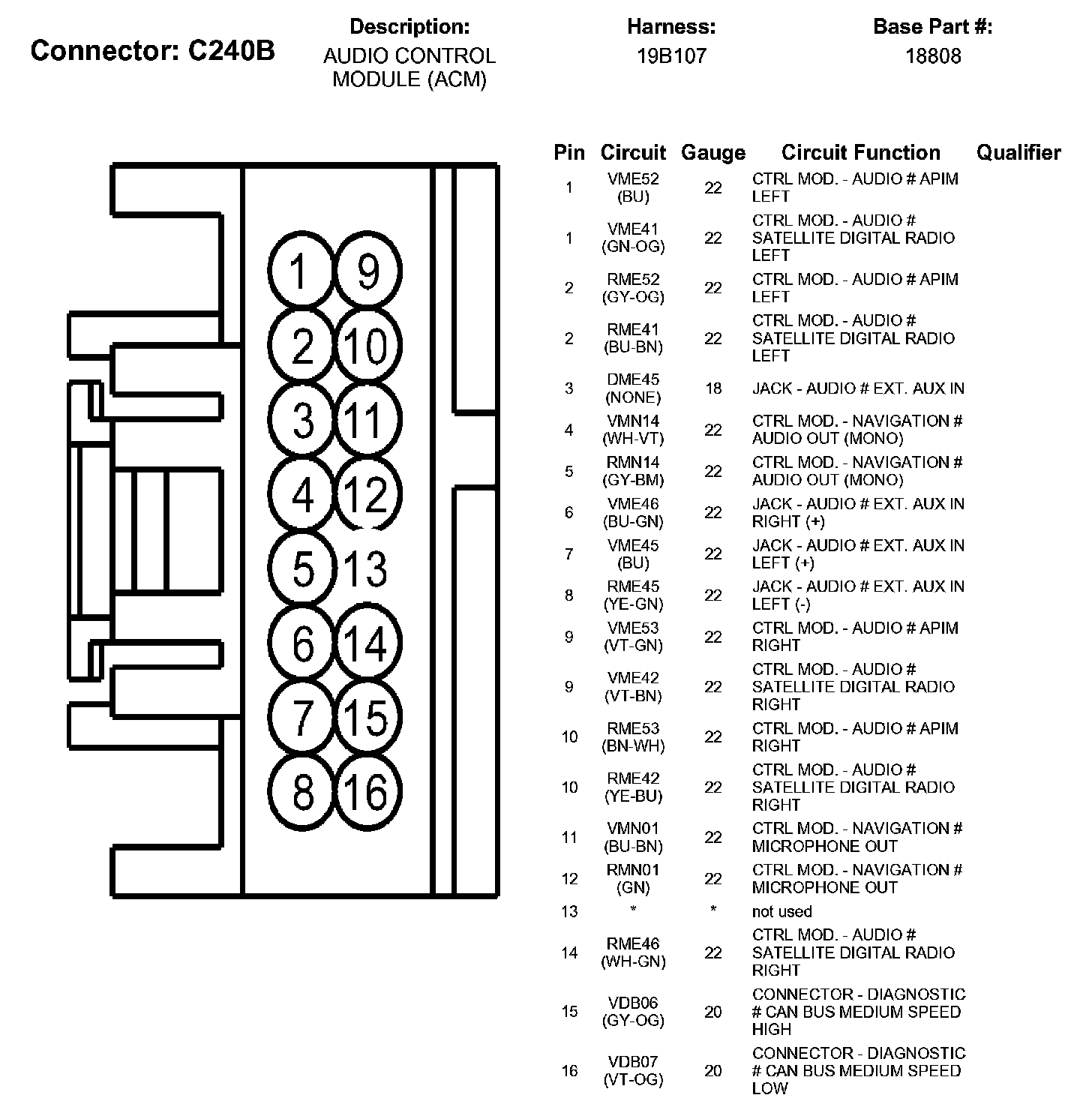

C240B:

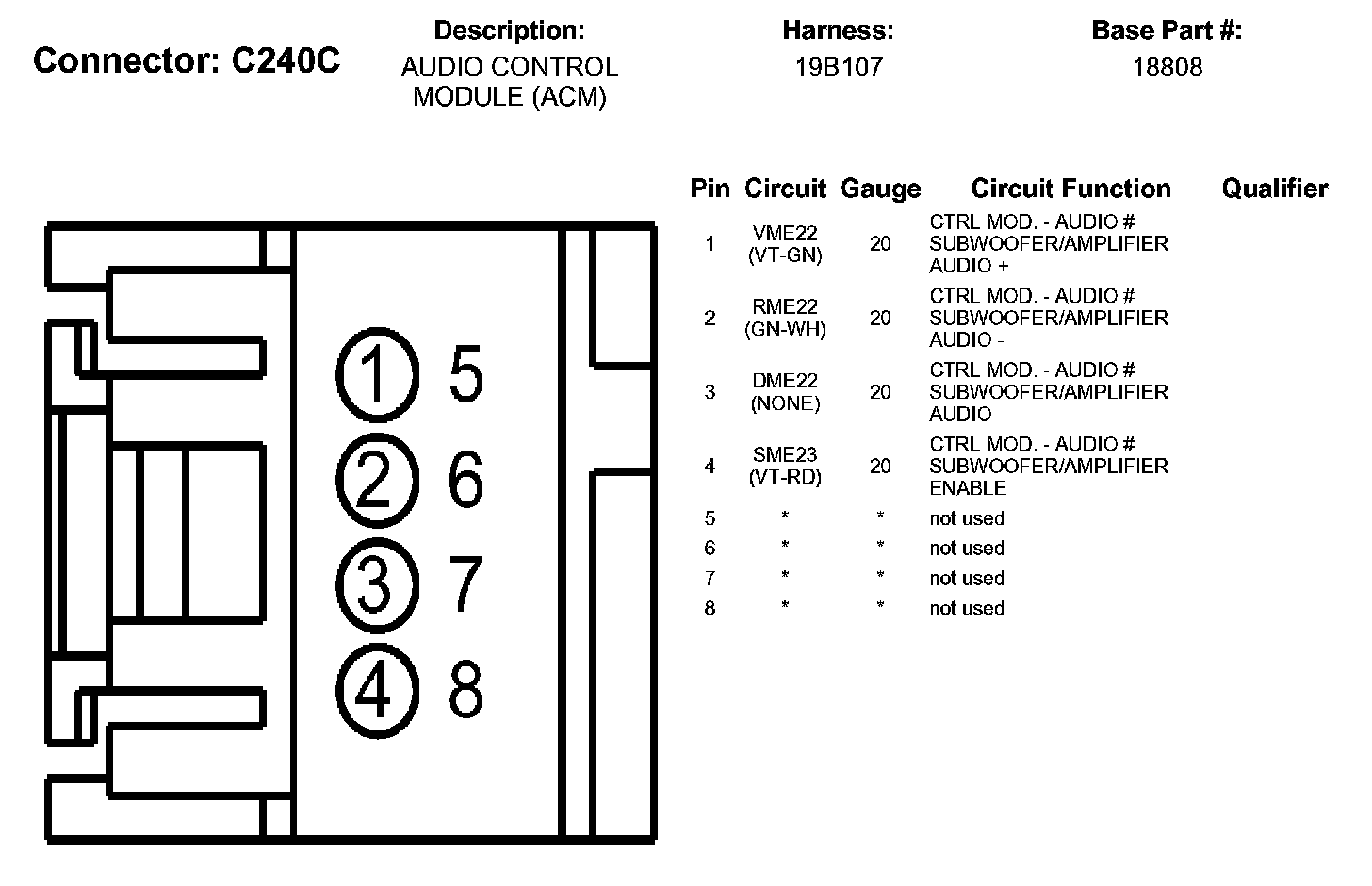

C240C:
