Test B: Powertrain Control Module (PCM) Power Relay

PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

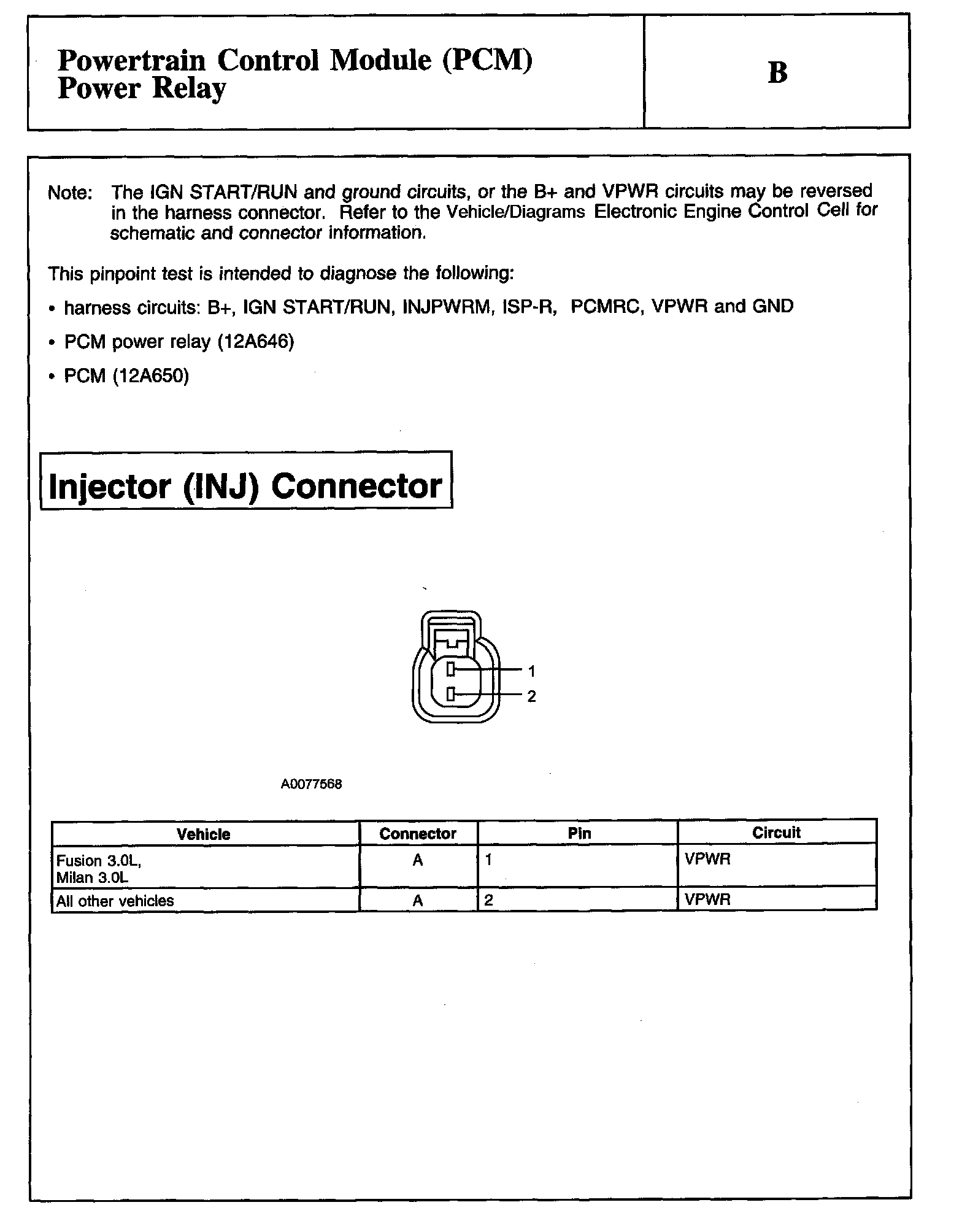

Note And Injector (INJ) Connector:

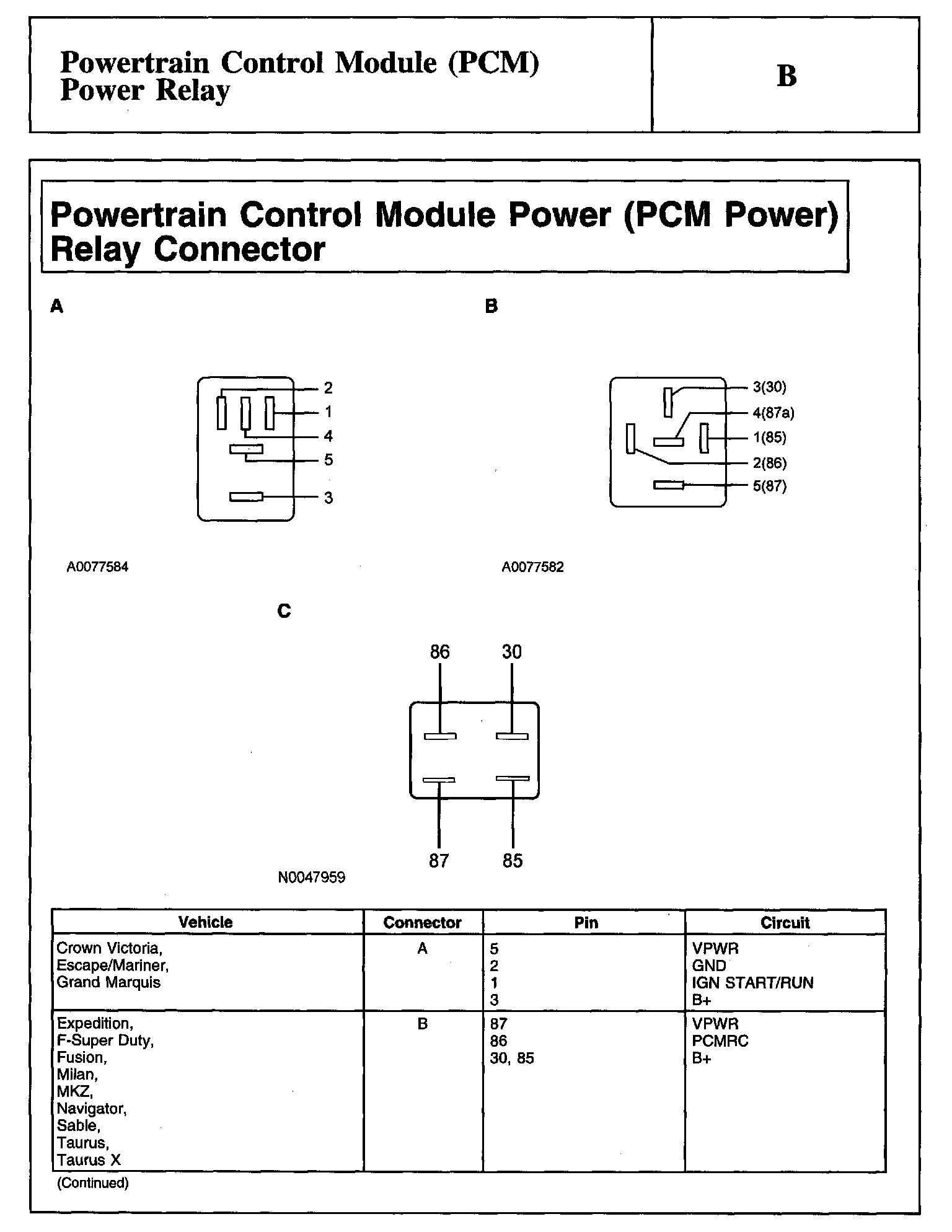

Powertrain Control Module Power (PCM Power) Relay Connector:

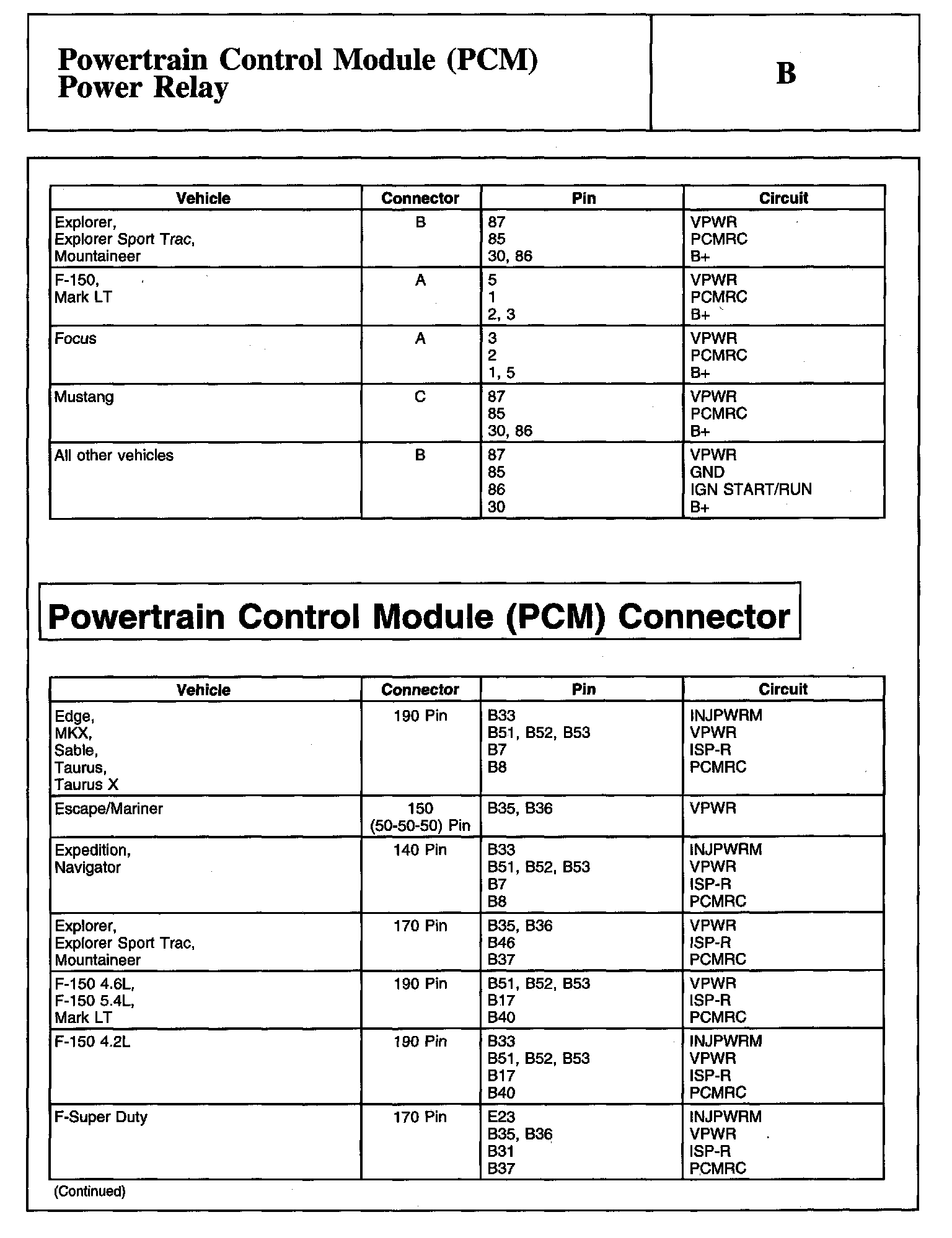

Powertrain Control Module Power (PCM Power) Relay Connector And Powertrain Control Module (PCM) Connector:

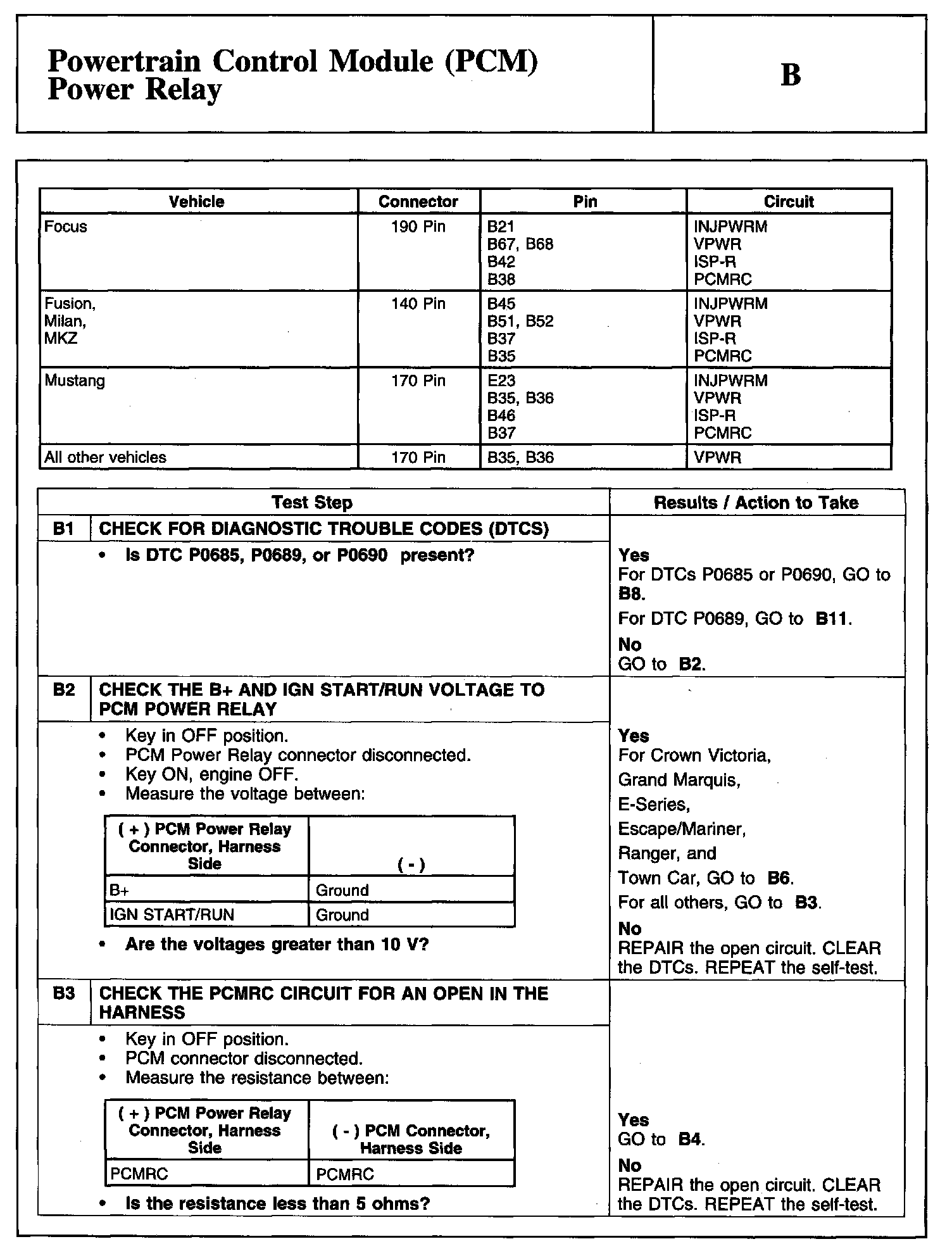

B1-B3:

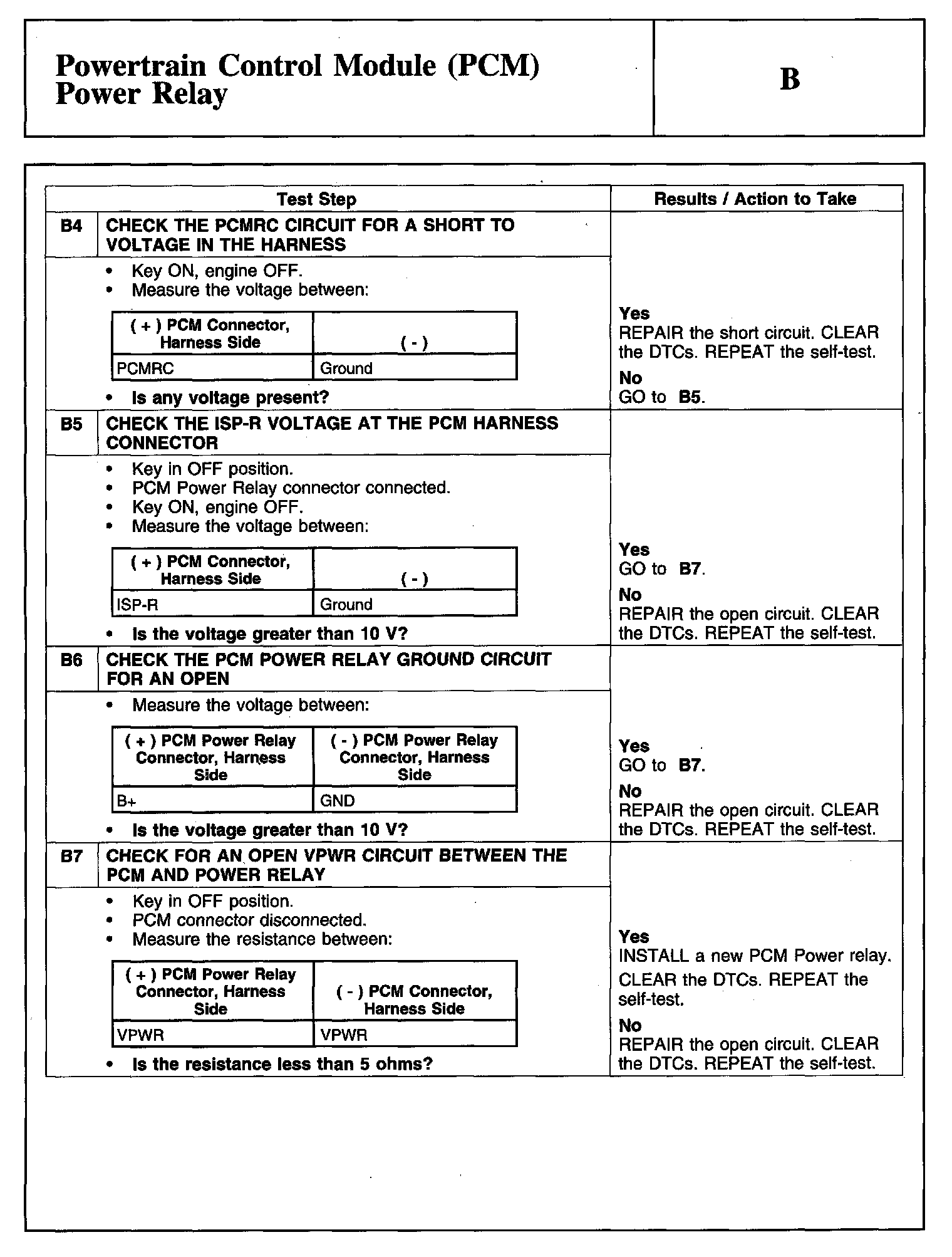

B4-B7:

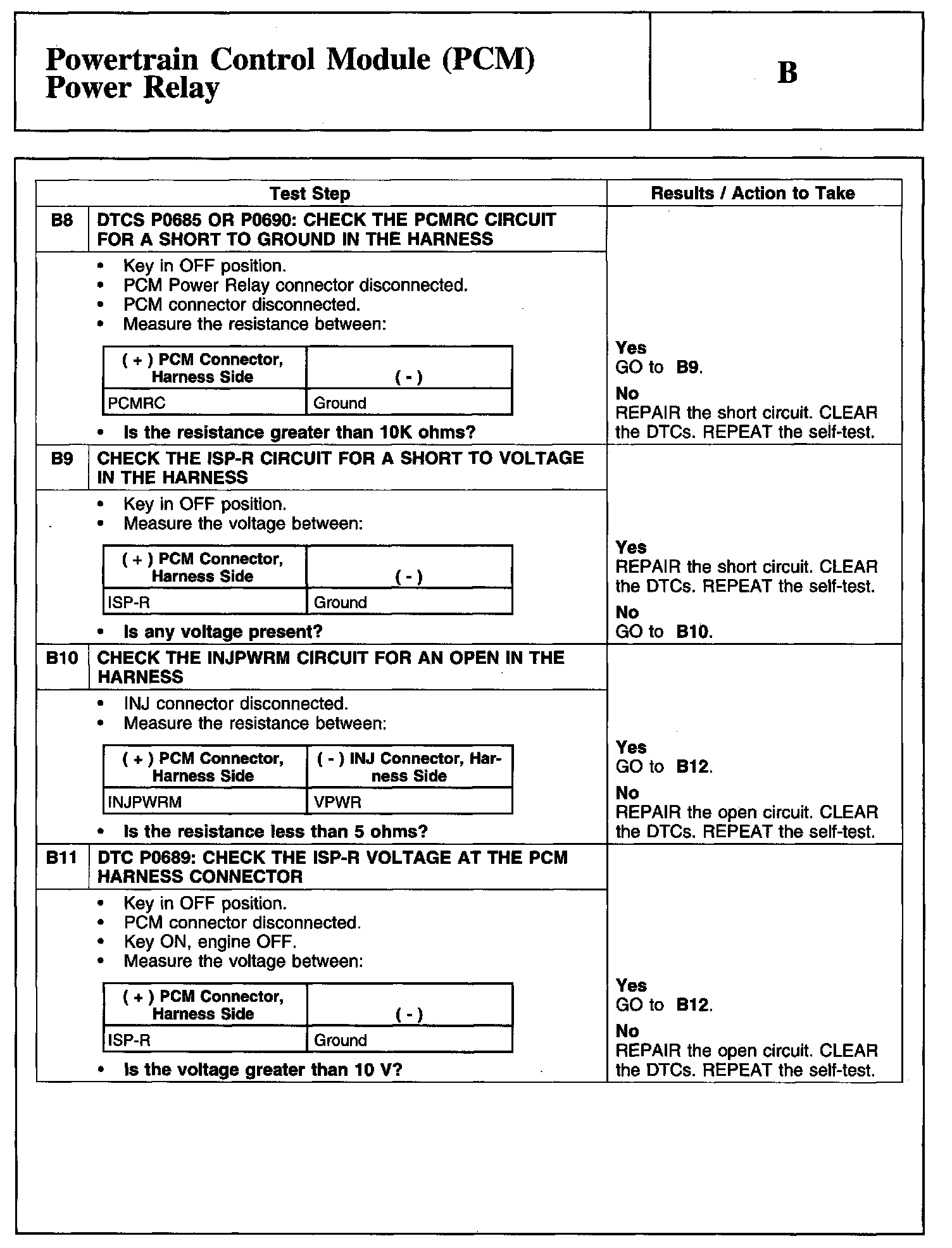

B8-B11:

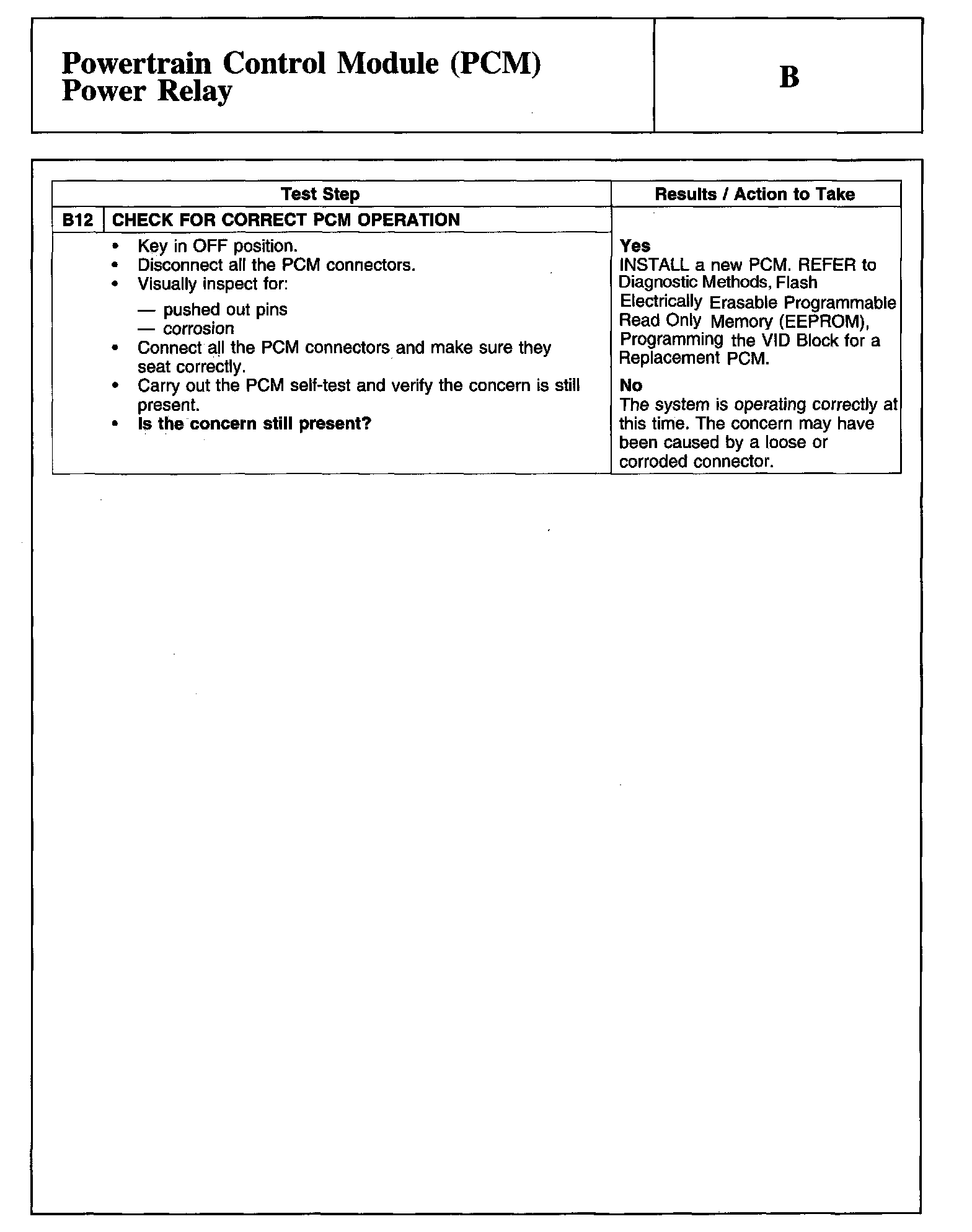

B12:
