Suspension
- Exploded View

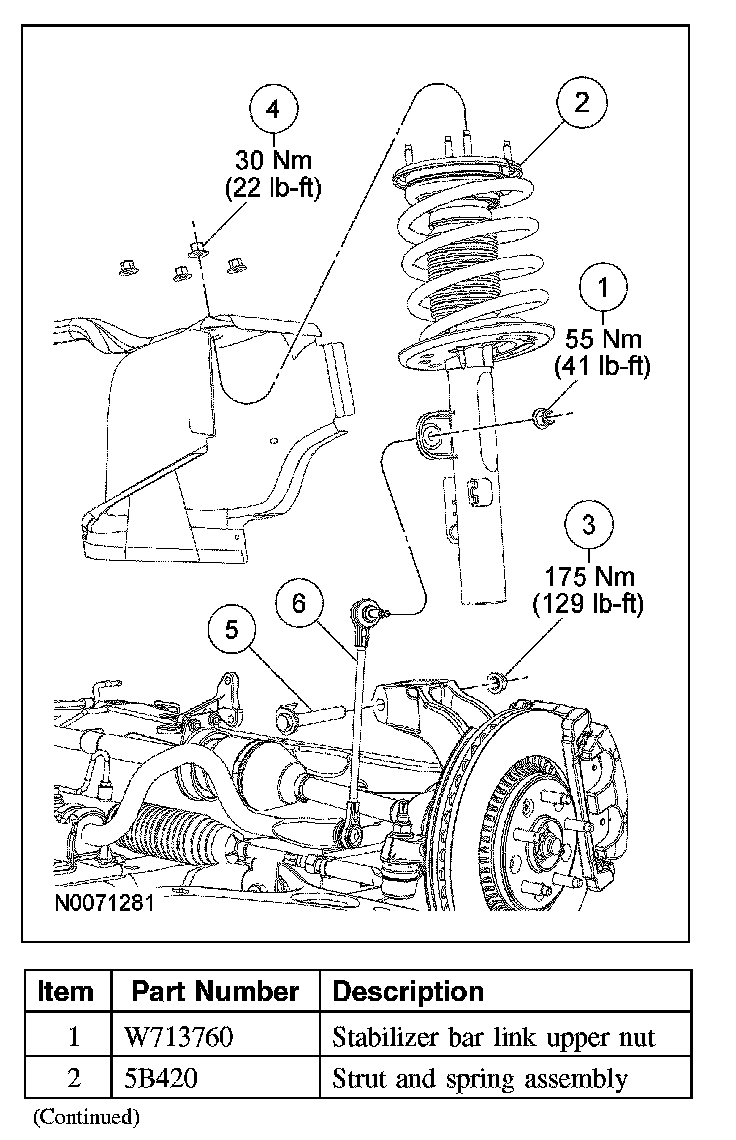

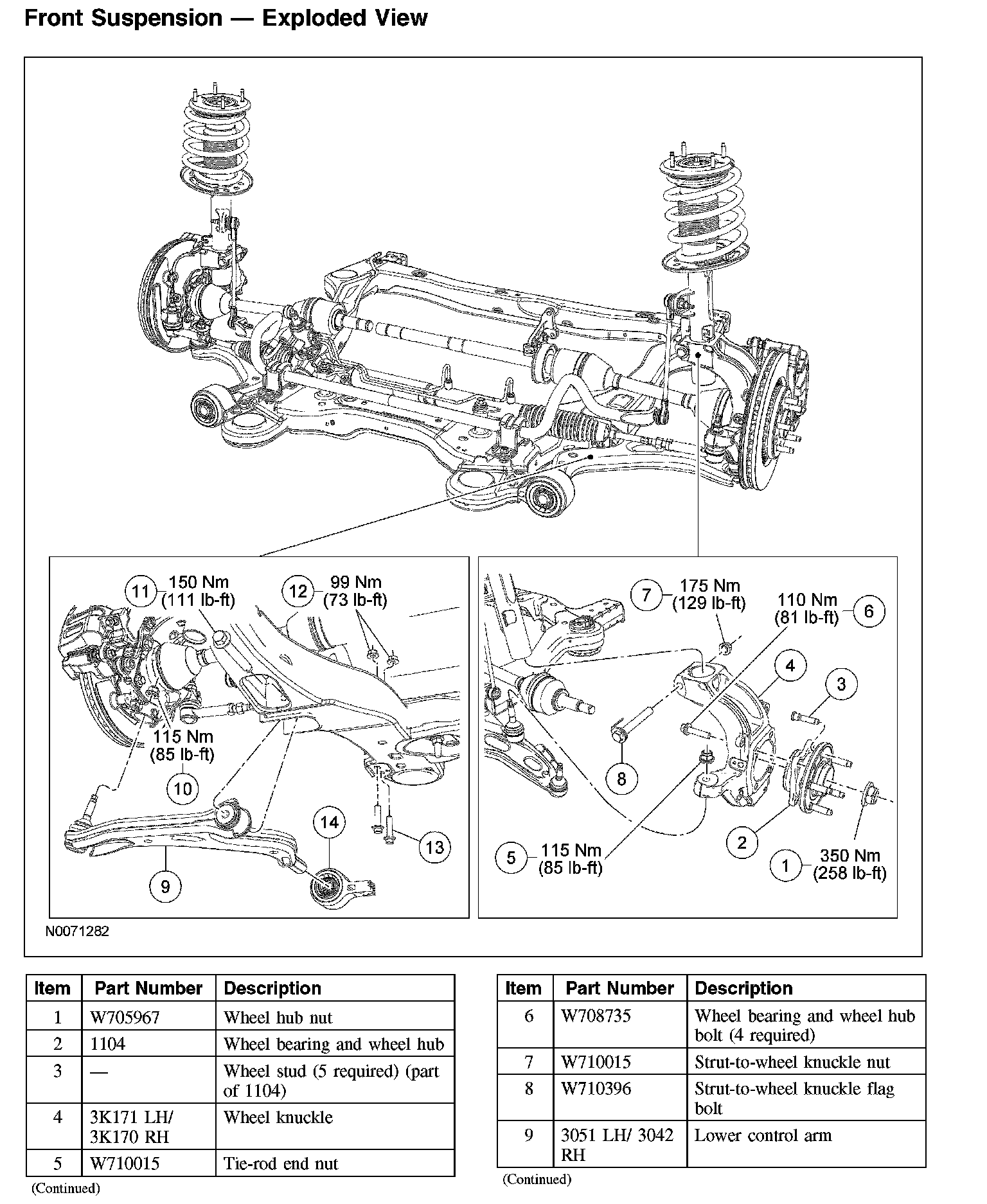

Front Suspension - Exploded View (Part 1):

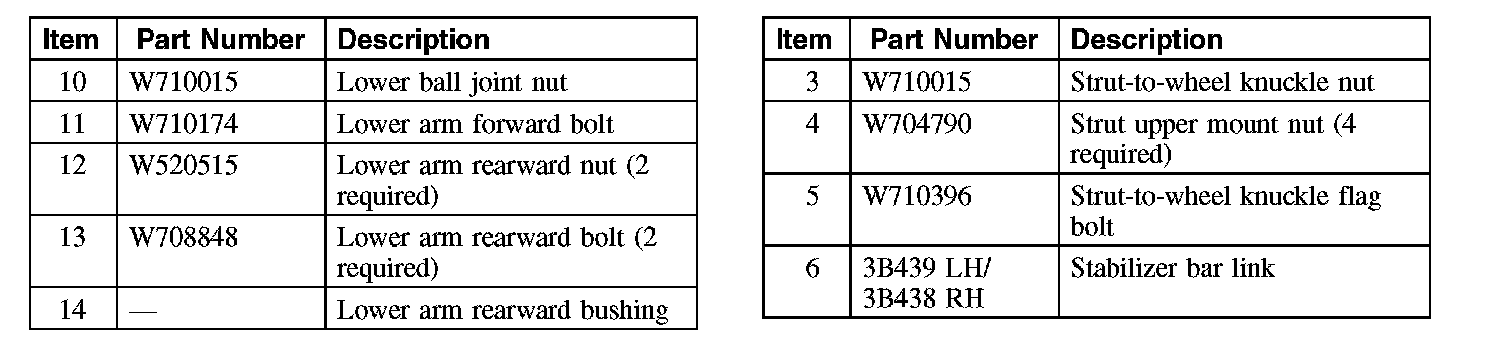

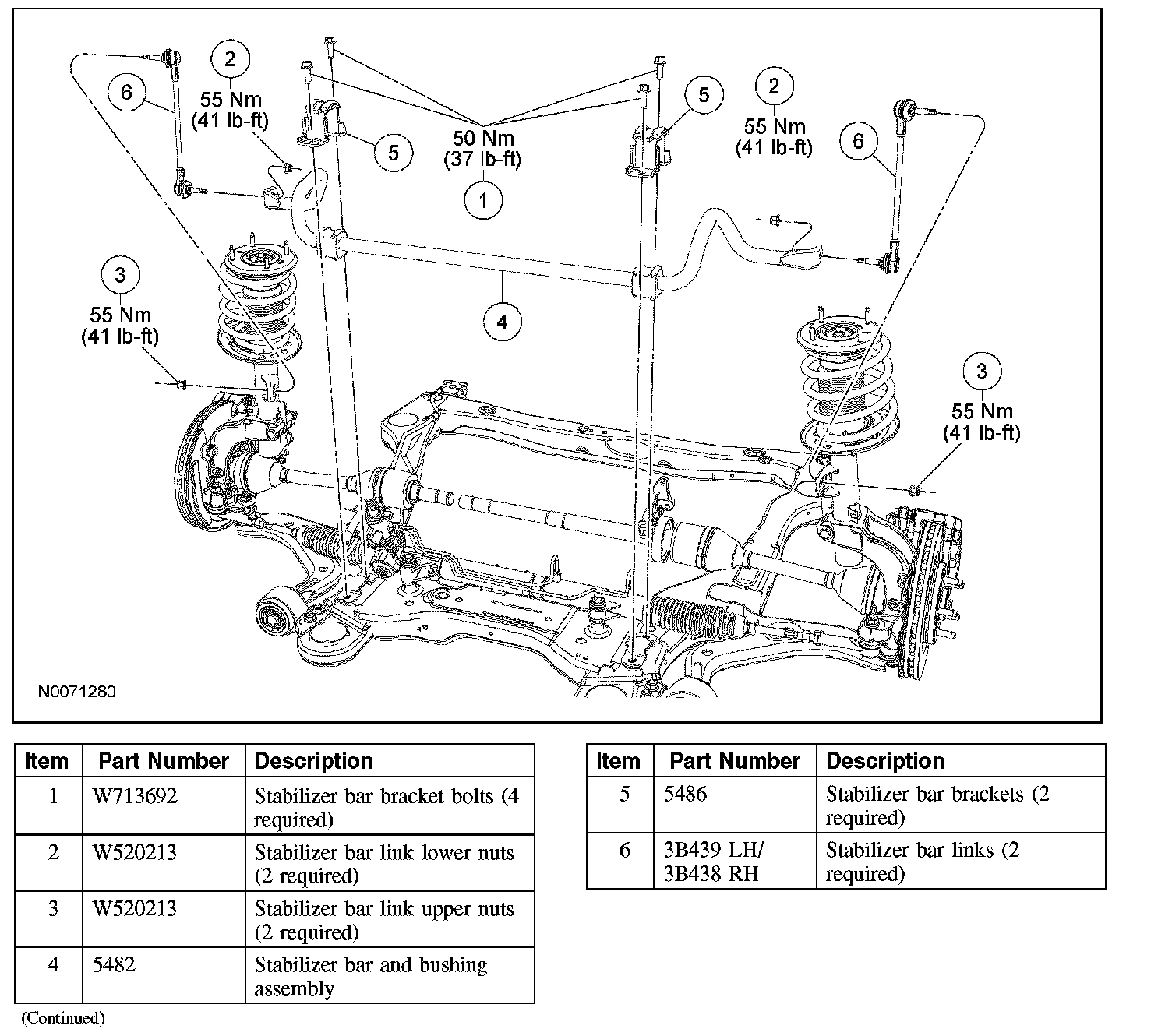

Front Suspension - Exploded View (Part 2):
