Home >> Ford >> 2008 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

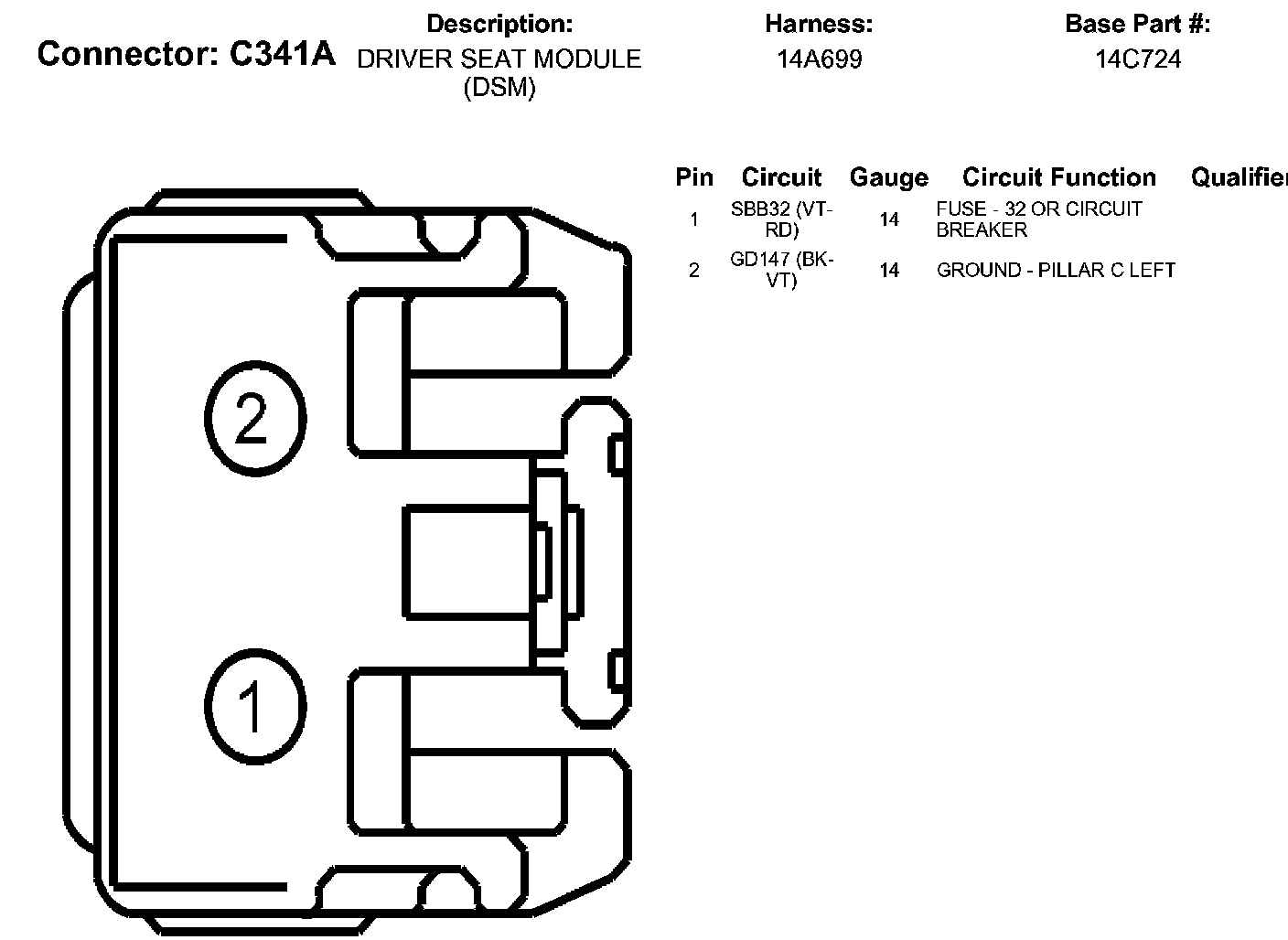

C341A:

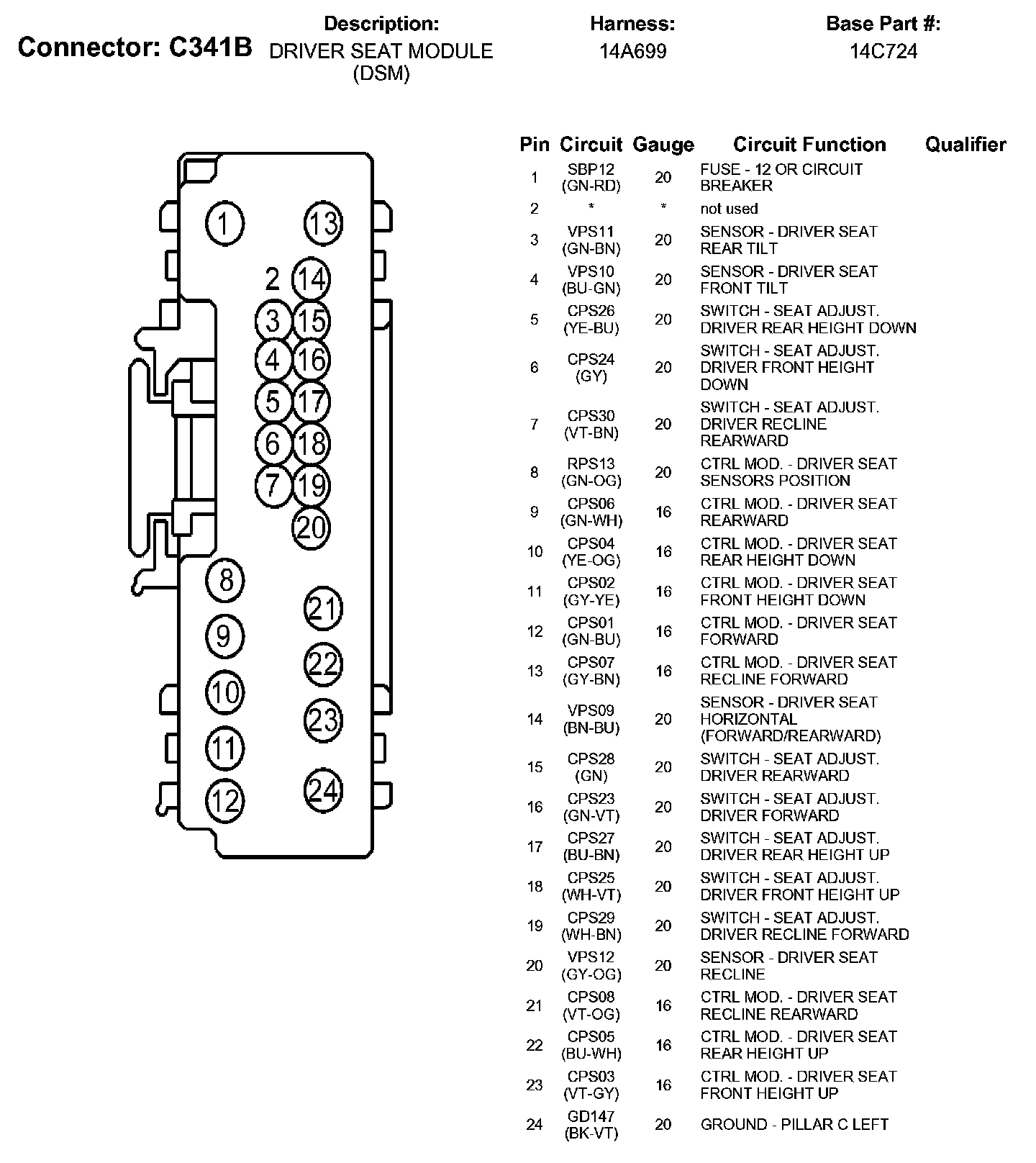

C341B:

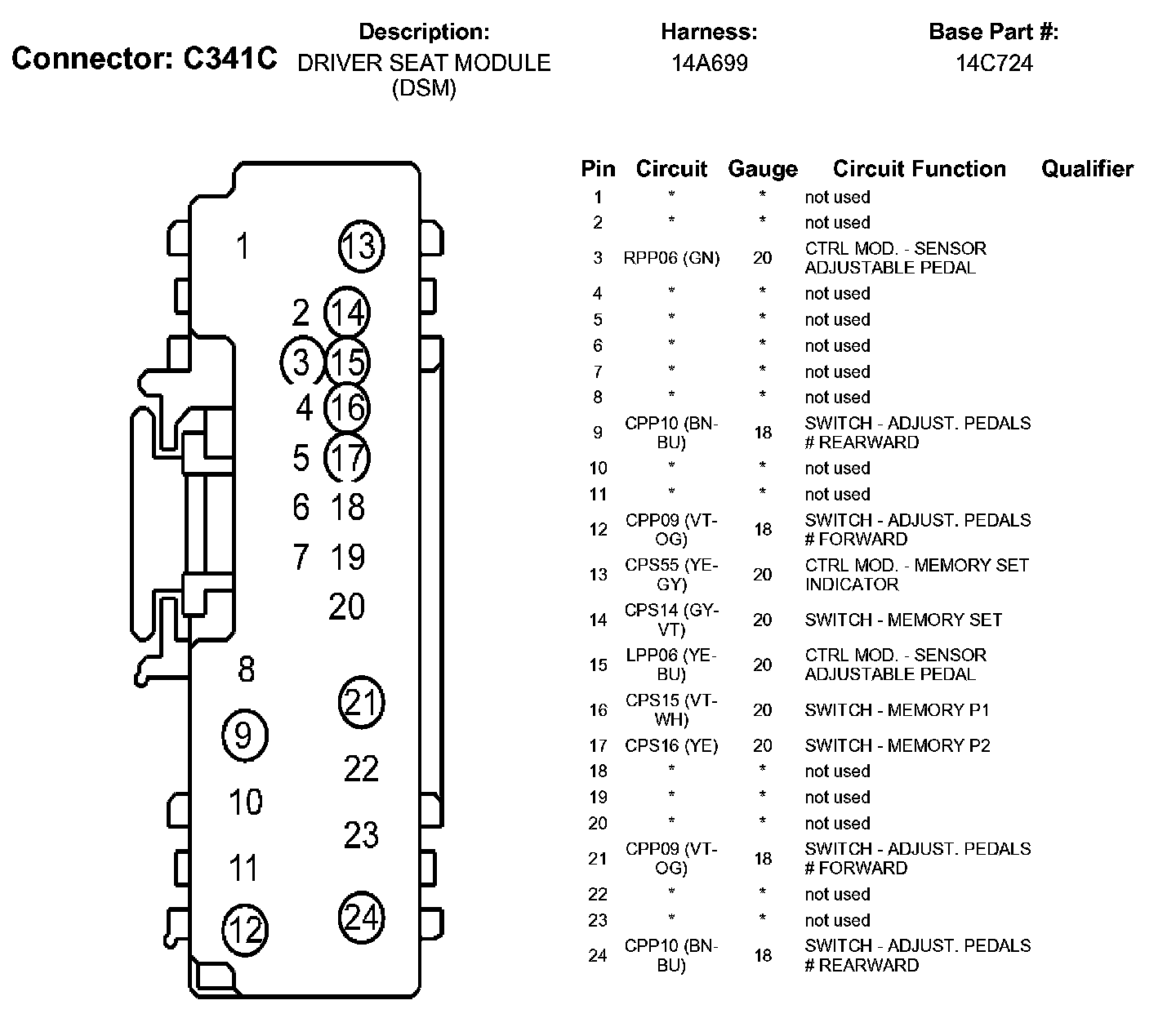

C341C:

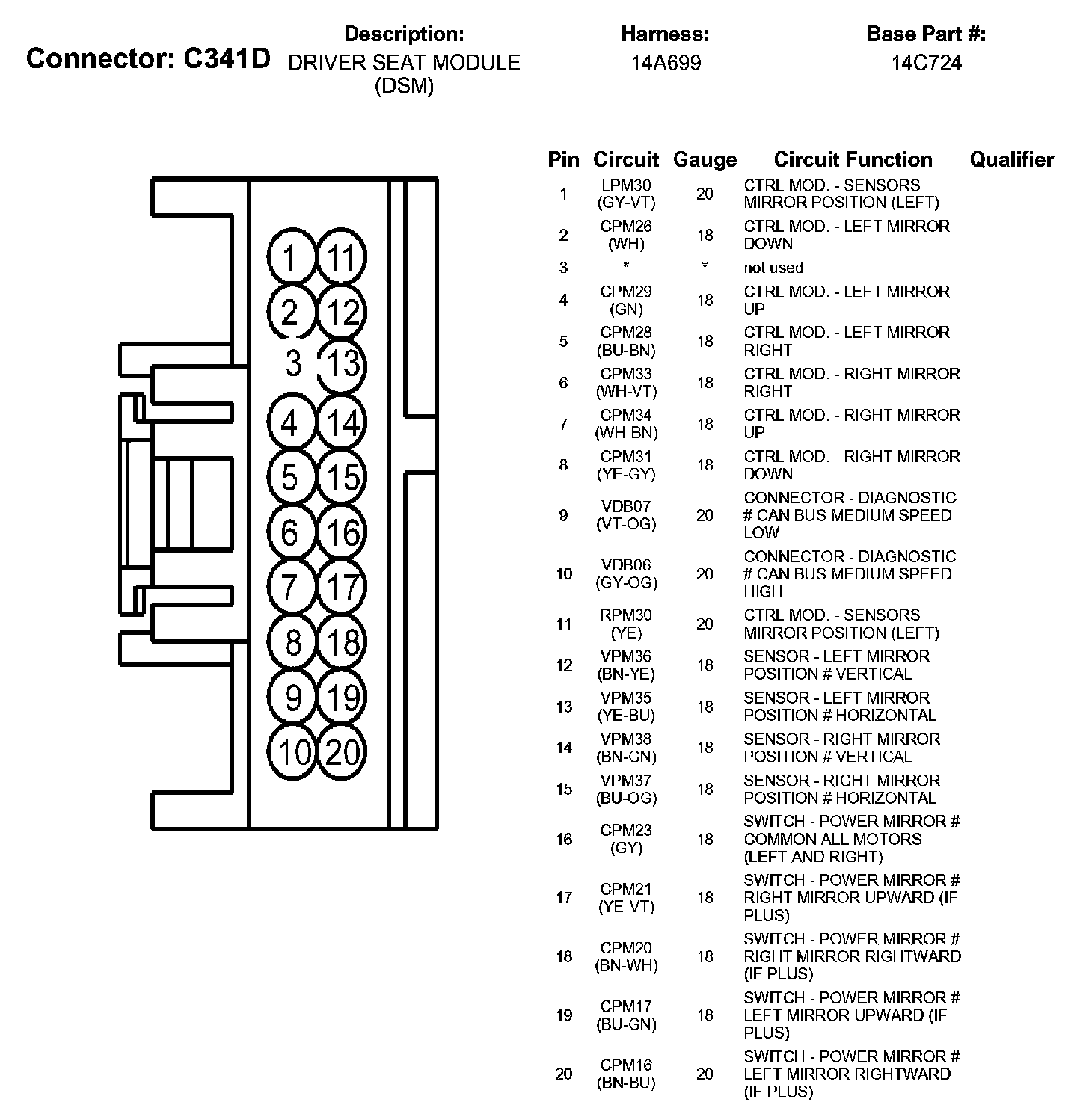

C341D:
