Ford
>>
2008
>>
Taurus FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
Entertainment System Control Module

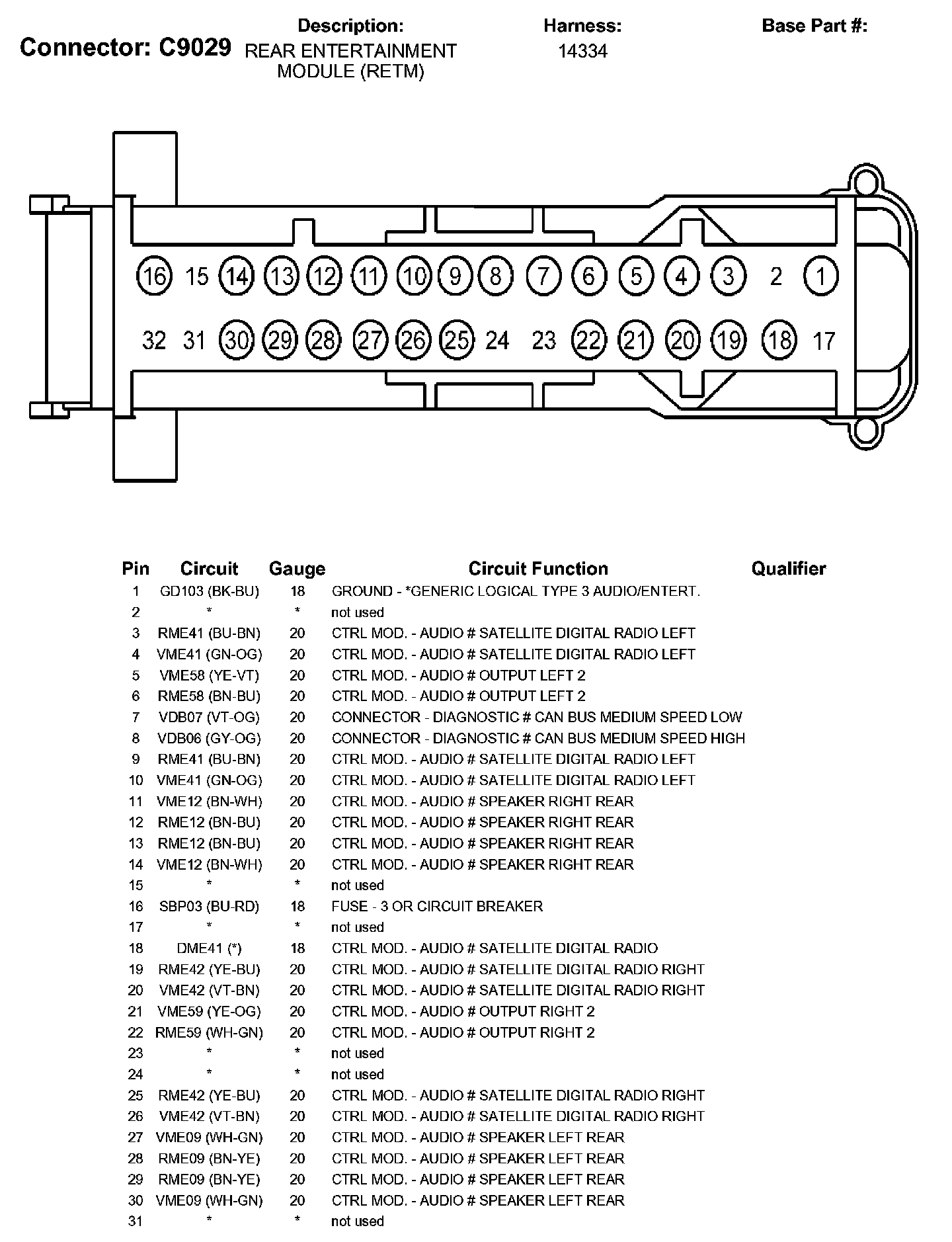

C9029 (part 1):

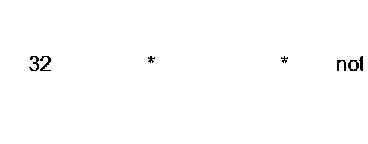

C9029 (Part 2):
