Communications Control Module
>>
Accessory Protocol Interface Module (APIM)
Accessory Protocol Interface Module (APIM)

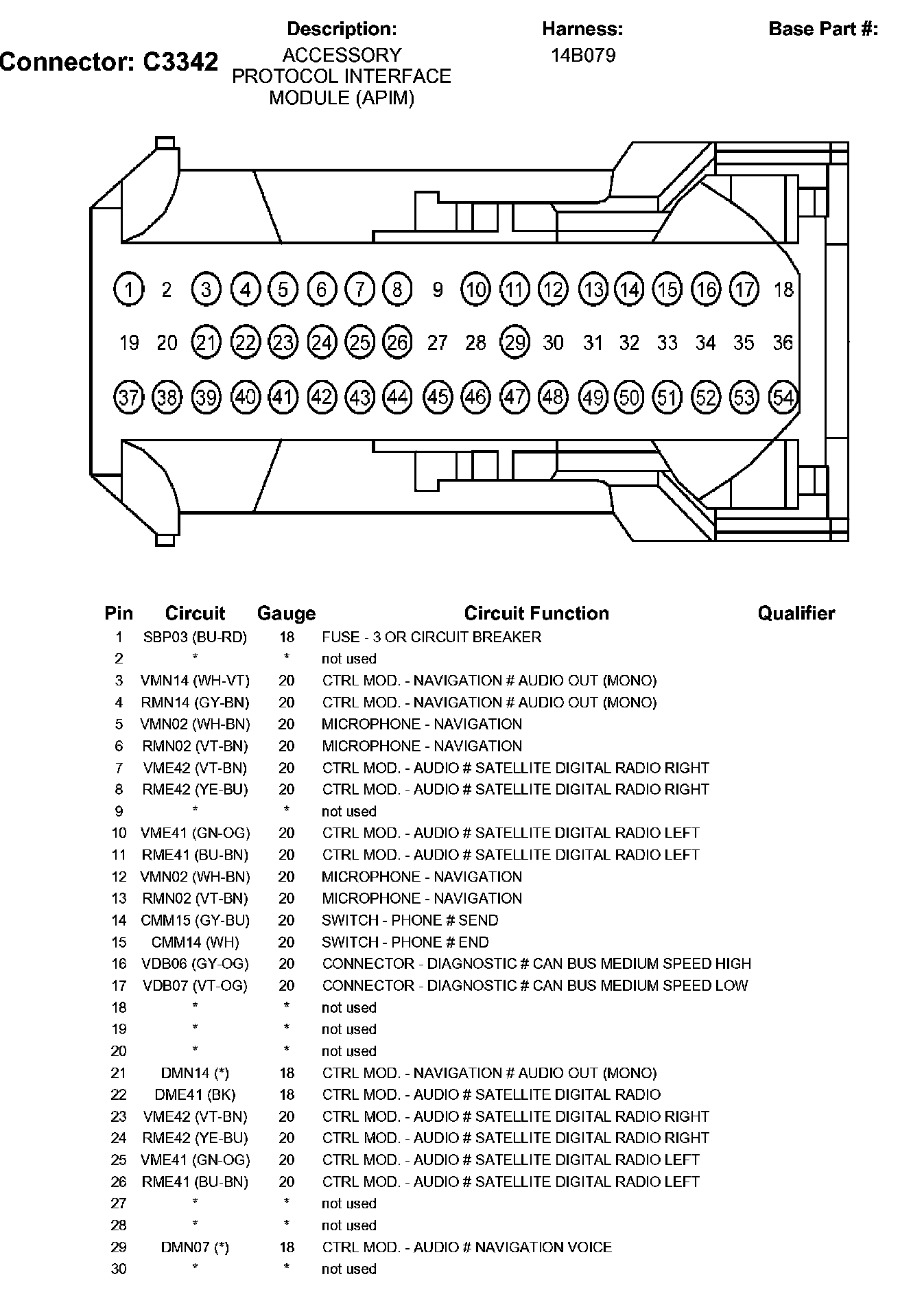

C3342 (Part 1):

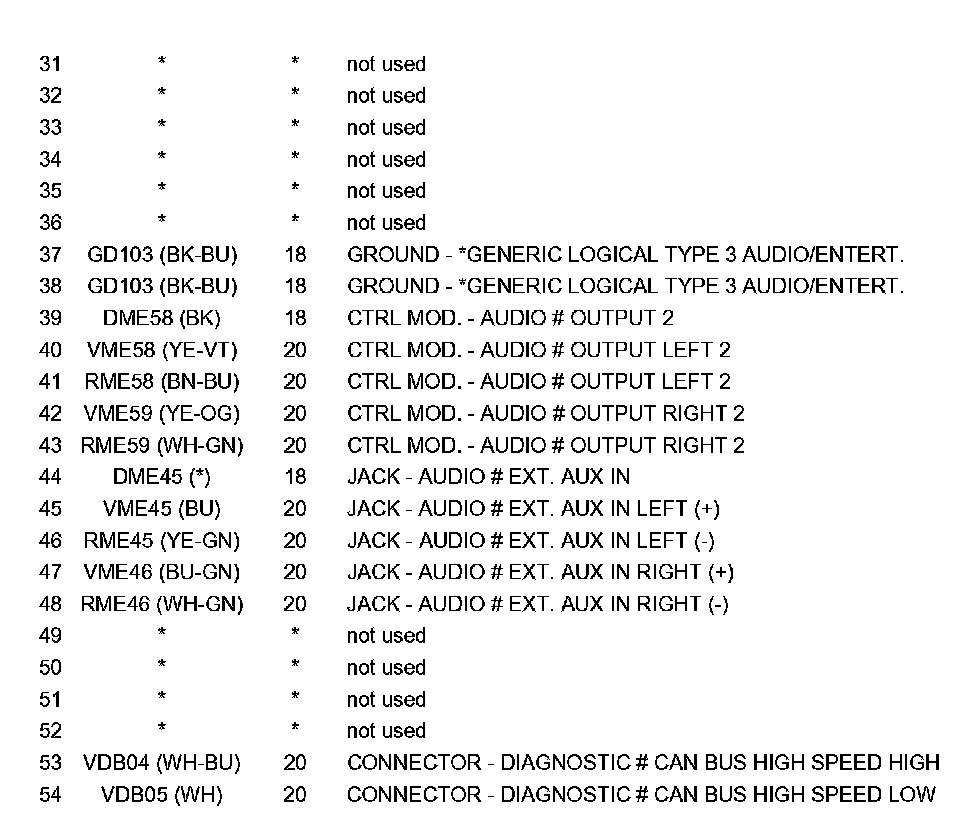

C3342 (Part 2):
