Home >> Ford >> 2008 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

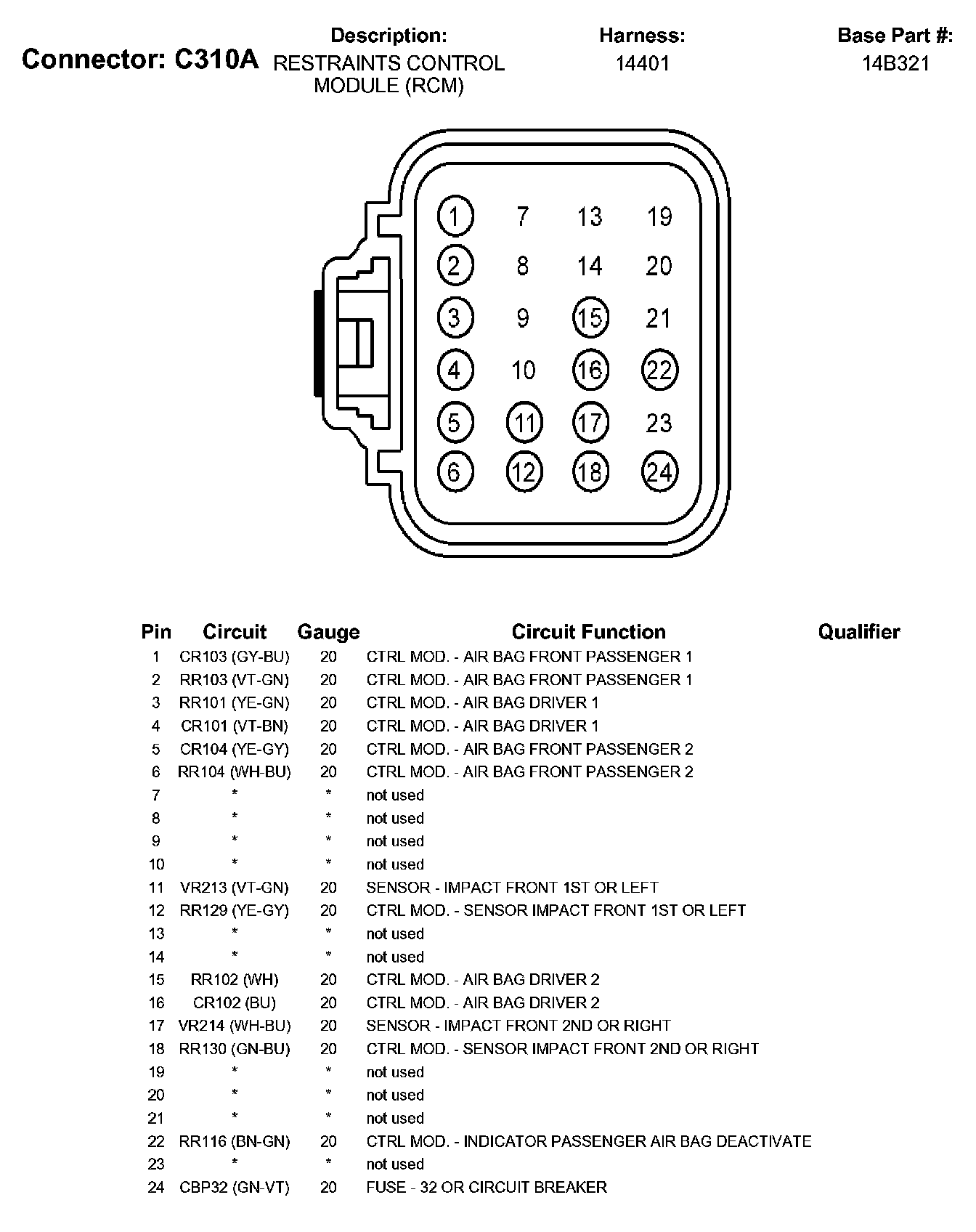

C310A:

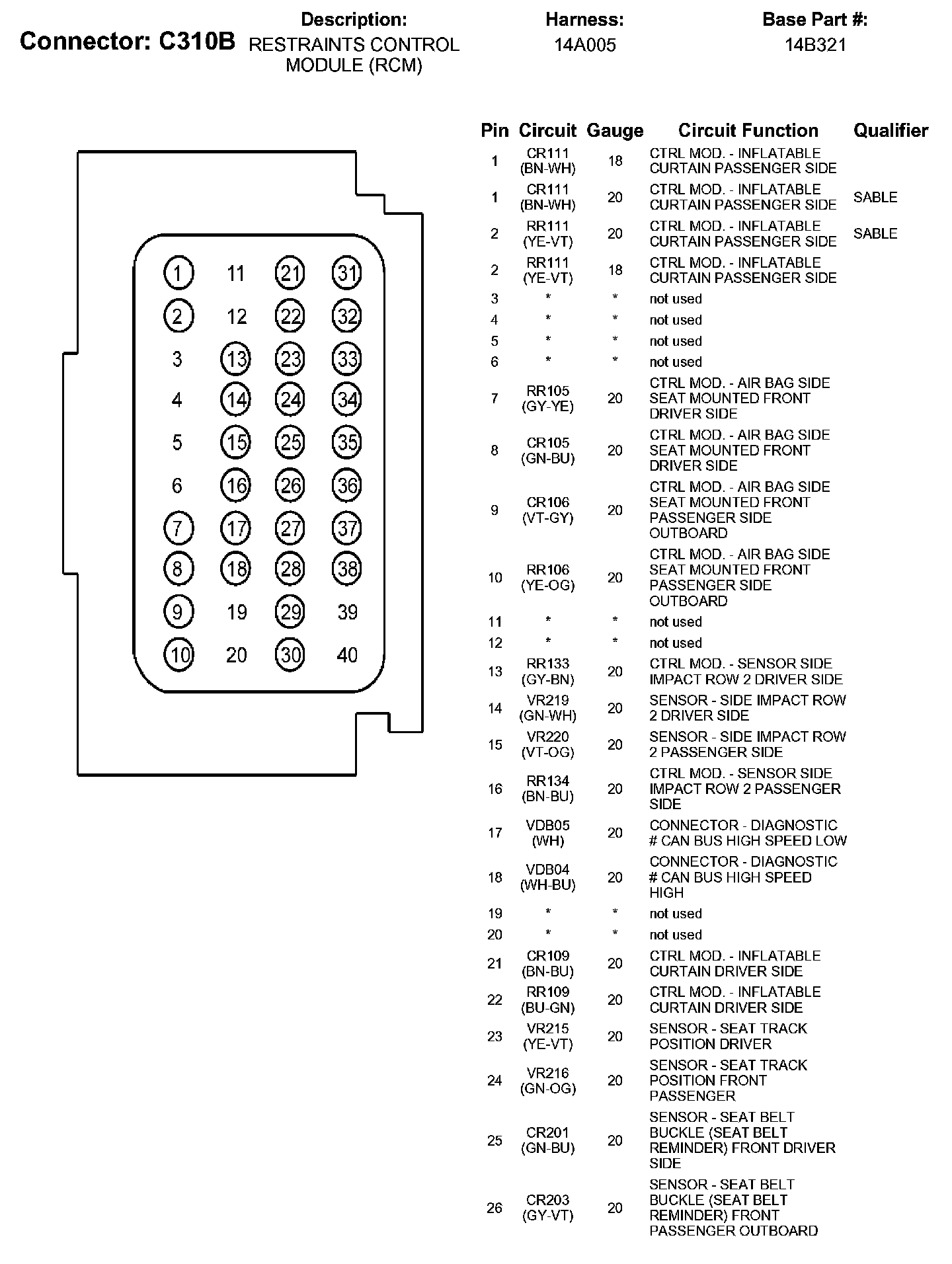

C310B (Part 1):

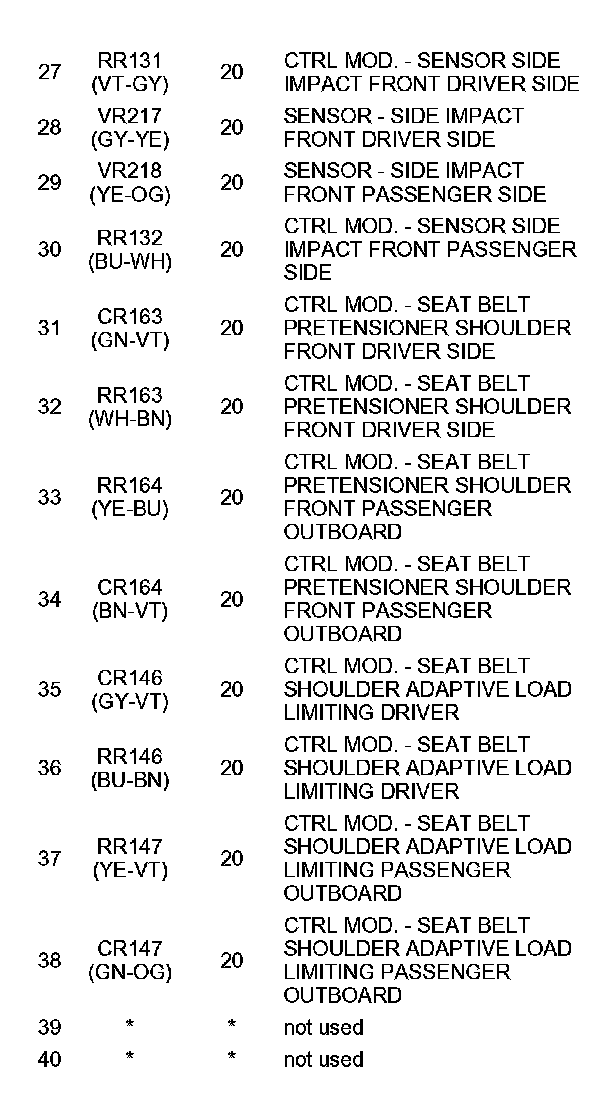

C310B (Part 2):
