Ford
>>
2008
>>
F 150 4WD V6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine Lubrication
Engine Lubrication
Engine Lubrication
Components - Exploded View

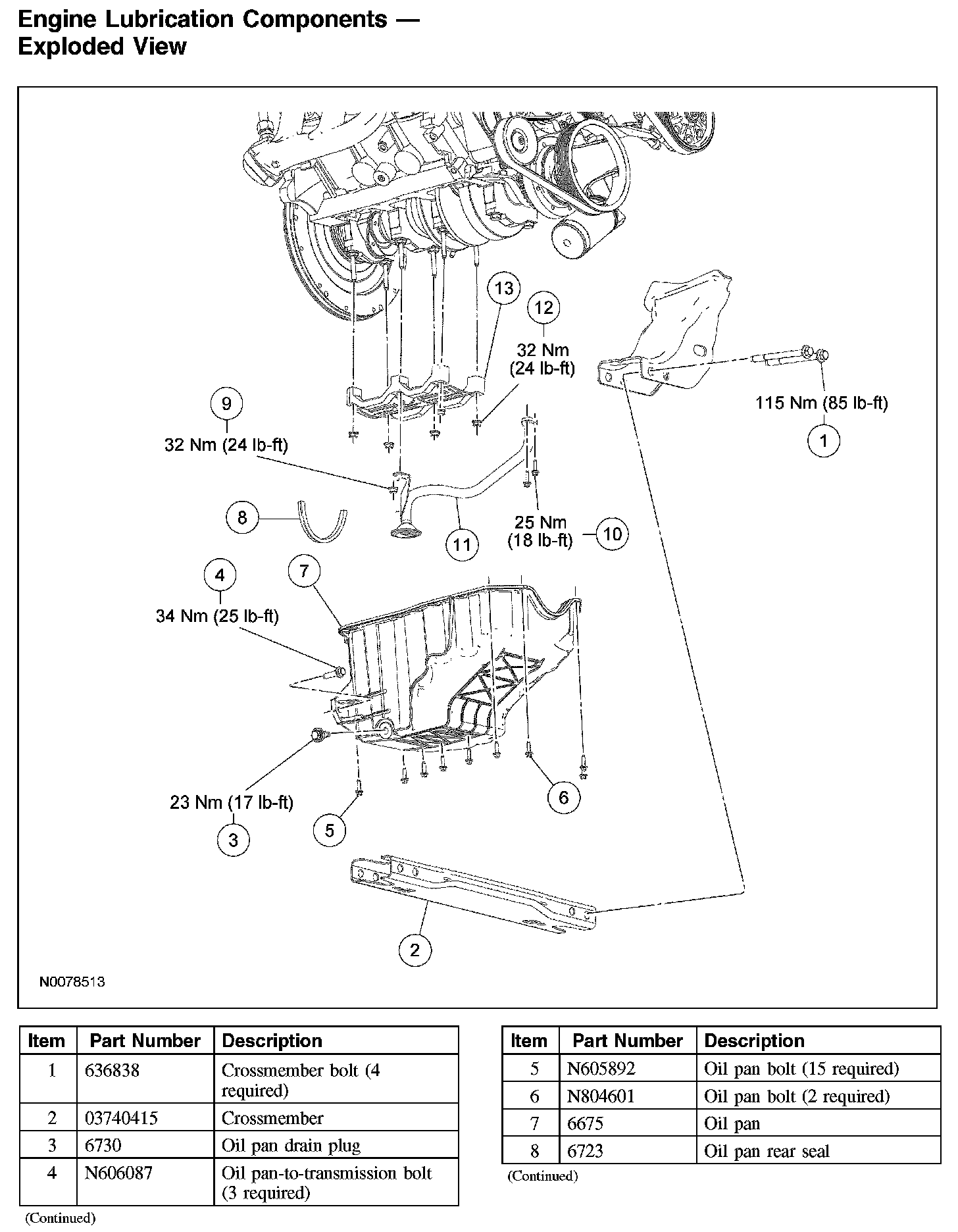

Engine Lubrication Components - Exploded View (Part 1):

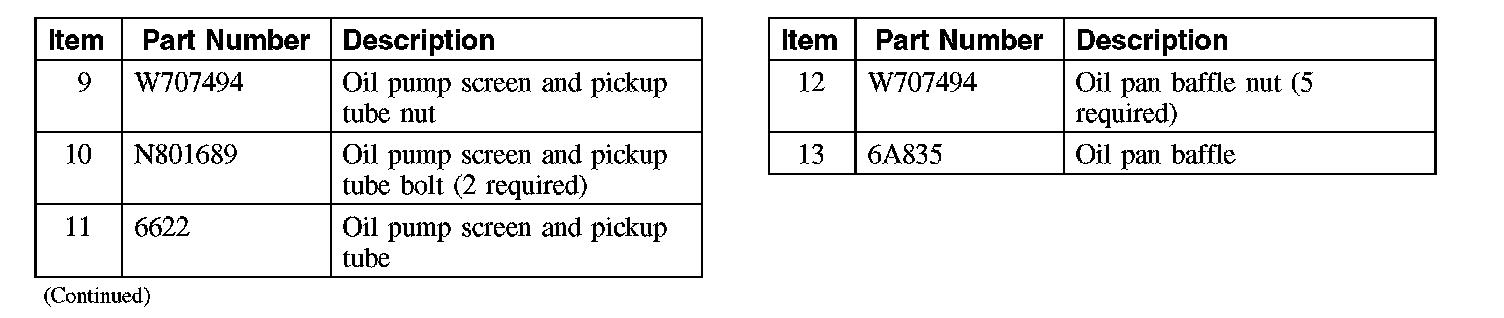

Engine Lubrication Components - Exploded View (Part 2):
