Differential Assembly
>>
Front Drive Axle/Differential
Front Drive Axle/Differential

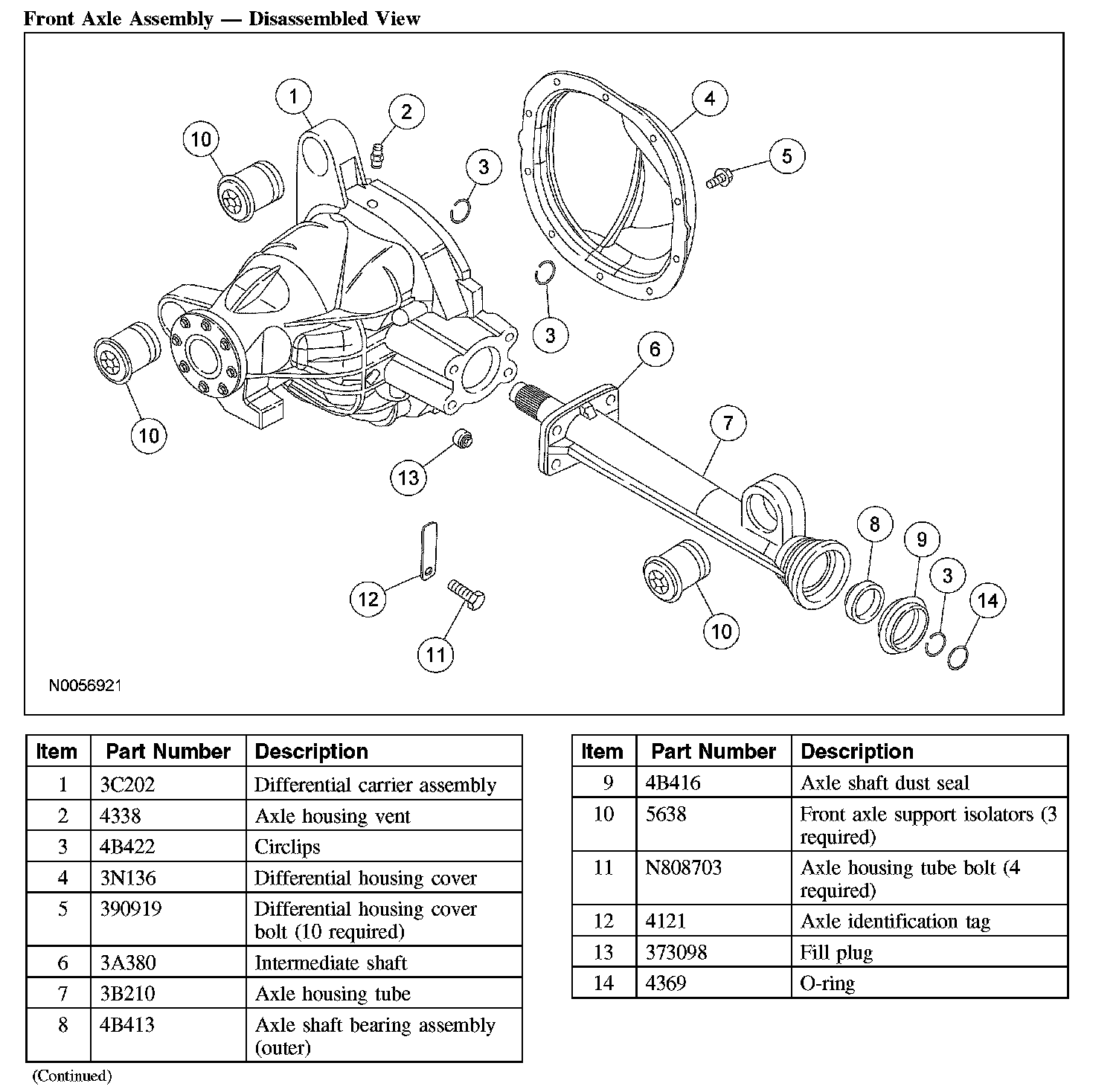

Front Axle Assembly - Disassembled View:
