Ford
>>
2008
>>
F 150 4WD V6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Heated Seat Module, Driver Side Front
Heated Seat Module, Driver Side Front

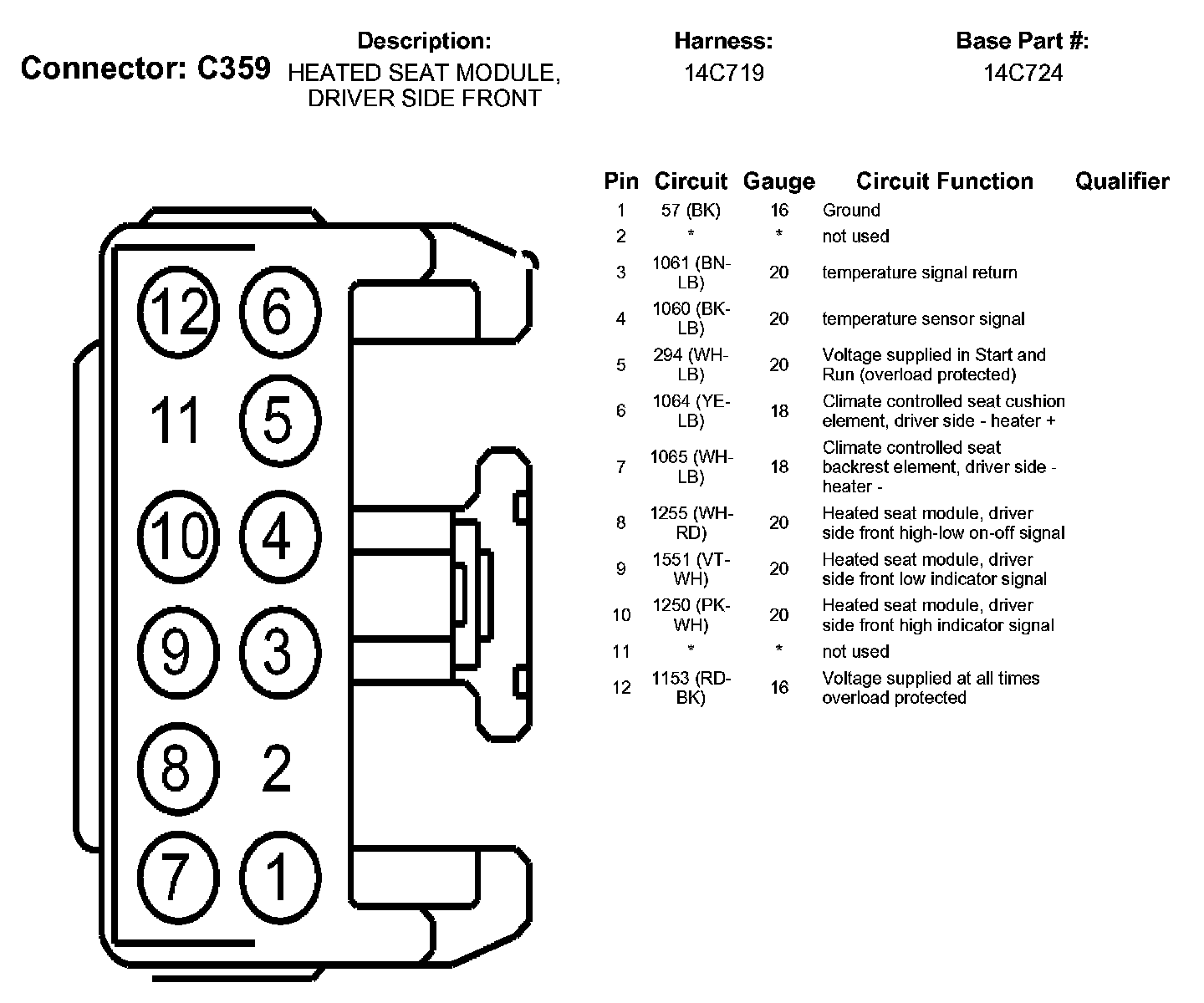

C359:
