Home >> Ford >> 2008 >> F 150 4WD V6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

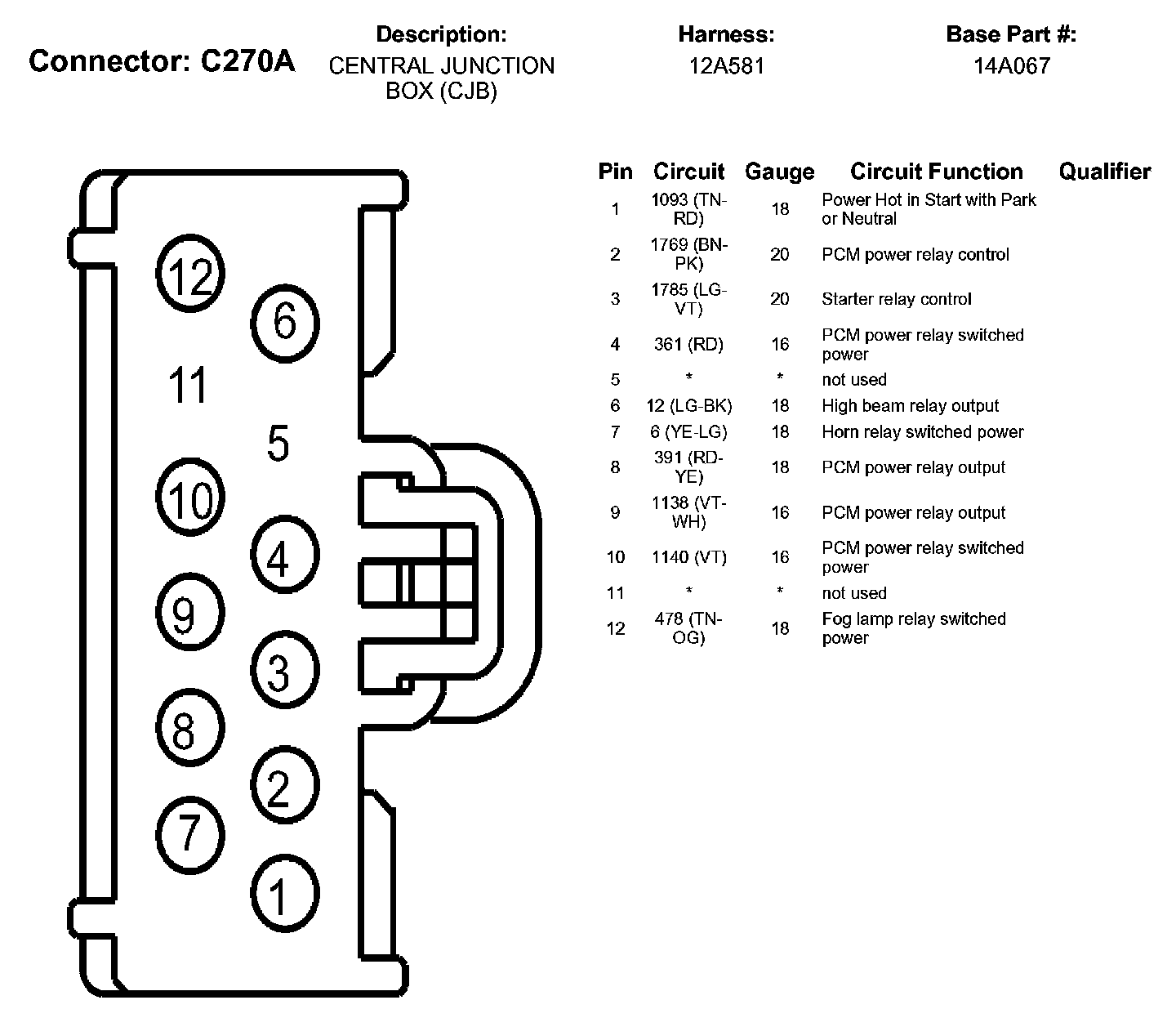

C270A:

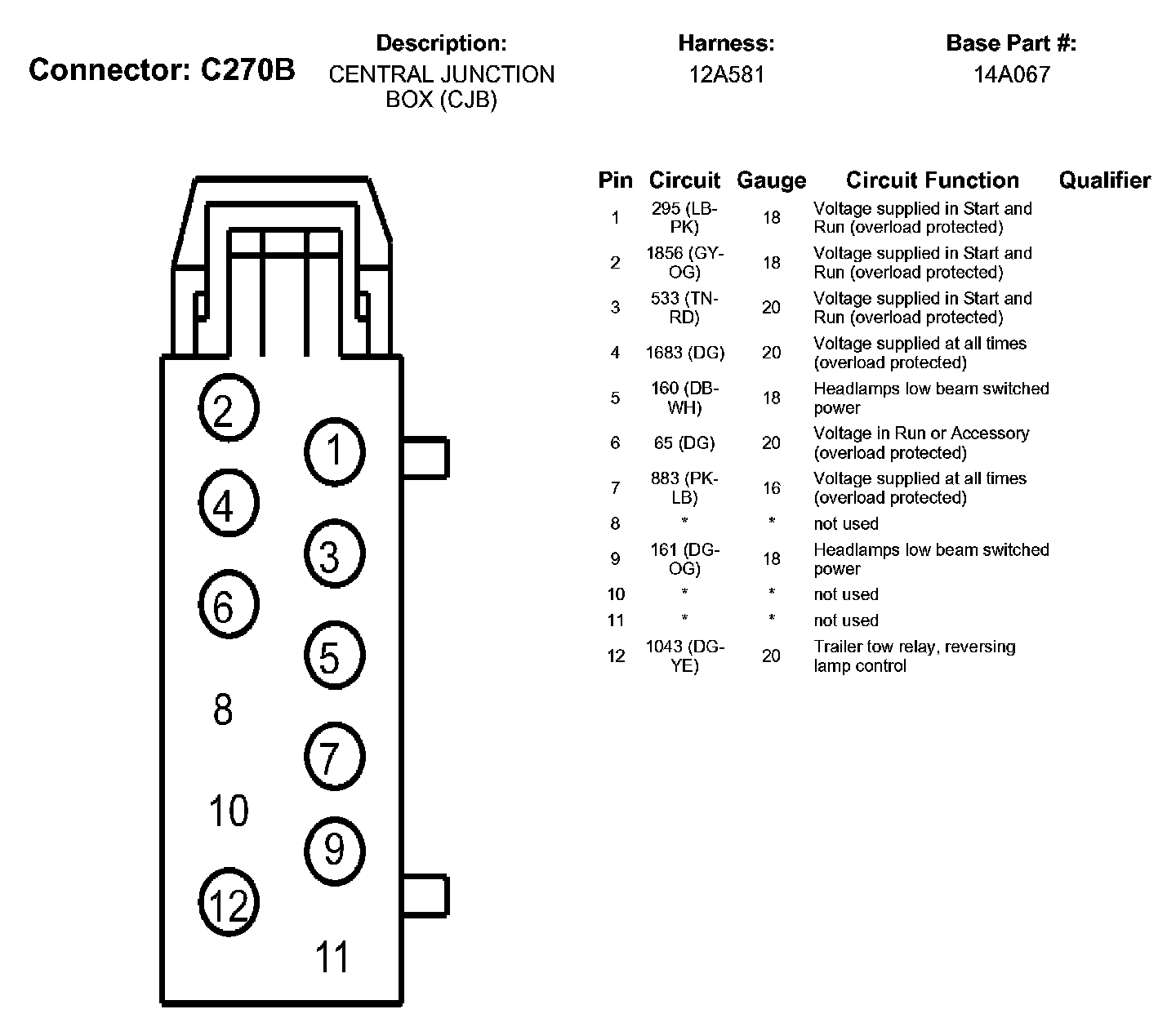

C270B:



C270C:

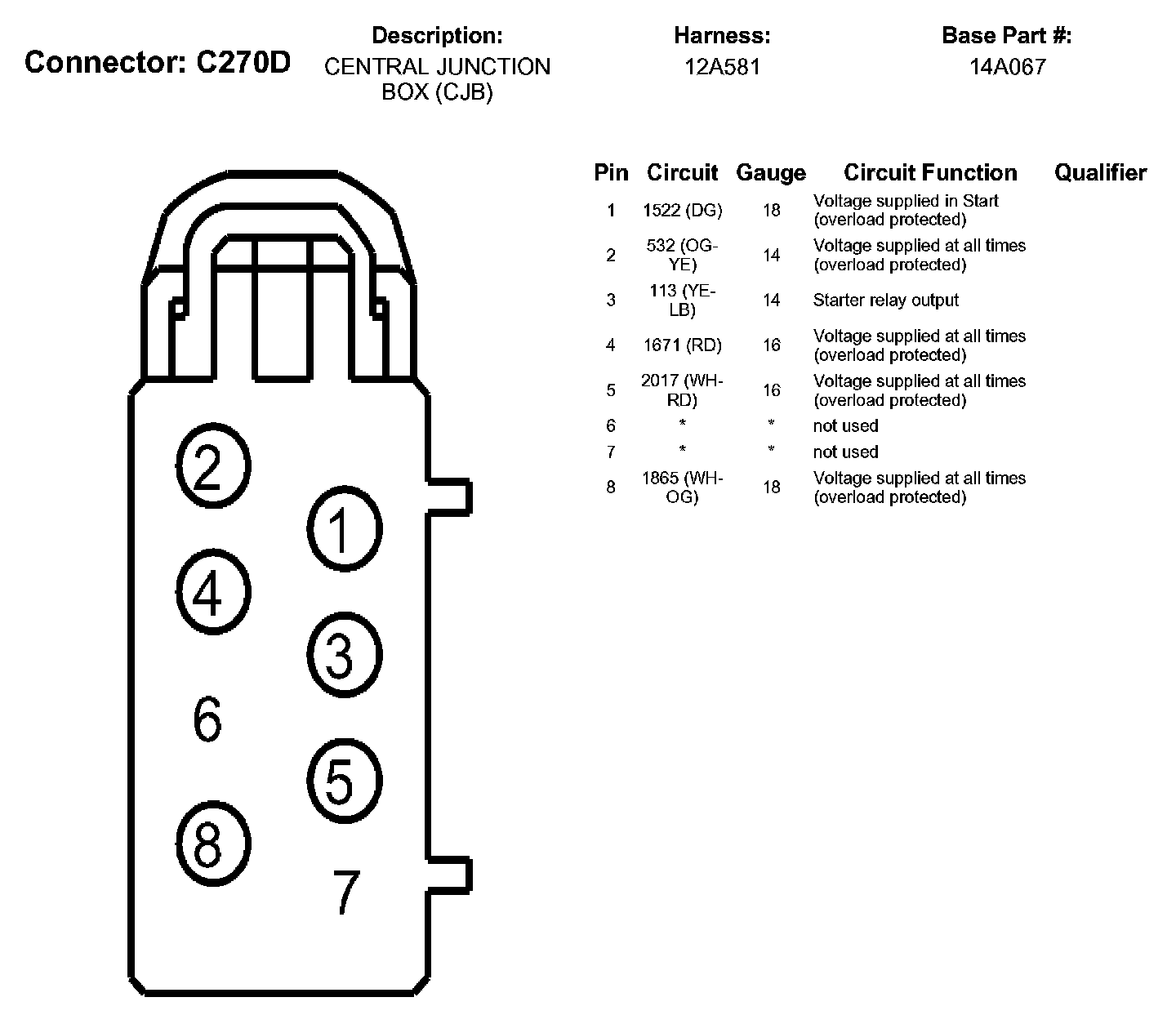

C270D:

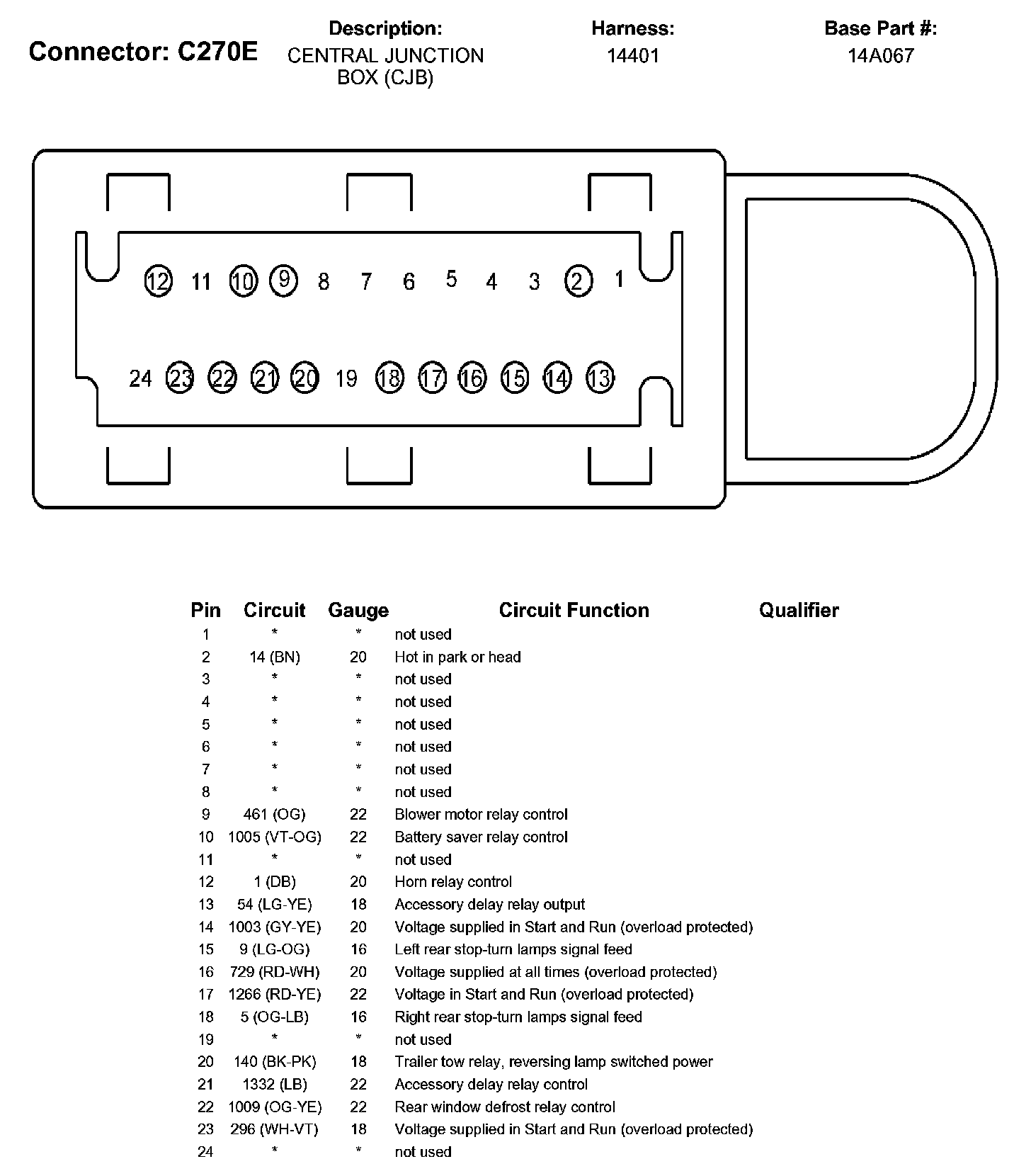

C270E:

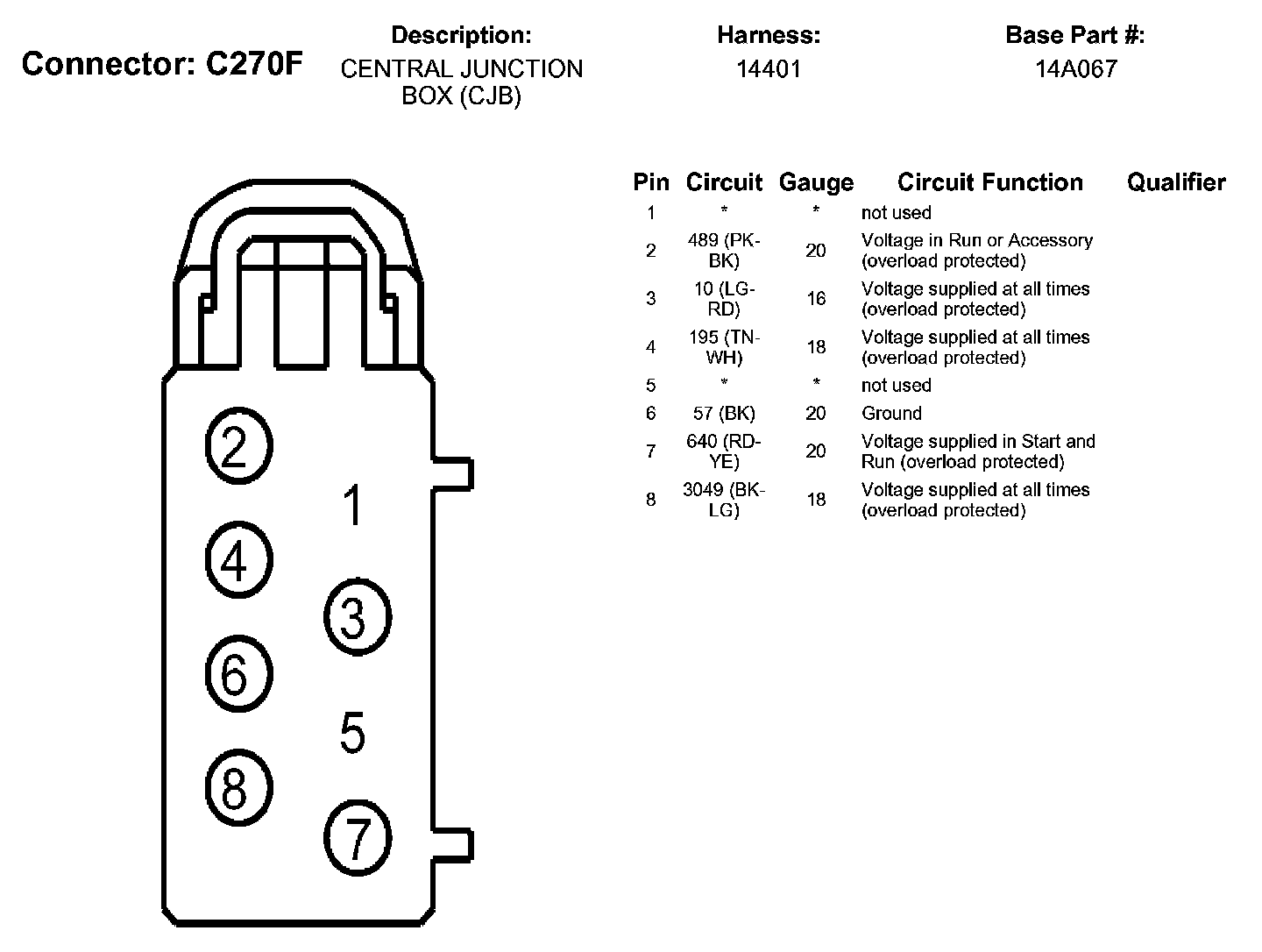

C270F:



C270G:

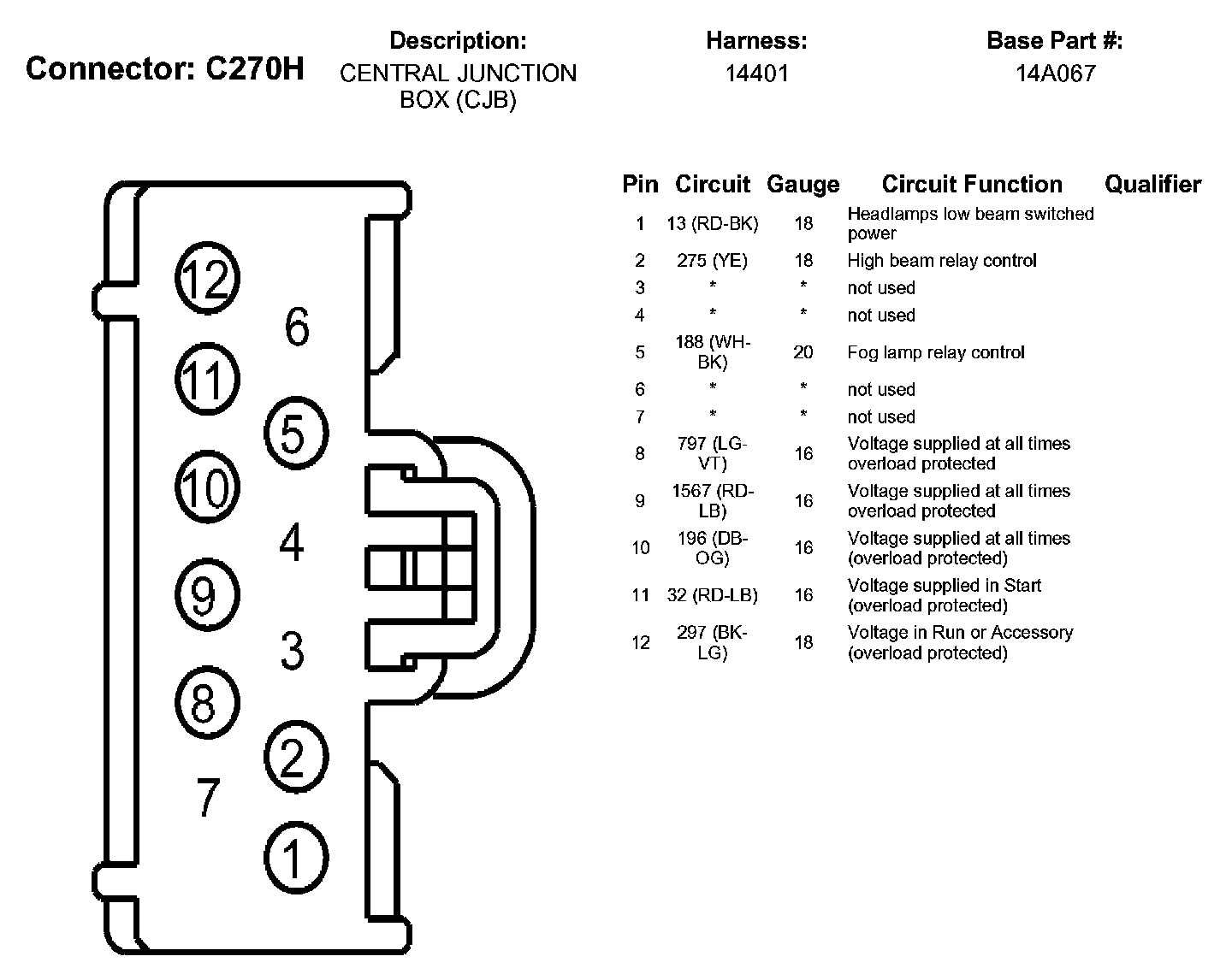

C270H:

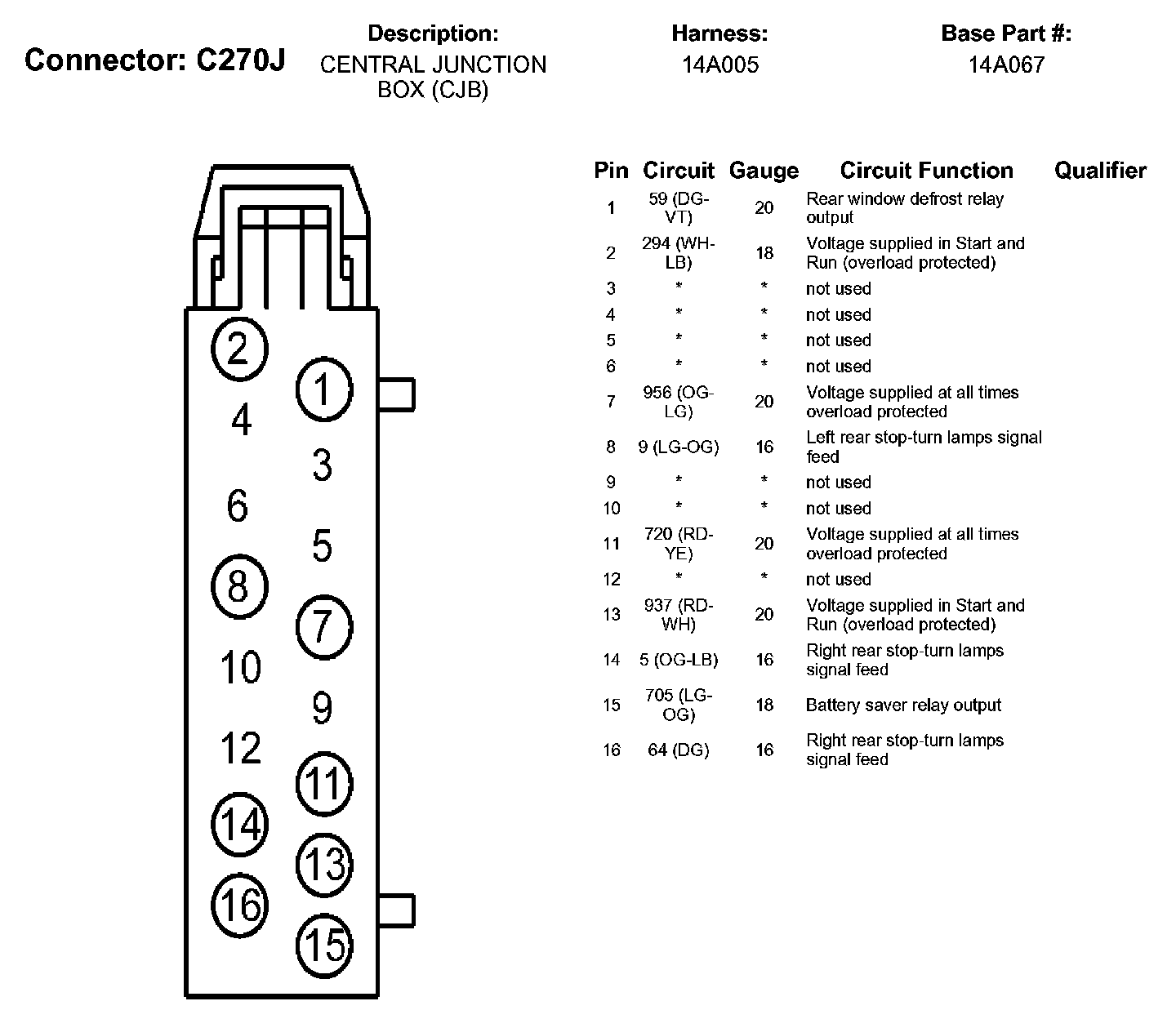

C270J:



C270K:

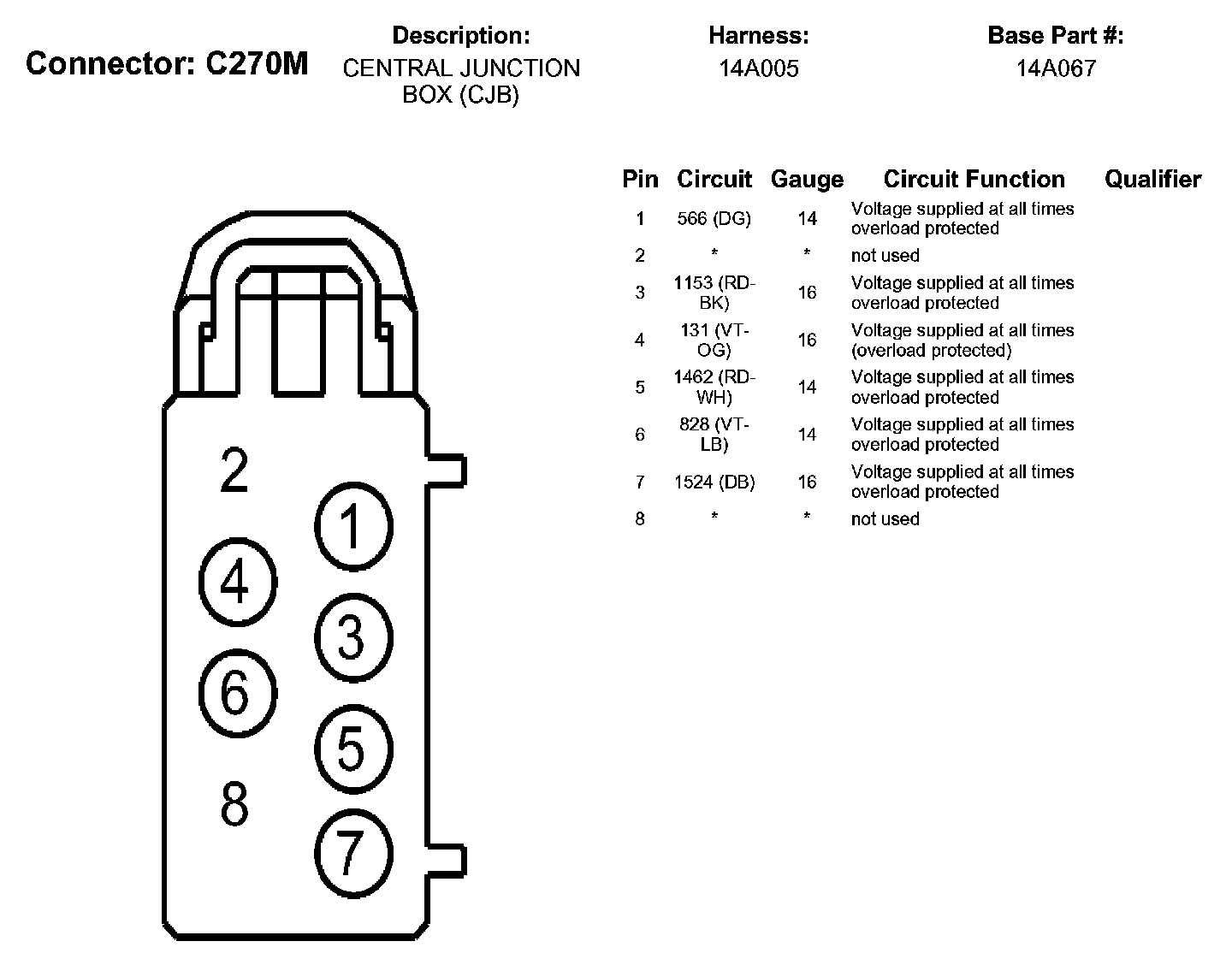

C270M:

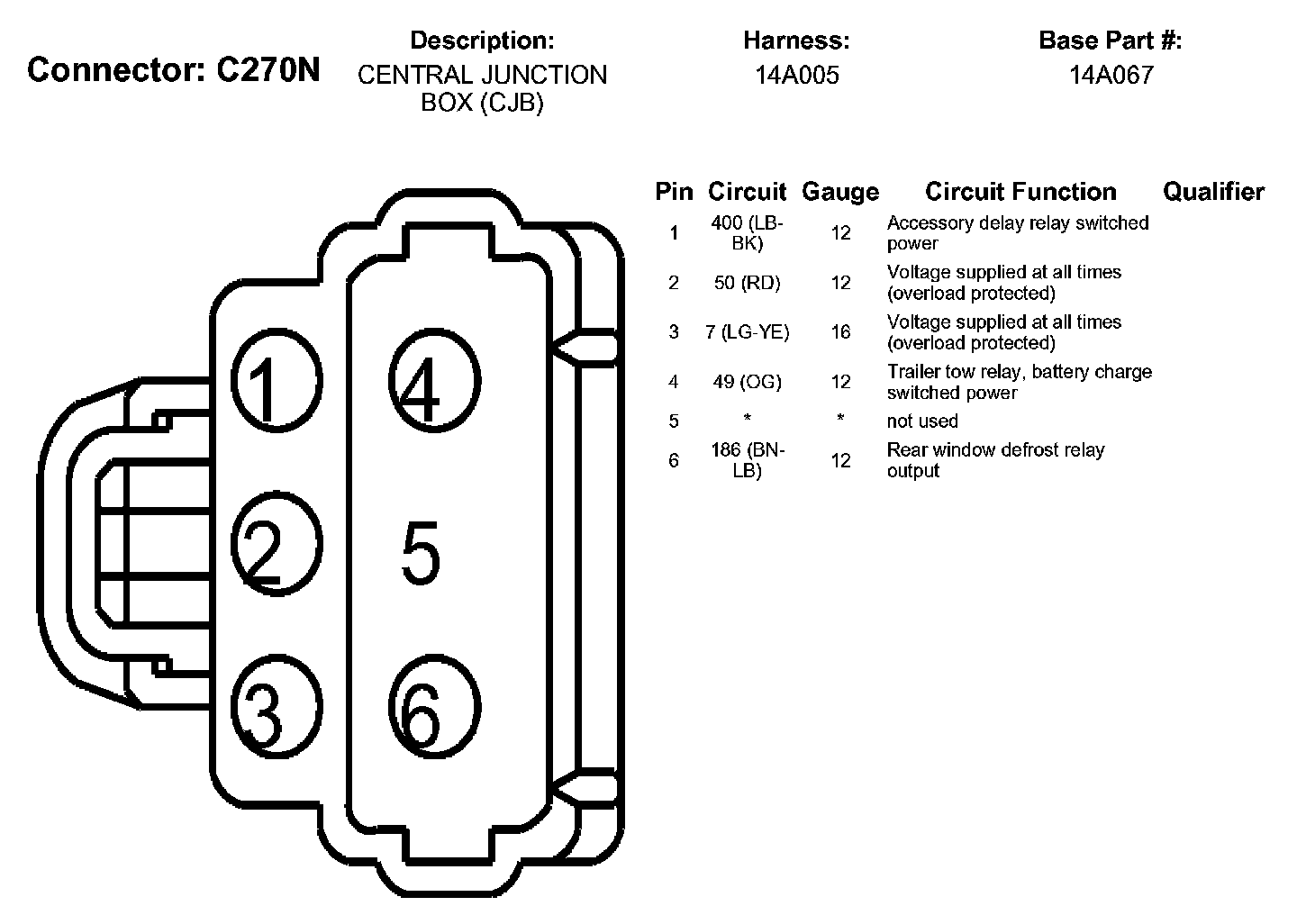

C270N:

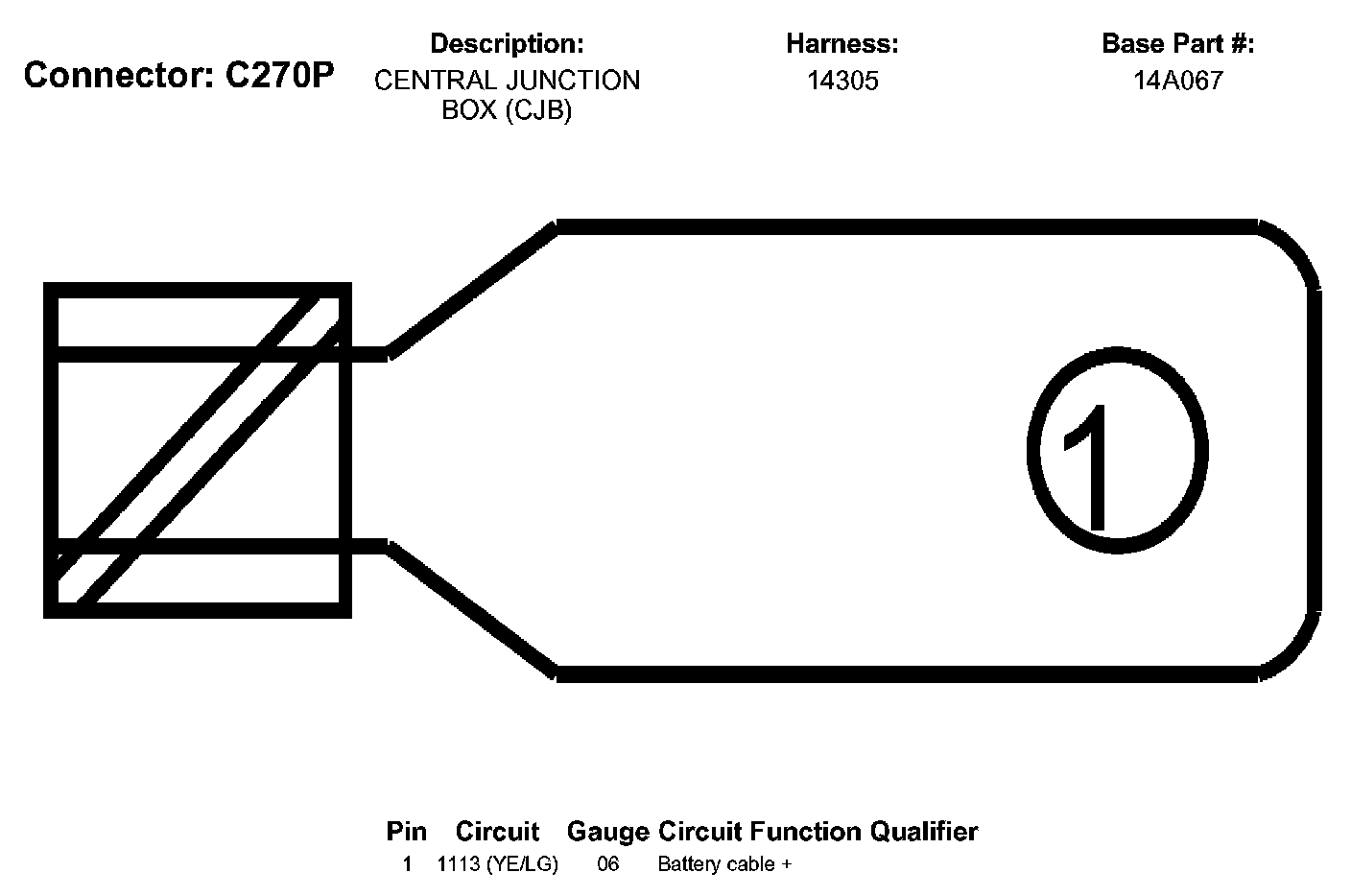

C270P:
