Home >> Ford >> 2008 >> F 150 4WD V6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

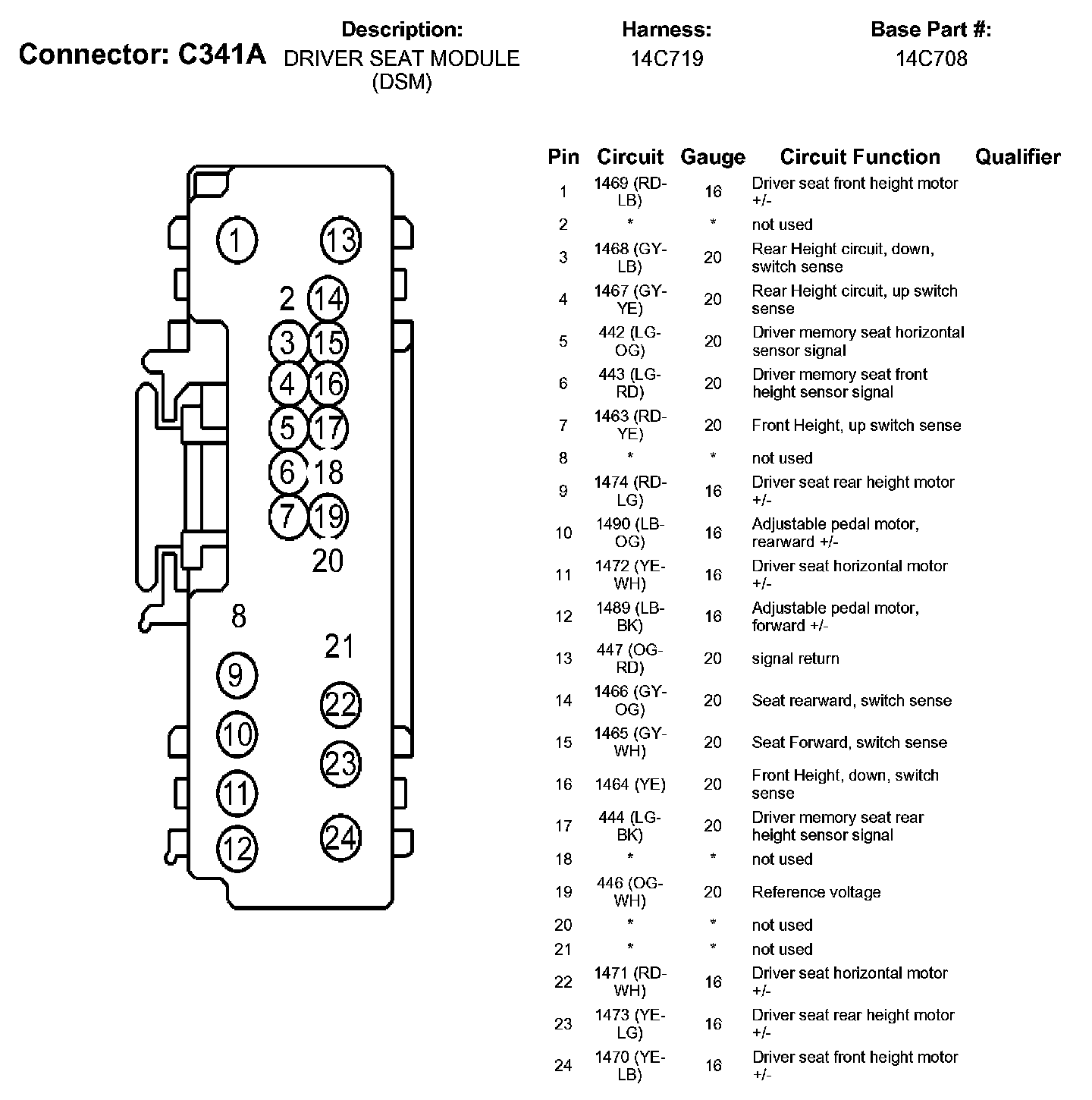

C341A:

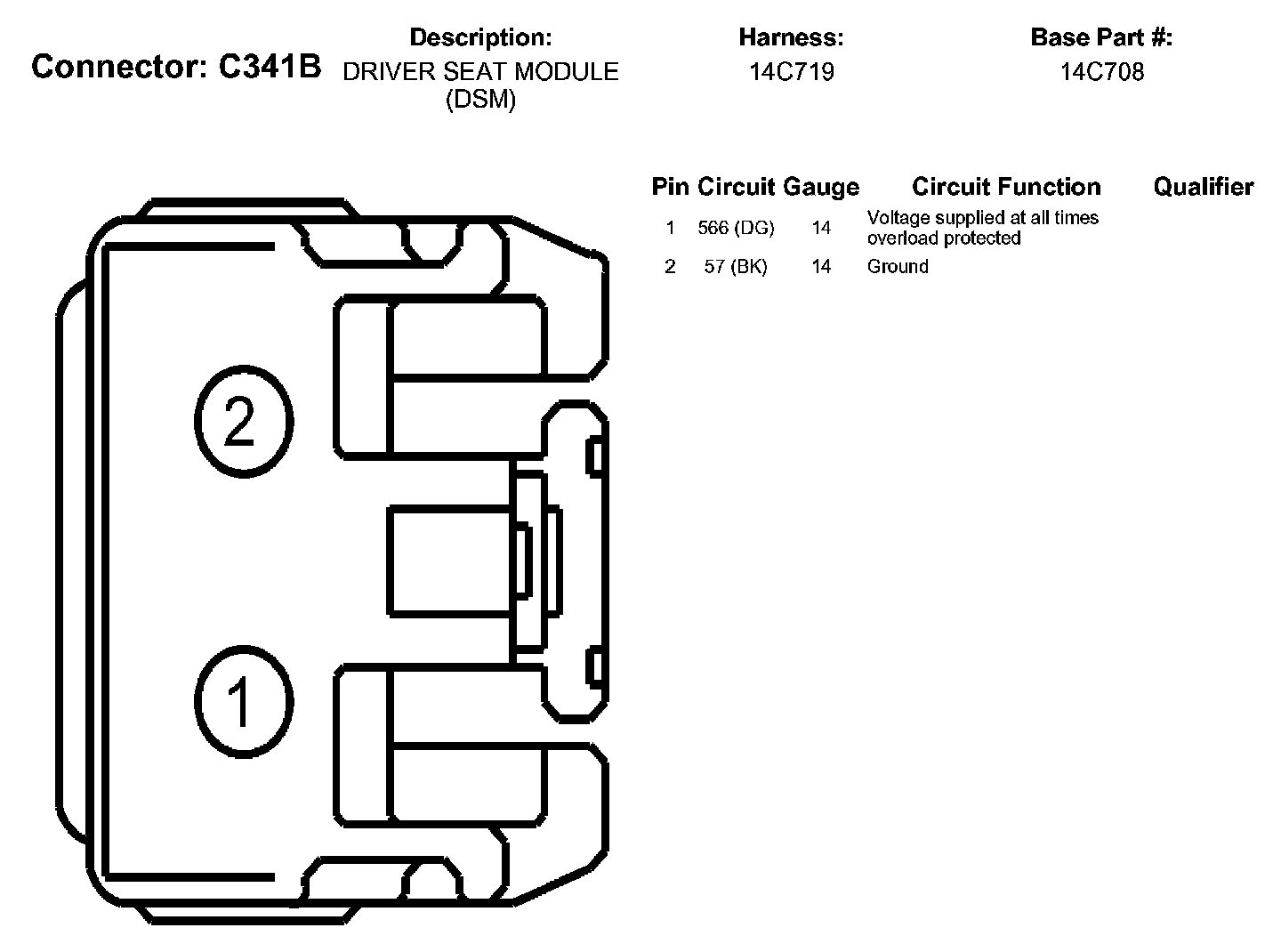

C341B:

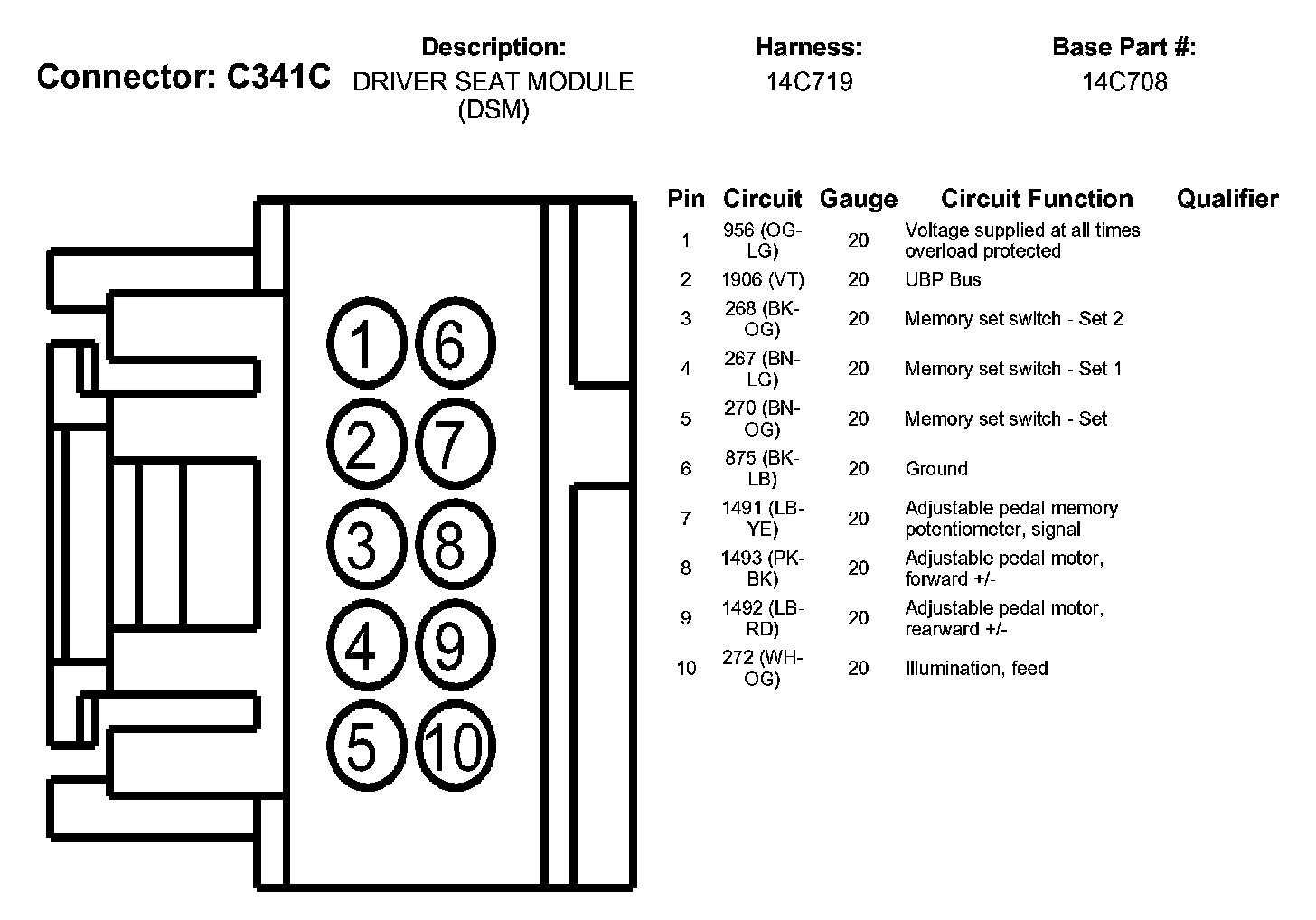

C314C:

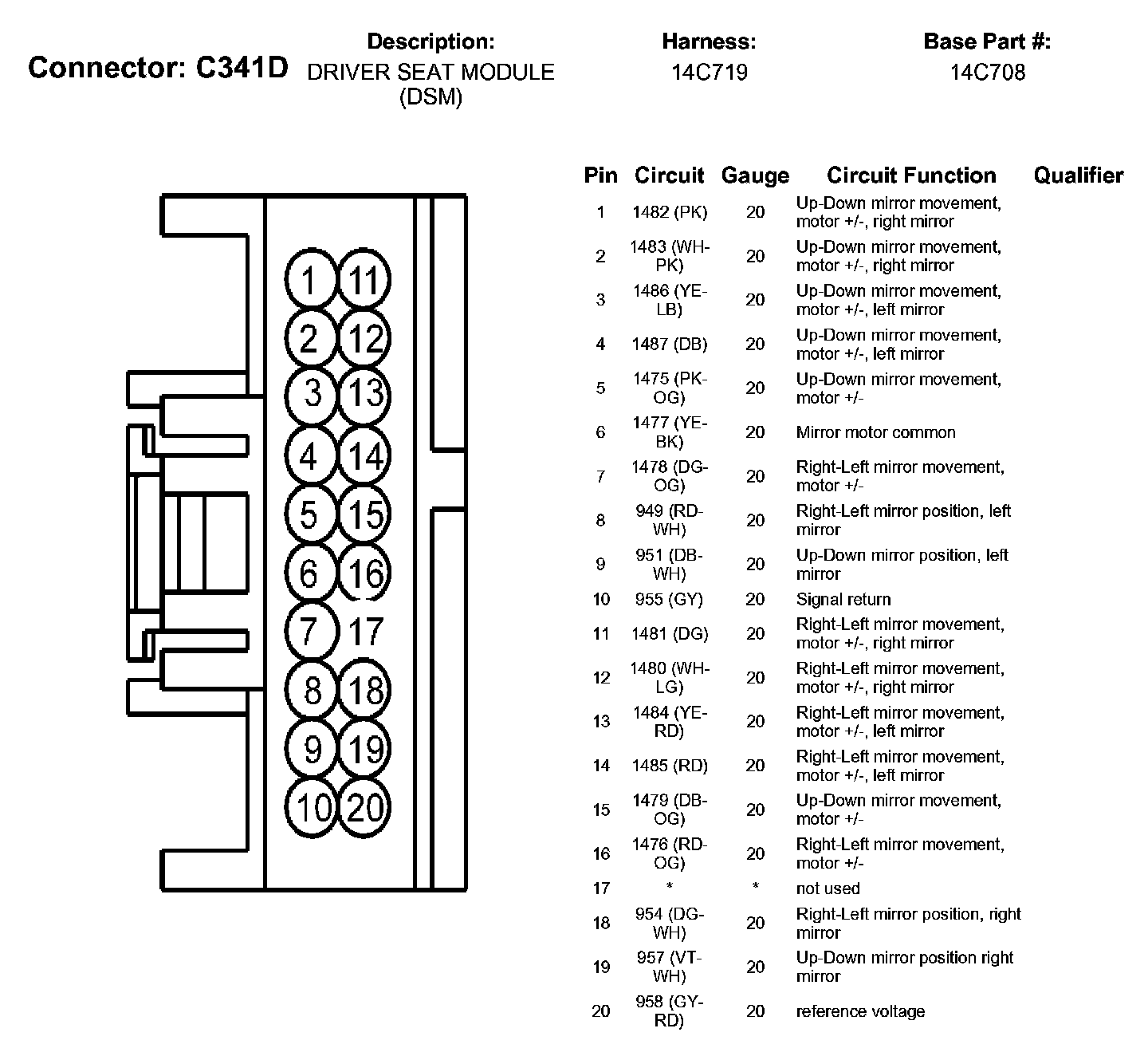

C341D:
