Home >> Ford >> 2008 >> F 150 4WD V6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

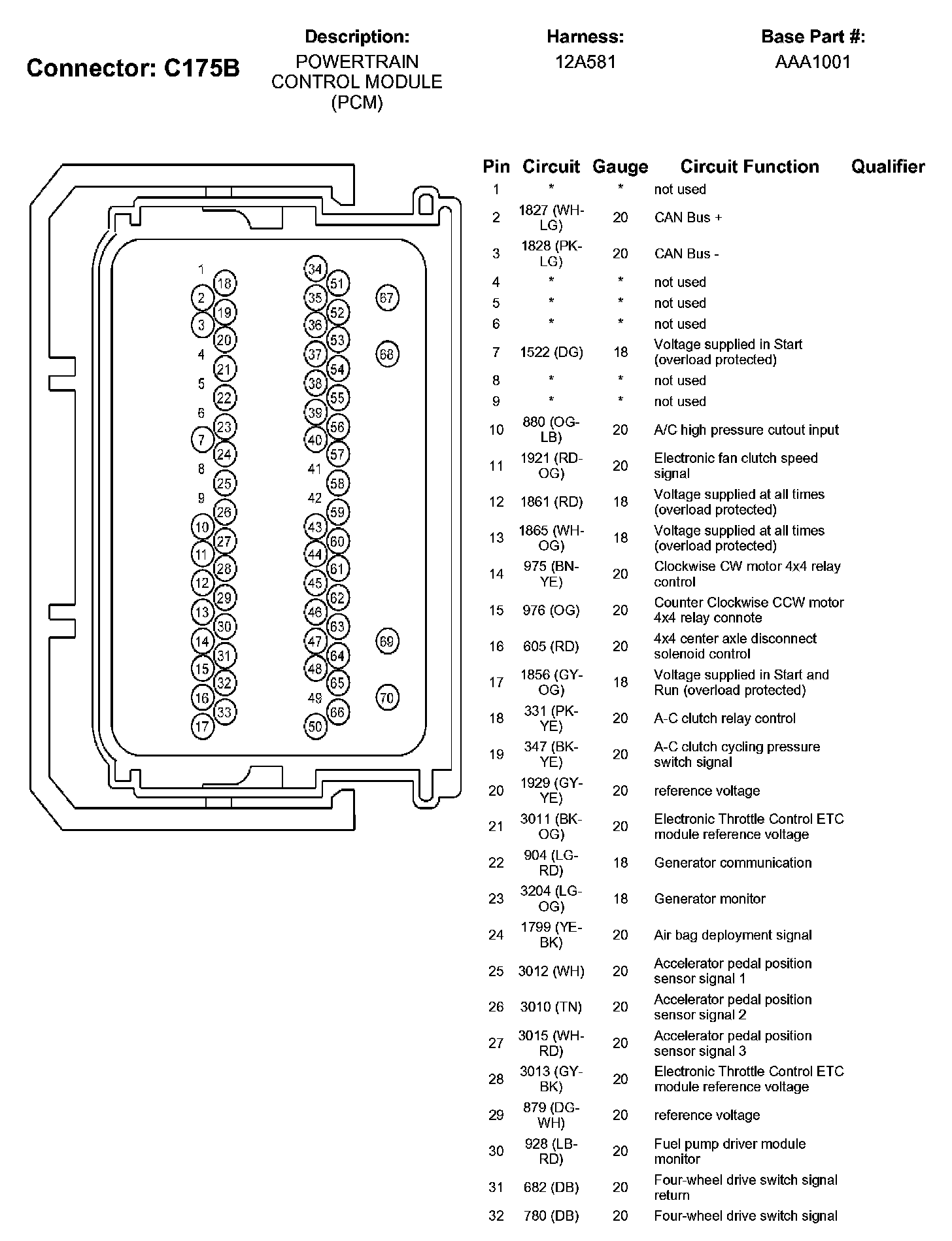

C175B (Part 1):

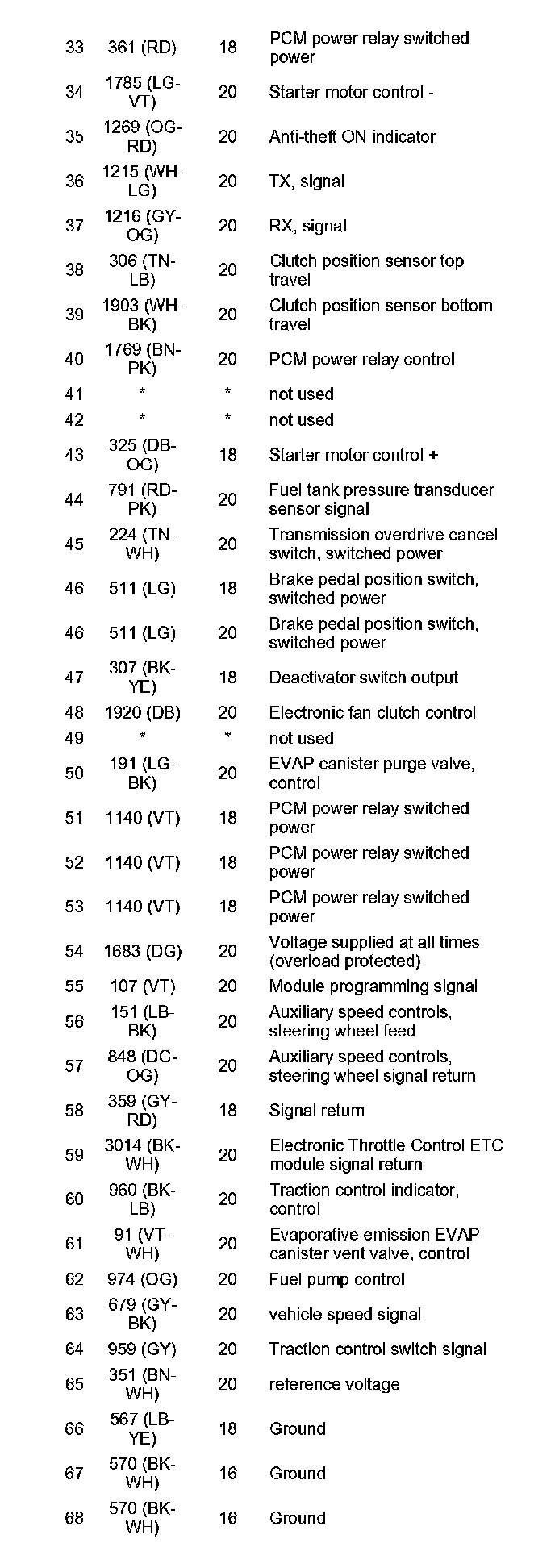

C175B (Part 2):

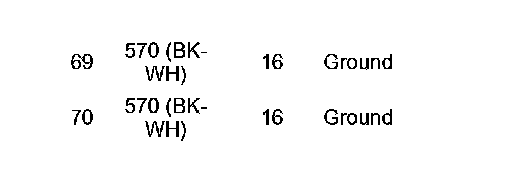

C175B (Part 3):

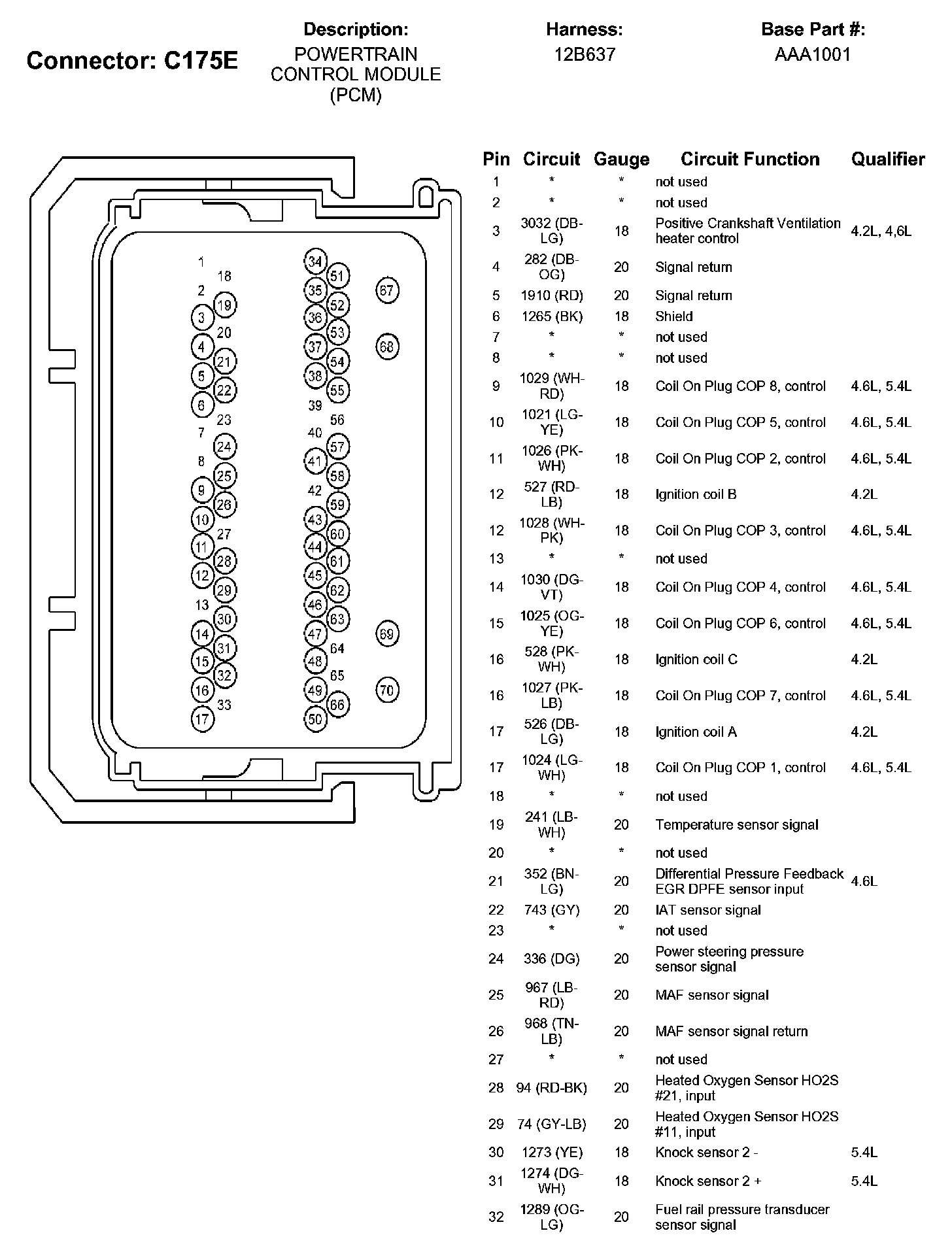

C175E (Part 1):

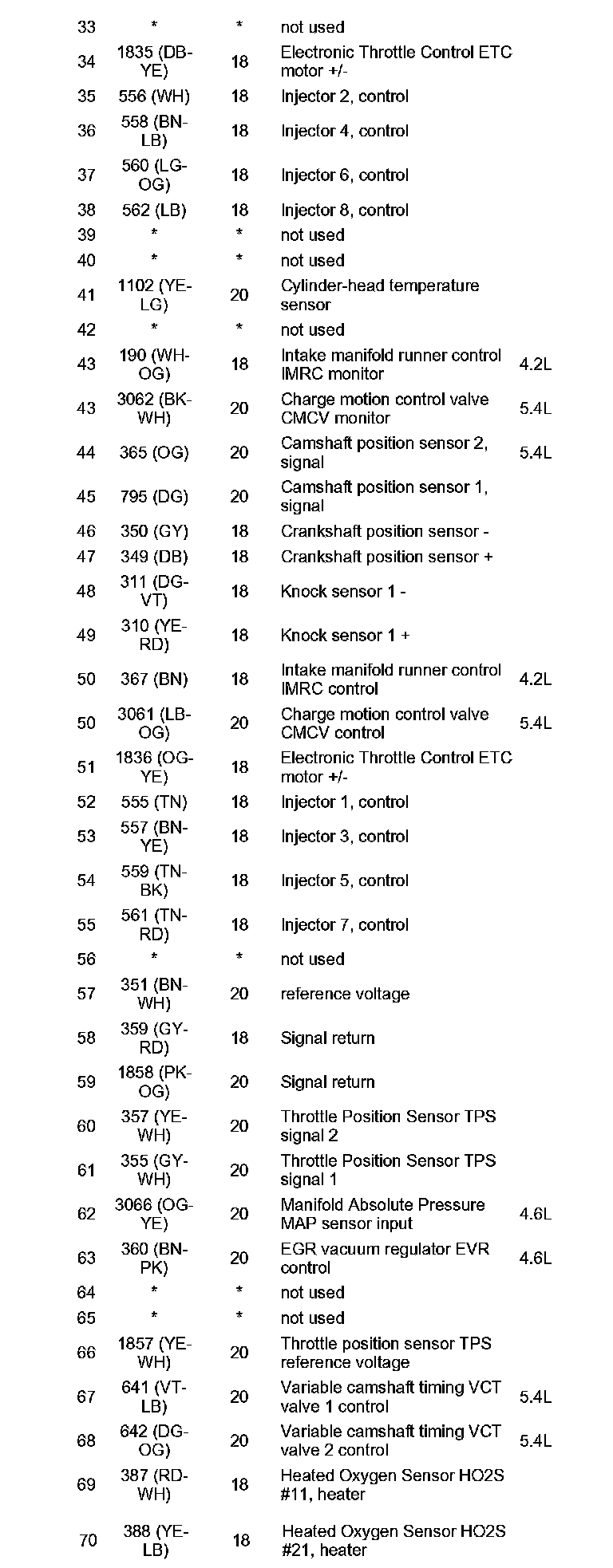

C175E (Part 2):

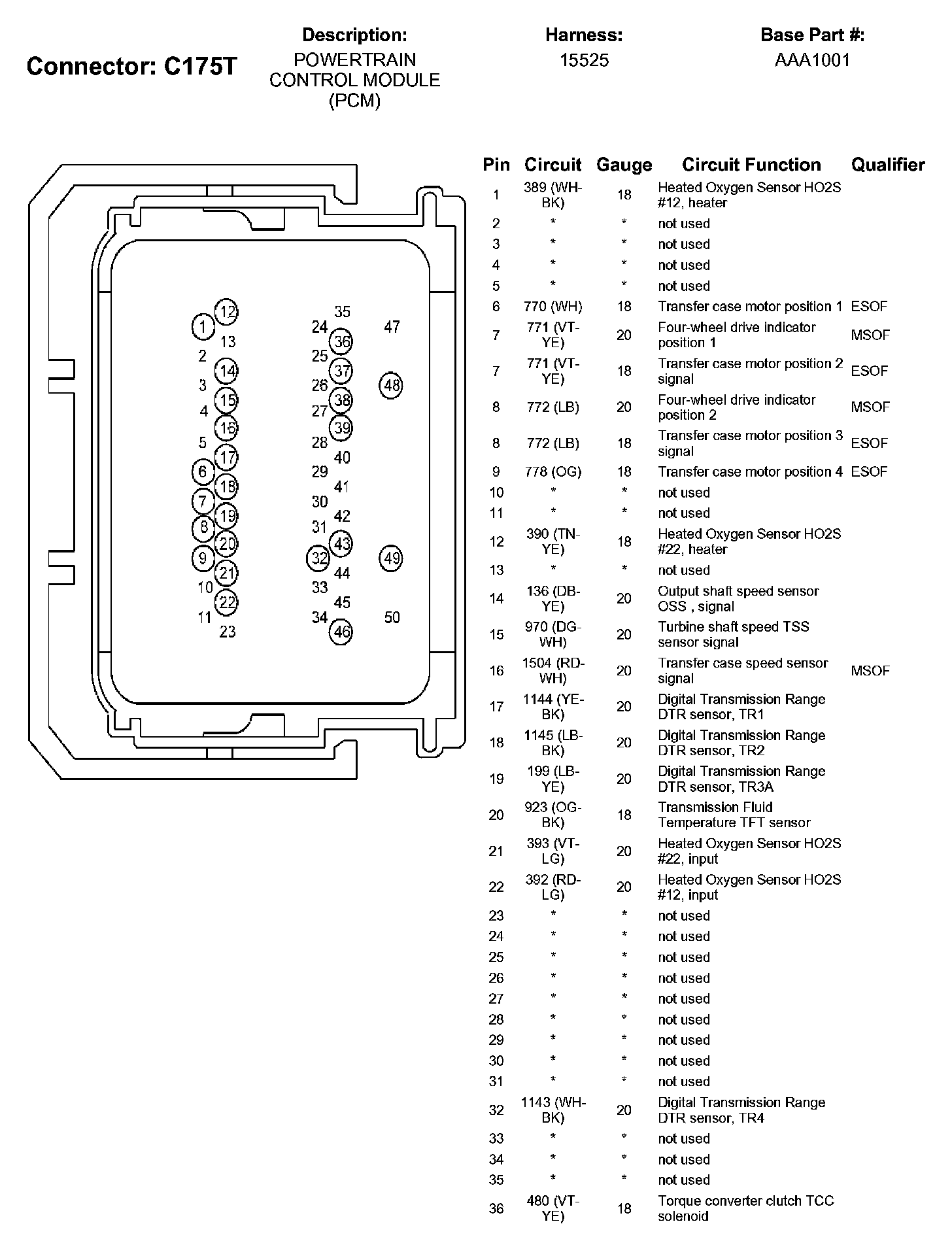

C175T (Part 1):

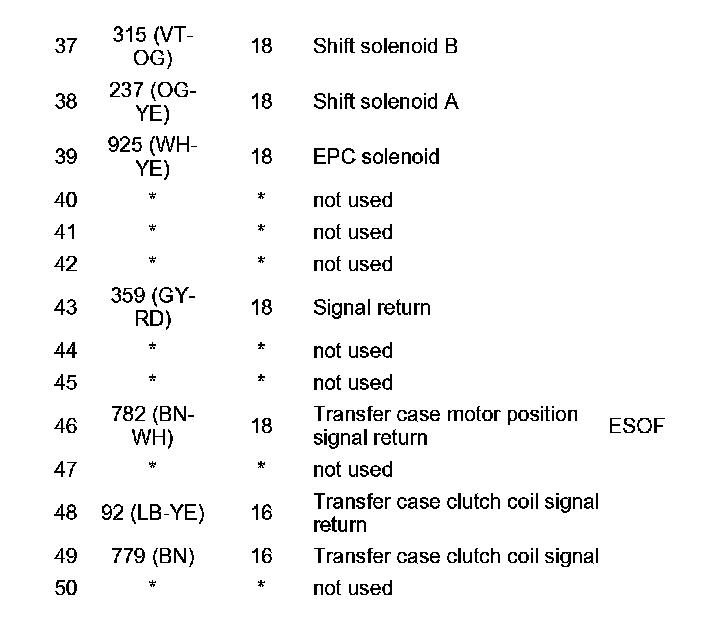

C175T (Part 2):
