Home >> Ford >> 2008 >> F 150 4WD V6-4.2L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Diagrams

Keyless Entry Module: Diagrams

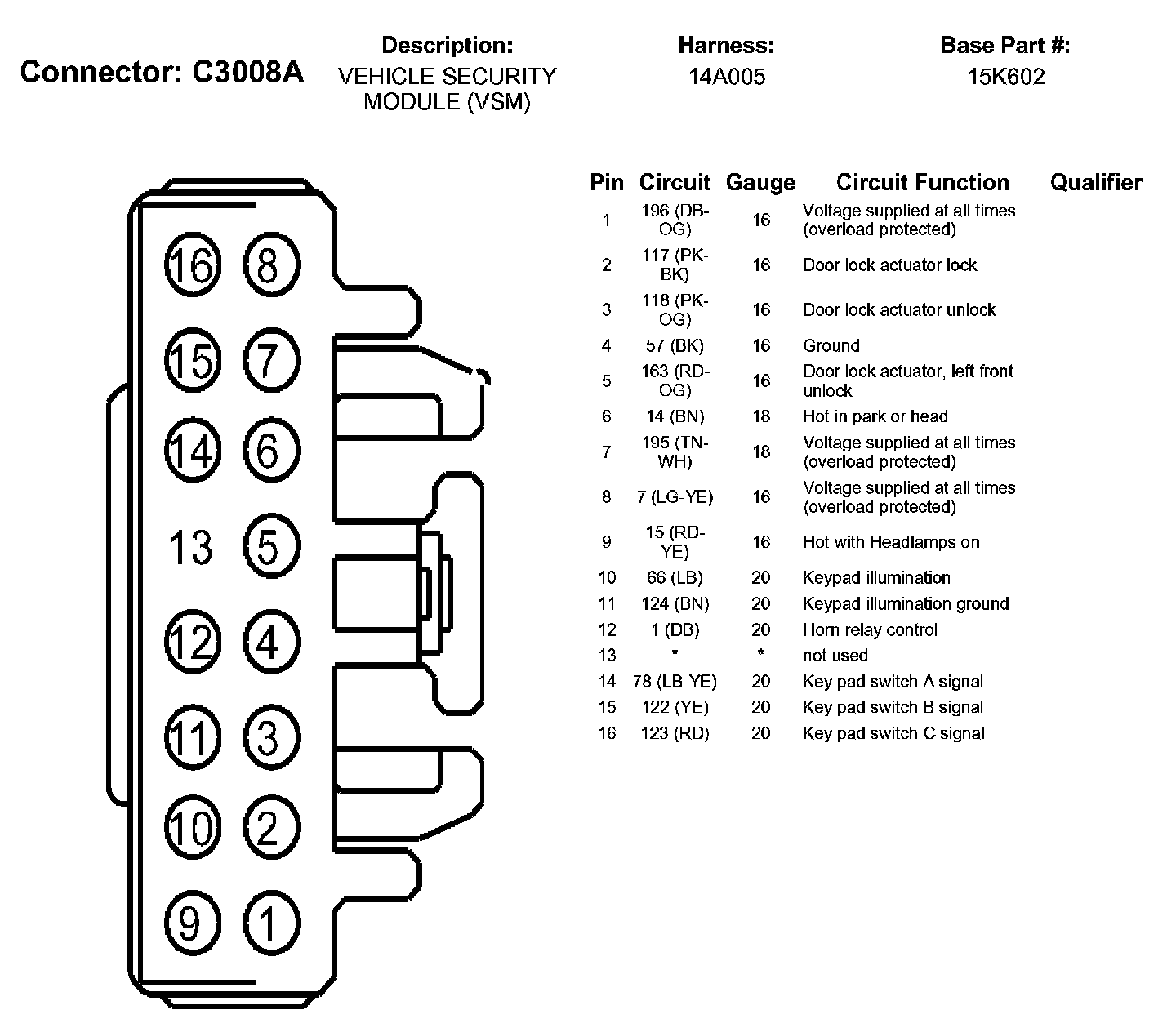

C3008A:

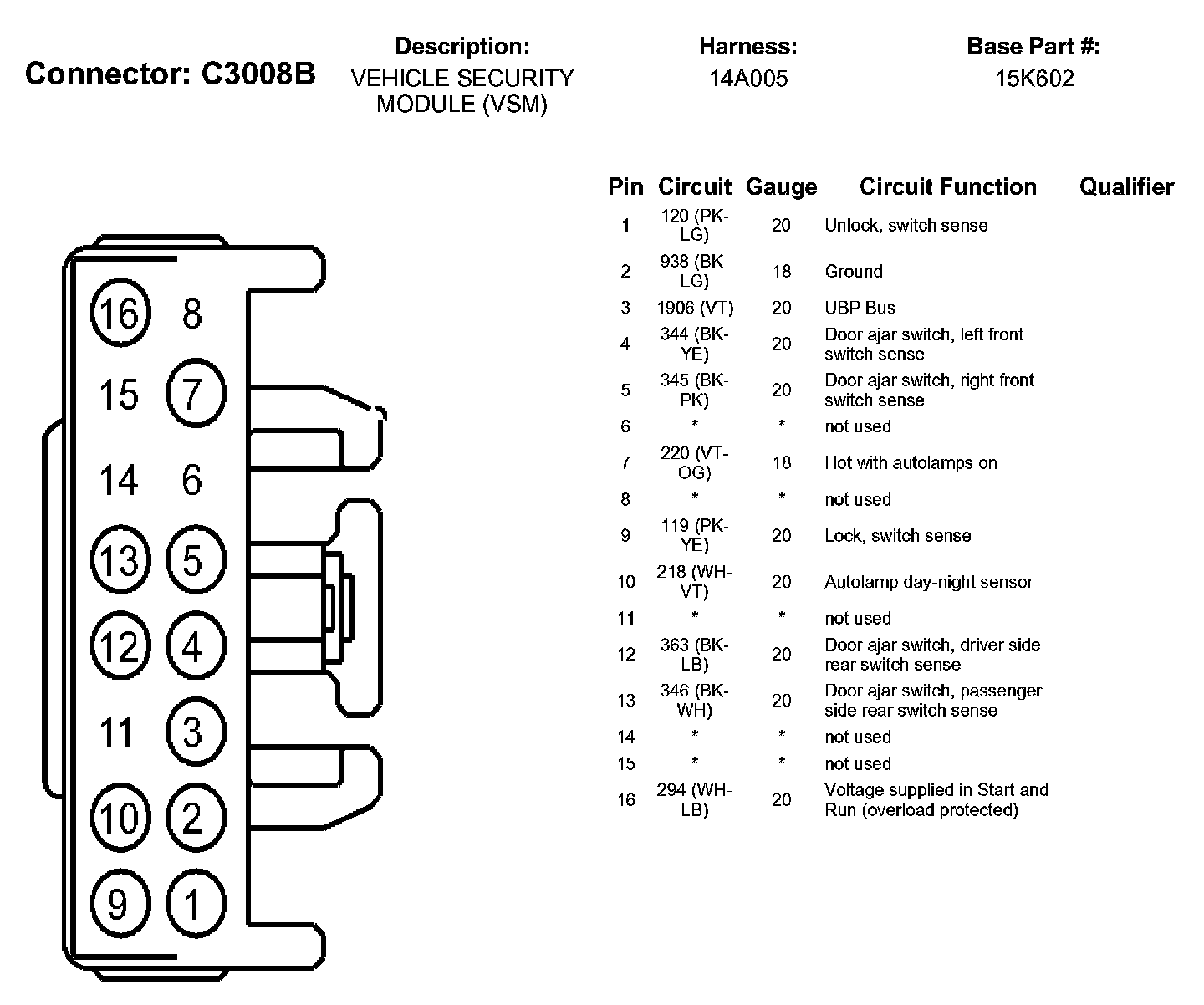

C3008B:
