Home >> Ford >> 2008 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Reference Value Symptom Chart

Reference Value Symptom Chart

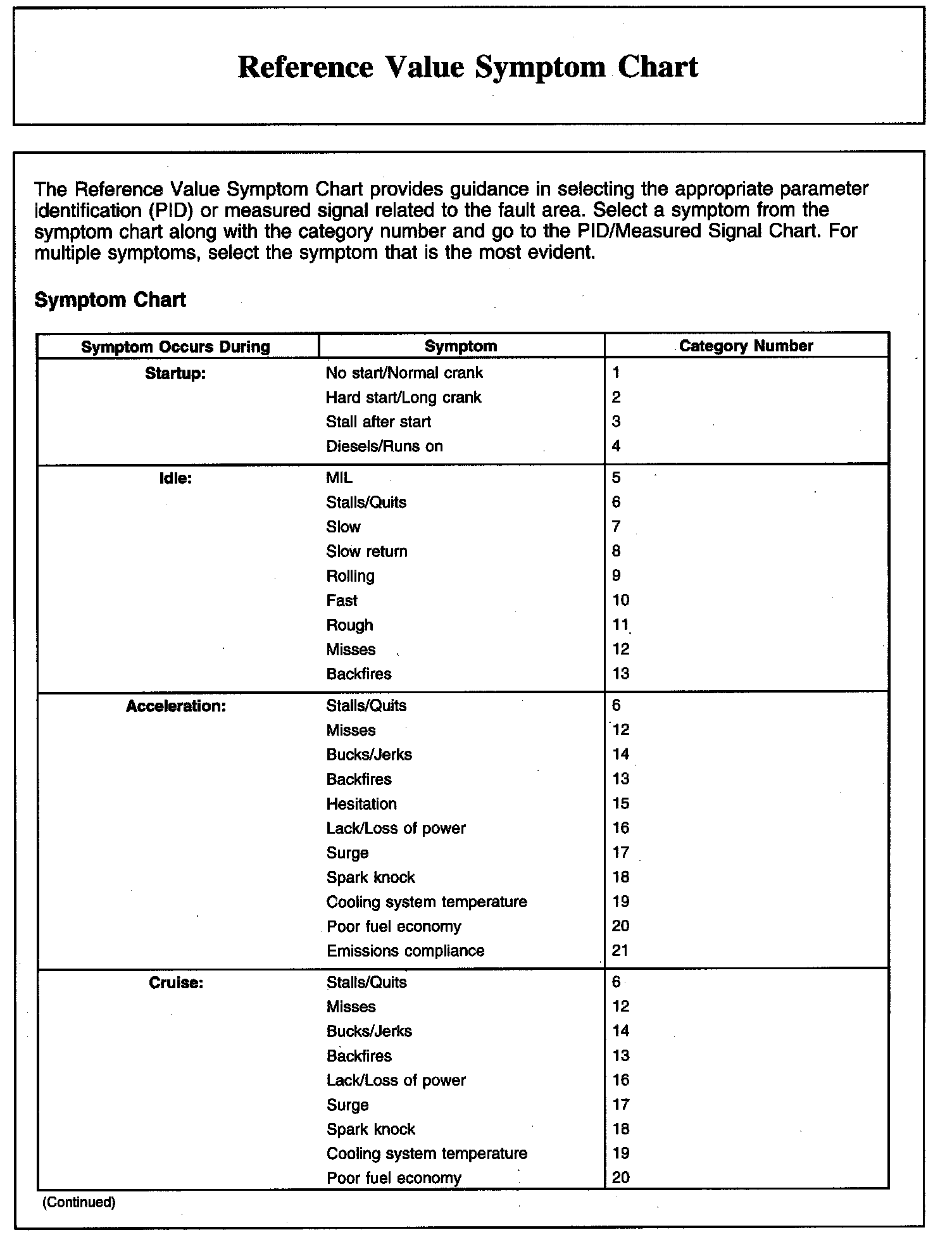

Reference Value Symptom Chart (Part 1):

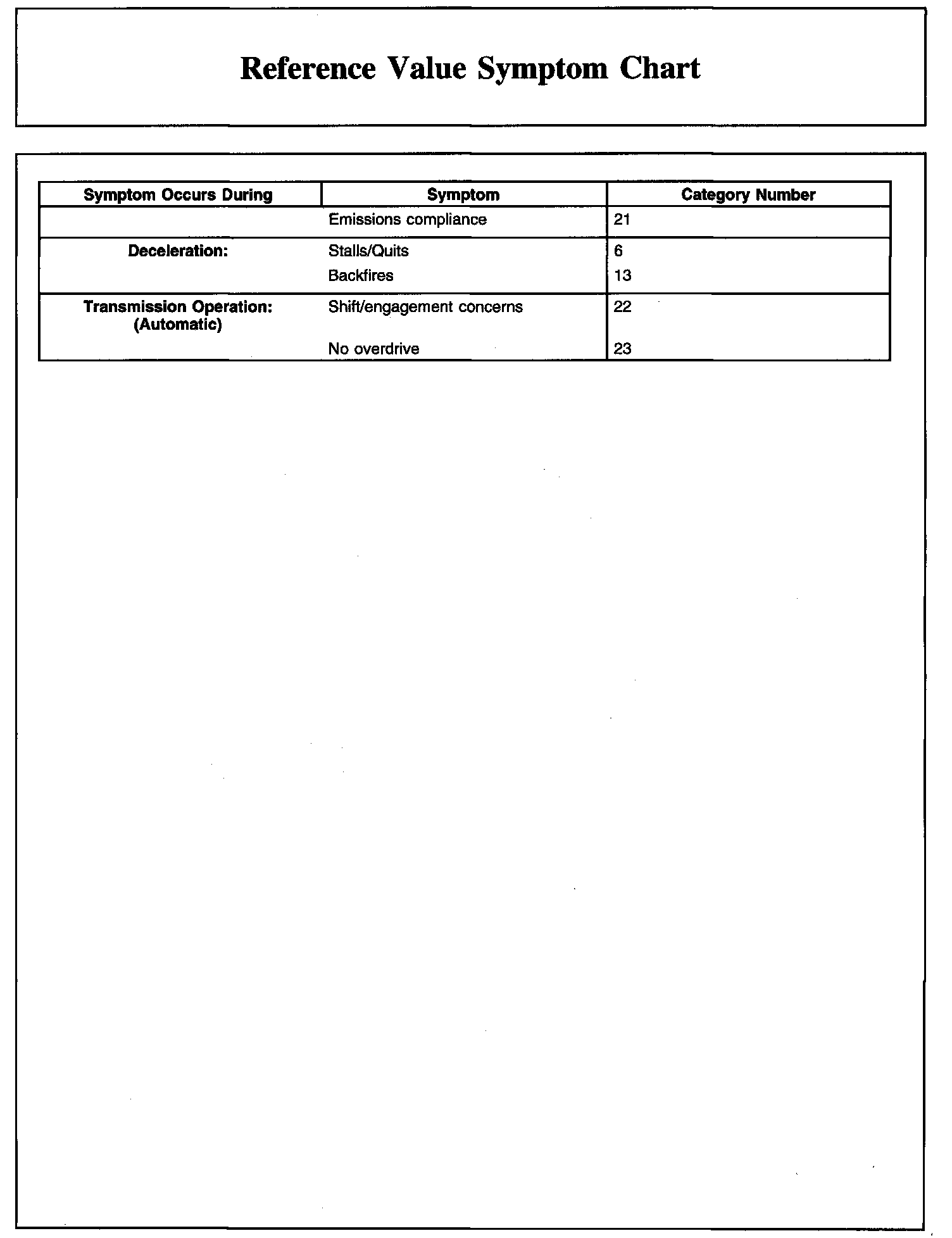

Reference Value Symptom Chart (Part 2):
