Ford
>>
2008
>>
Explorer 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

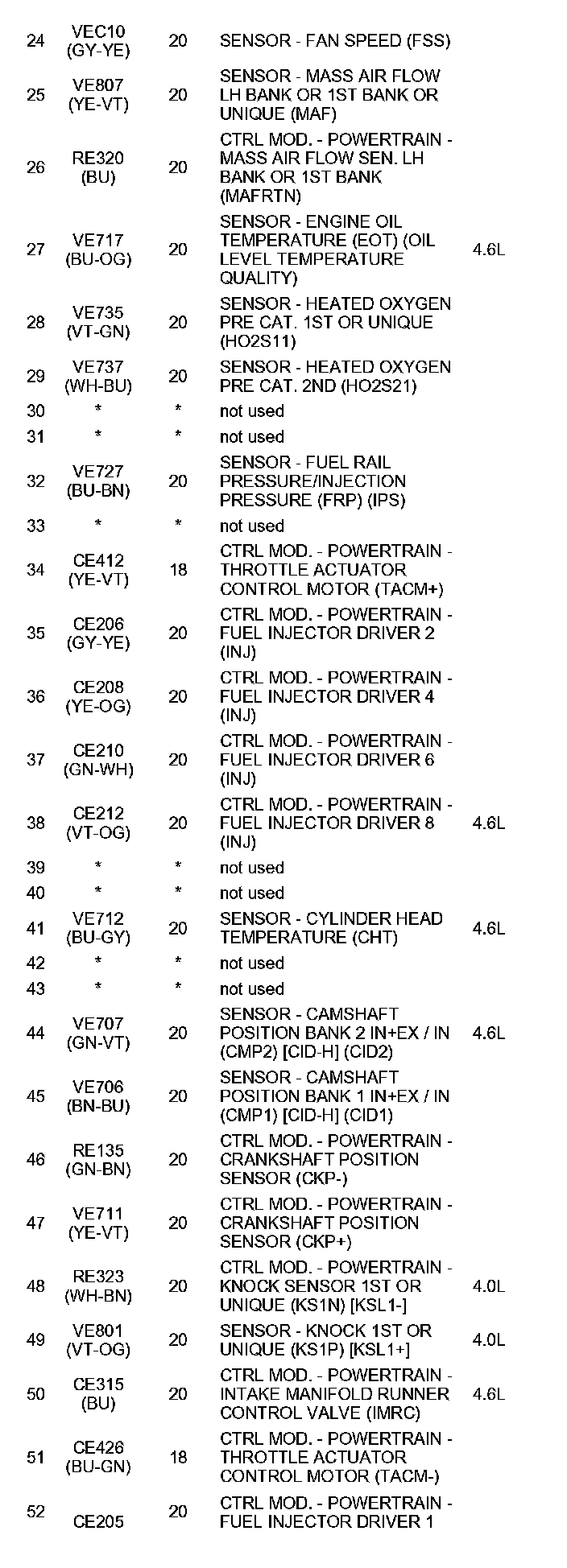

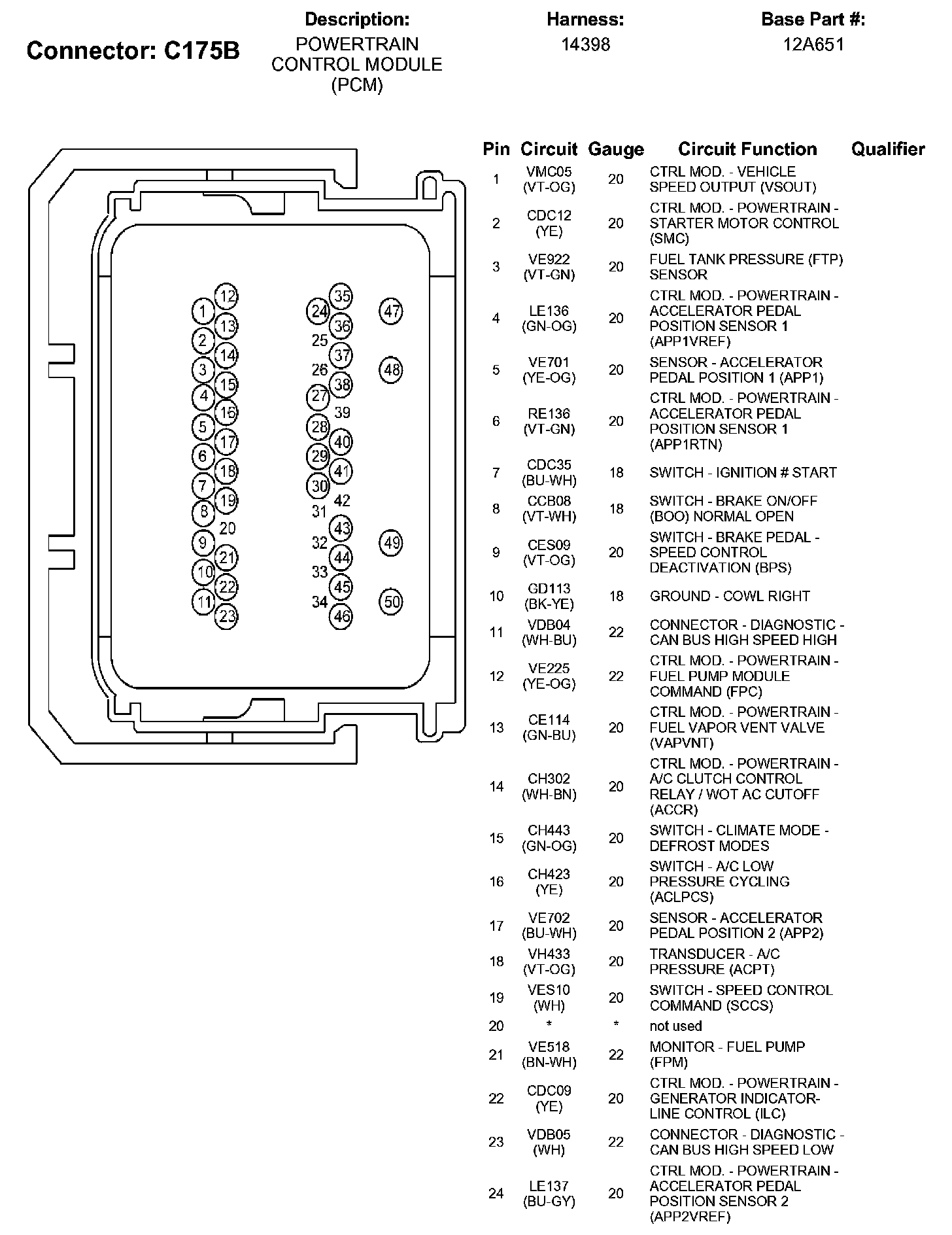

C175B (Part 1):

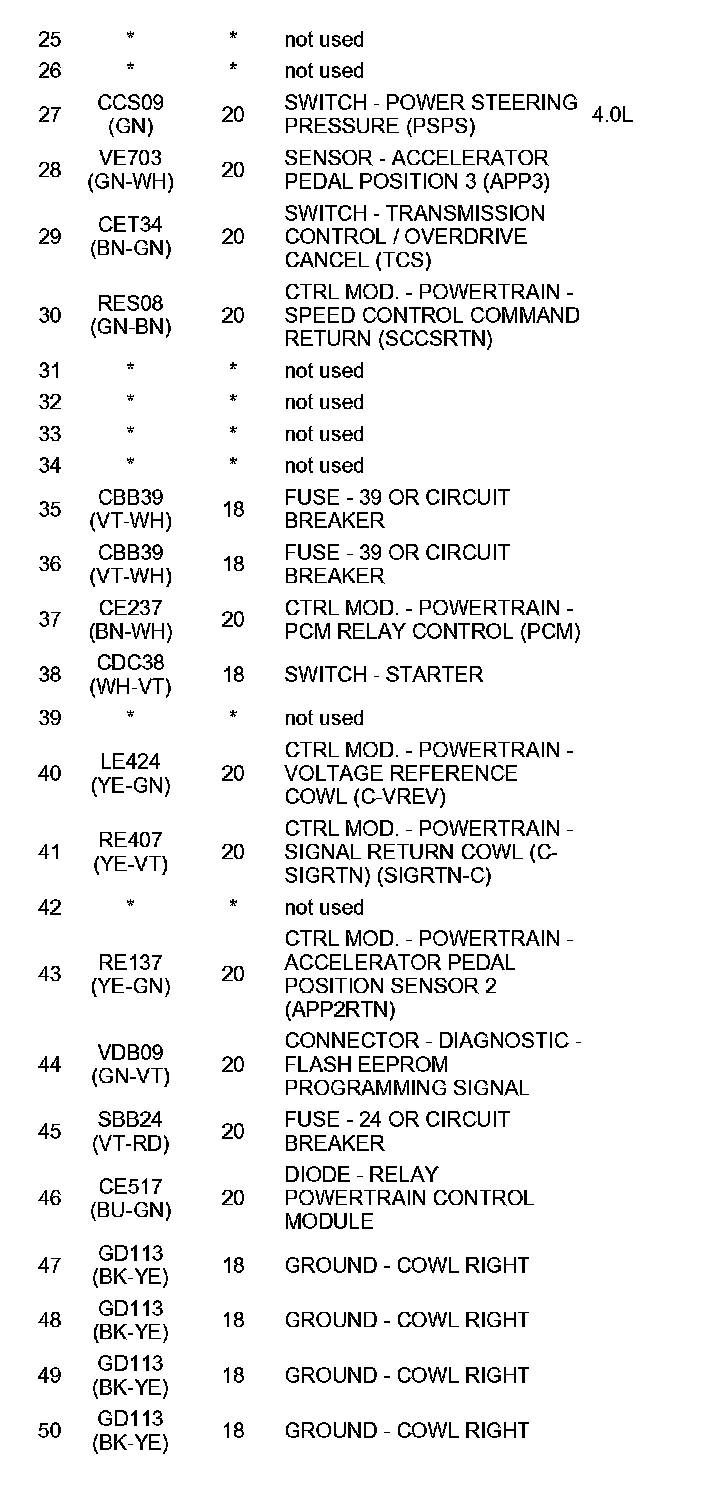

C175B (Part 2):

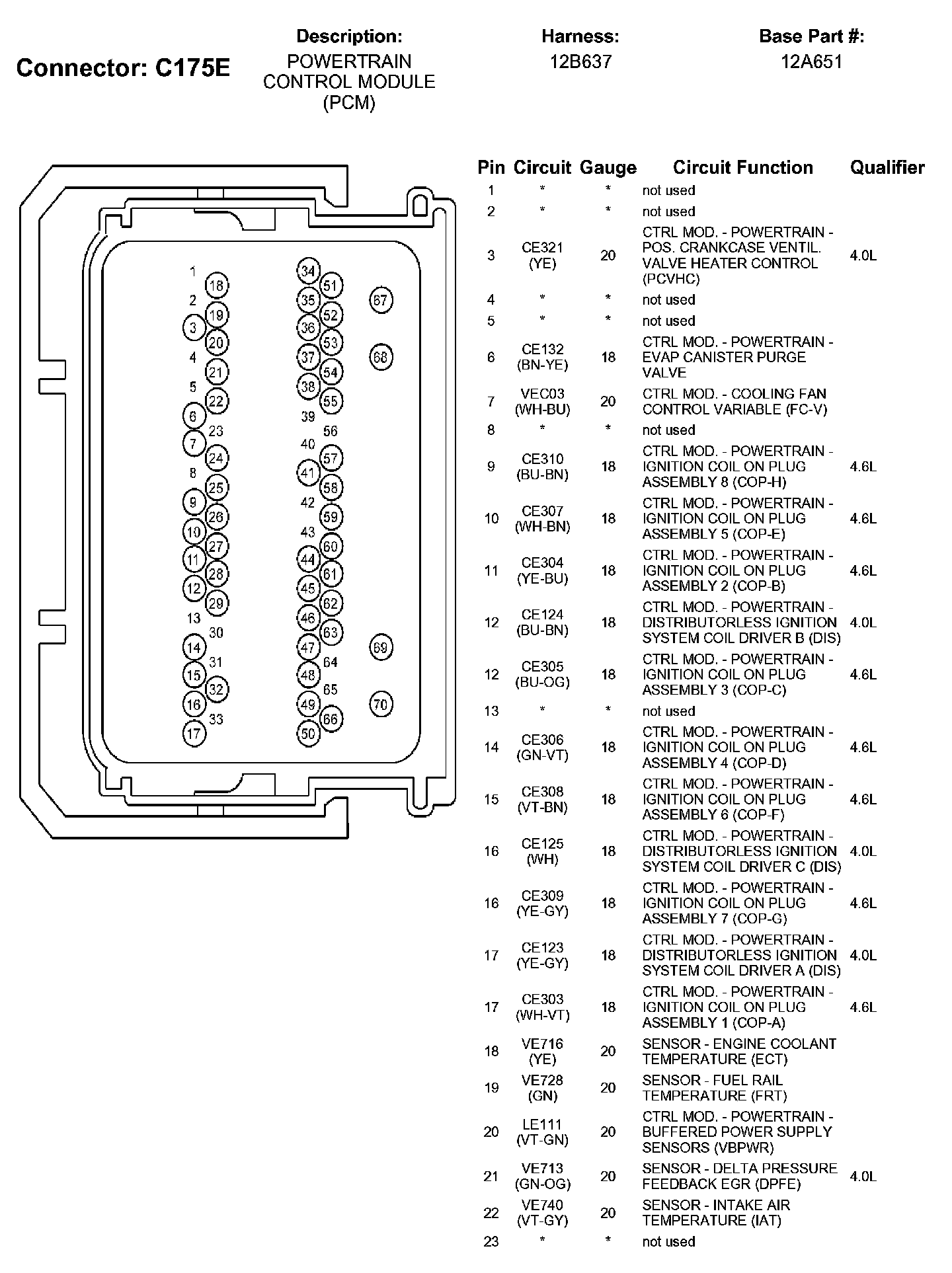

C175E (Part 1):
C175E (Part 2):
C175E (Part 3):

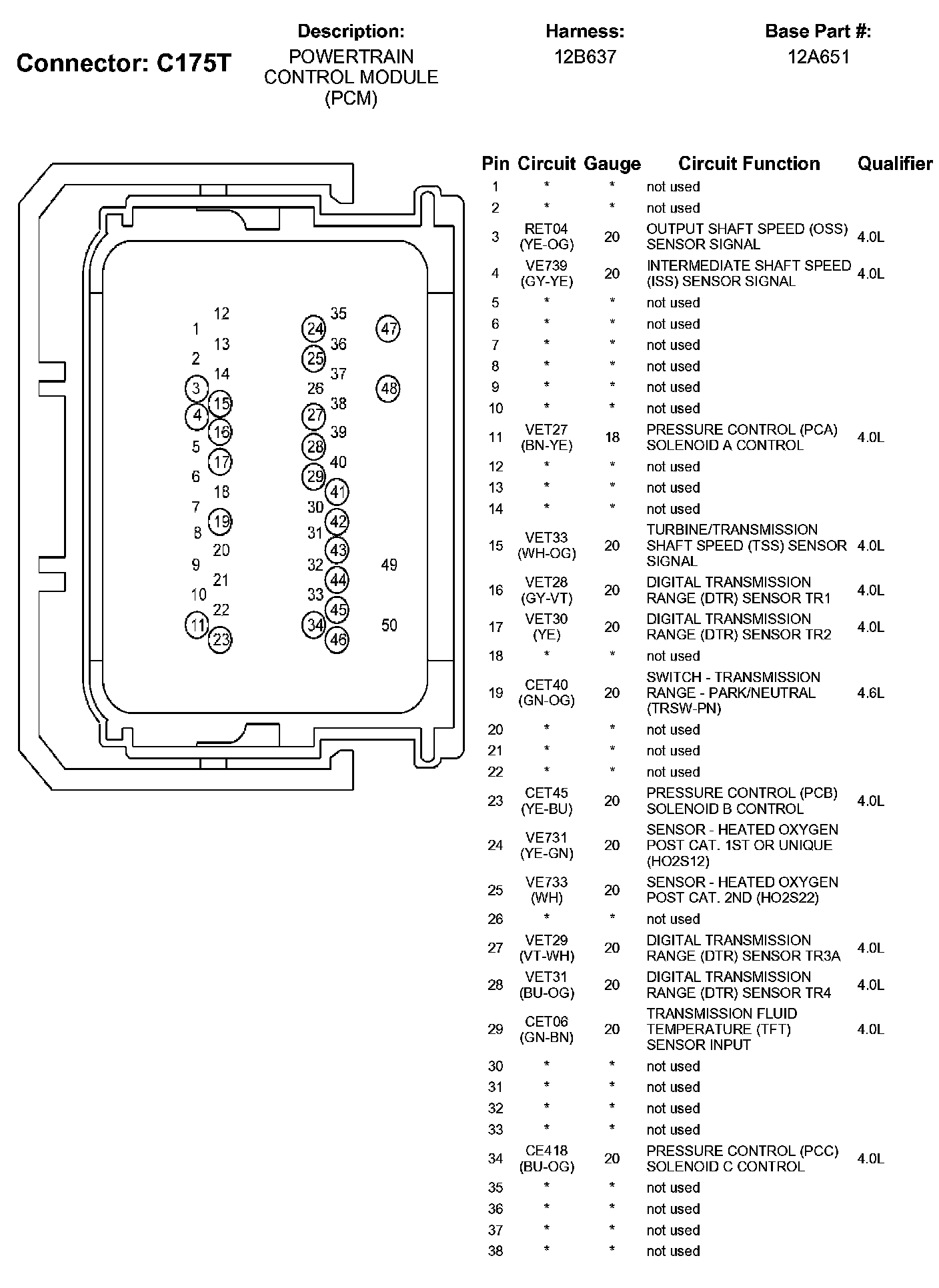

C175T (Part 1):

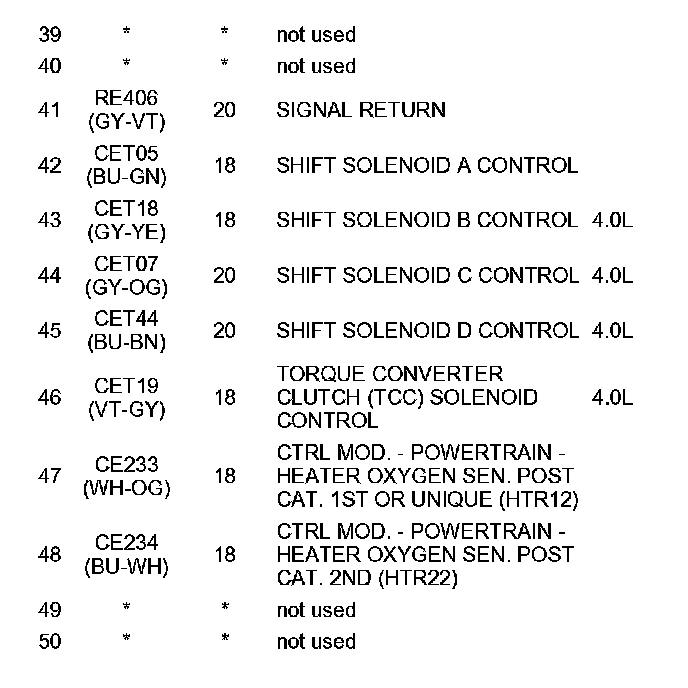

C175T (Part 2):
