Ford
>>
2008
>>
Explorer 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

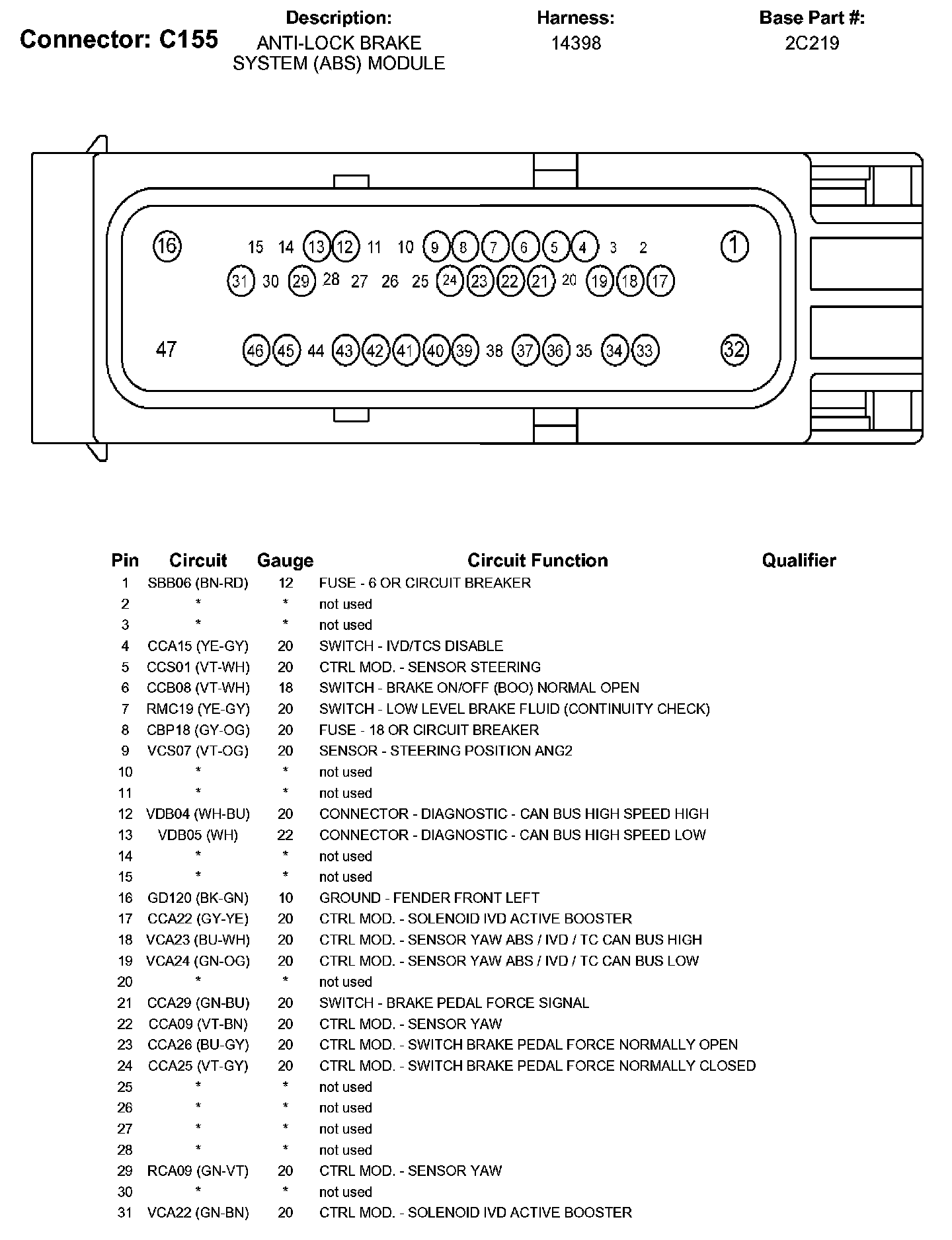

C155 (Part 1):

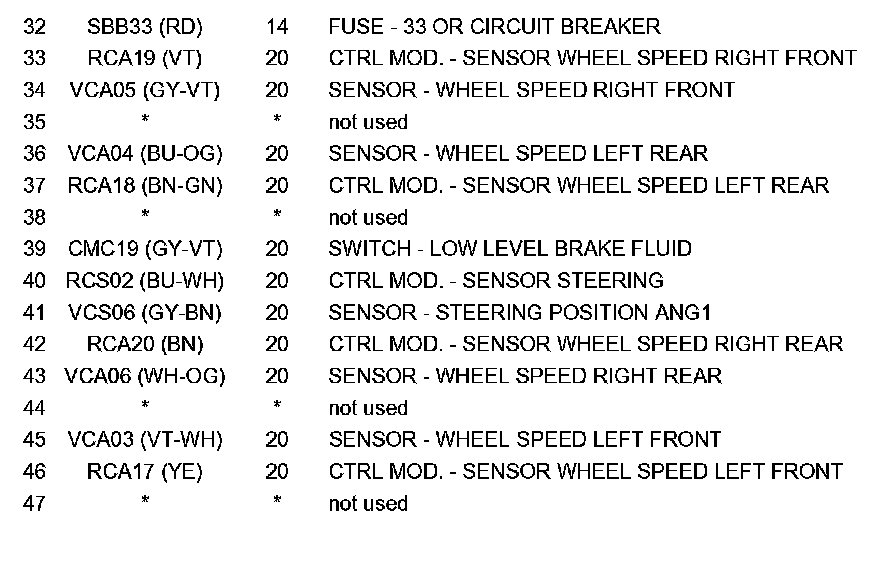

C155 (Part 2):
