Control Assembly, HVAC
>>
Auxiliary Climate Control Assembly, Front
Auxiliary Climate Control Assembly, Front

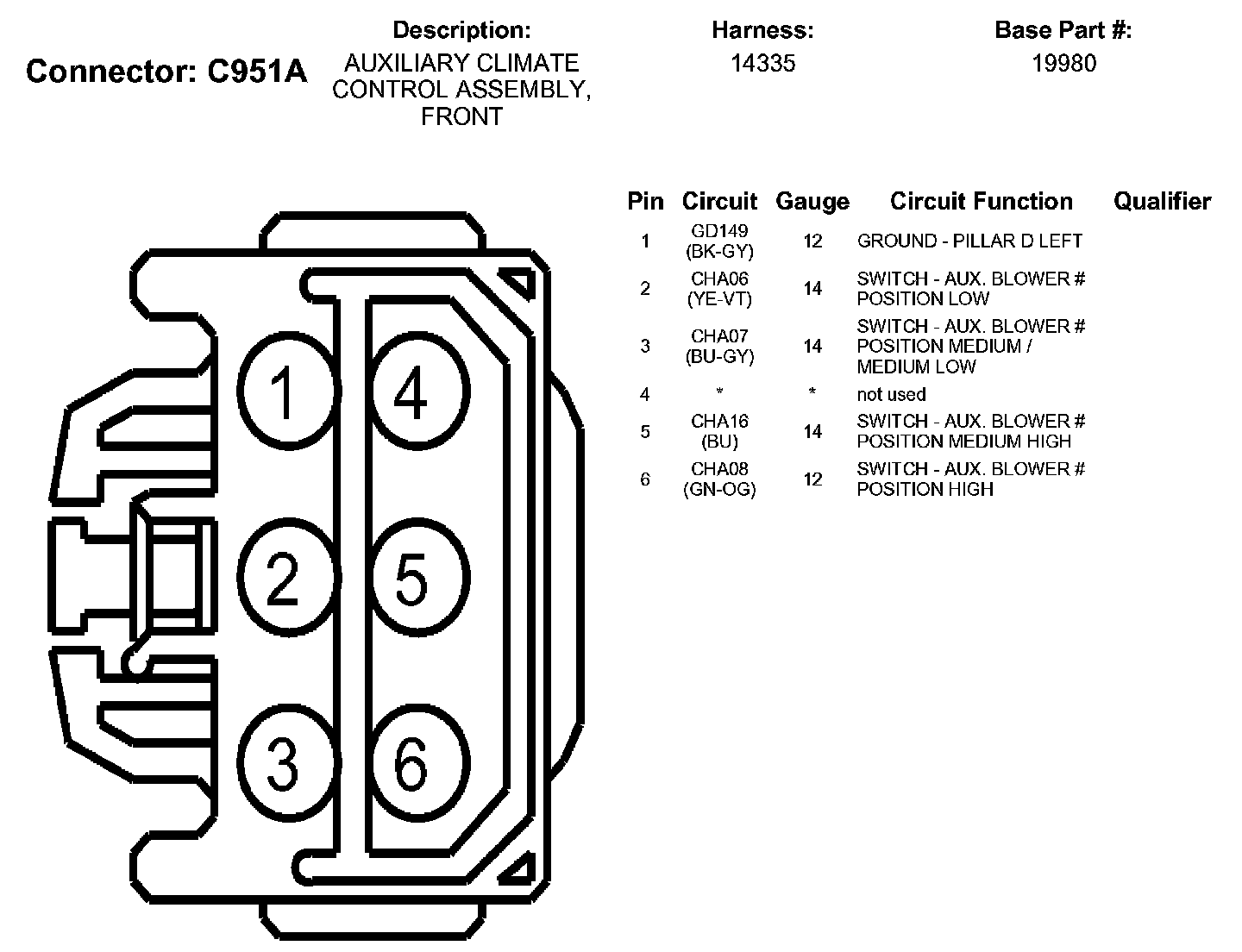

C951A:

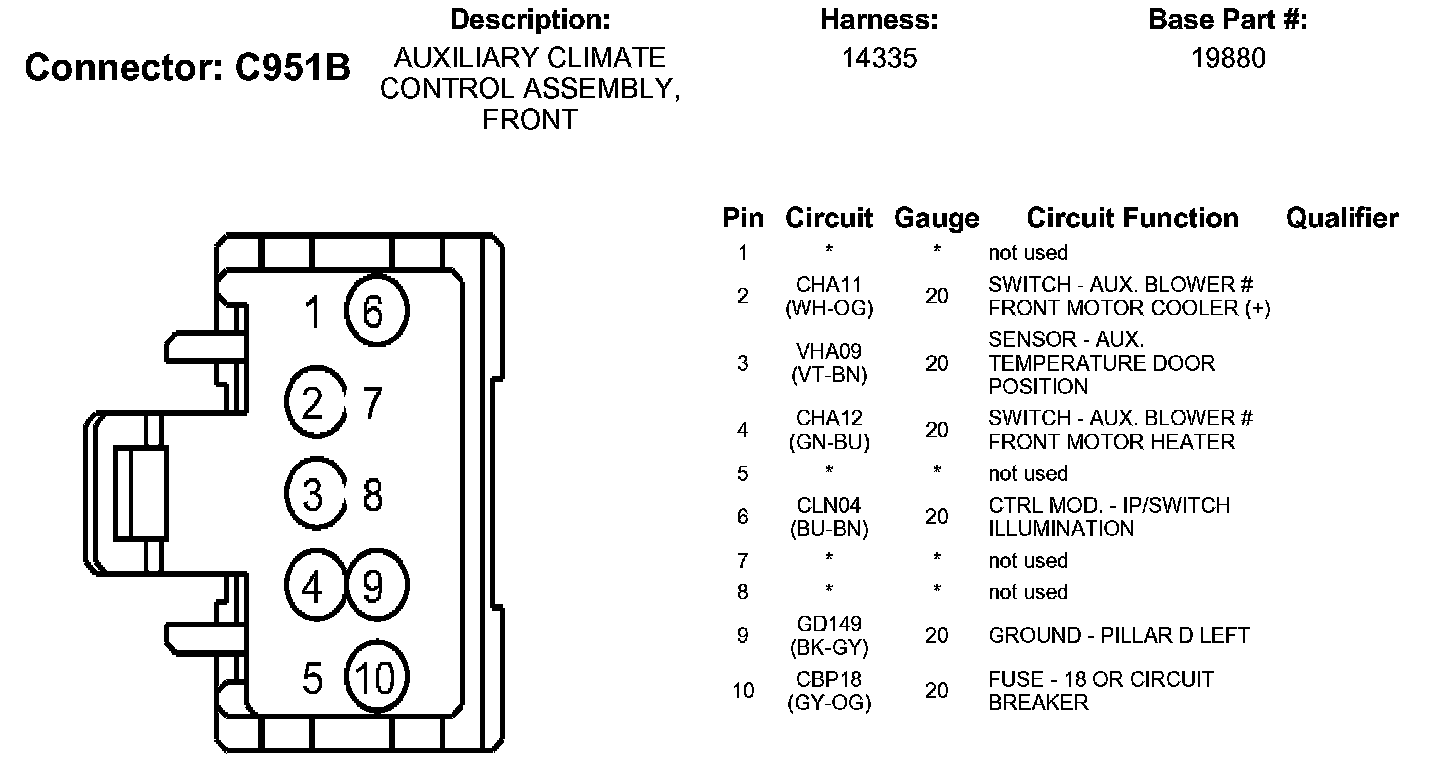

C951B:
