Home >> Ford >> 2008 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Audio Control Module

Audio Control Module

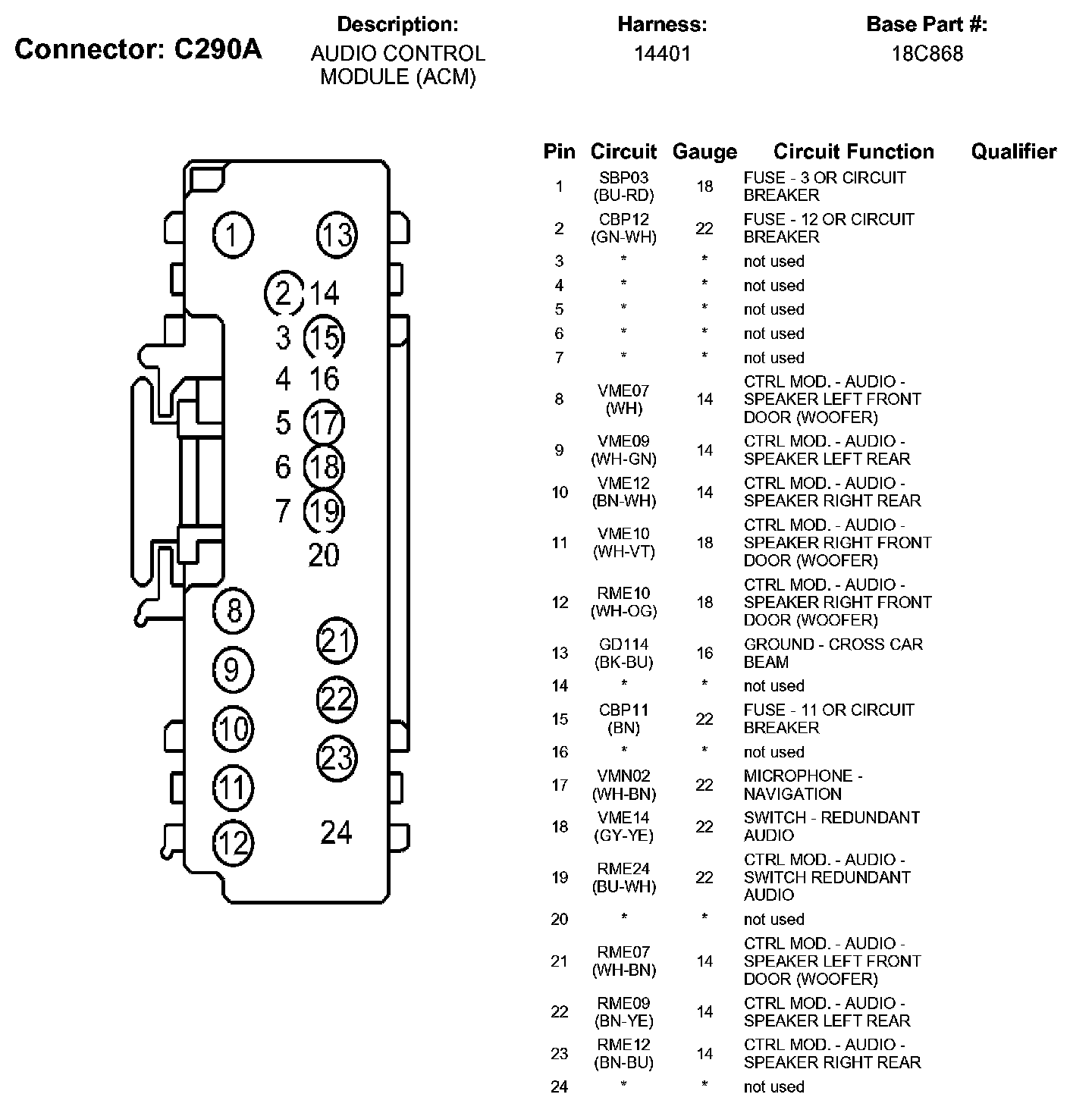

C290A:

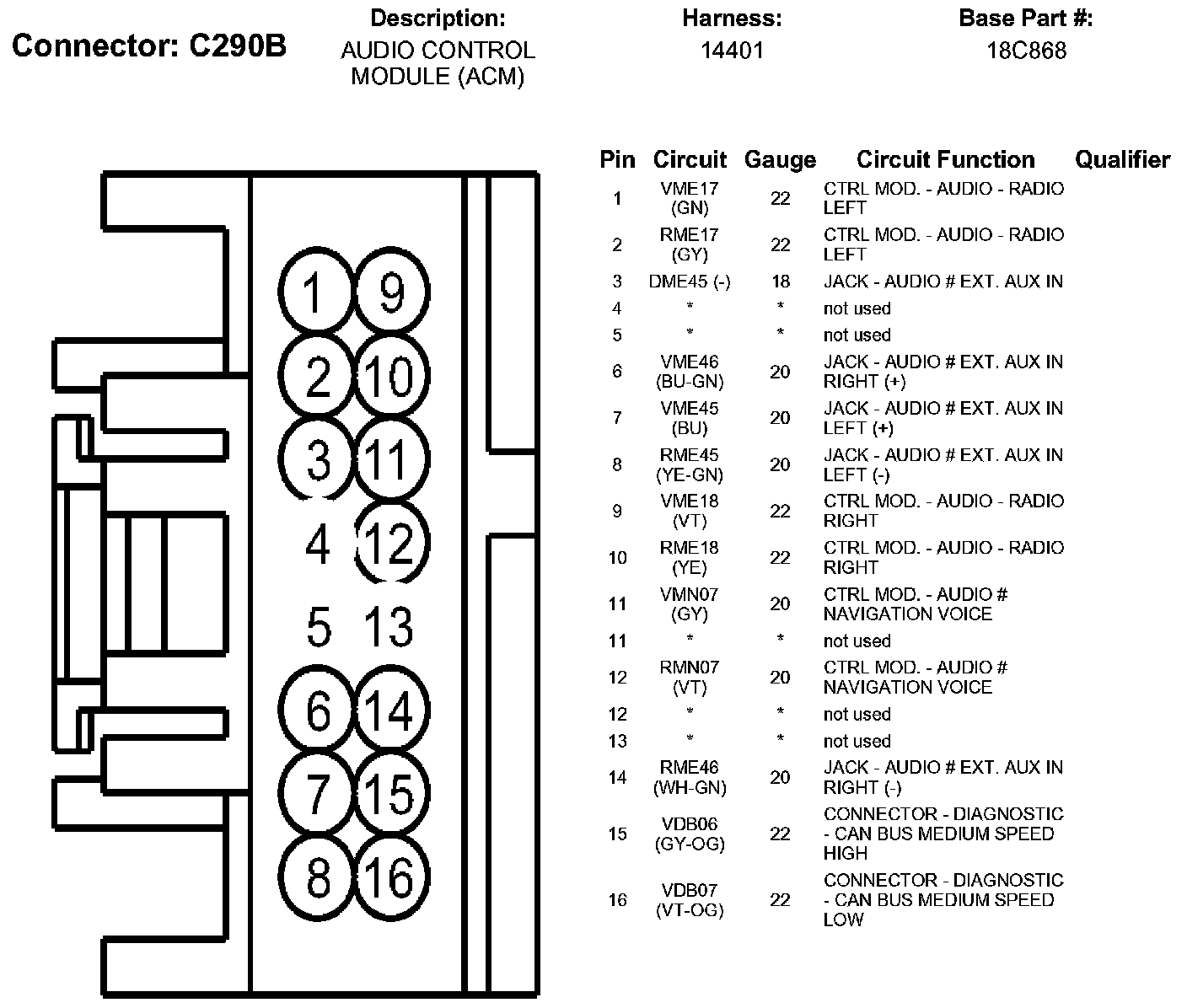

C290B:

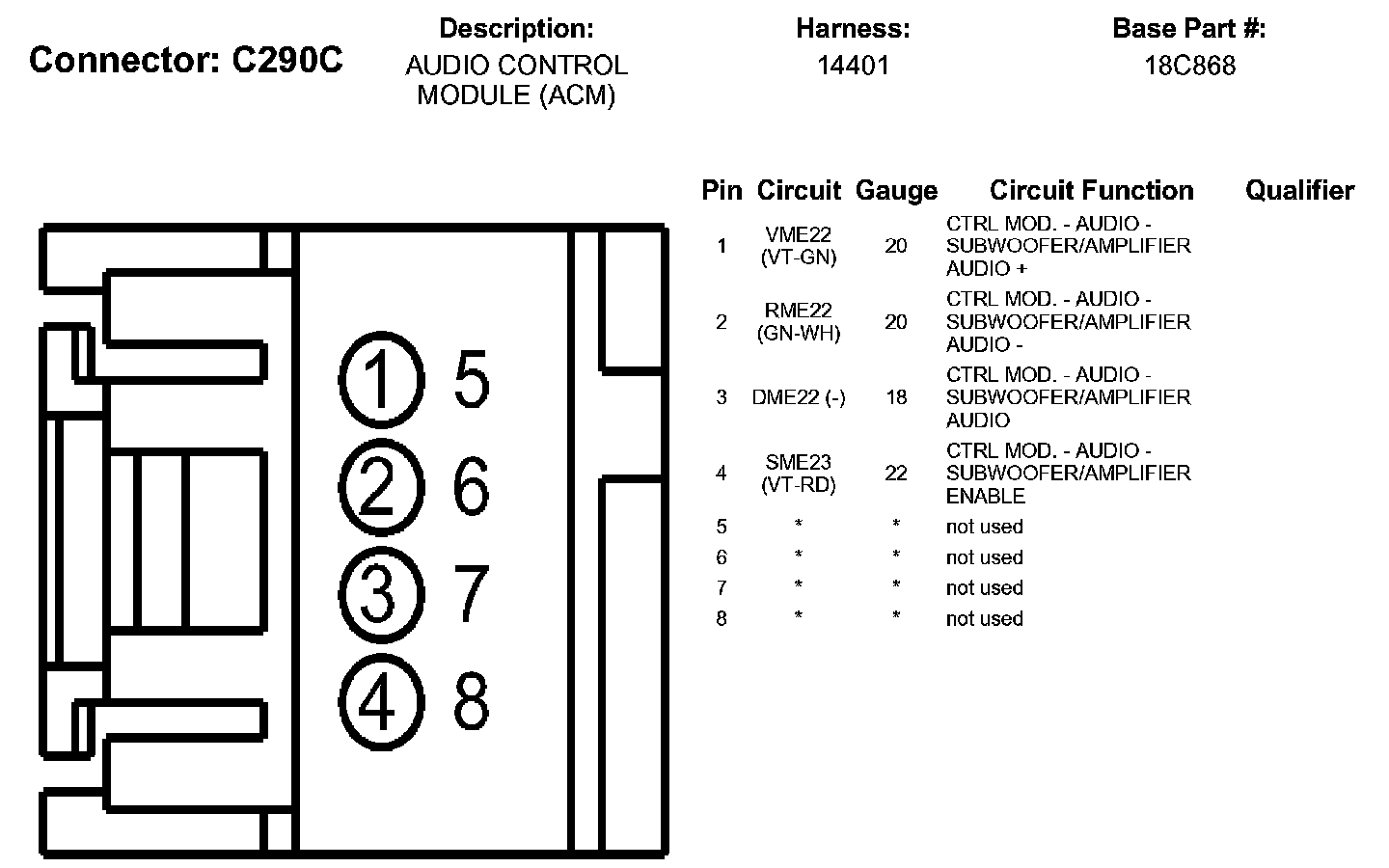

C290C:
