Home >> Ford >> 2008 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Restraints Control Module

Restraints Control Module

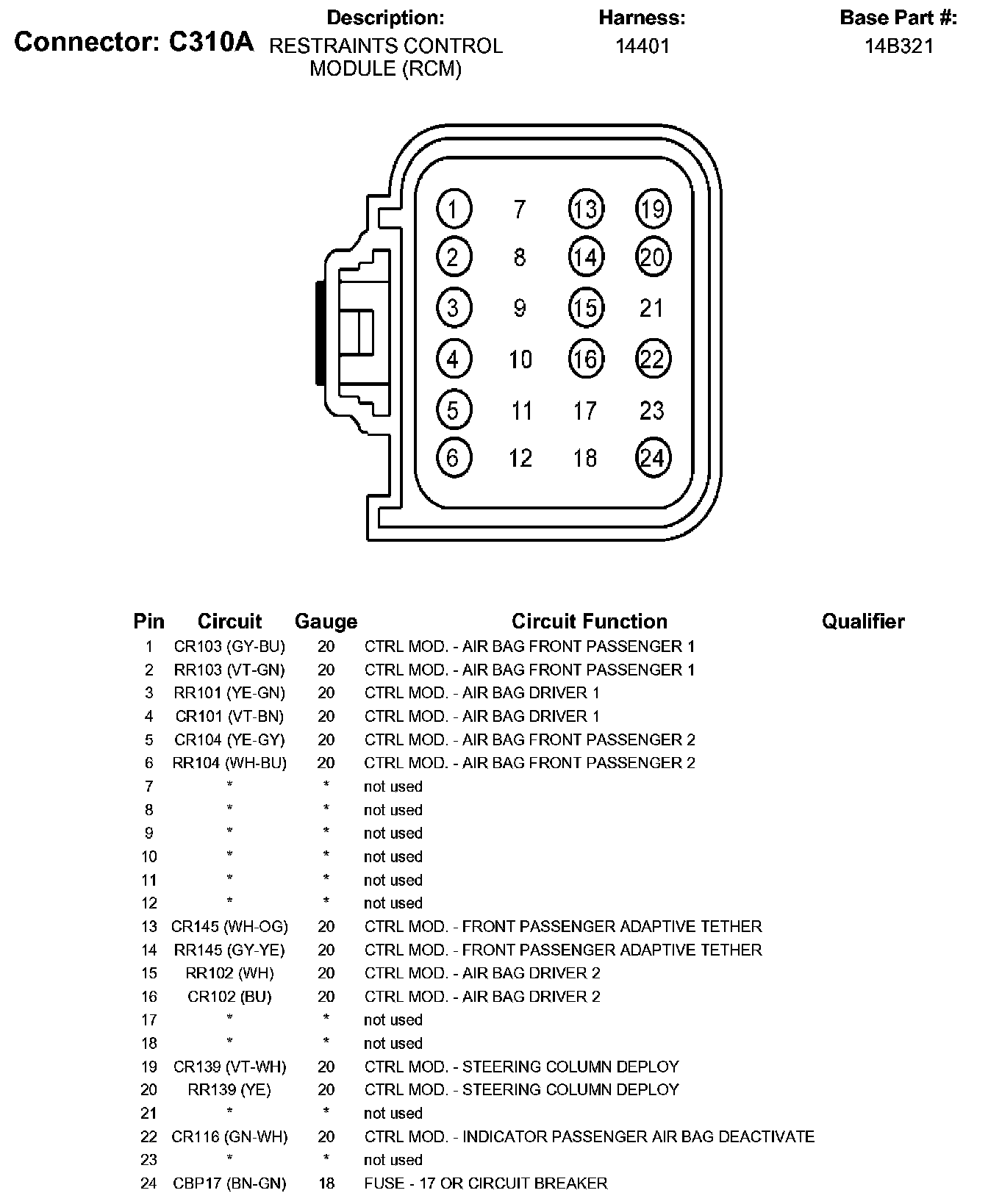

C310A:

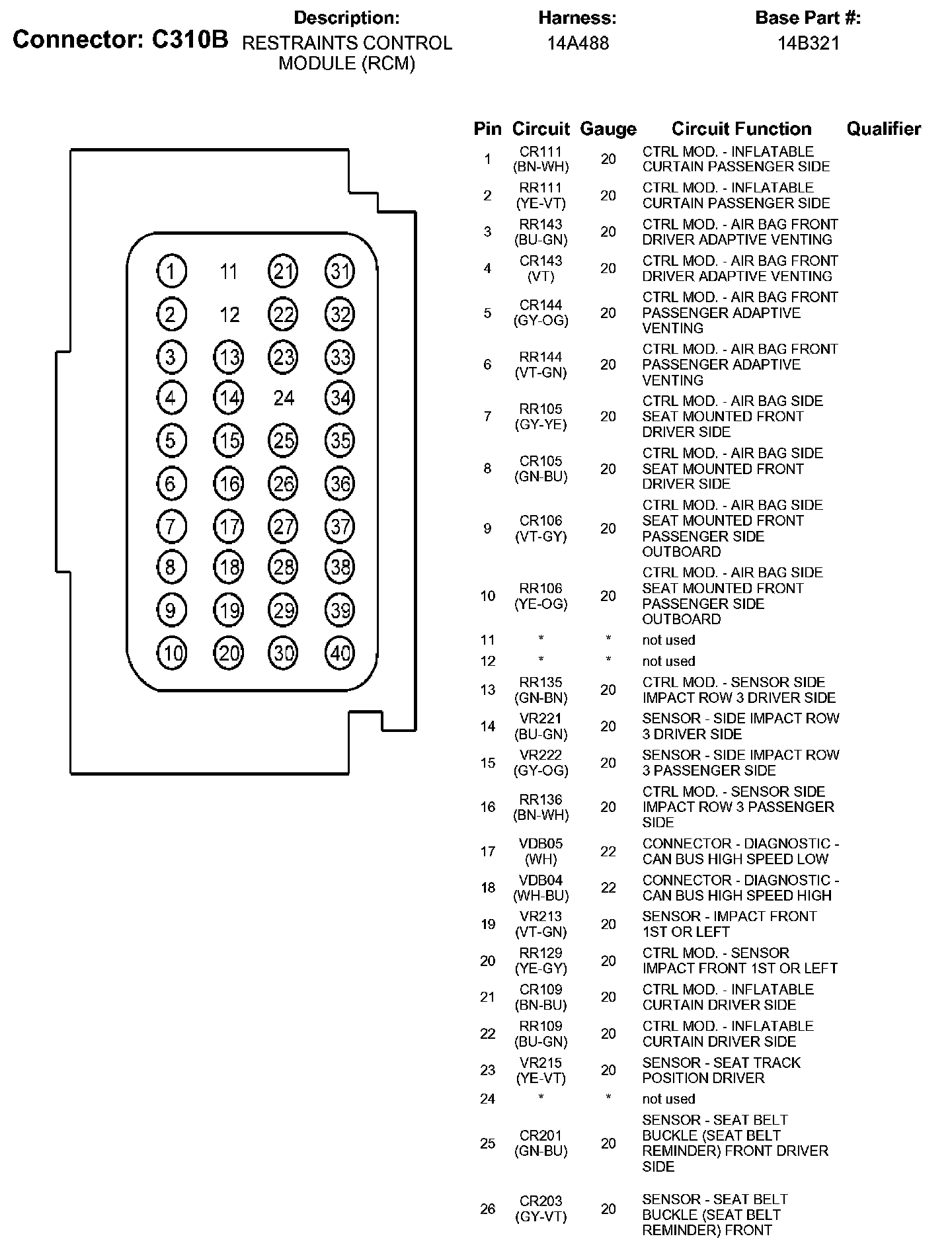

C310B (Part 1):

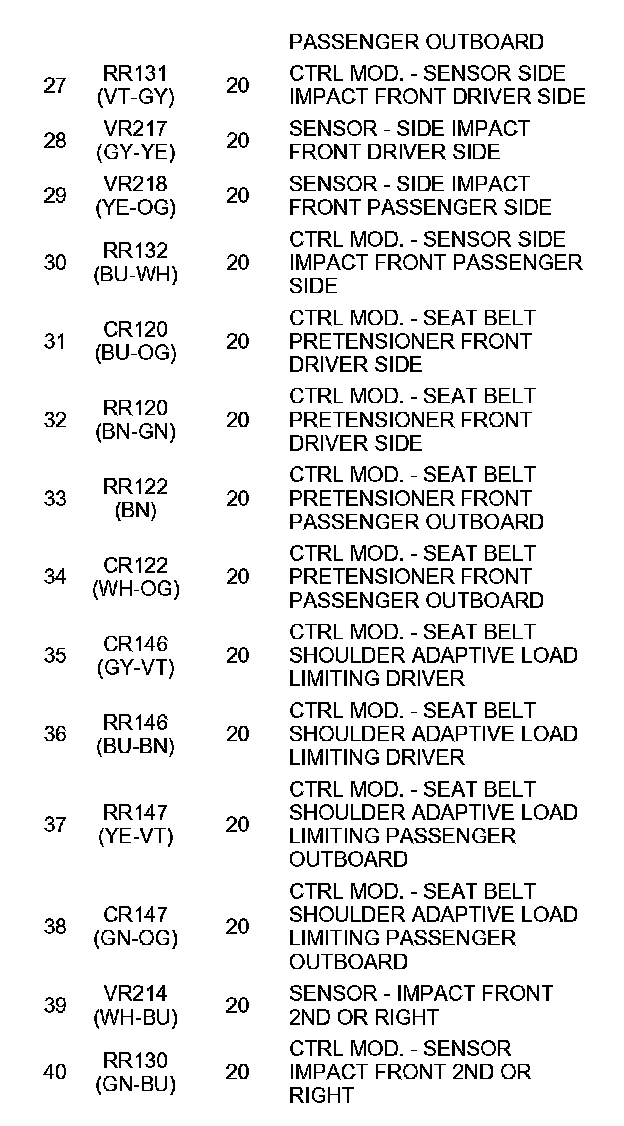

C310B (Part 2):
