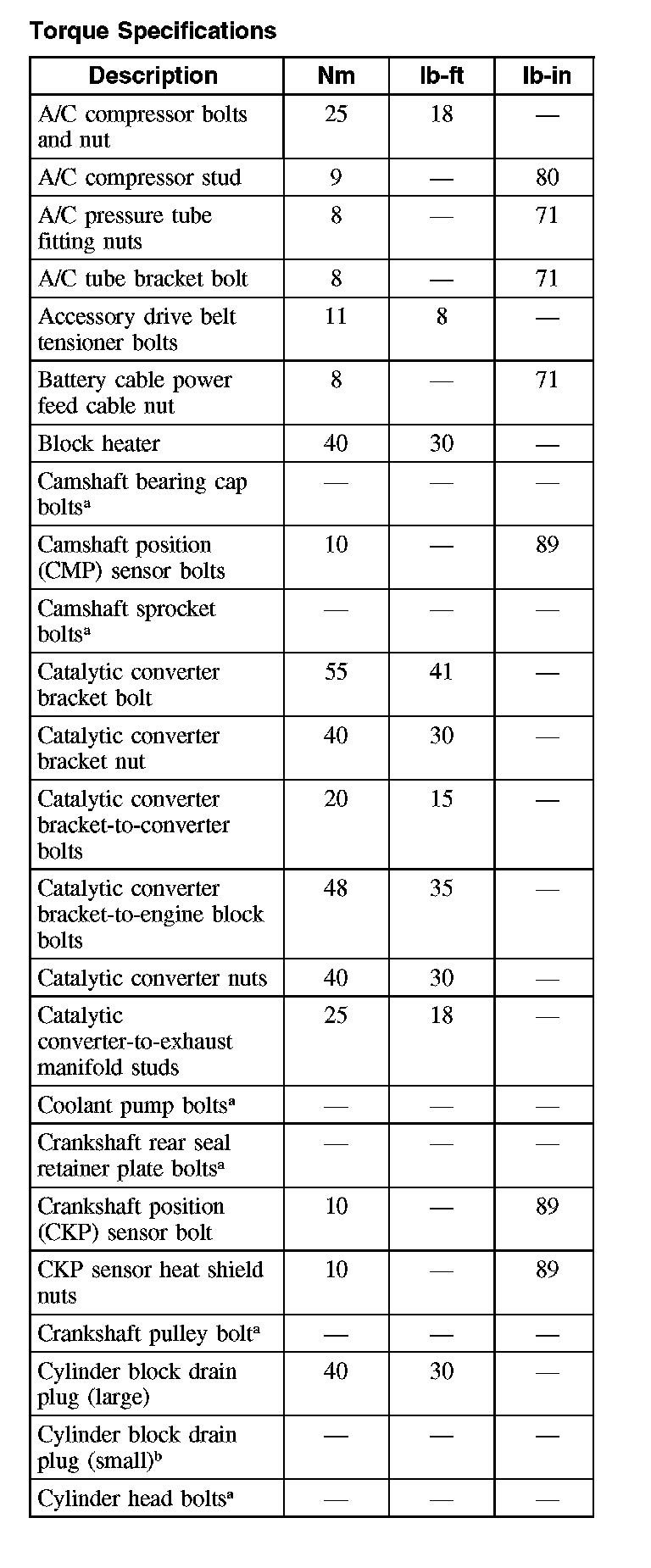

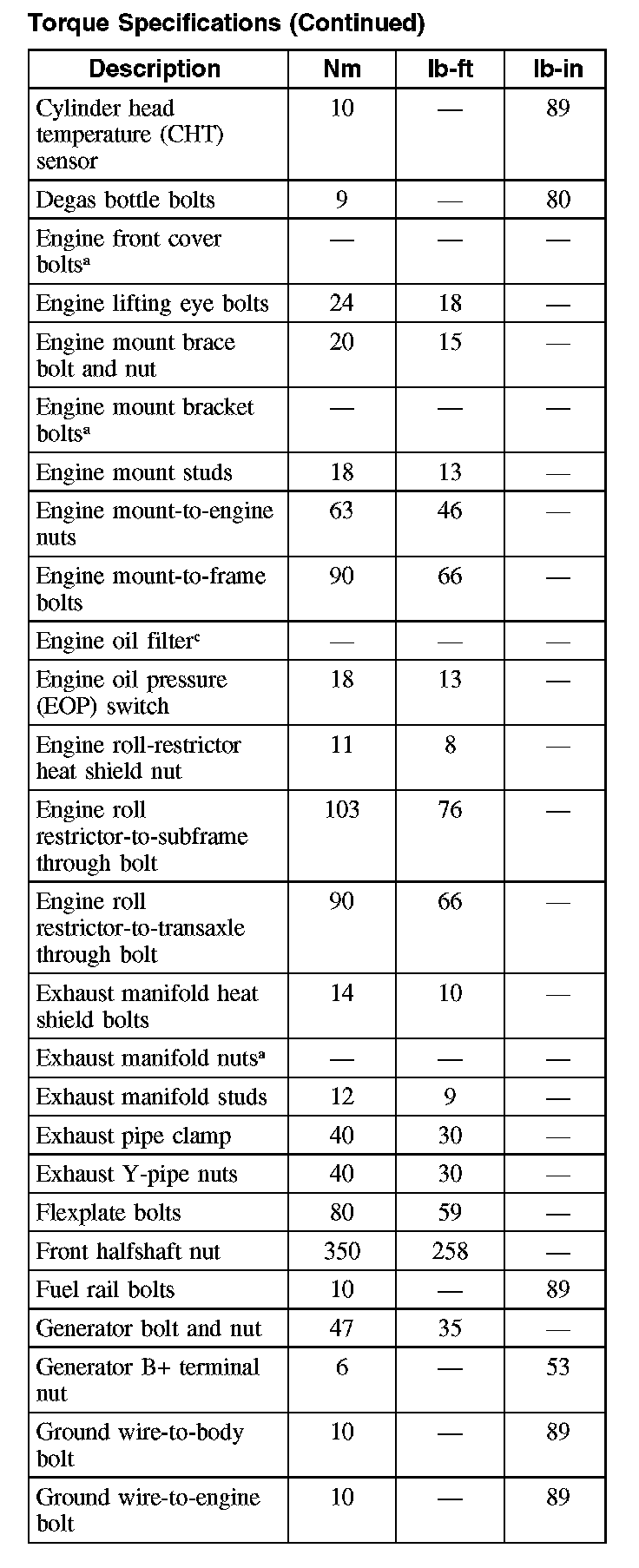

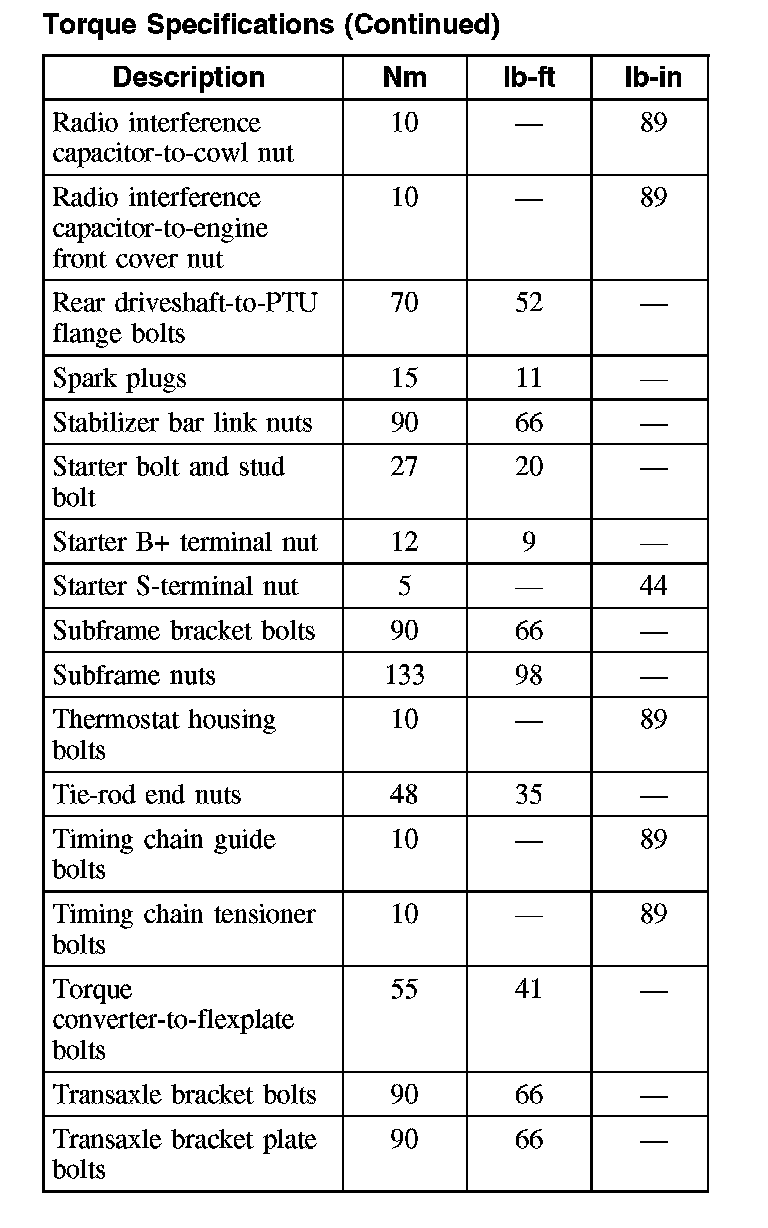

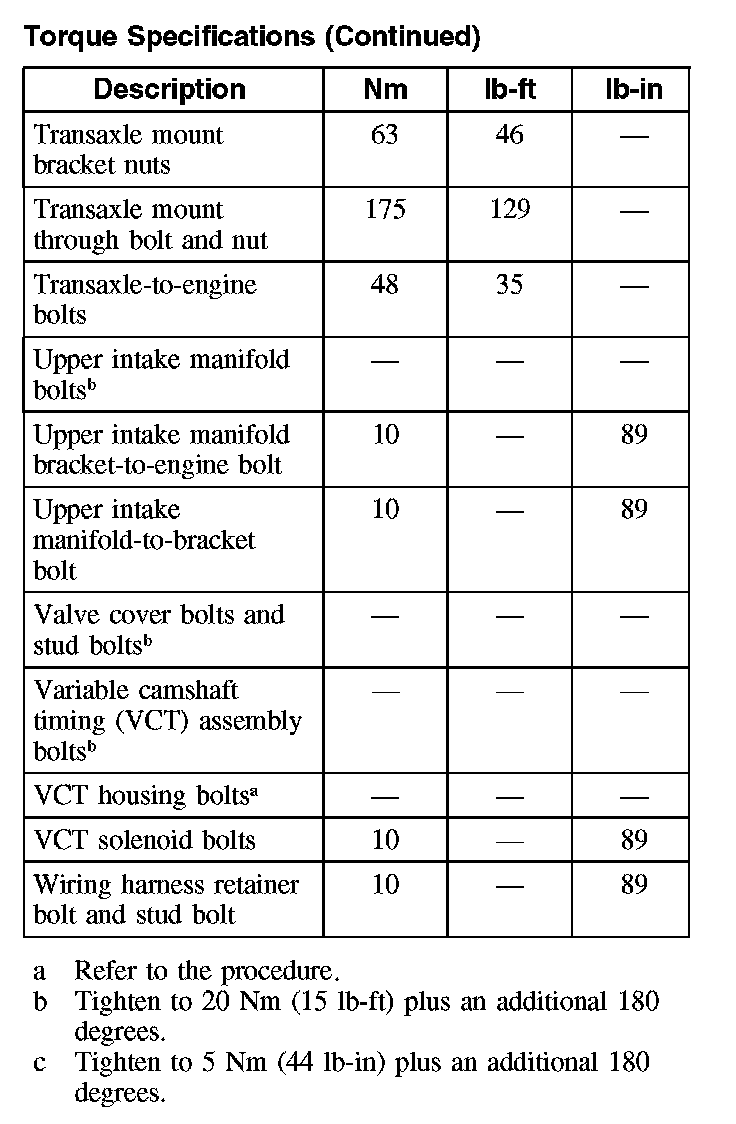

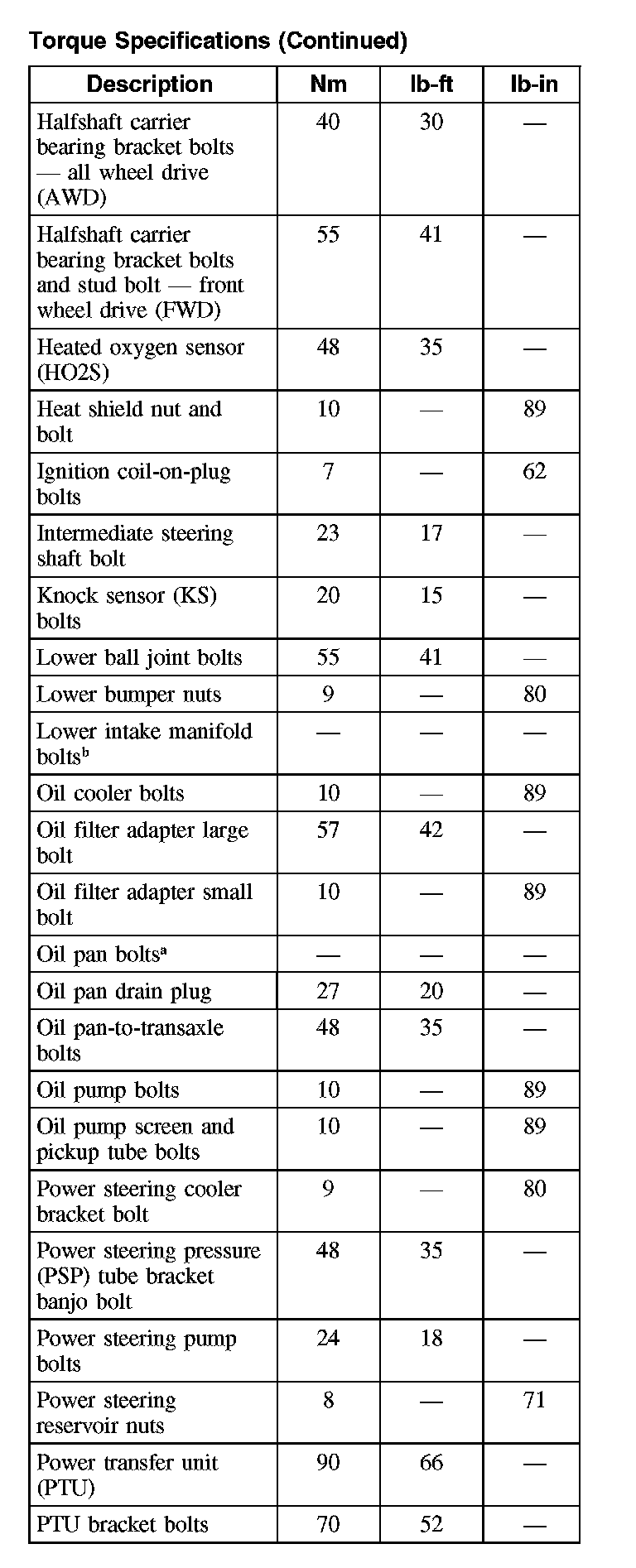

Torque Specifications

Torque Specifications

General Specifications (Part 6):




General Specifications (Part 7):




General Specifications (Part 8):




General Specifications (Part 9):




General Specifications (Part 10):





Cylinder Head Bolts

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
