Home >> Ford >> 2008 >> Edge FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

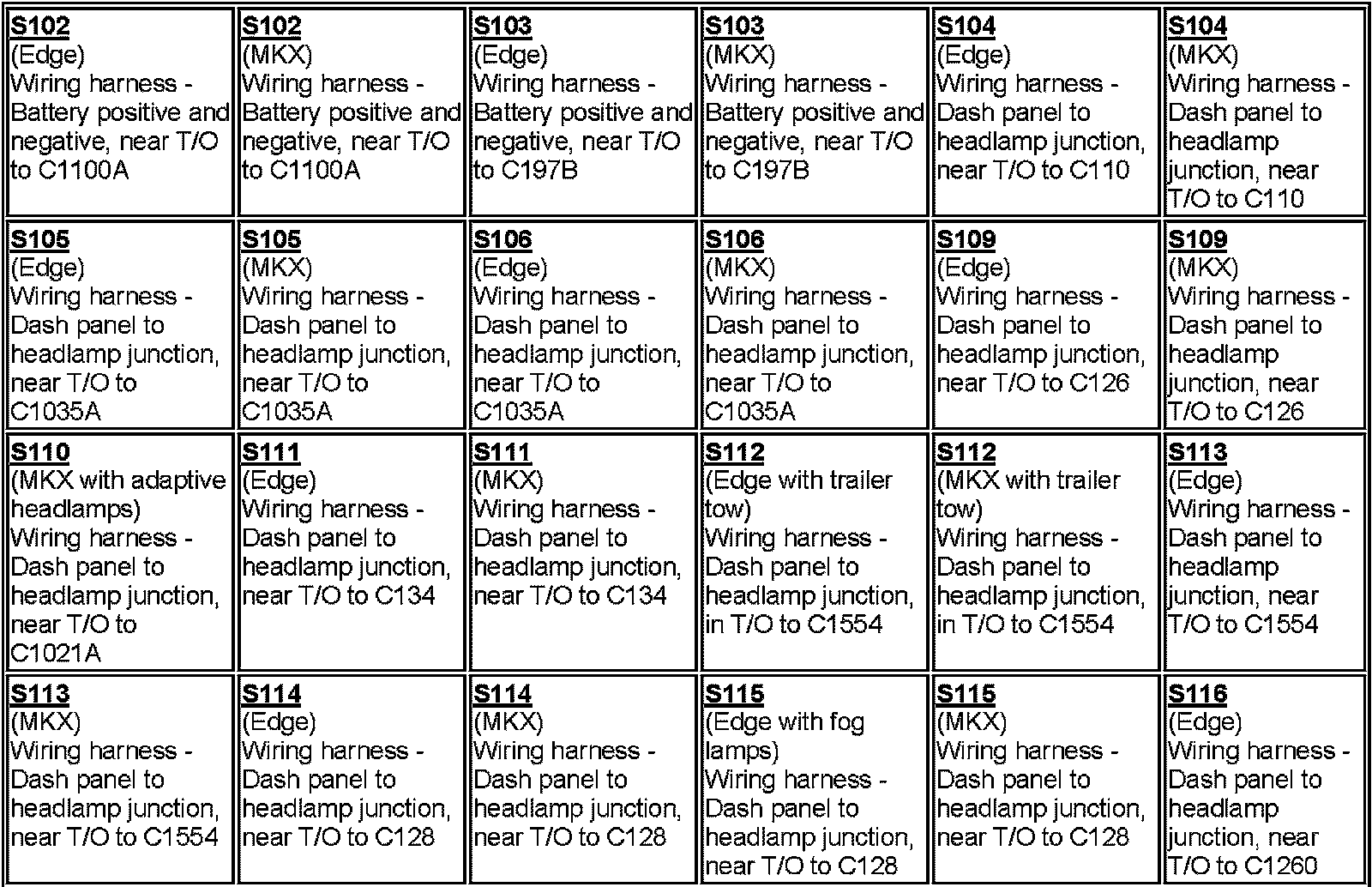

S102-S116:

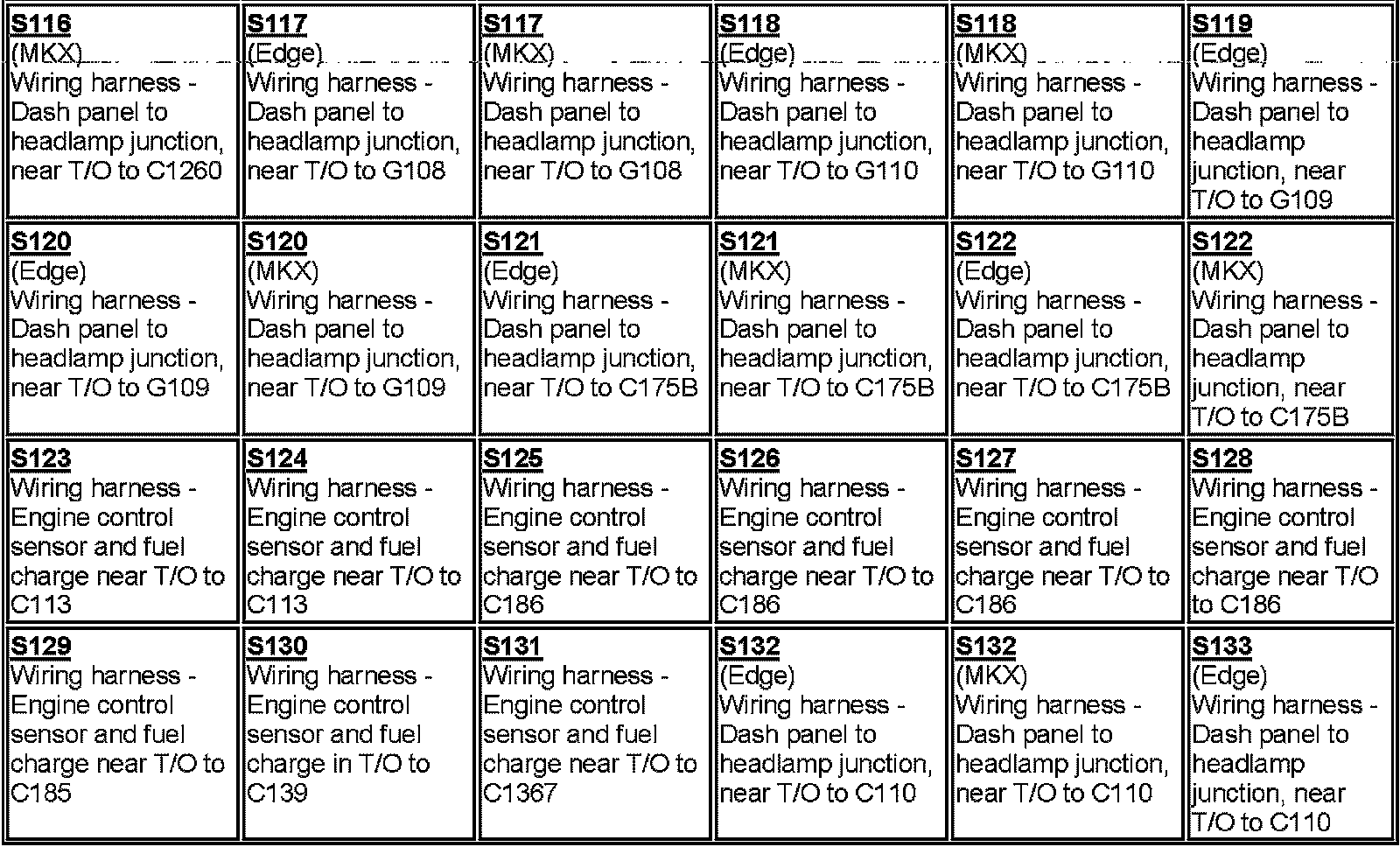

S116-S133:

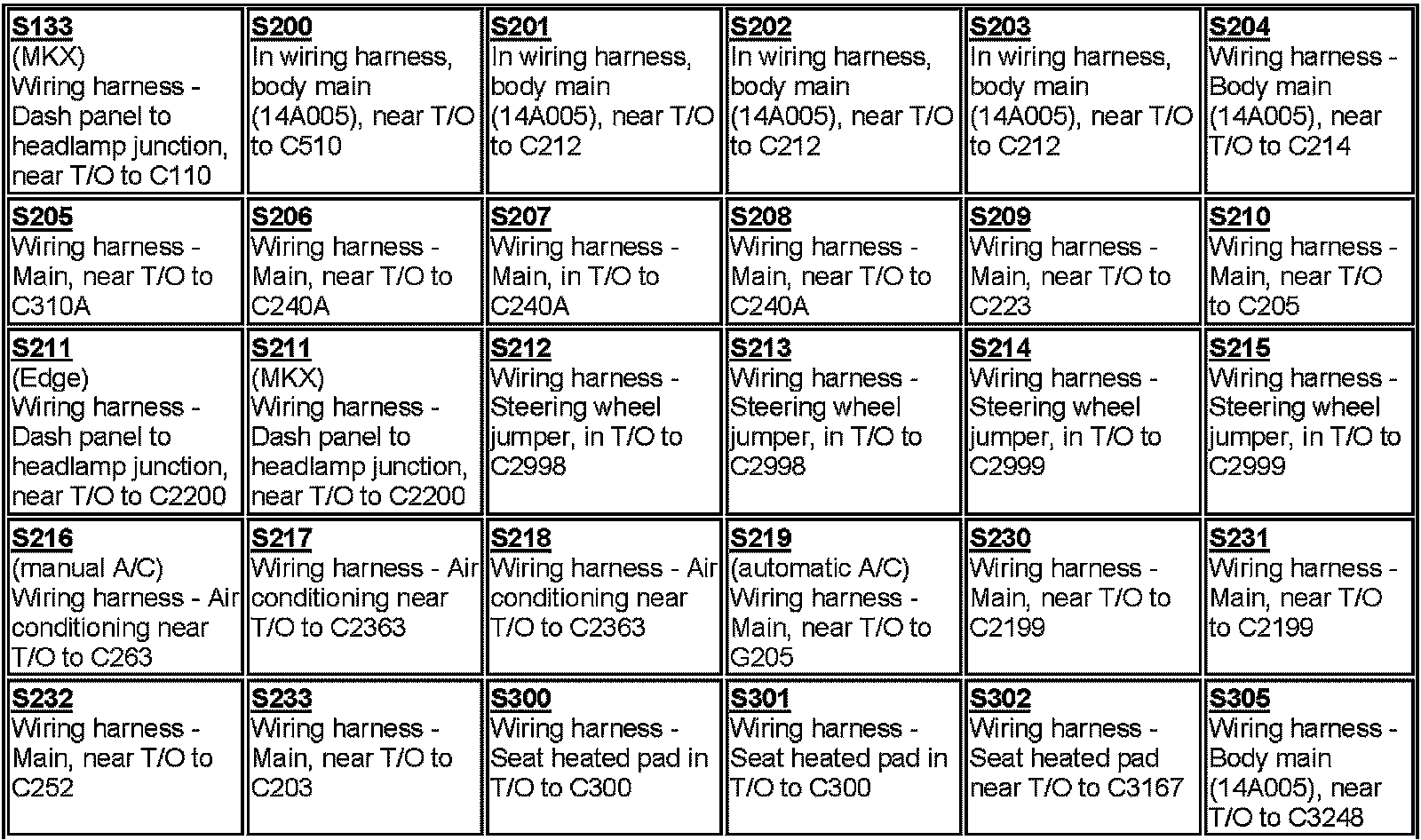

S133-S305:

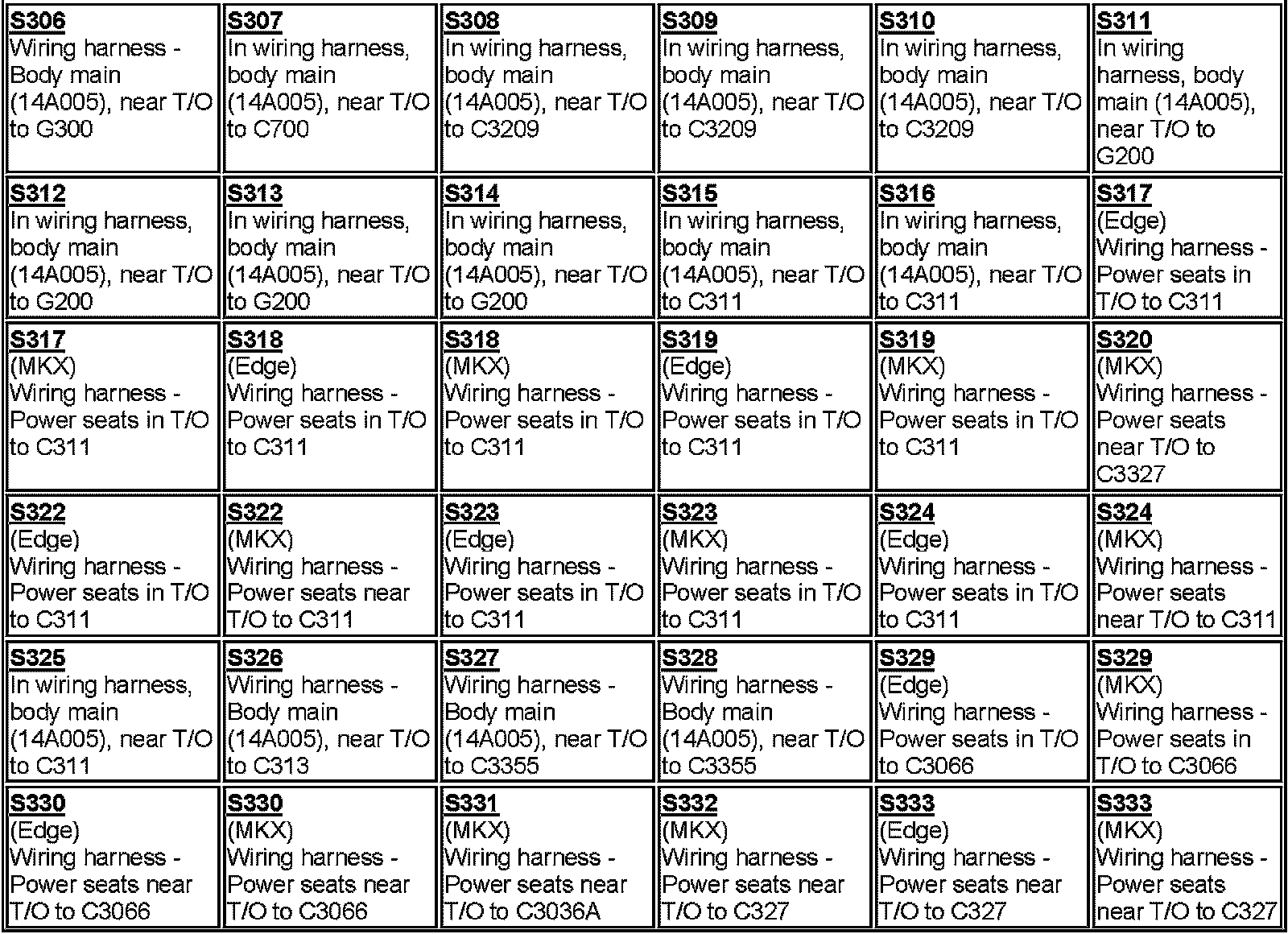

S306-S333:

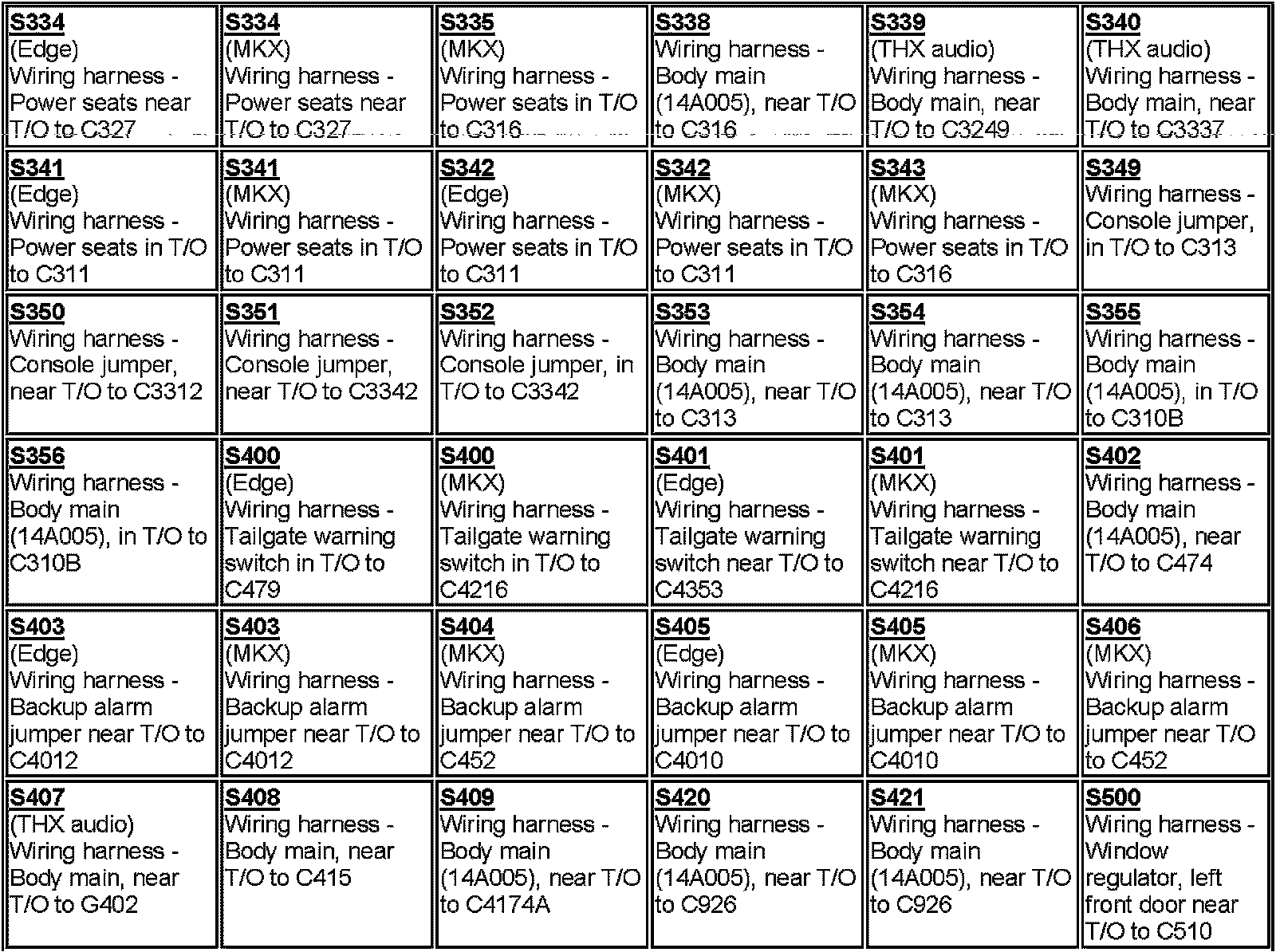

S334-S500:

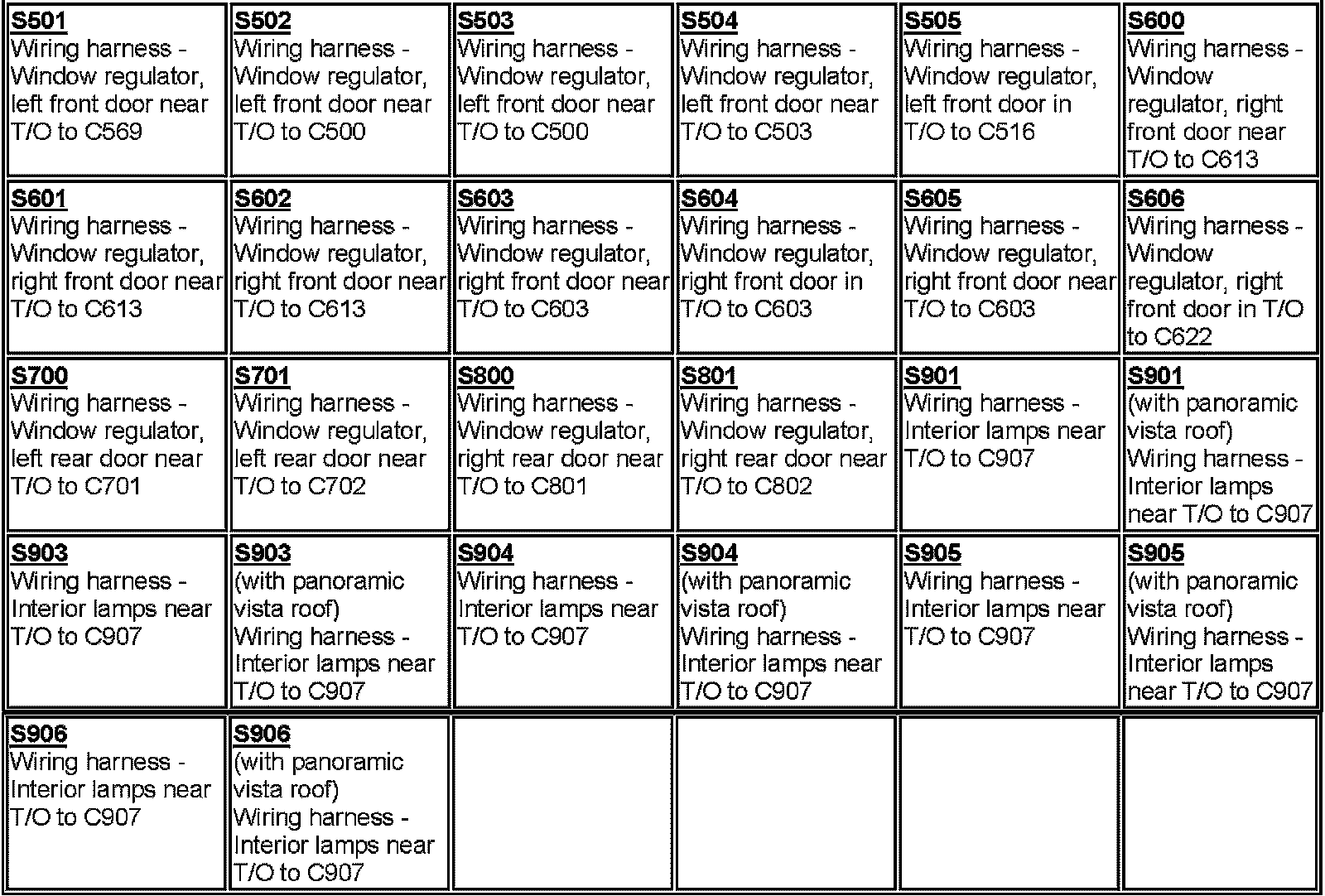

S501-S906:
