Edge FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Heated Seat Module
>>
Passenger Side Front
Passenger Side Front

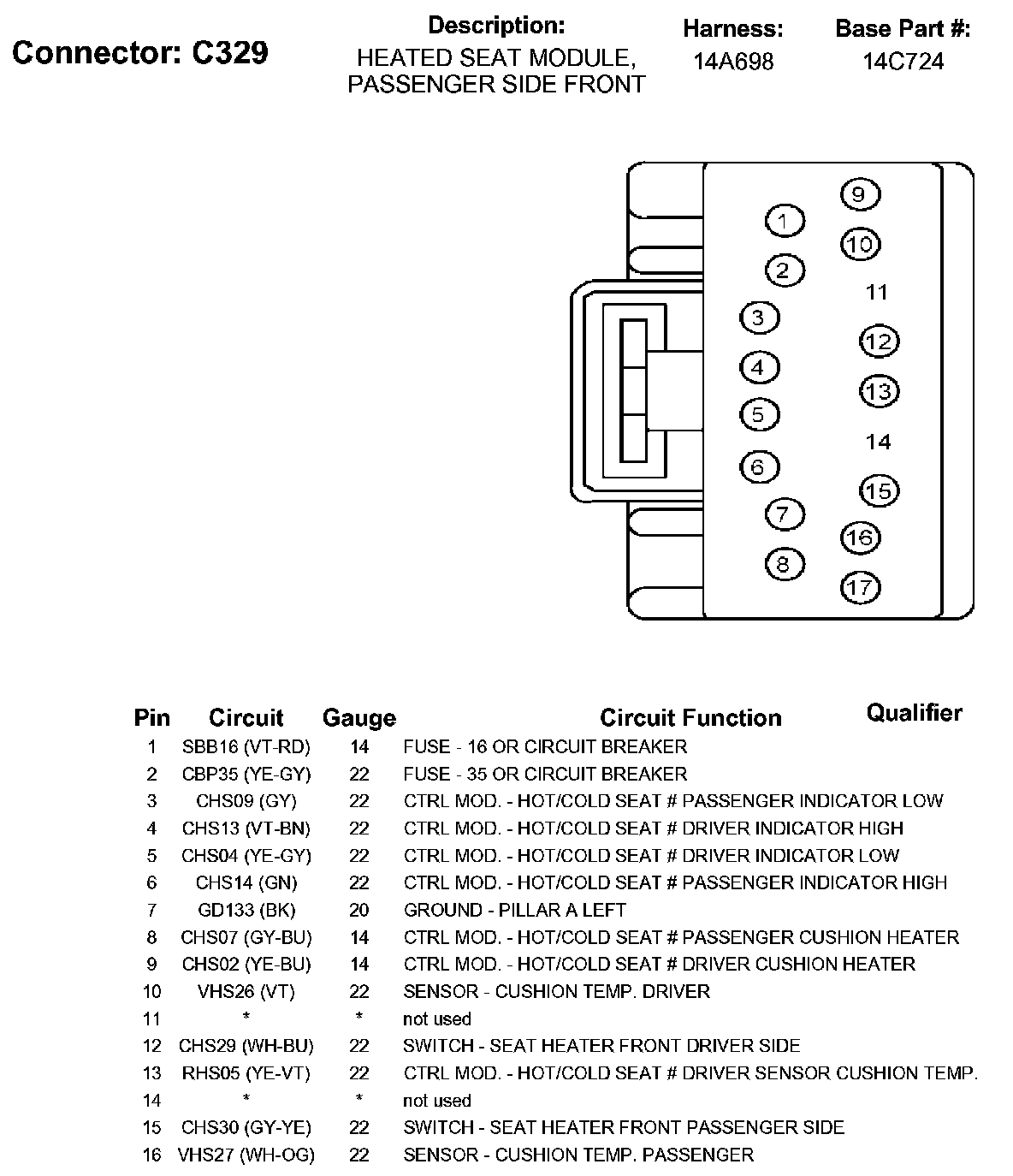

C329 (Part 1):

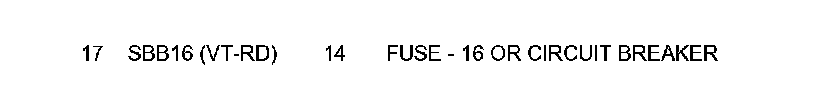

C329 (Part 2):
