Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

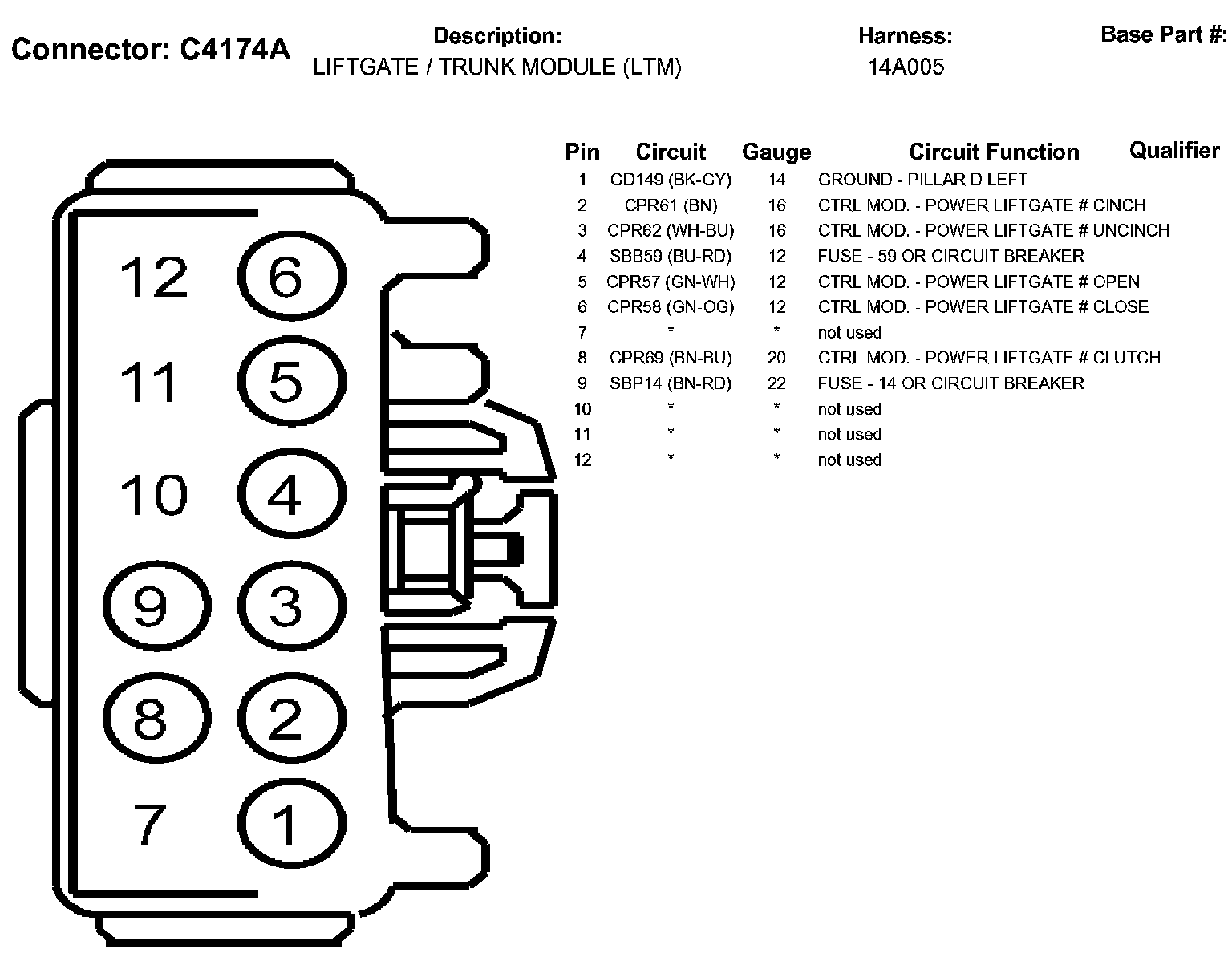

C4174A:

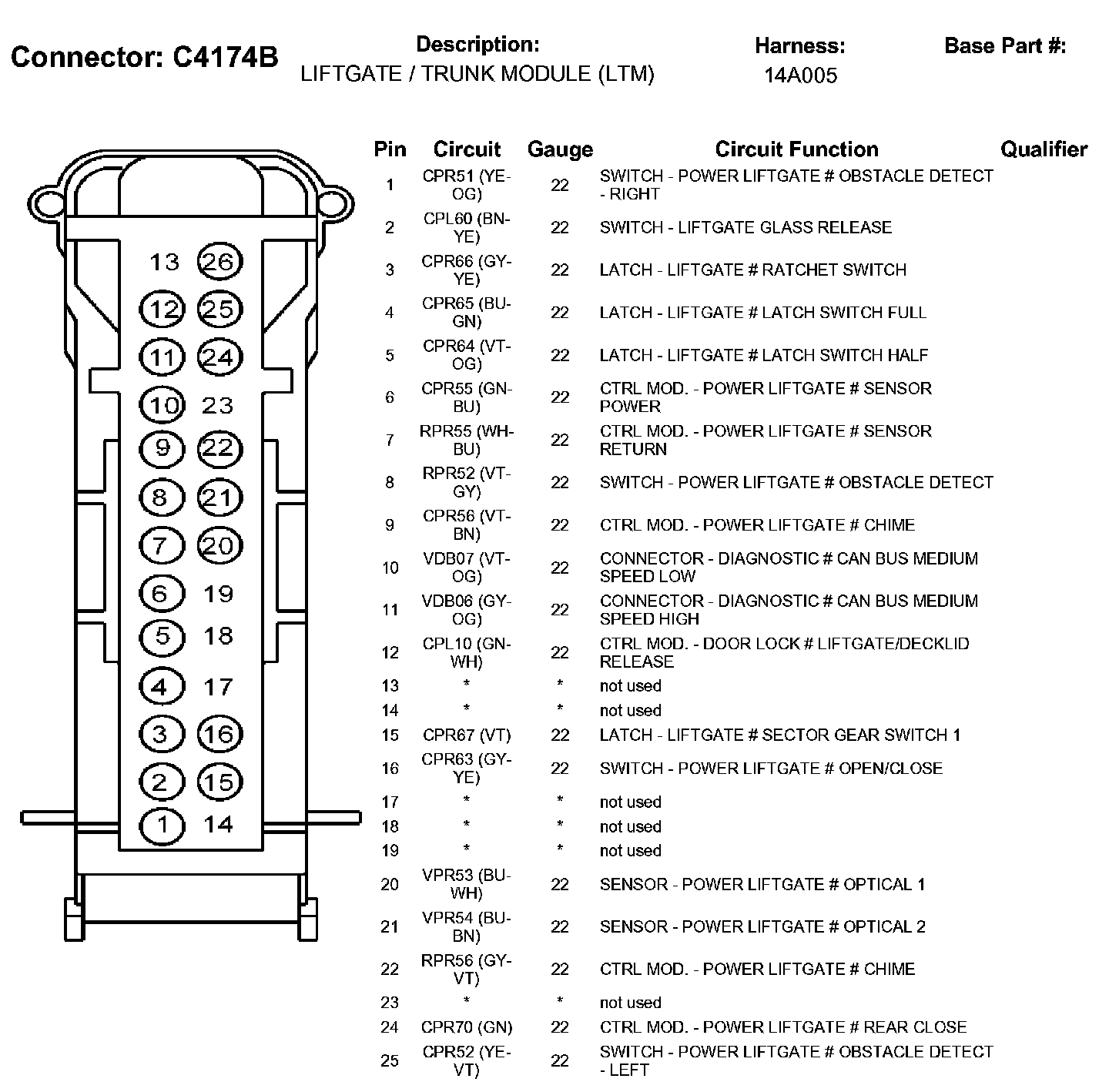

C4174B (Part 1):

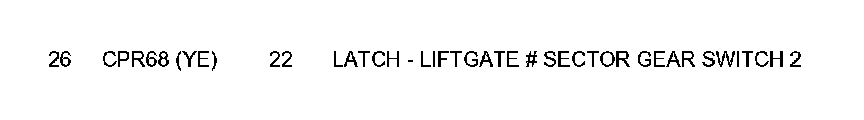

C4174B (Part 2):
