Home >> Ford >> 2008 >> Edge FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> HVAC Module, EMTC

HVAC Module, EMTC

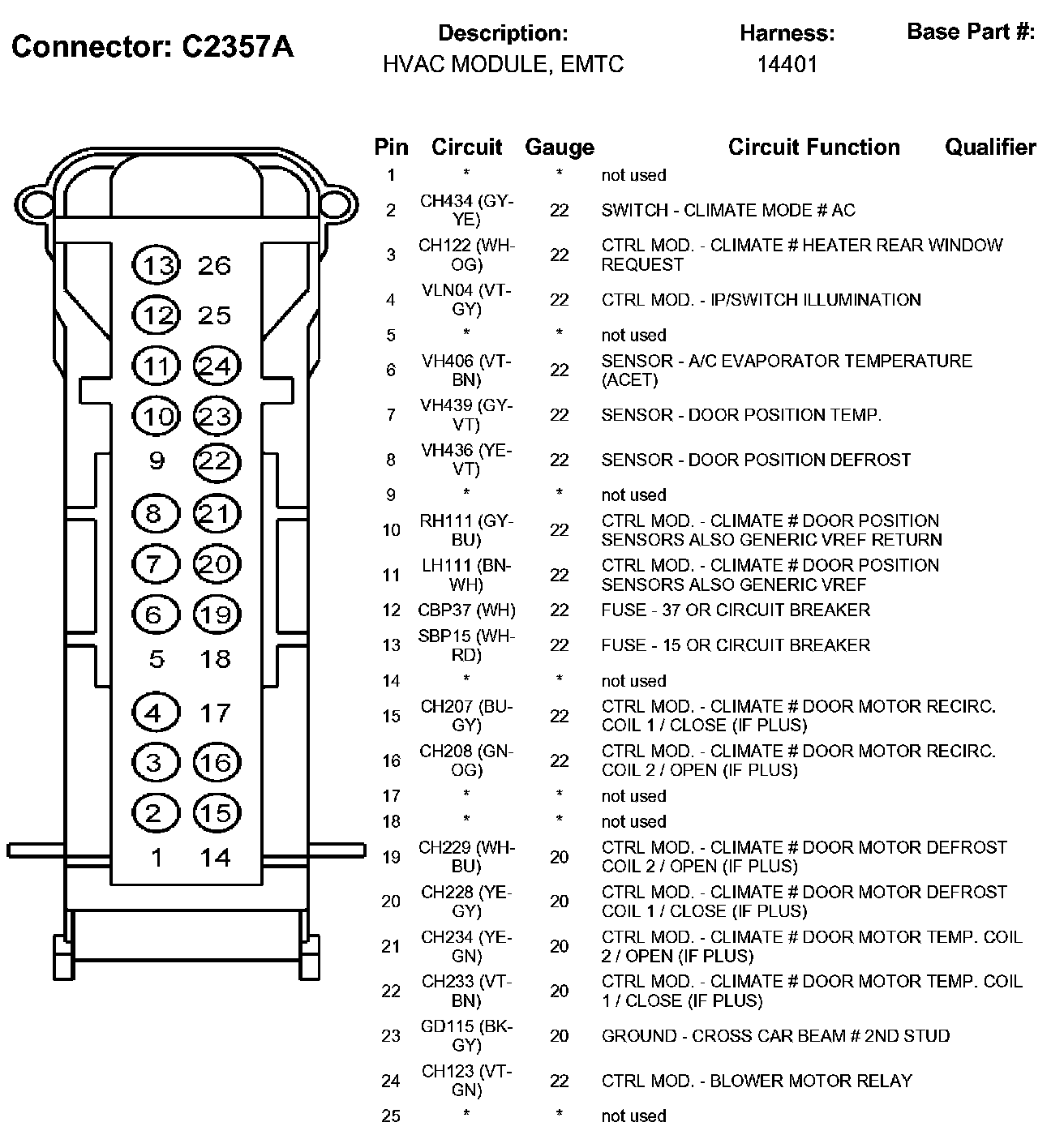

C2357A (Part 1):

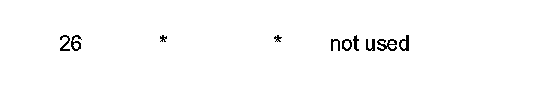

C2357A (Part 2):

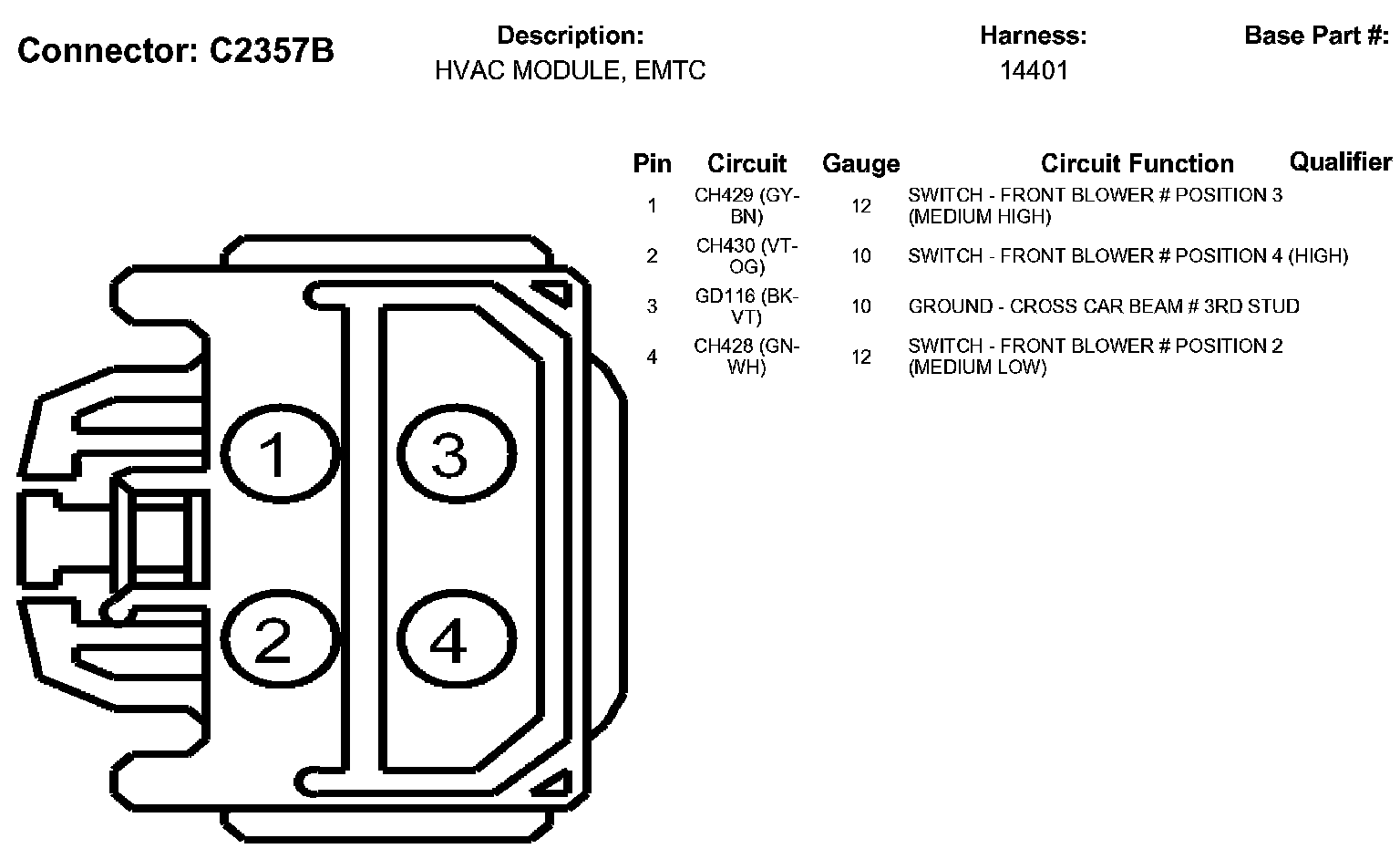

C2357B:
