lemon-mirror
:
Home
>>
Ford
>>
2008
>>
Edge FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>
Audio Digital Signal Processing (DSP) Module
Audio Digital Signal Processing (DSP) Module

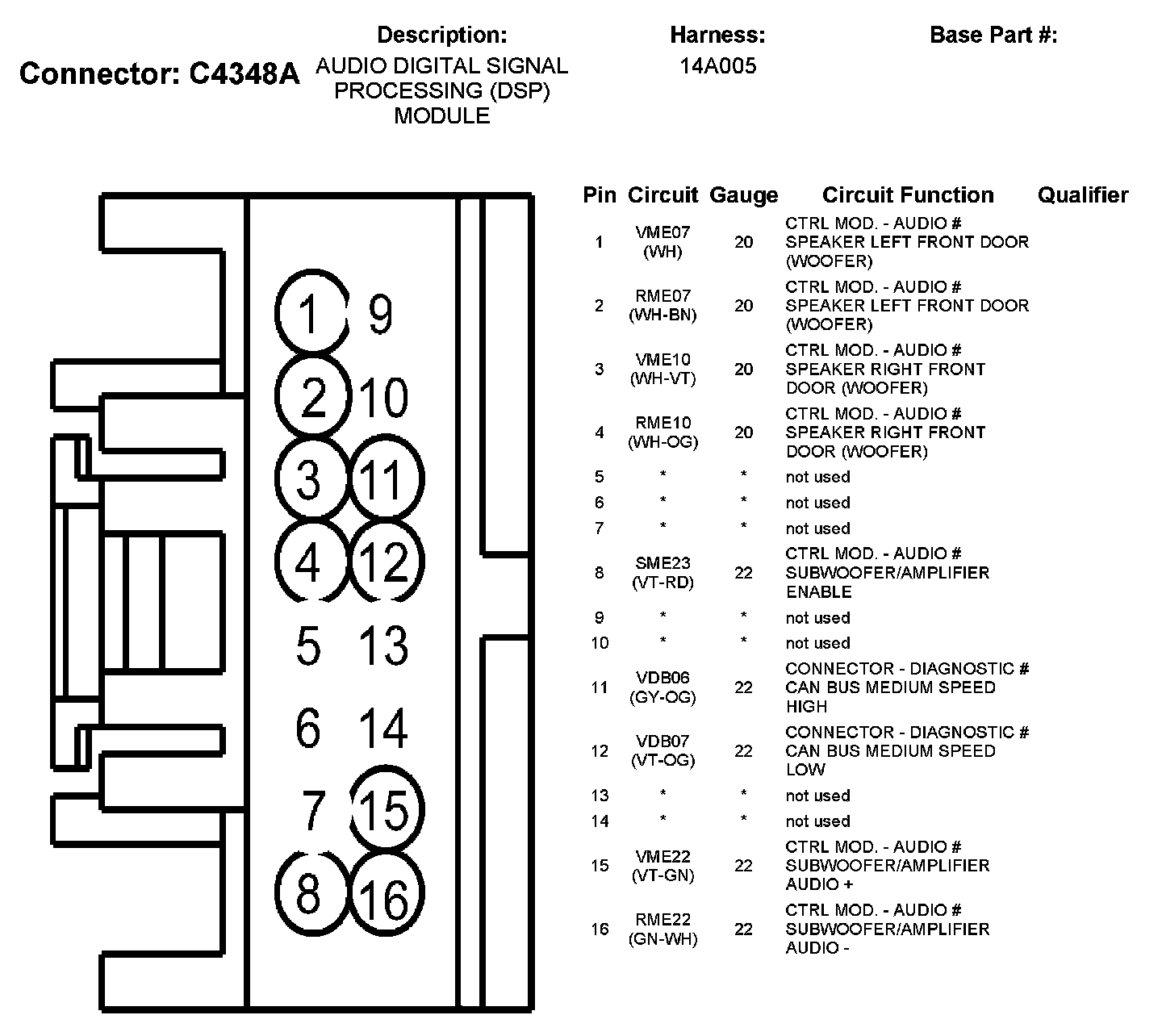

C4348A:

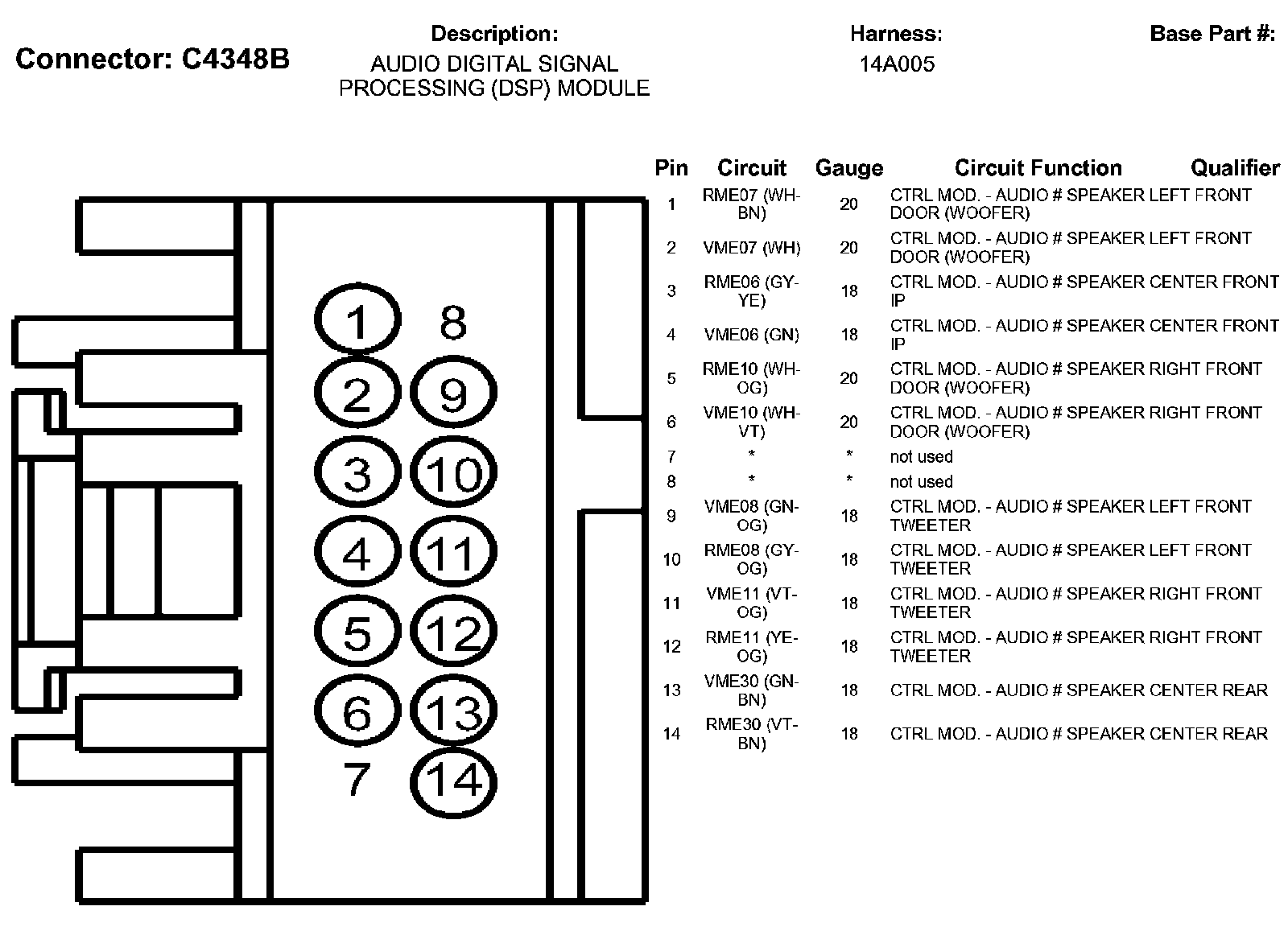

C4348B:

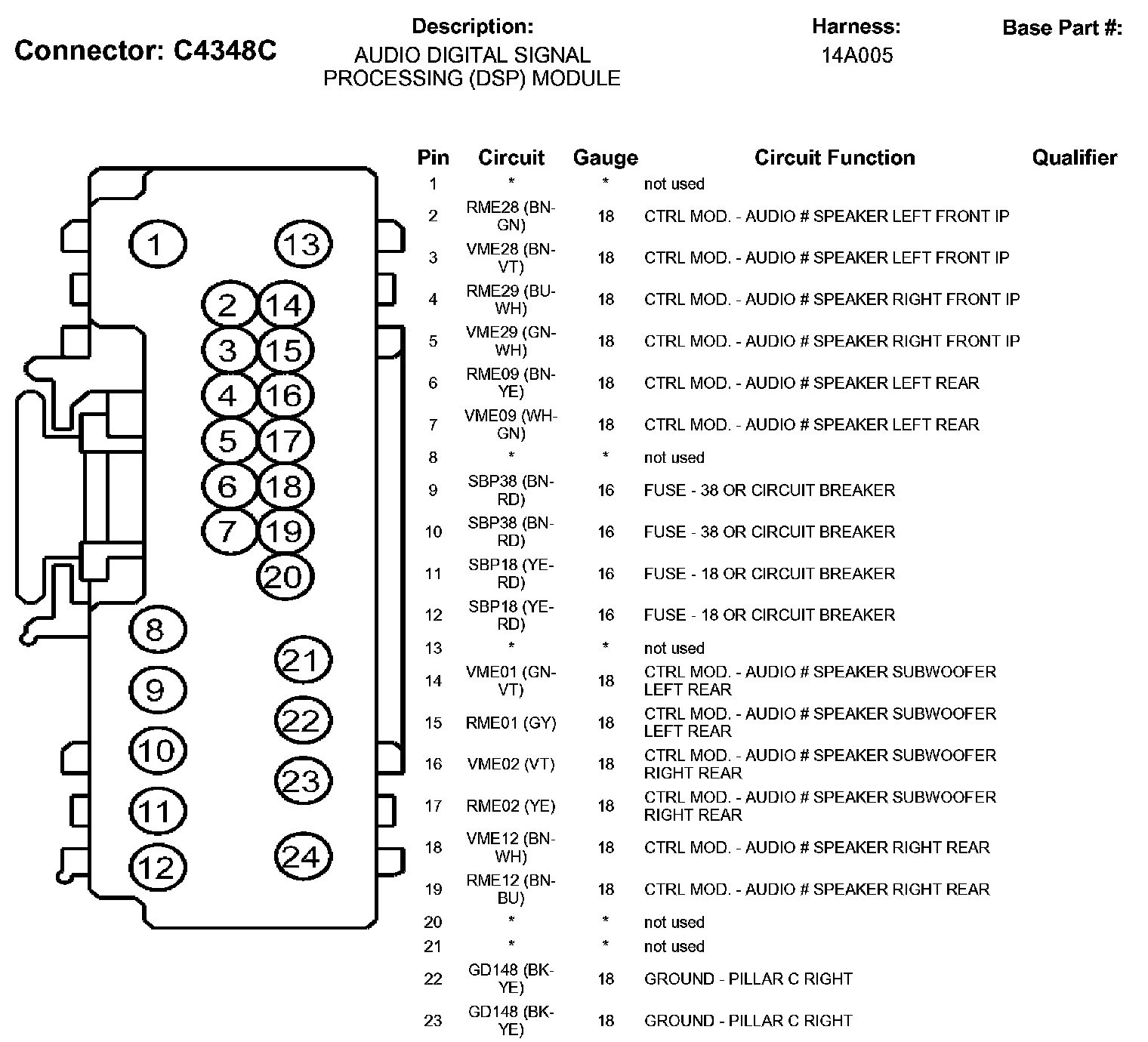

C4348C (Part 1):

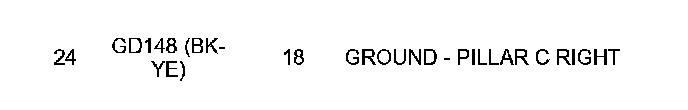

C4348C (Part 2):
