Home >> Ford >> 2008 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Audio Control Module (ACM)

Audio Control Module (ACM)

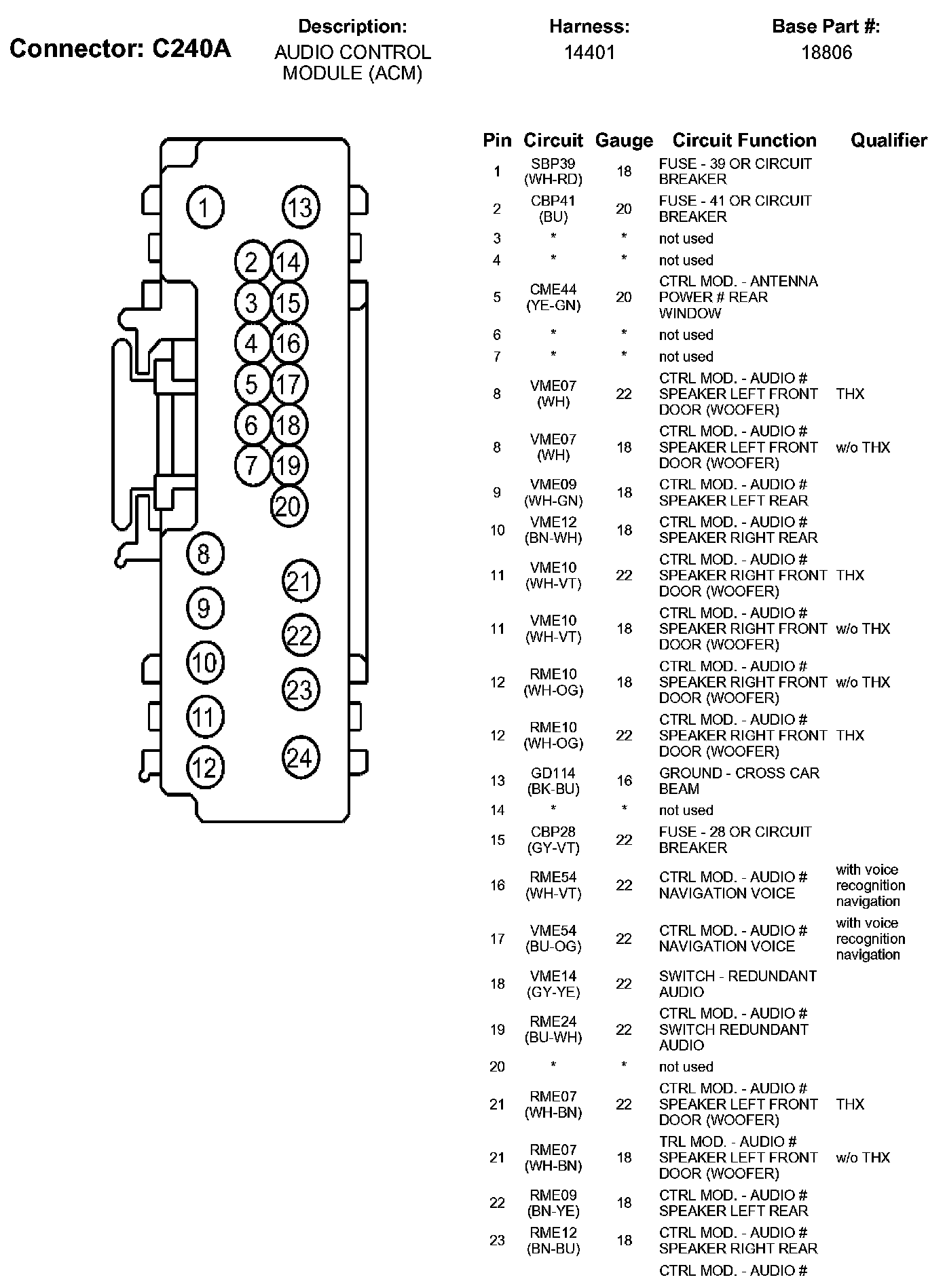

C240A (Part 1):

C240A (Part 2):

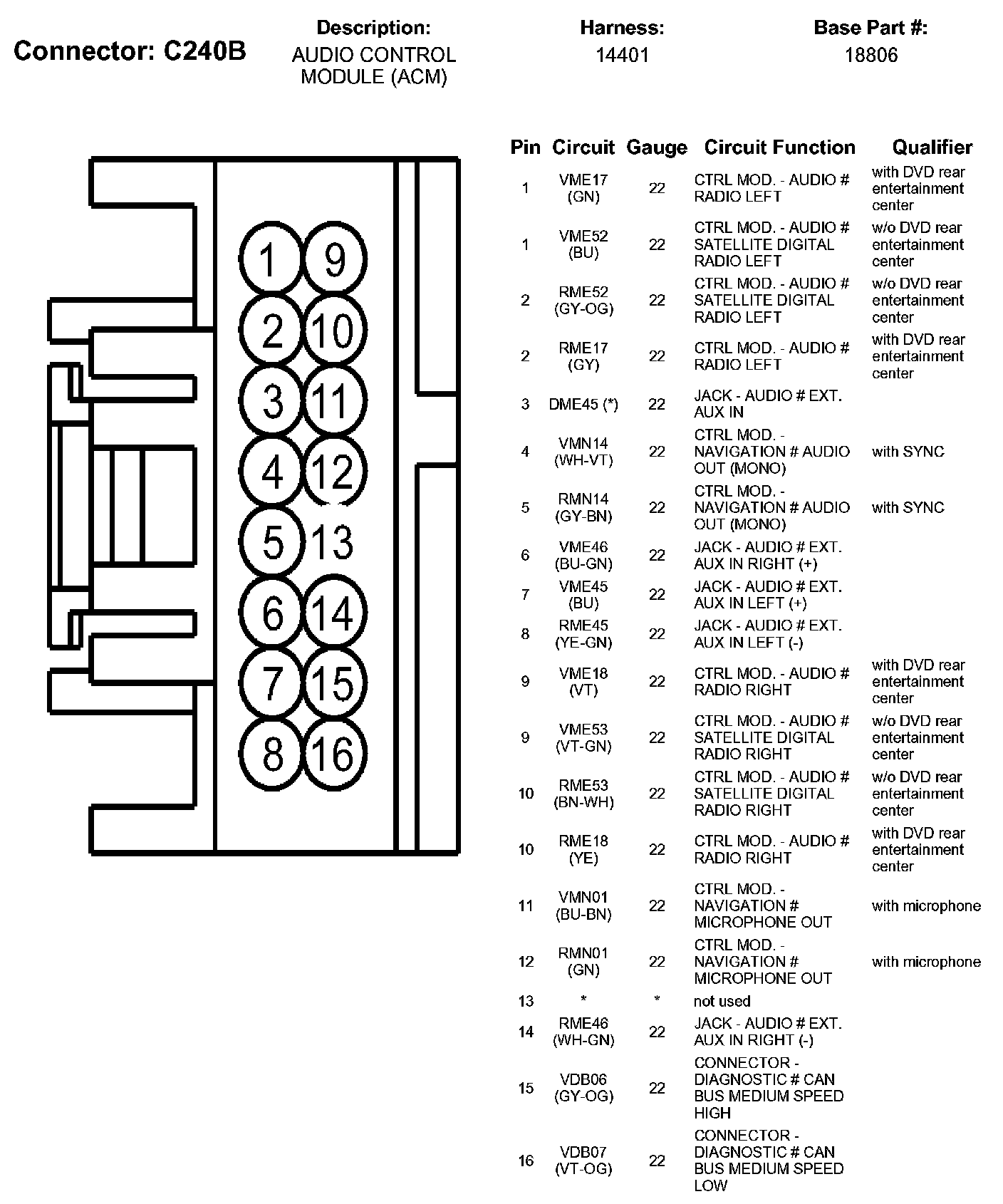

C240B:

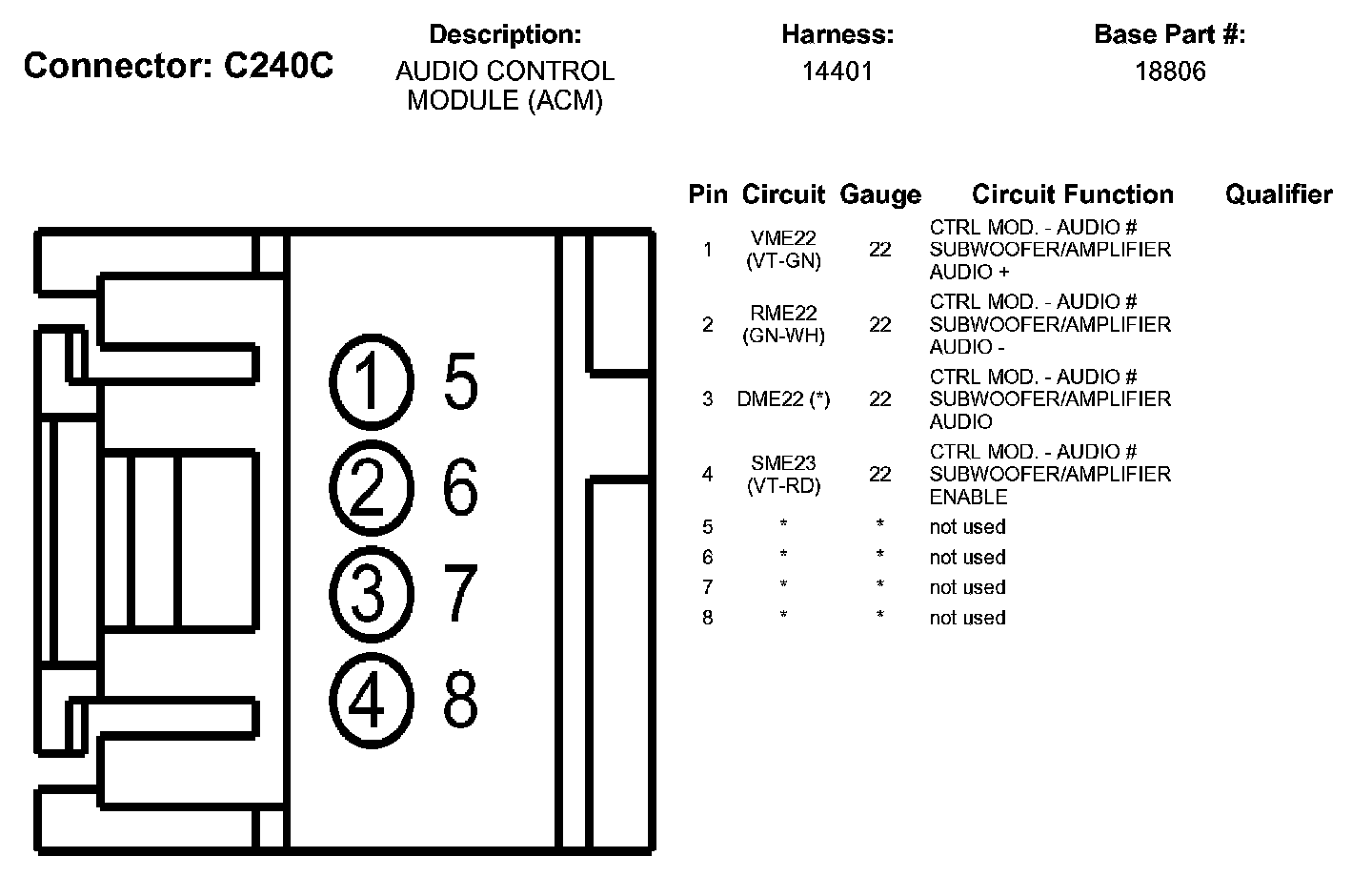

C240C:
