Exhaust System

Exhaust System - Exploded View

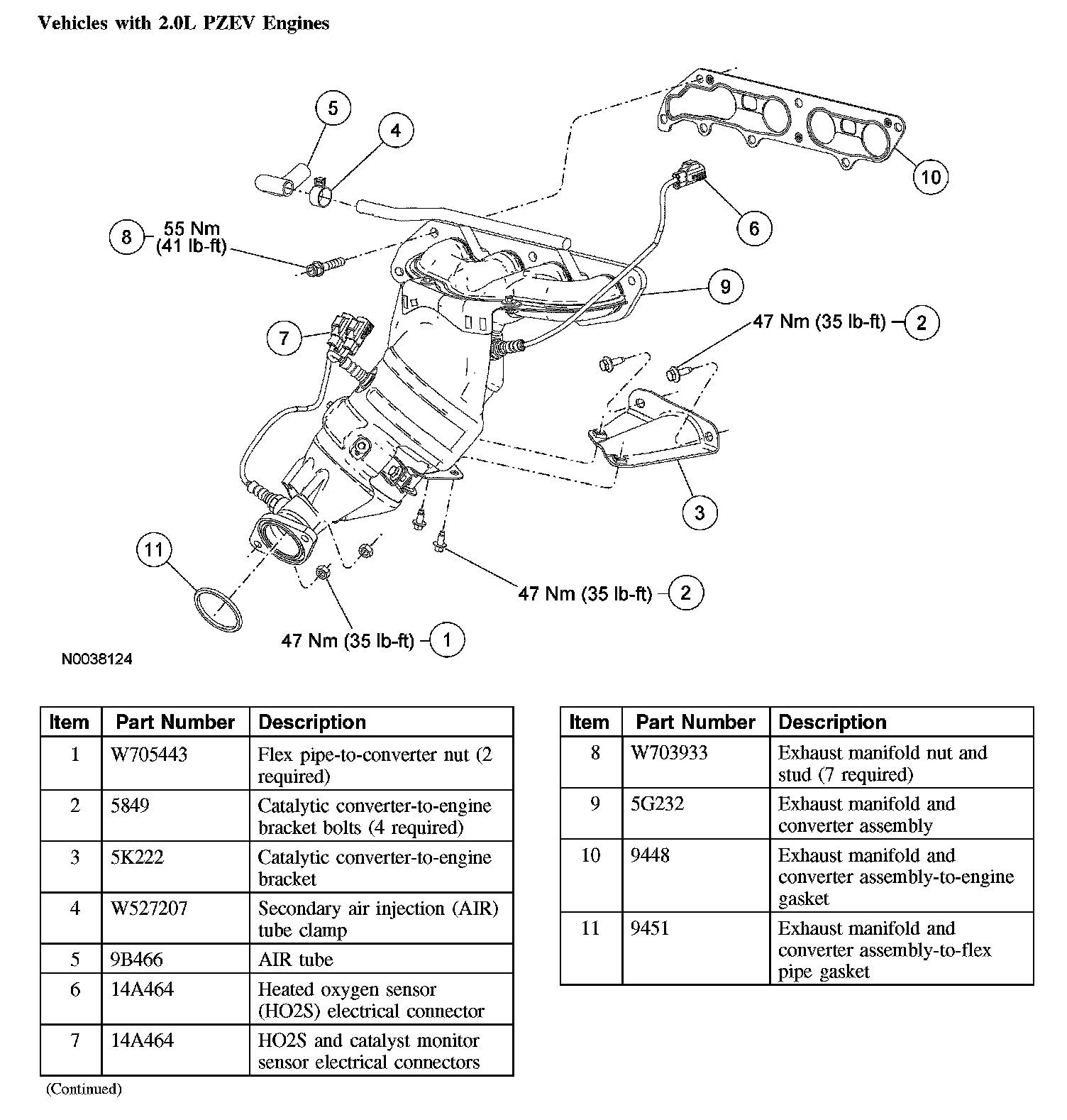

Vehicles with 2.0L PZEV Engines:

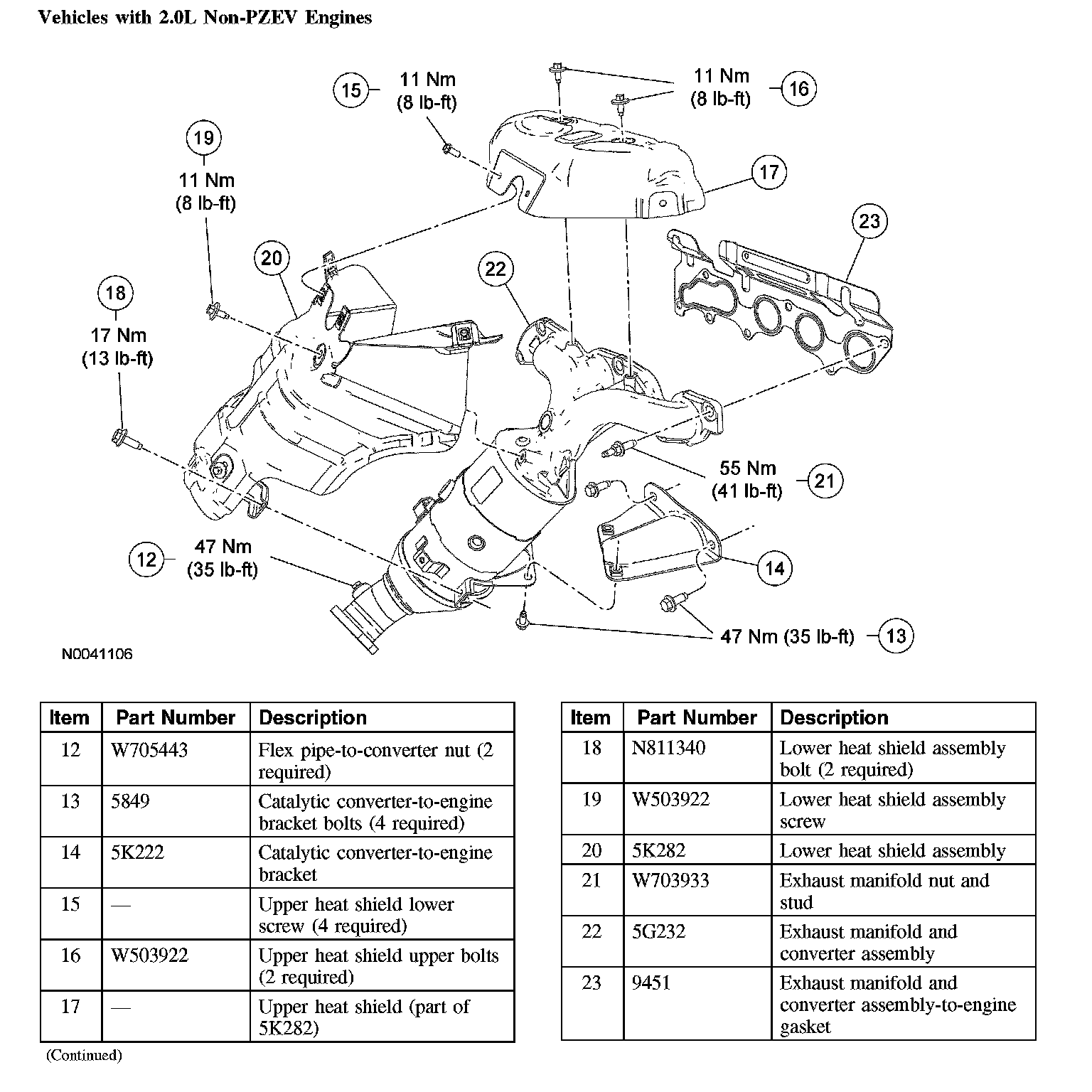

Vehicles with 2.0L Non-PZEV Engines:

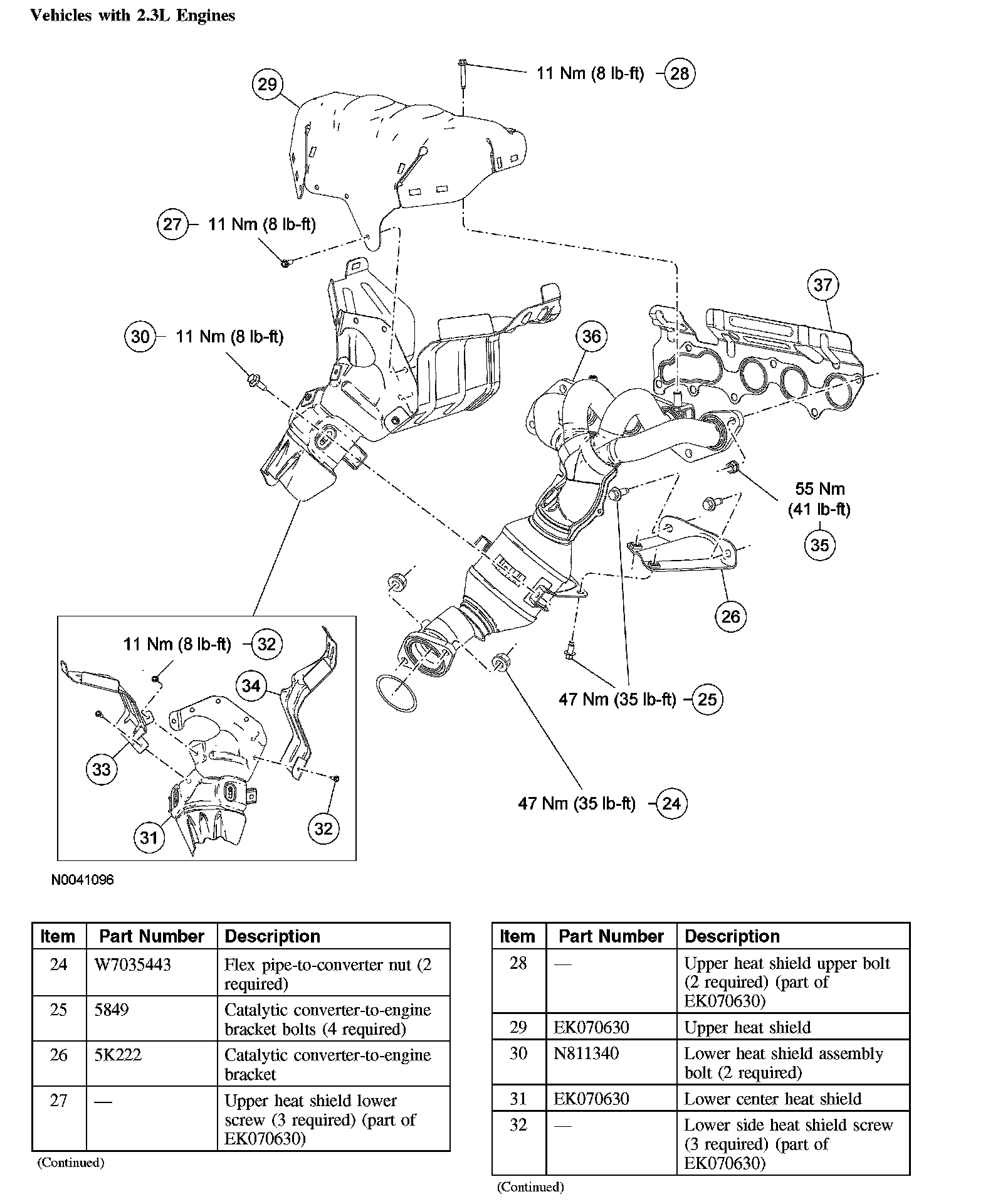

Vehicles with 2.3L Engines:

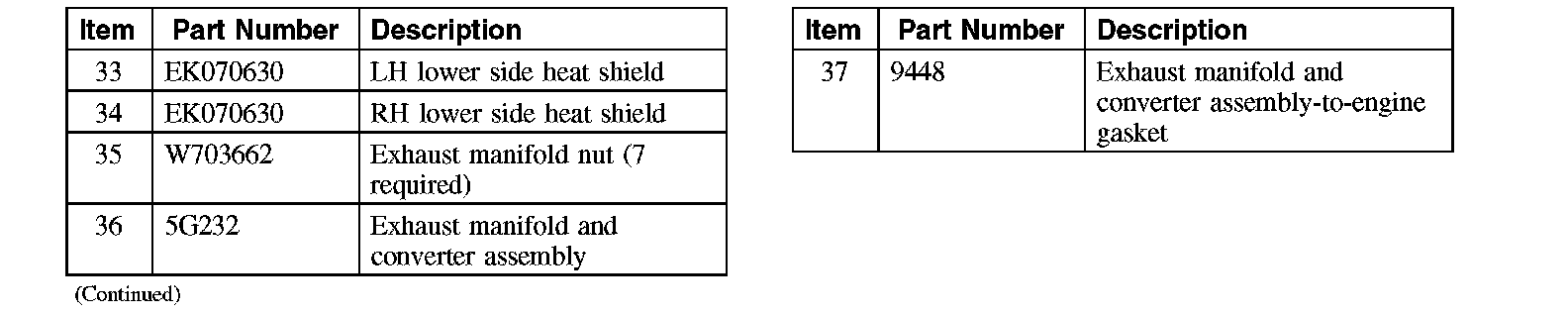

Vehicles with 2.3L Engines (Part 2):

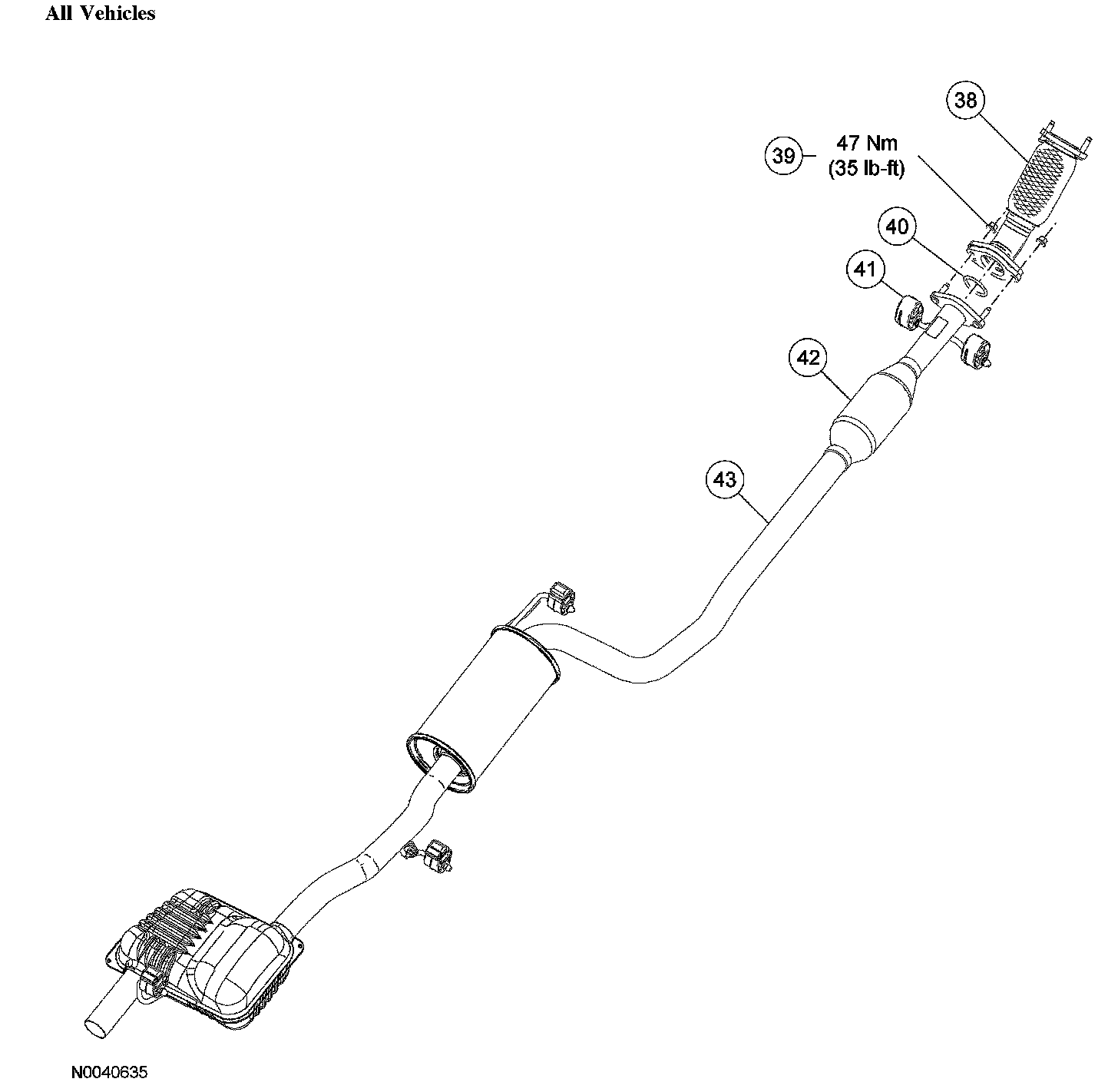

All Vehicles (Part 1):

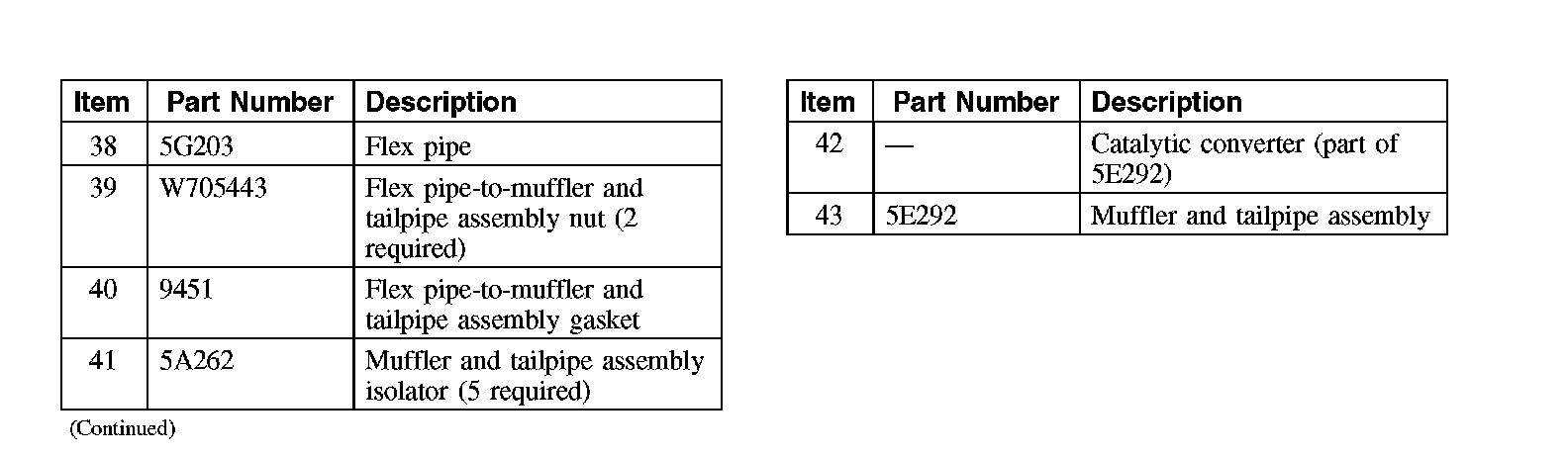

All Vehicles (Part 2):
