Home >> Ford >> 2007 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Locations

Body Control Module: Locations

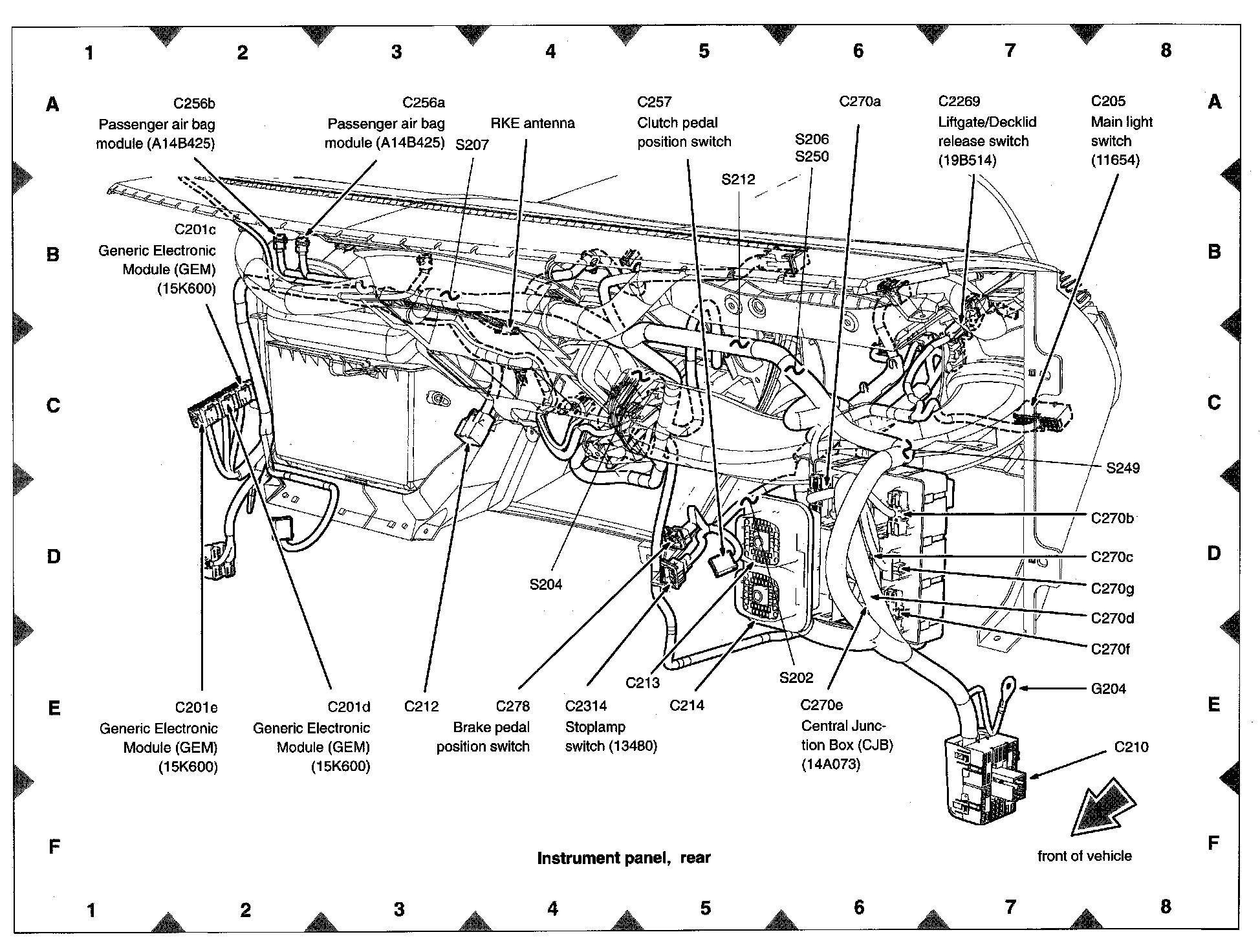

View 151-11 (Instrument panel, Rear):
