lemon-mirror:
Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 6F50 Automatic Transaxle >> Torque Specifications

Torque Specifications

Torque Specifications

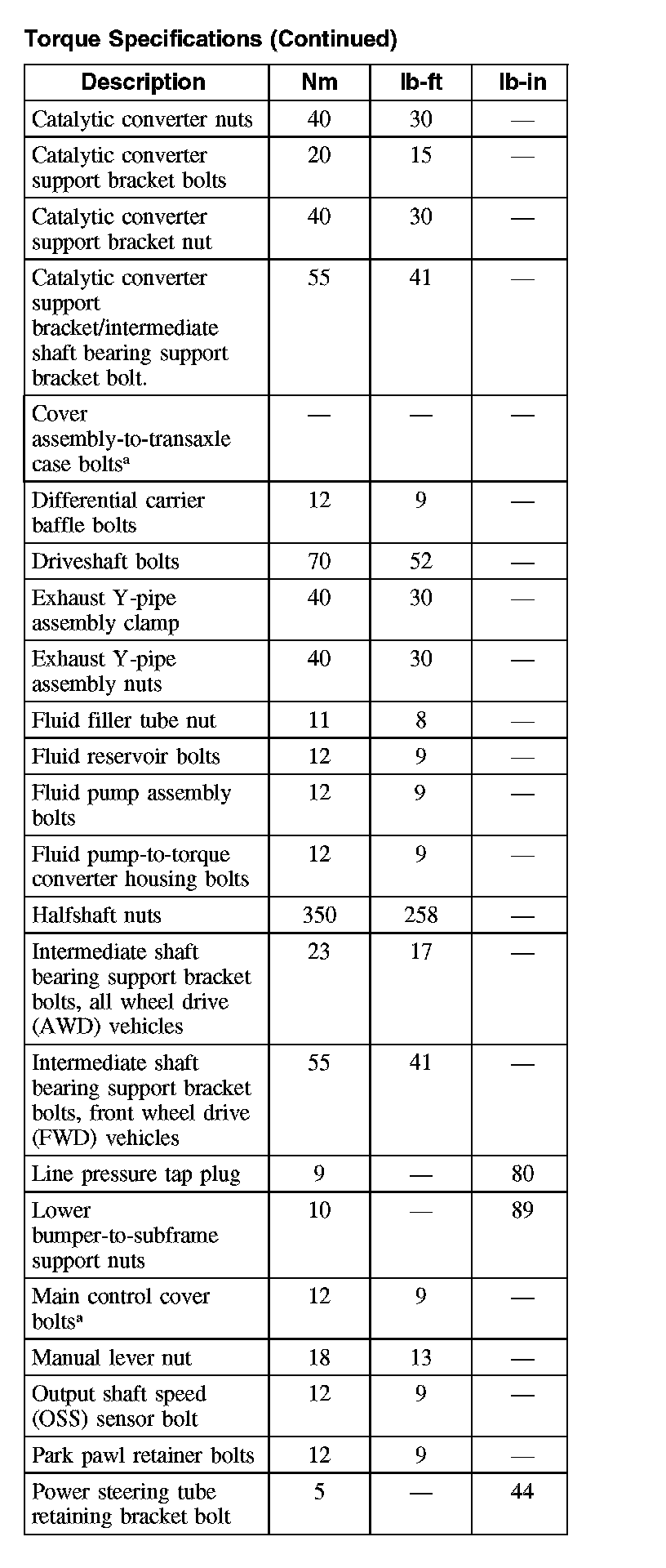

Torque Specifications (Part 1):

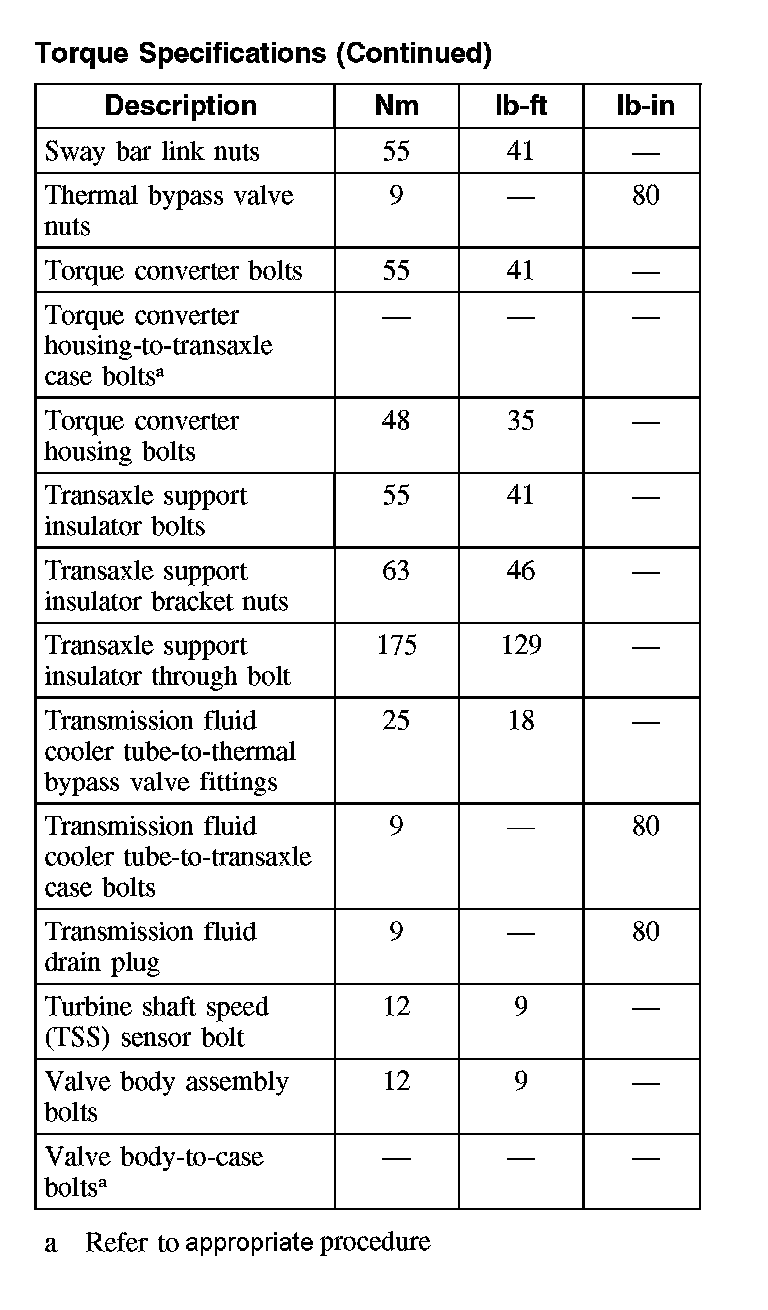

Torque Specifications (Part 2):

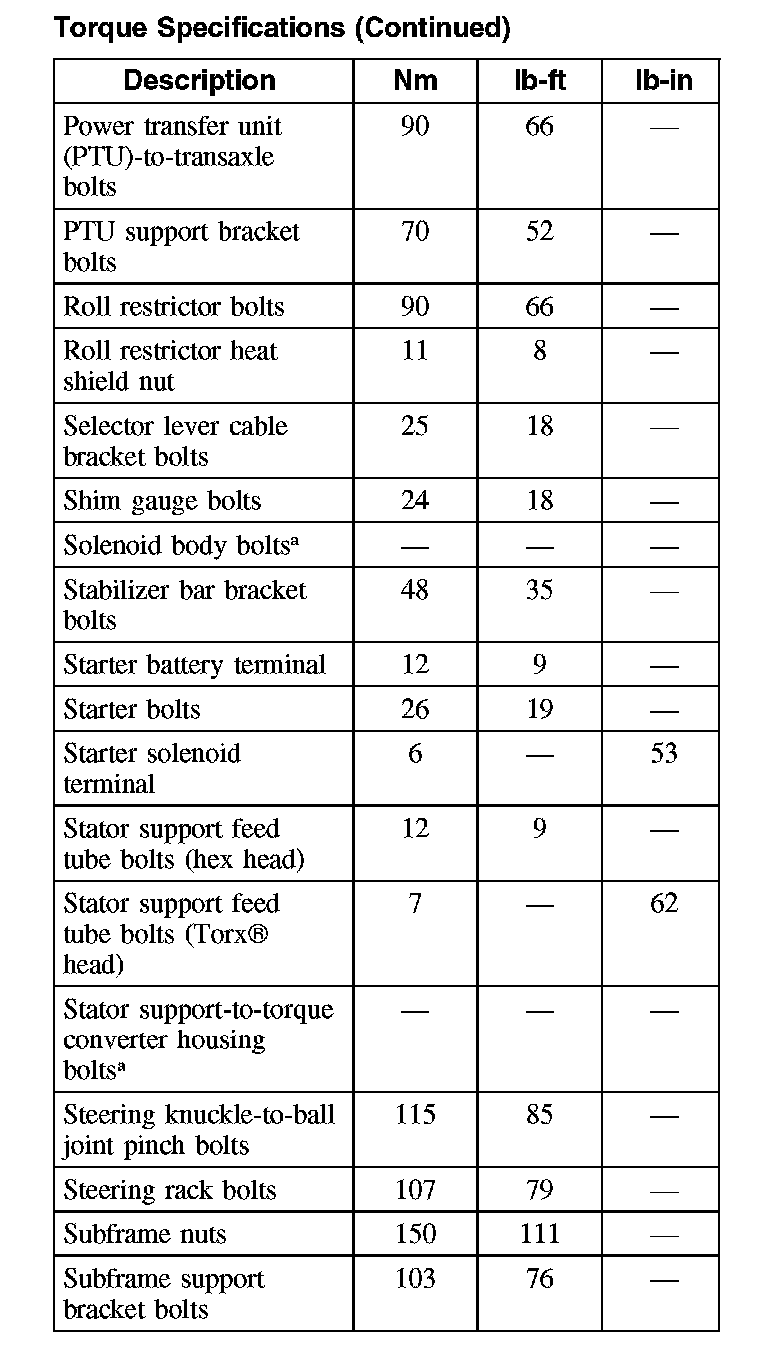

Torque Specifications (Part 3):

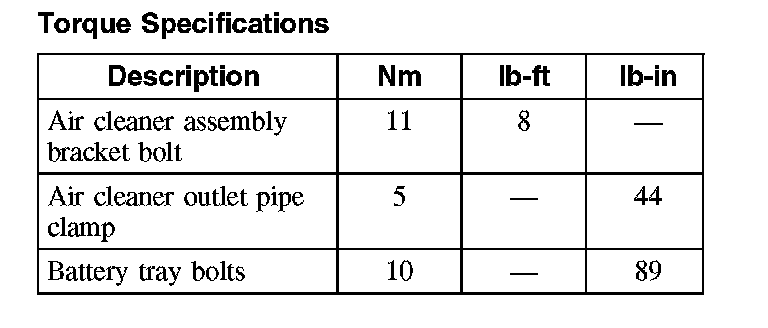

Torque Specifications (Part 4):
