Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Symbols

Symbols

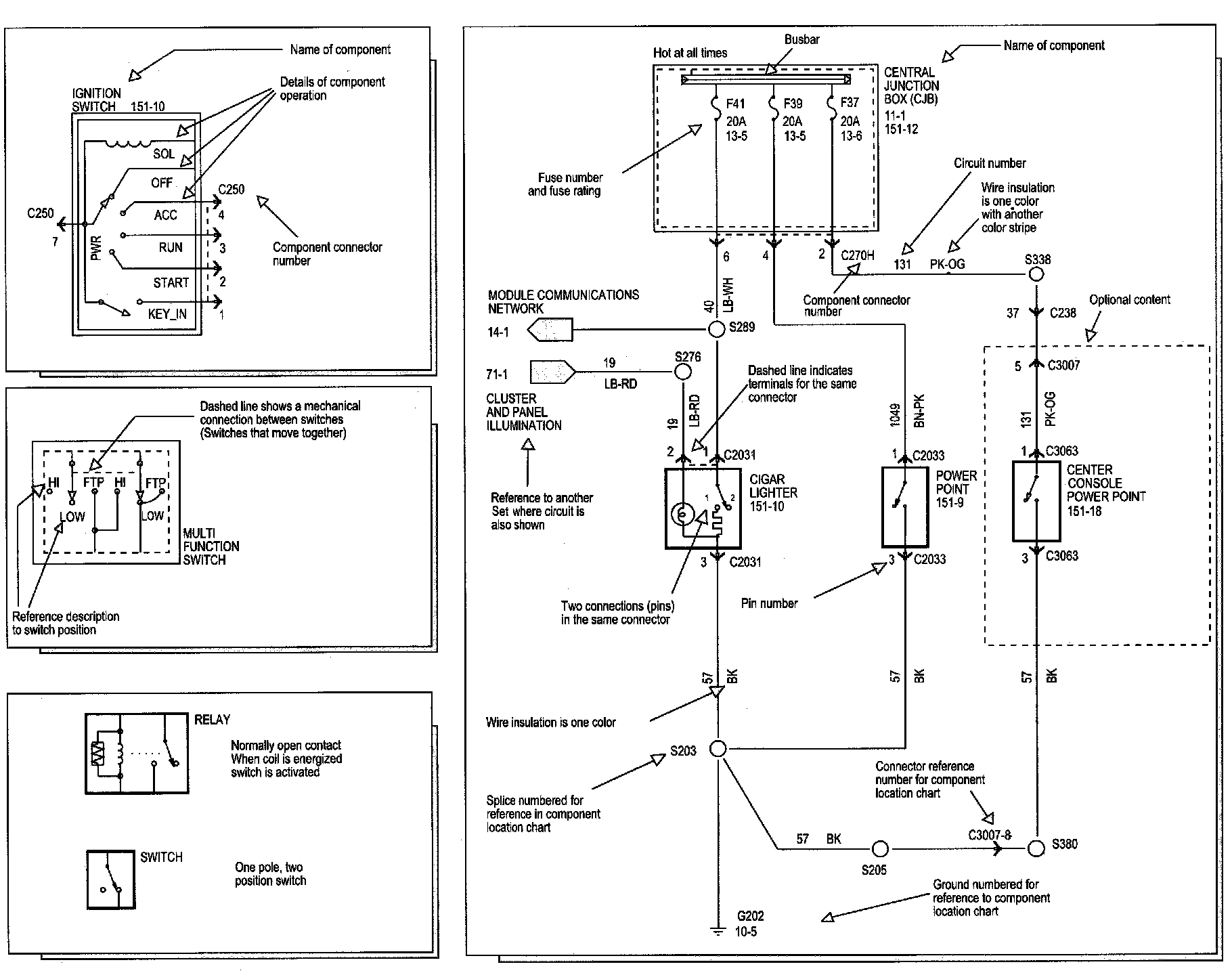

Symbols Part 1:

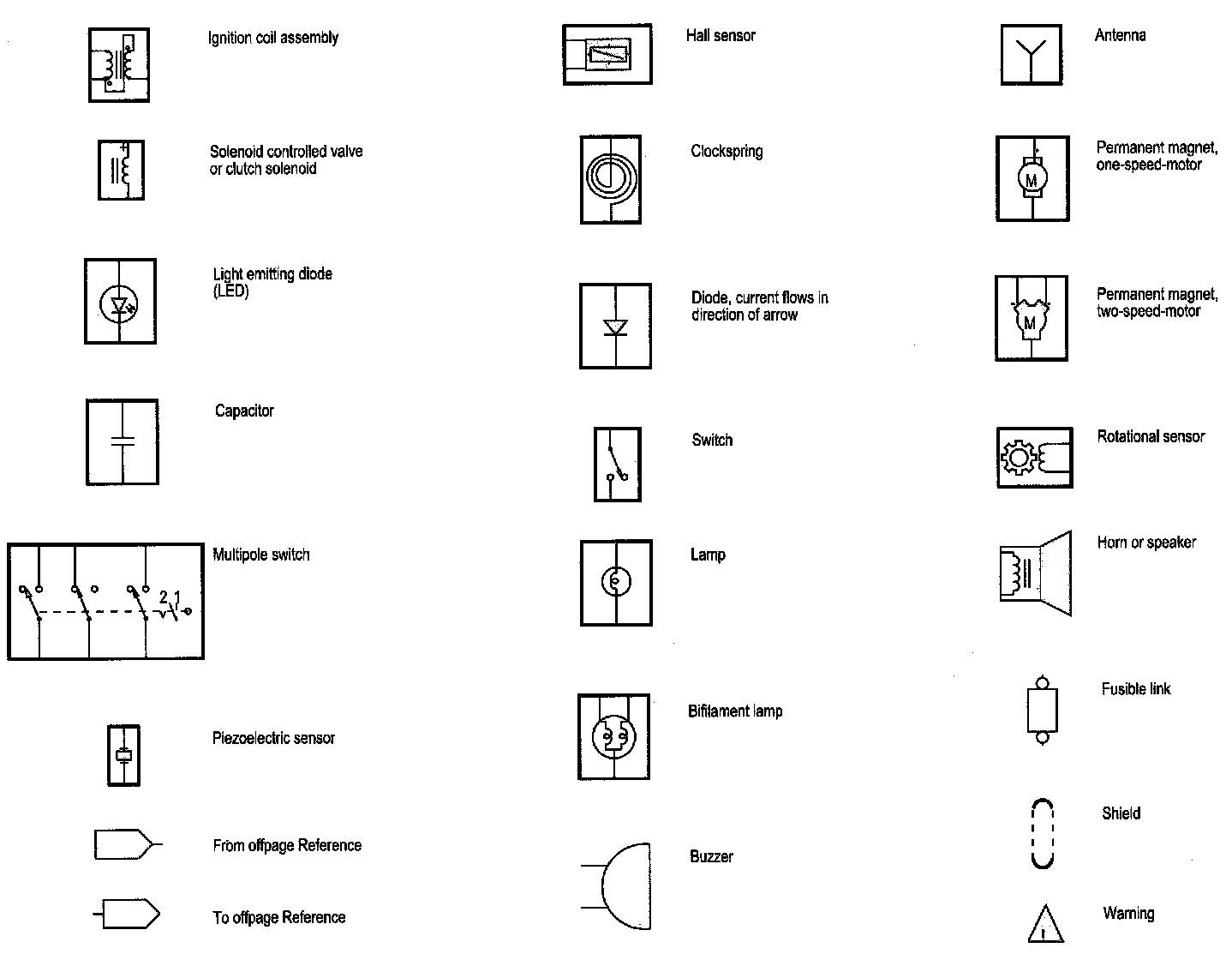

Symbols Part 2:

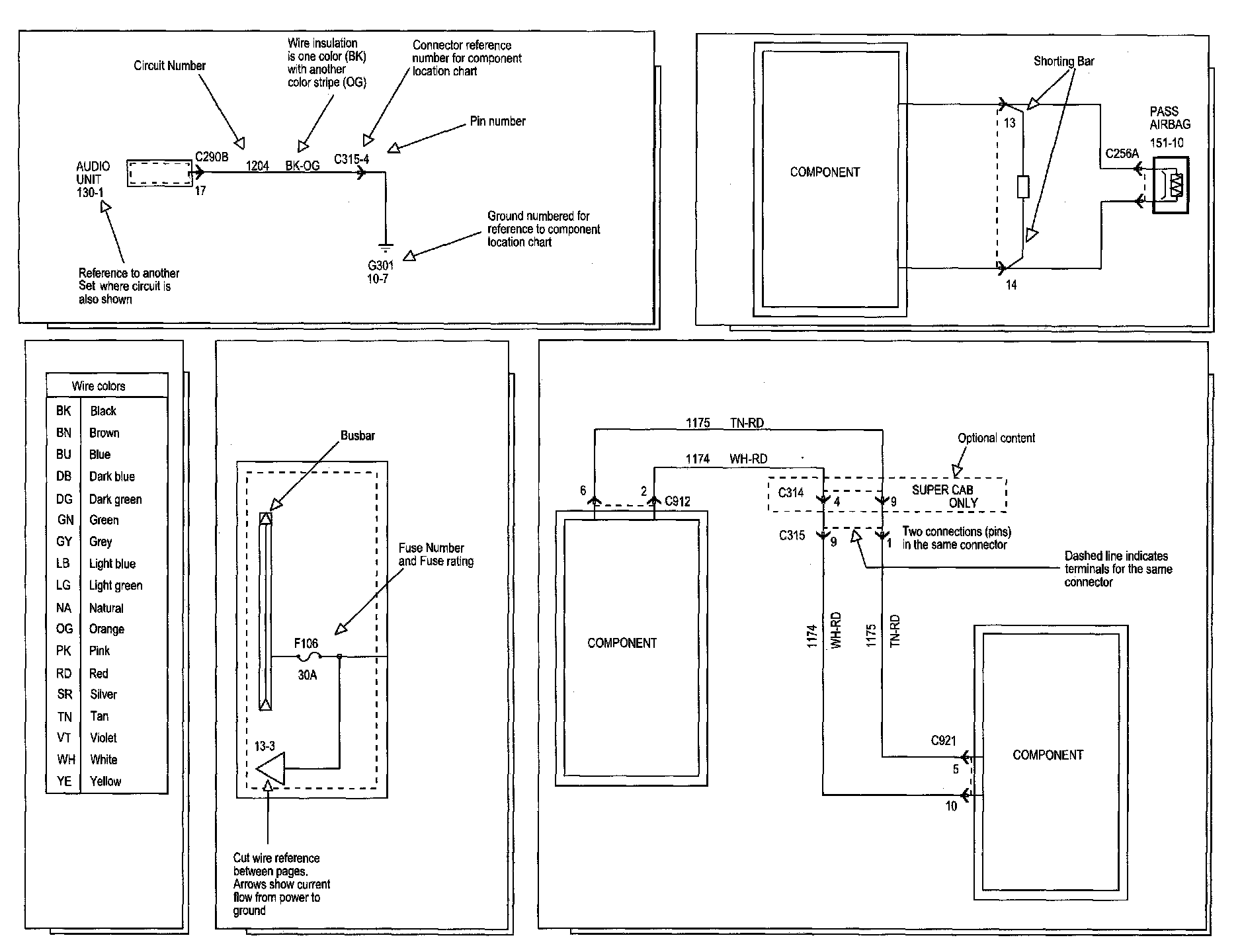

Symbols Part 3:

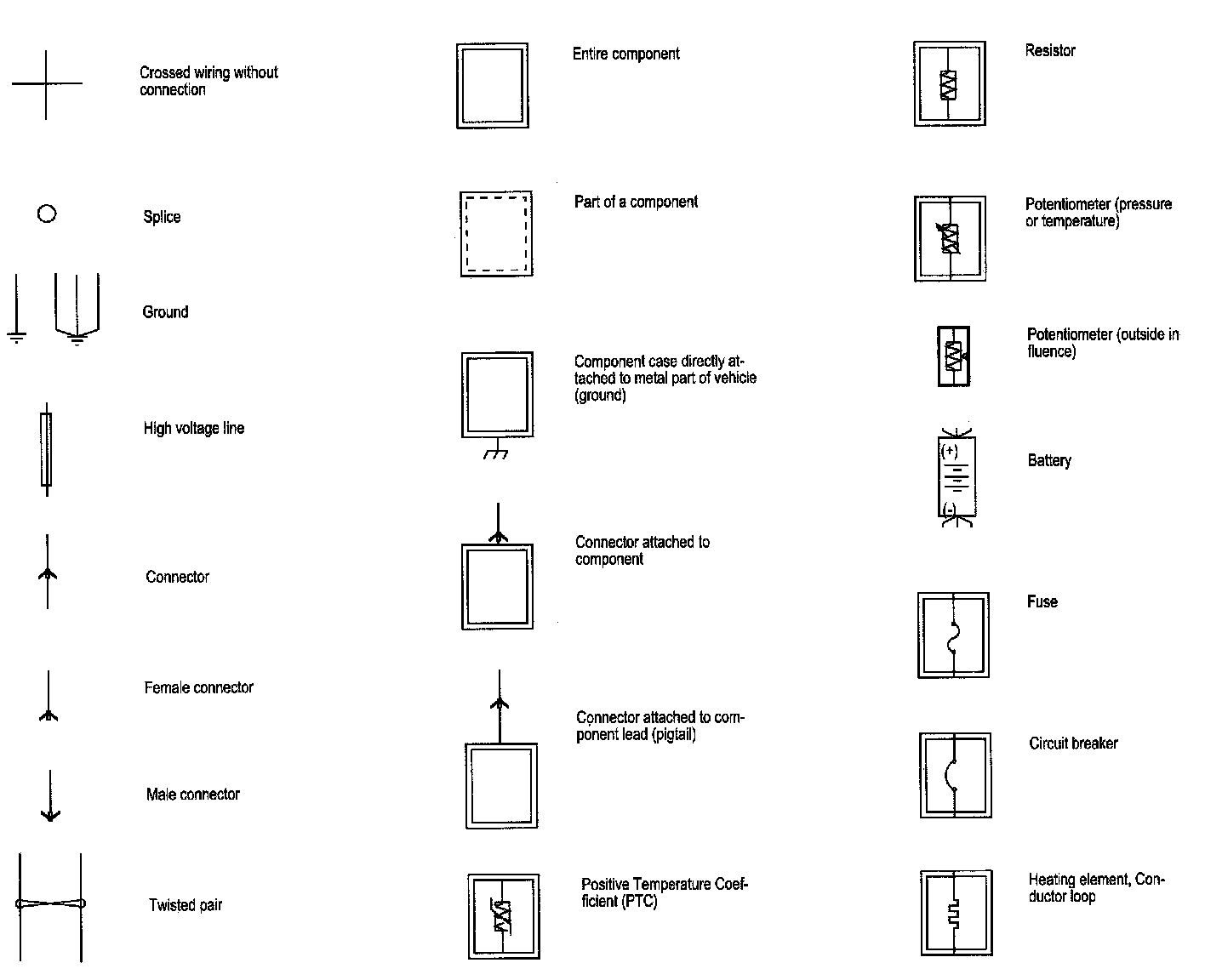

Symbols Part 4:

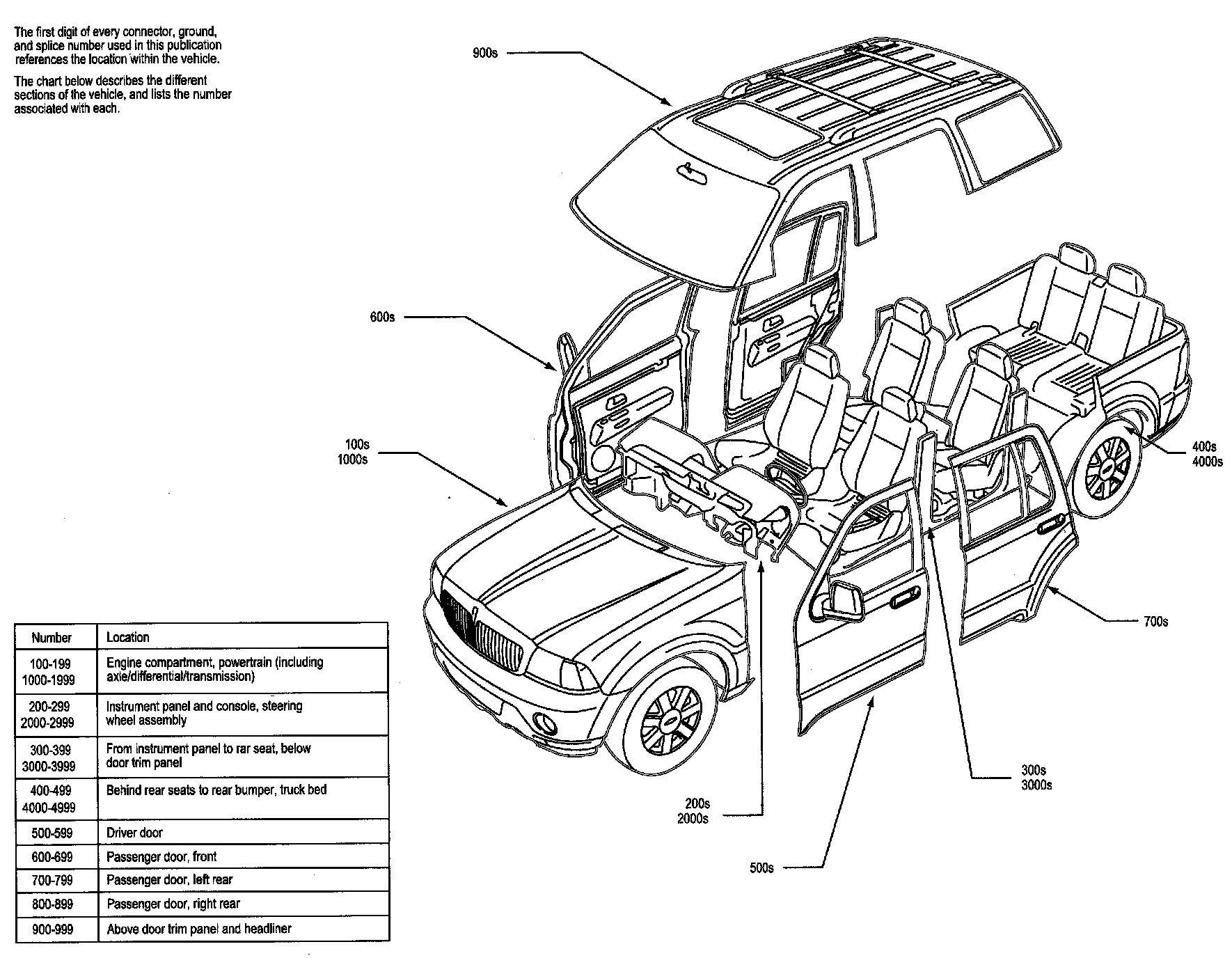

Symbols Part 5:
