Seat - Exploded View, Rear

Seat - Exploded View, Rear

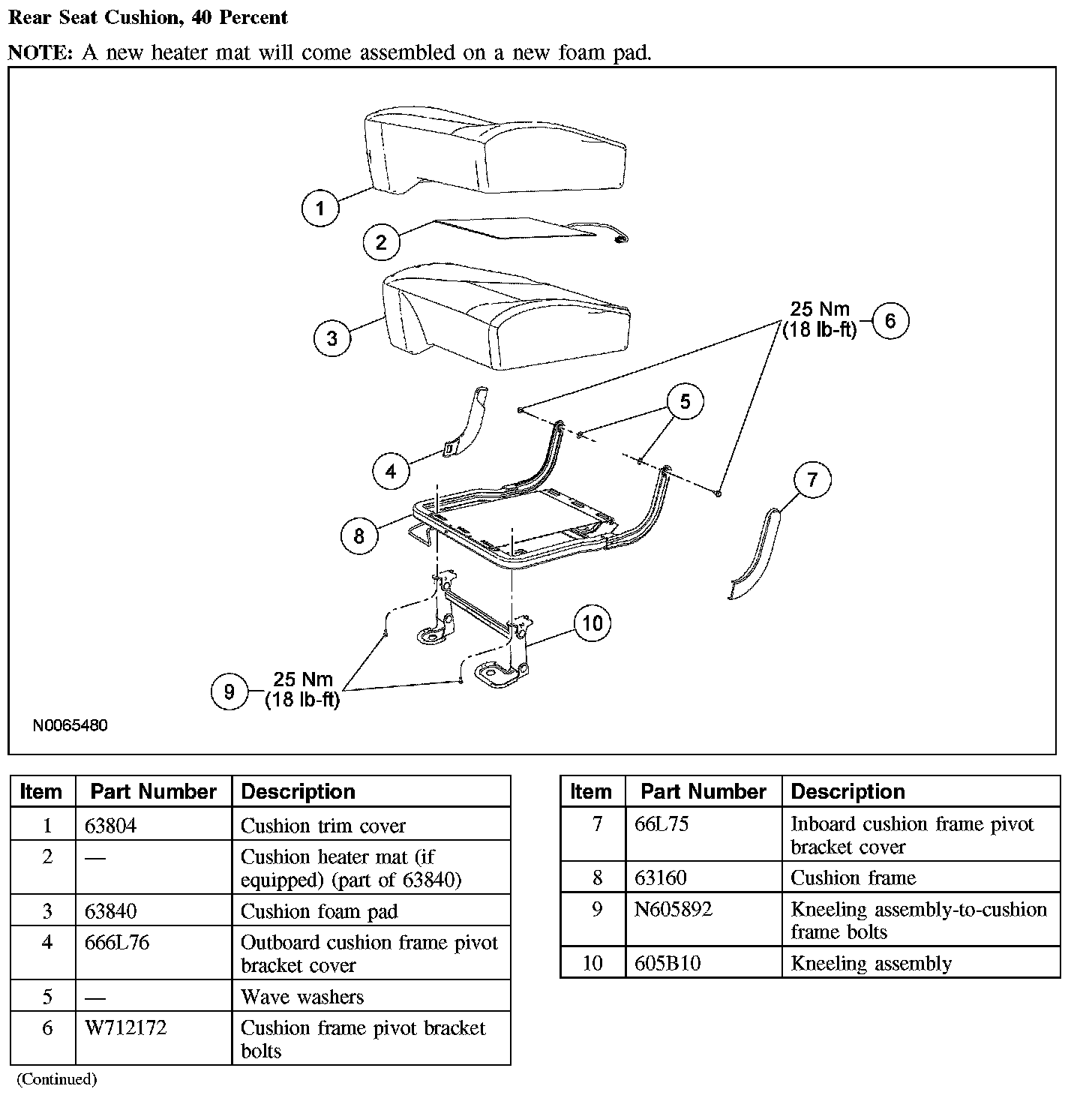

Rear Seat Cushion, 40 Percent:

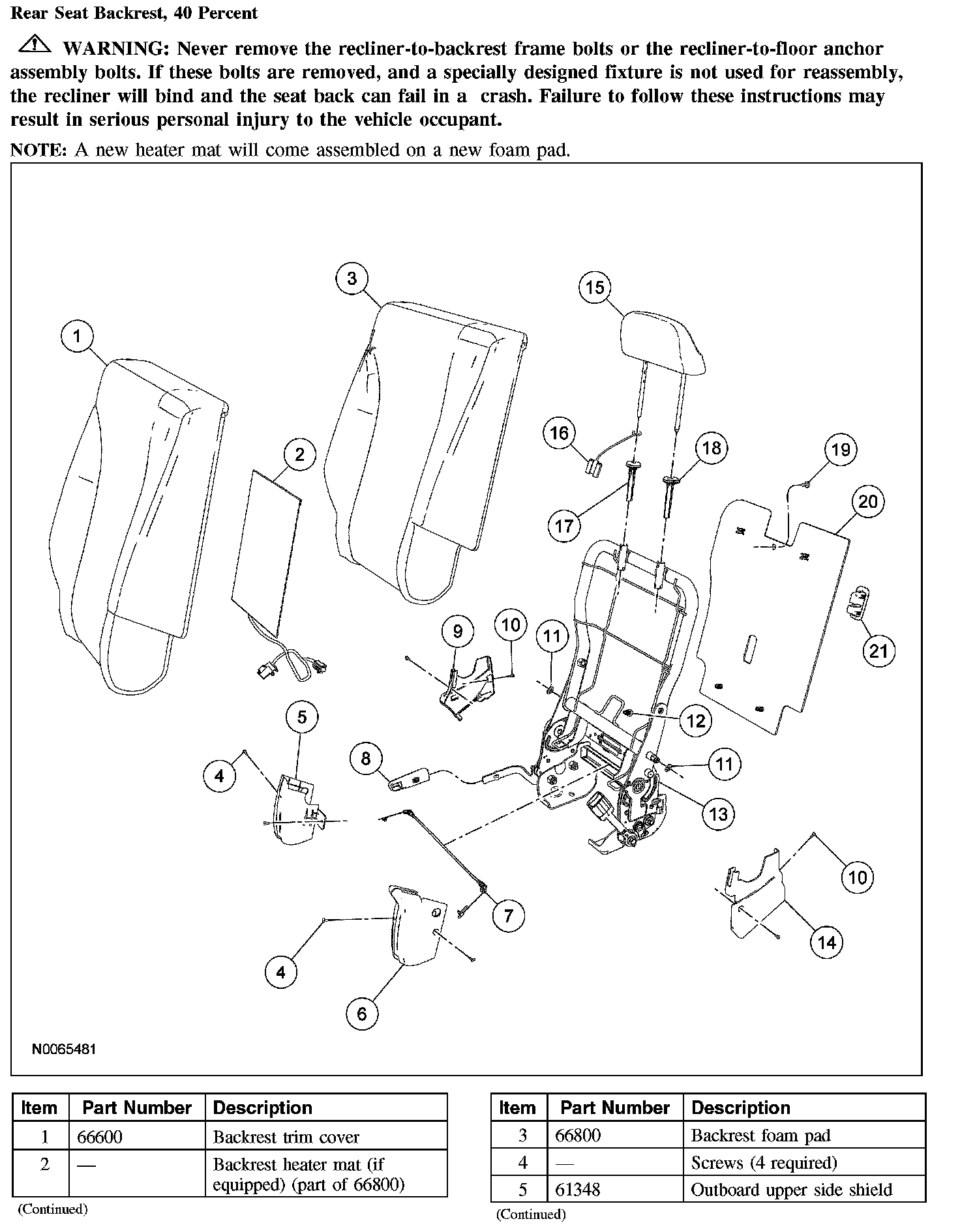

Rear Seat Backrest, 40 Percent (Part 1):

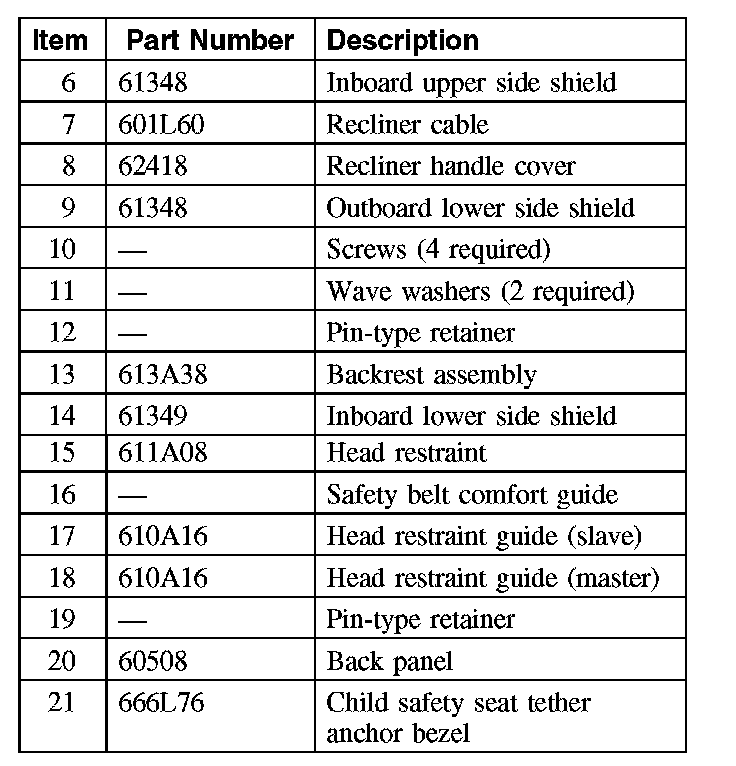

Rear Seat Backrest, 40 Percent (Part 2):

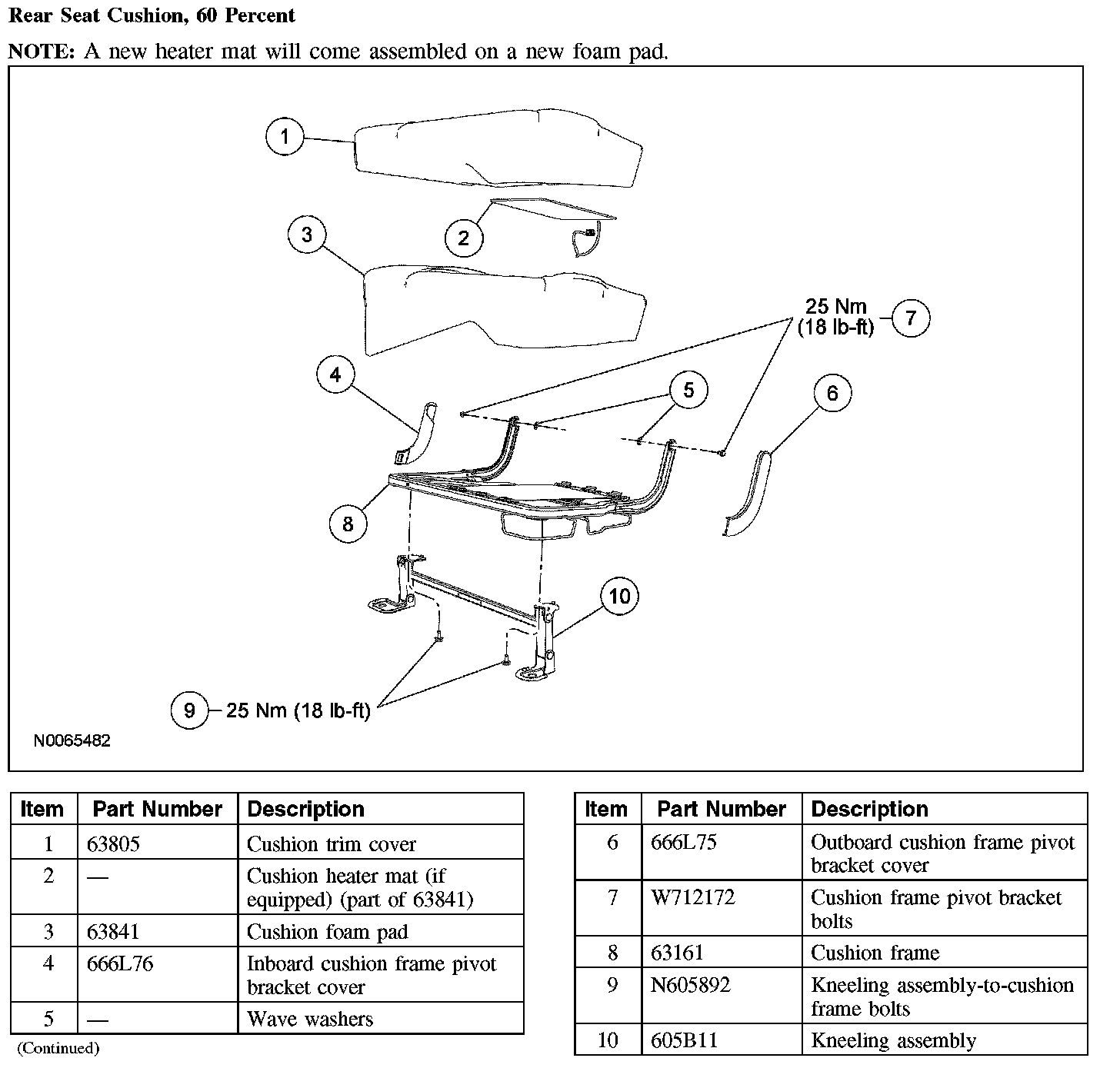

Rear Seat Cushion, 60 Percent:

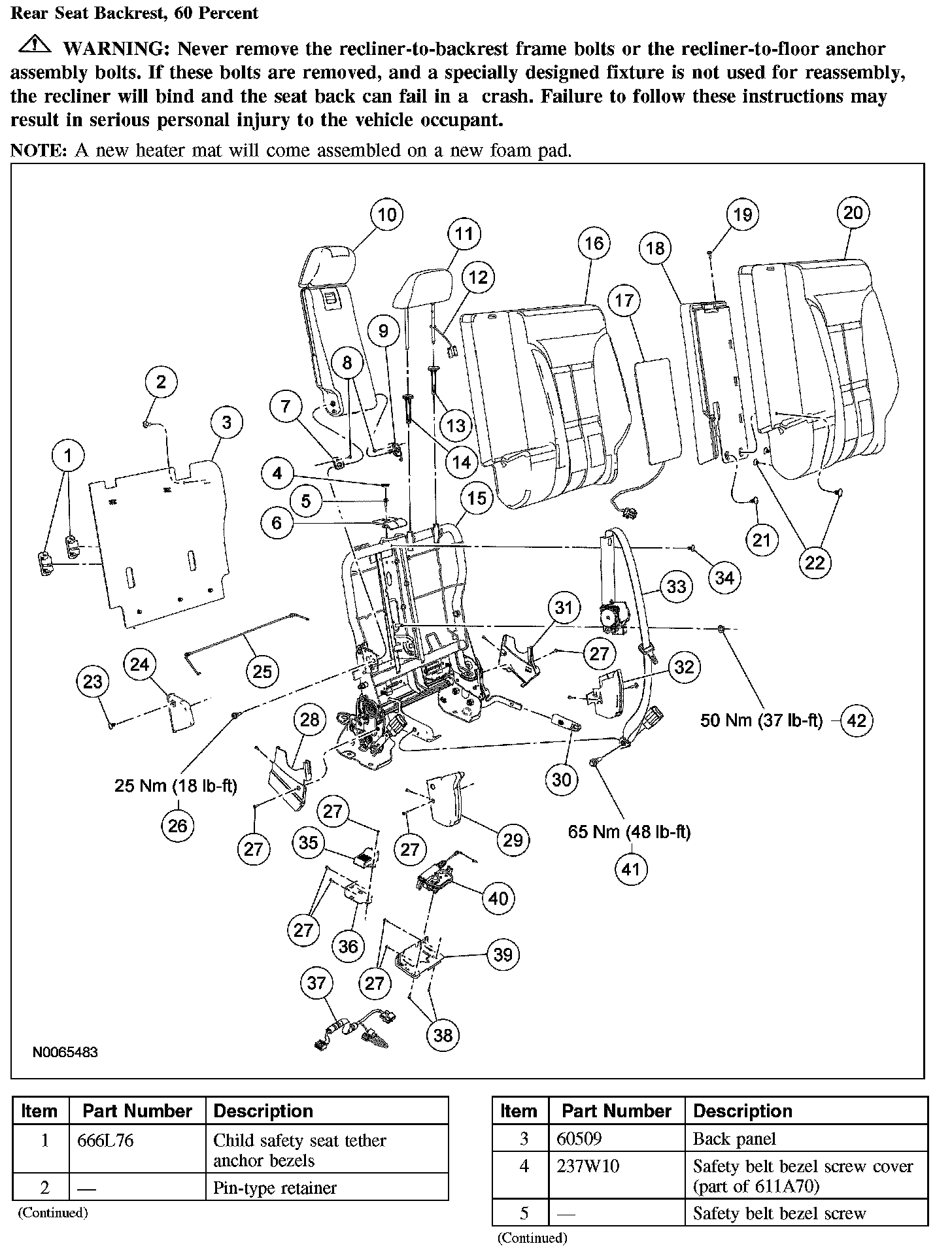

Rear Seat Backrest, 60 Percent (Part 1):

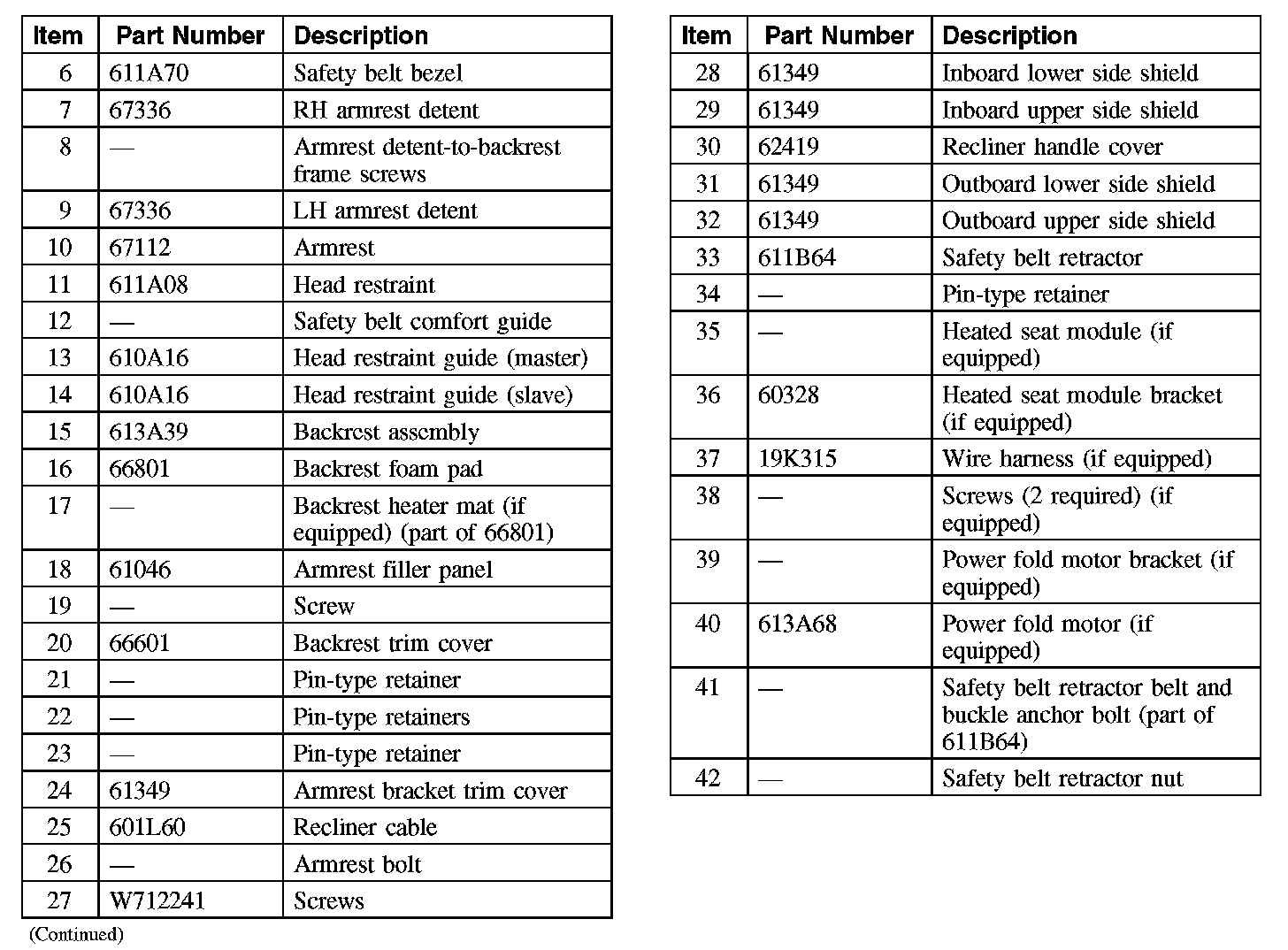

Rear Seat Backrest, 60 Percent (Part 2):

Removal and Installation
1. For additional information, refer to the procedure.
