Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust System

Exhaust System

Exhaust System - Exploded View

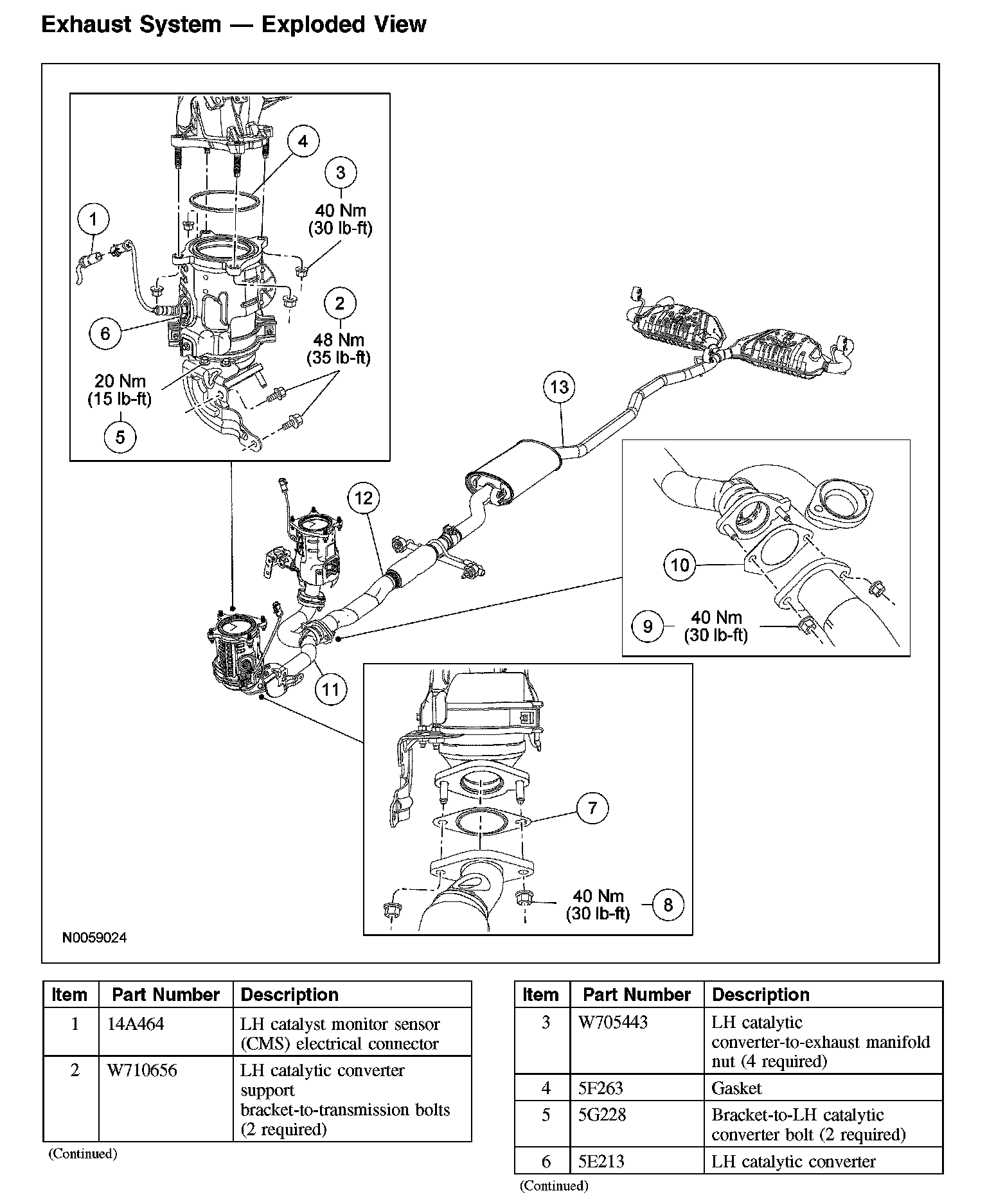

Exhaust System - Exploded View (Part 1):

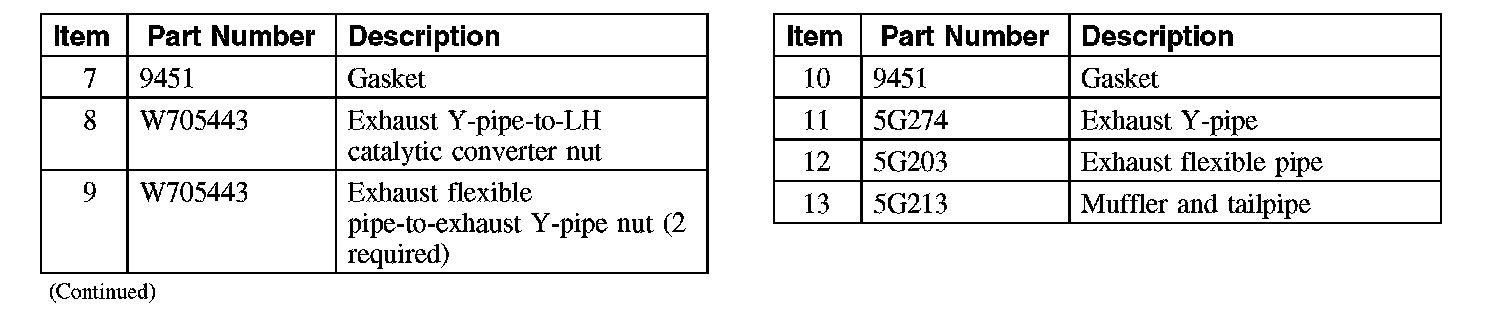

Exhaust System - Exploded View (Part 2):

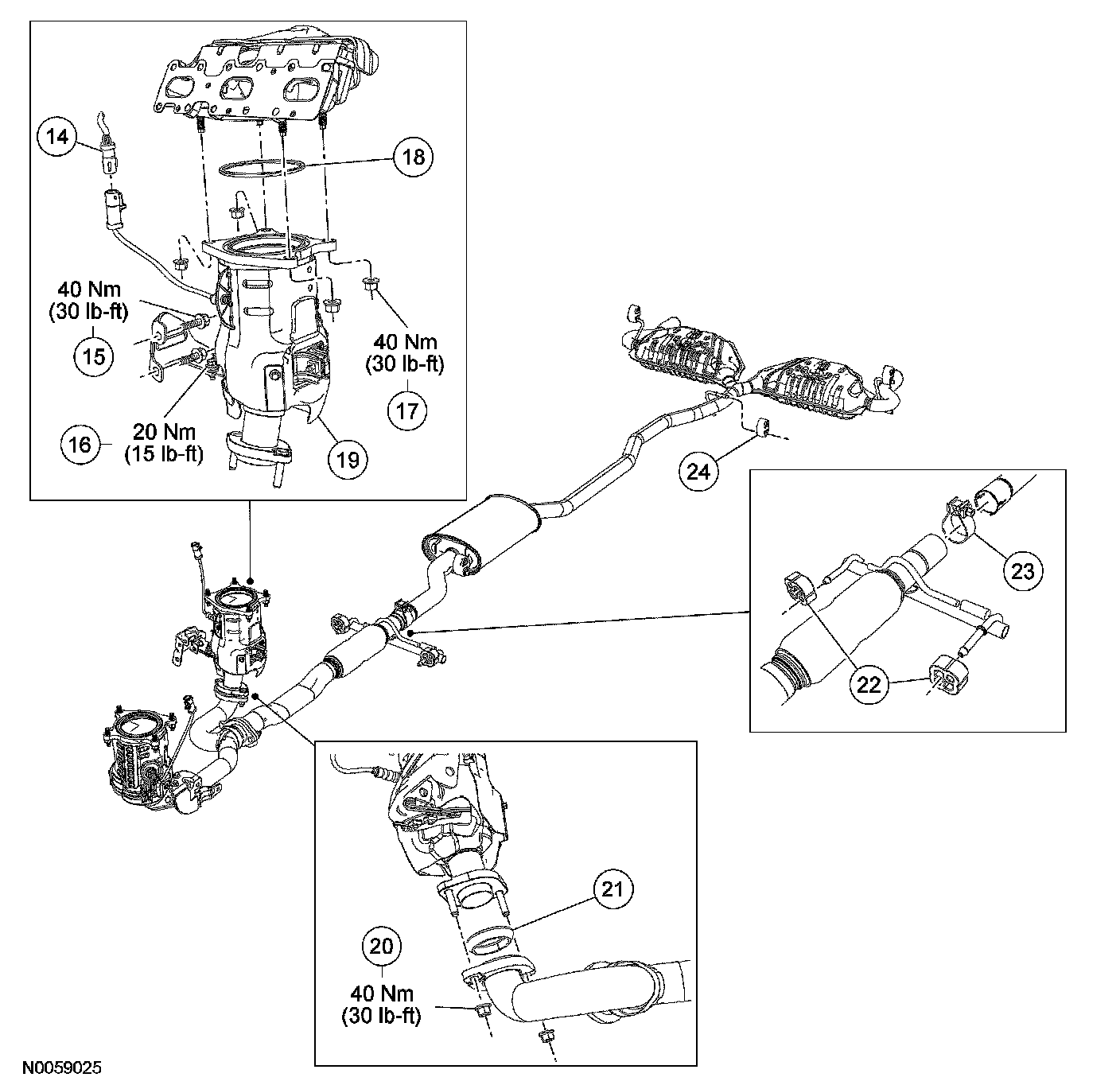

Exhaust System - Exploded View (Part 3):

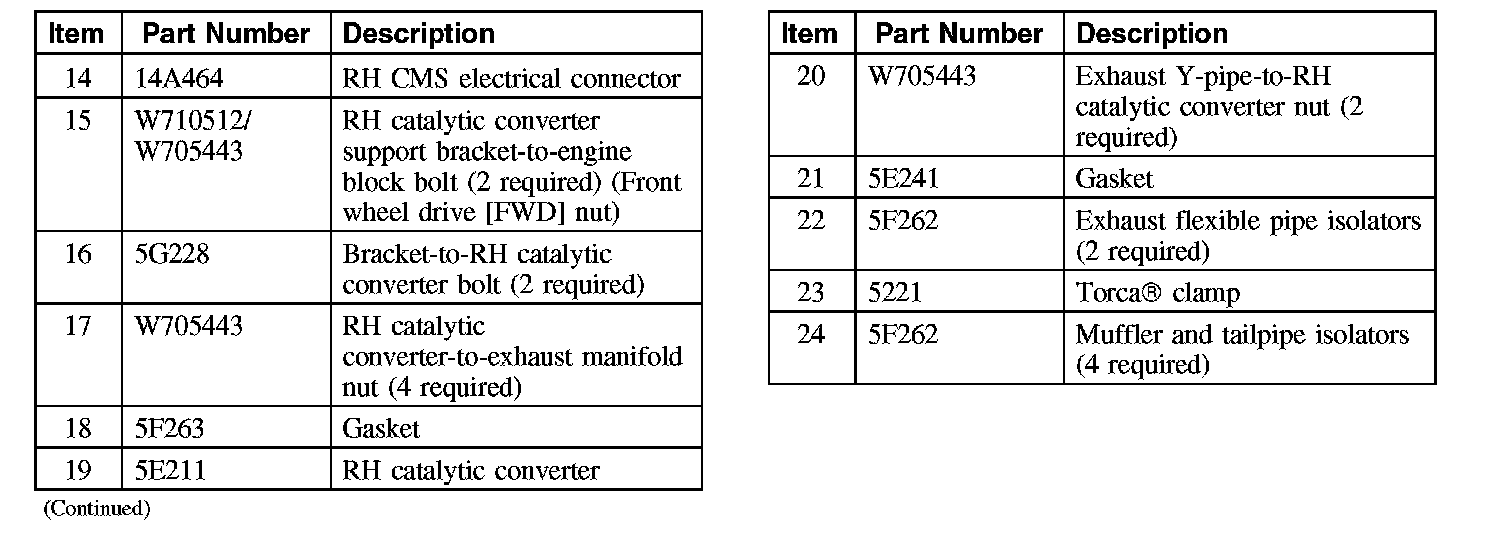

Exhaust System - Exploded View (Part 4):
