Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Climate Controlled Seat Module, Passenger Side

Climate Controlled Seat Module, Passenger Side

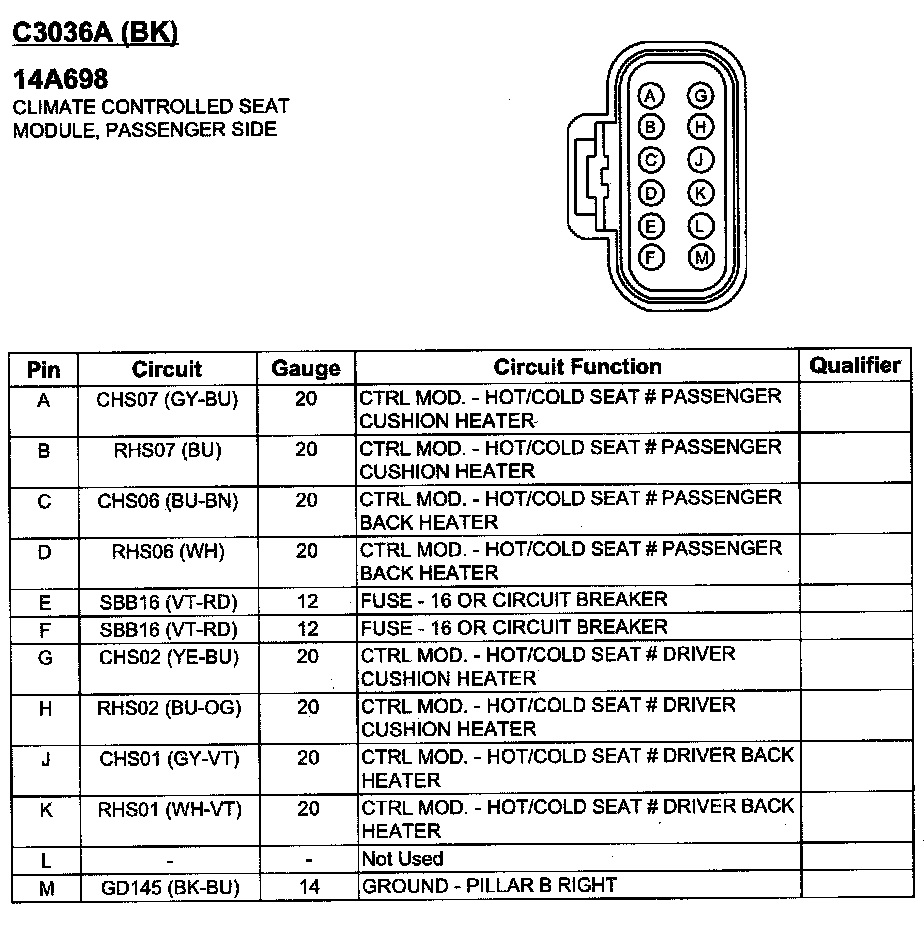

C3036A:

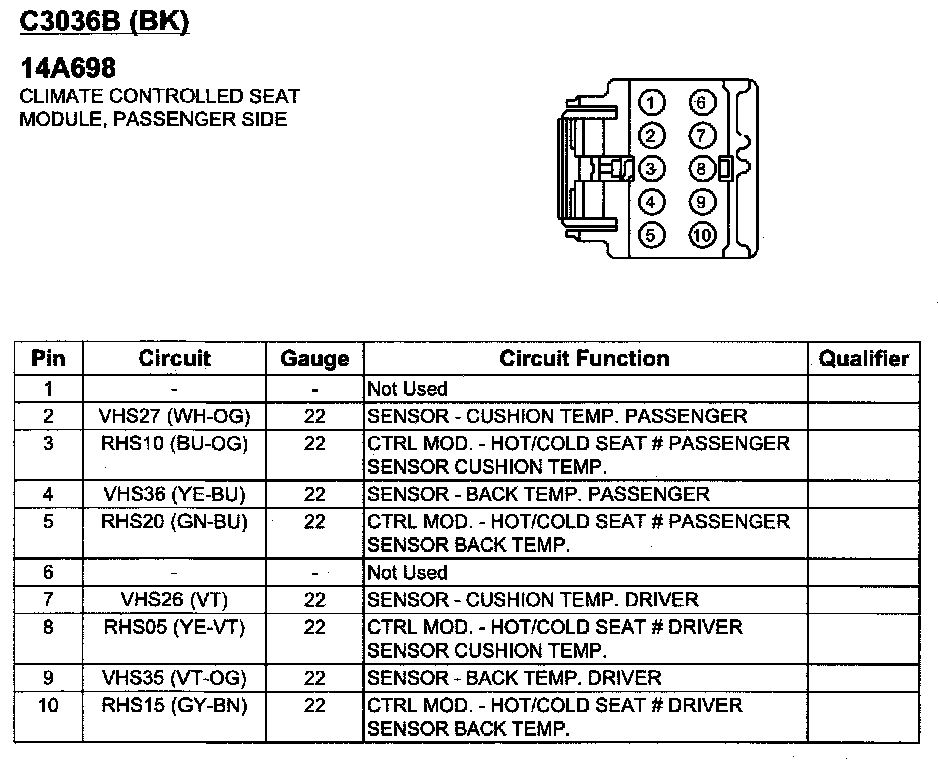

C3036B:

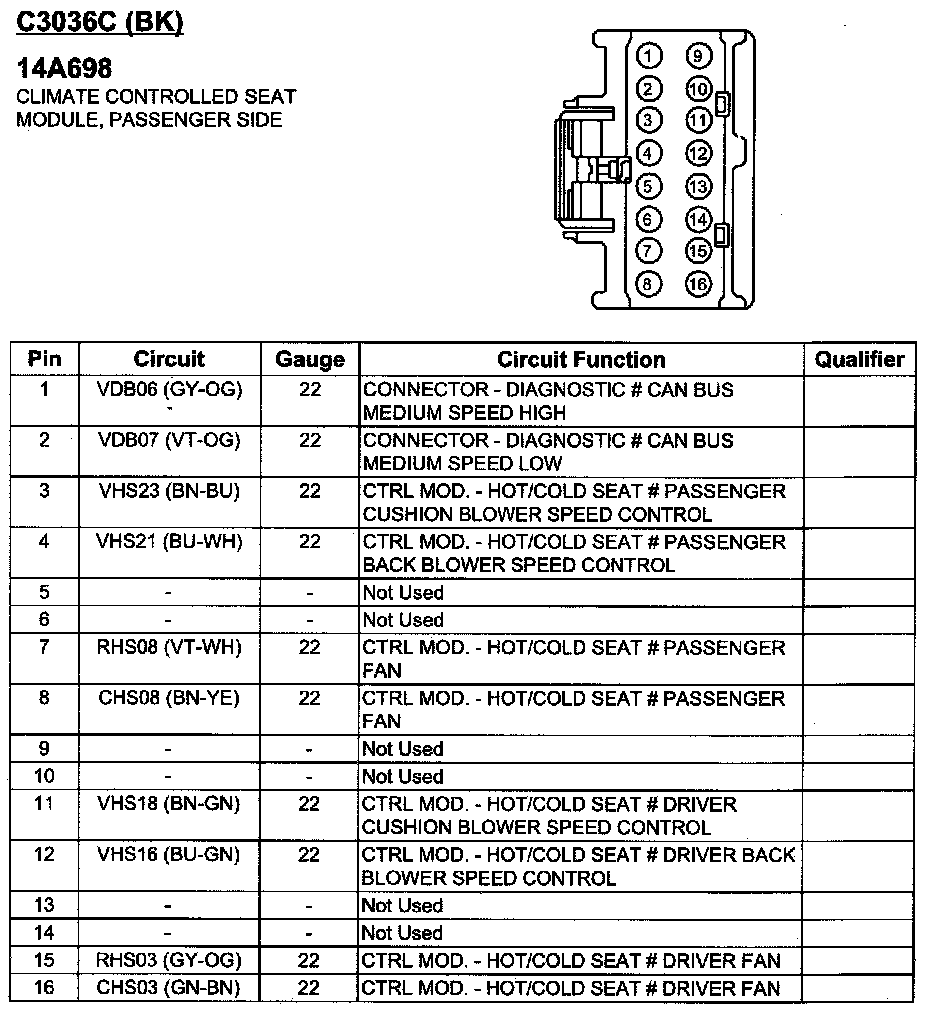

C3036C:
