Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window Adjust Switch

Master Window Adjust Switch

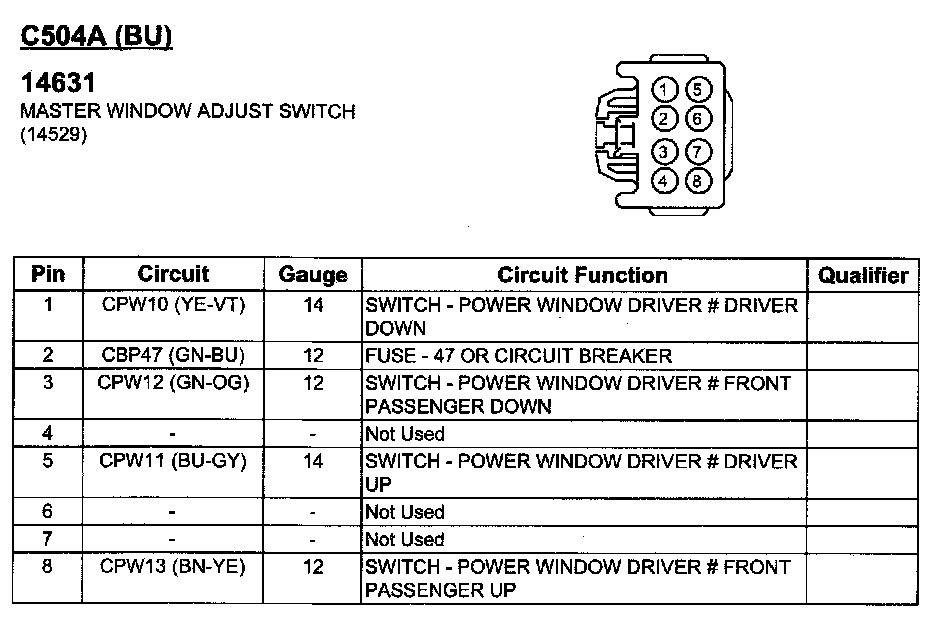

C504A:

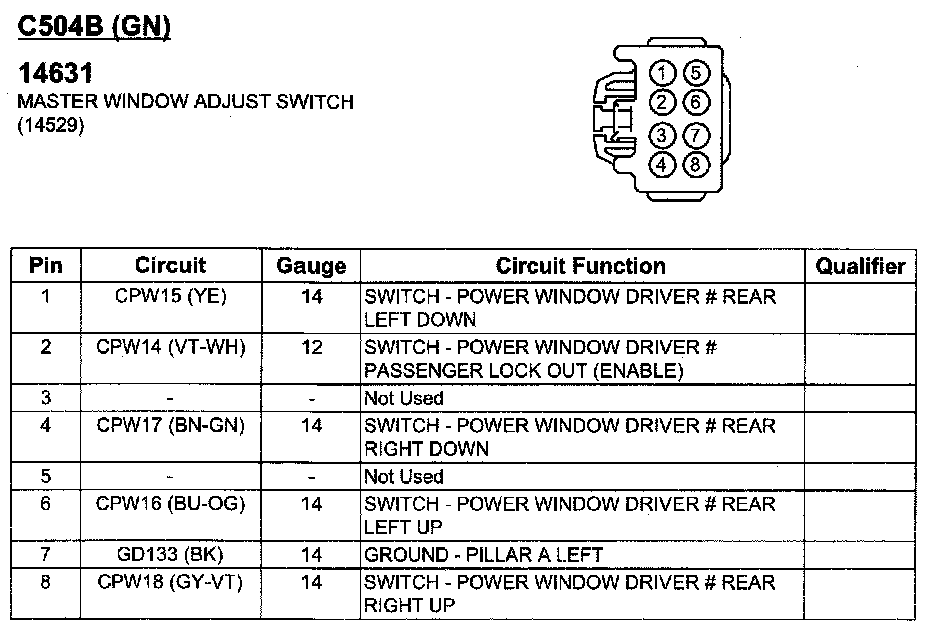

C504B:

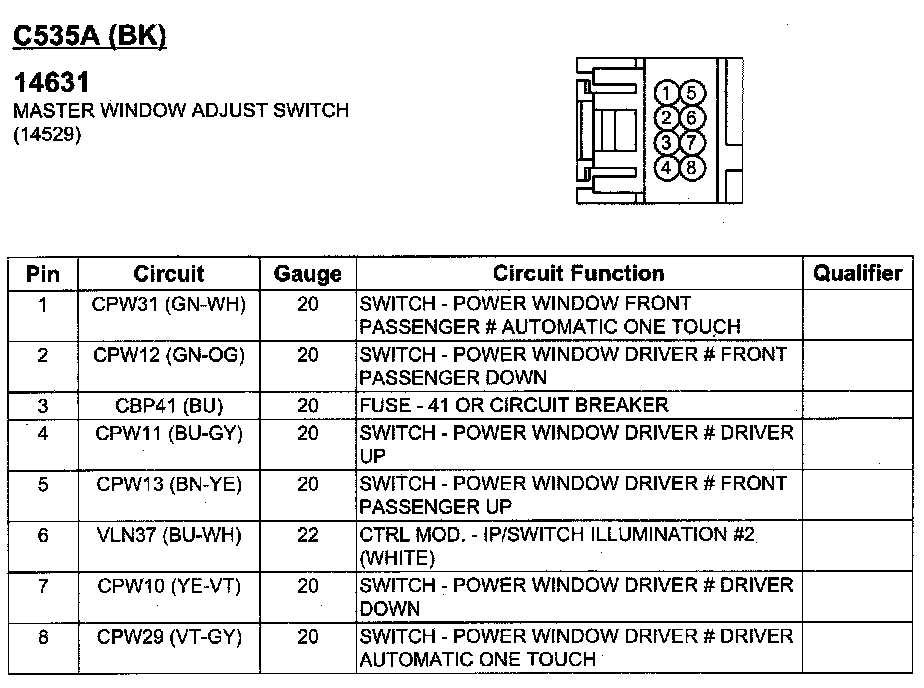

C535A:

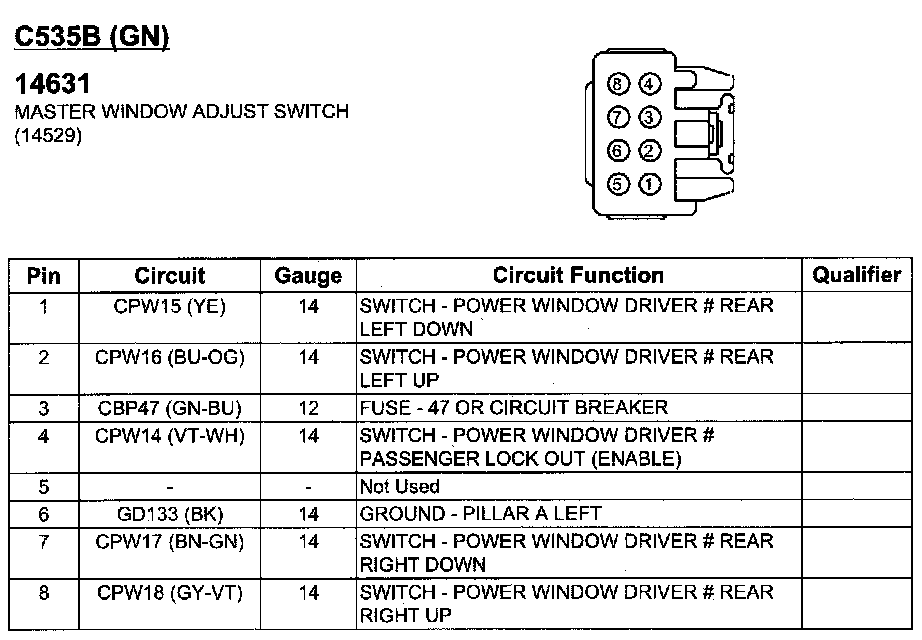

C535B:
