Flywheel

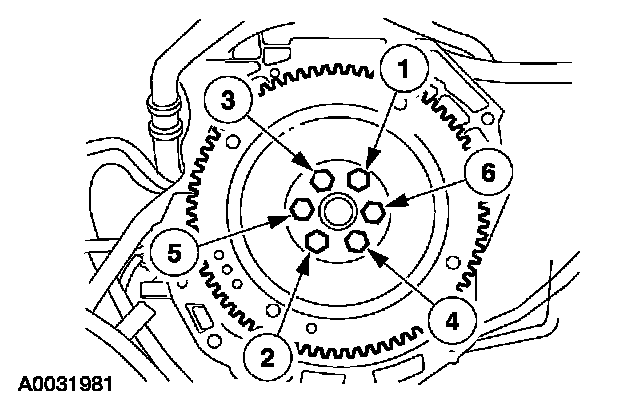

Flywheel Bolts Torque and Sequence
Stage 1: 50 Nm (37 ft. lbs.)
Stage 2: 80 Nm (50 ft. lbs.)
Stage 3: 112 Nm (83 ft. lbs.)
