Home >> Ford >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests AW

Tests AW

PINPOINT TEST AW: INTAKE AIR TEMPERATURE IAT/IAT2 SENSOR CORRELATION

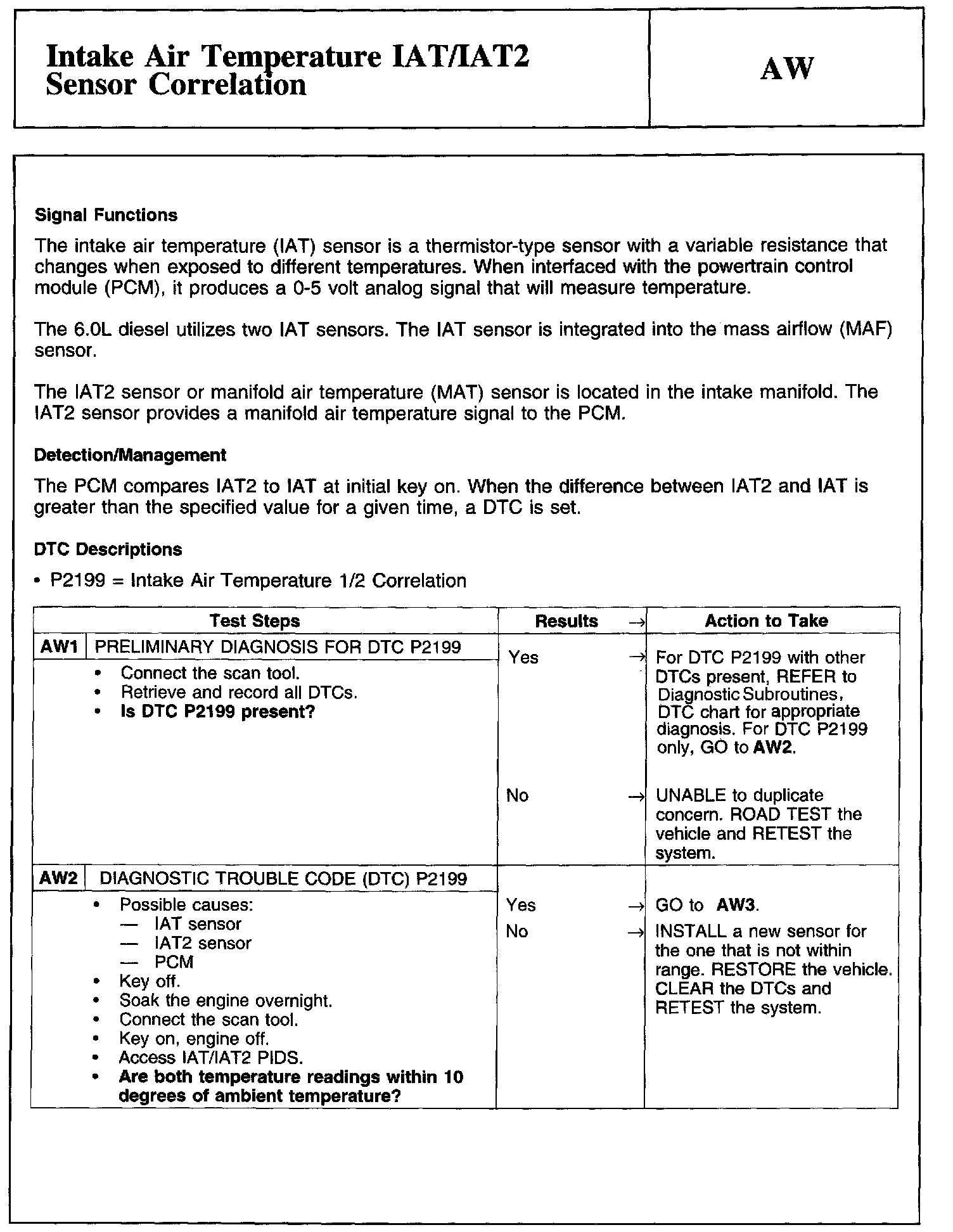

Description, Test AW1-AW2:

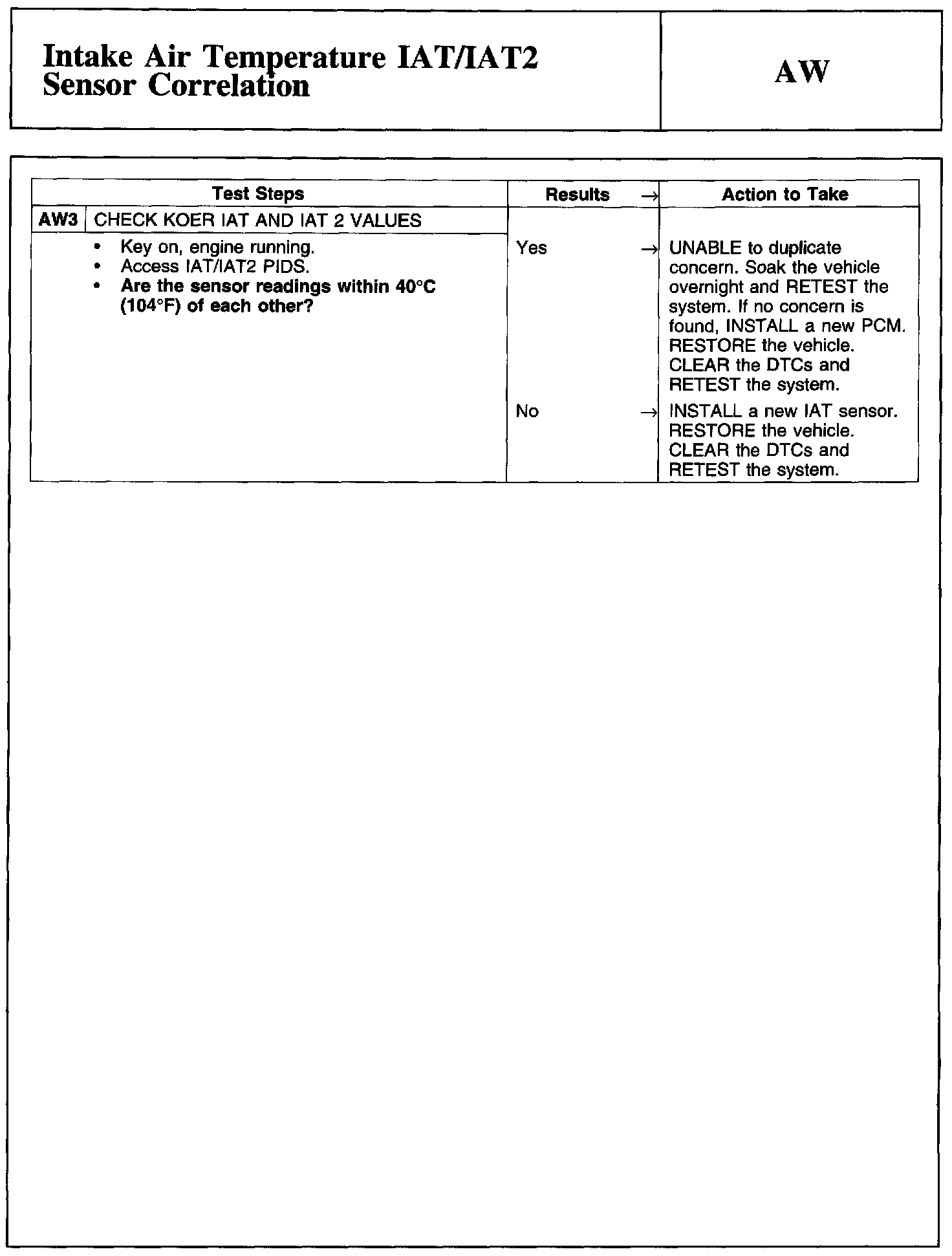

Test AW3:
