Home >> Ford >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests AV

Tests AV

PINPOINT TEST AV: AIR CONDITIONING RELAY CONTROL CIRCUIT

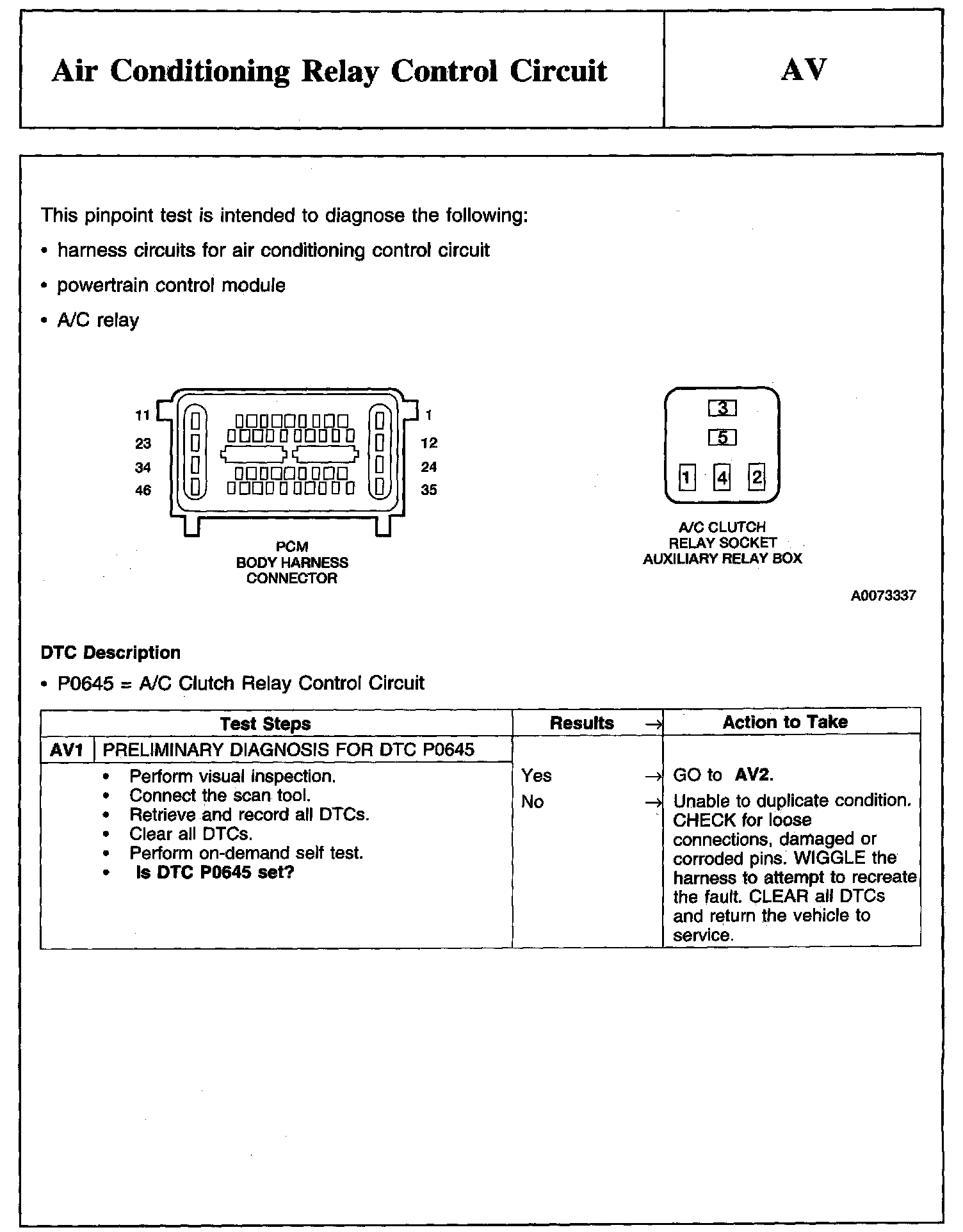

Schematic, Test AV1:

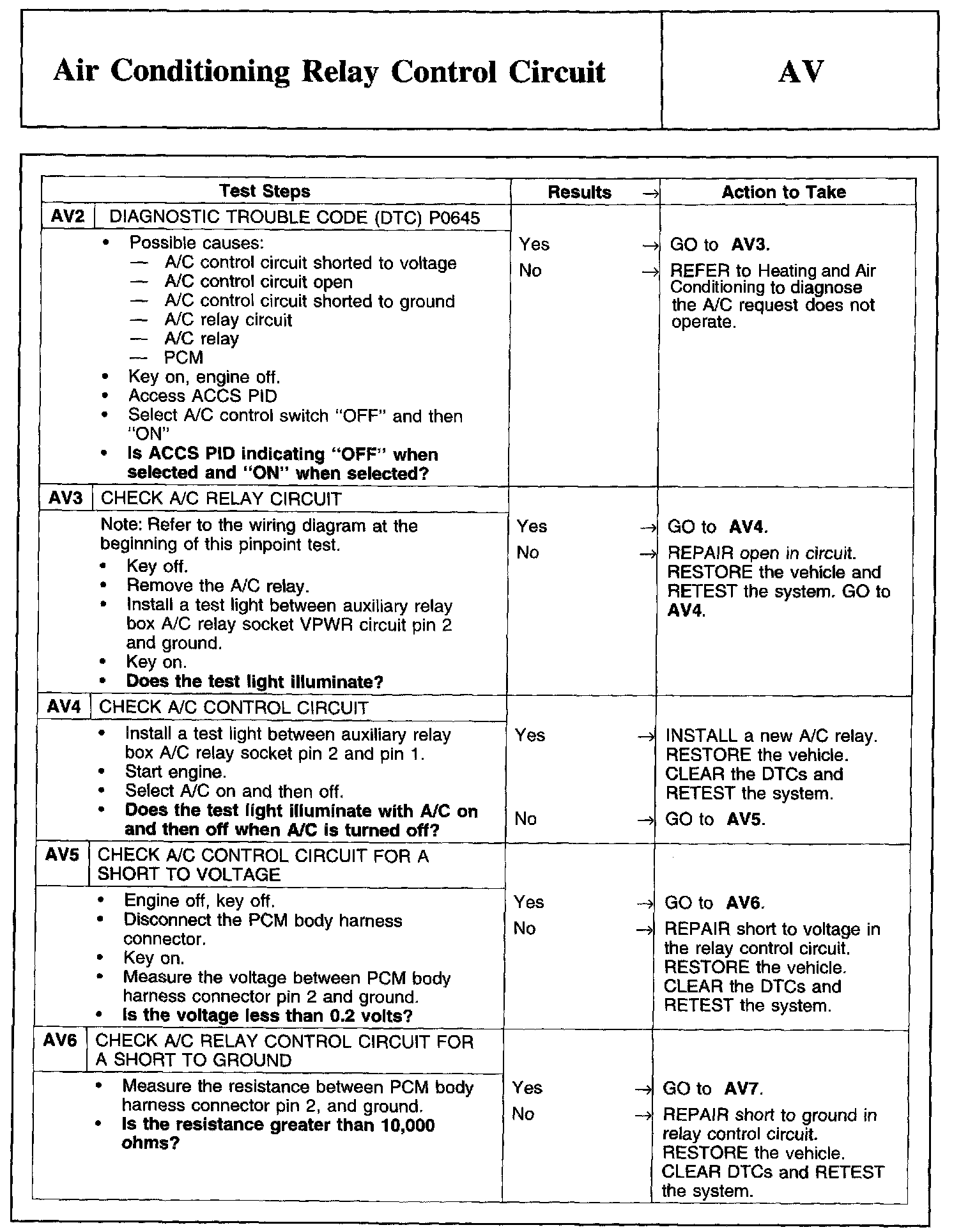

Test AV2-AV6:

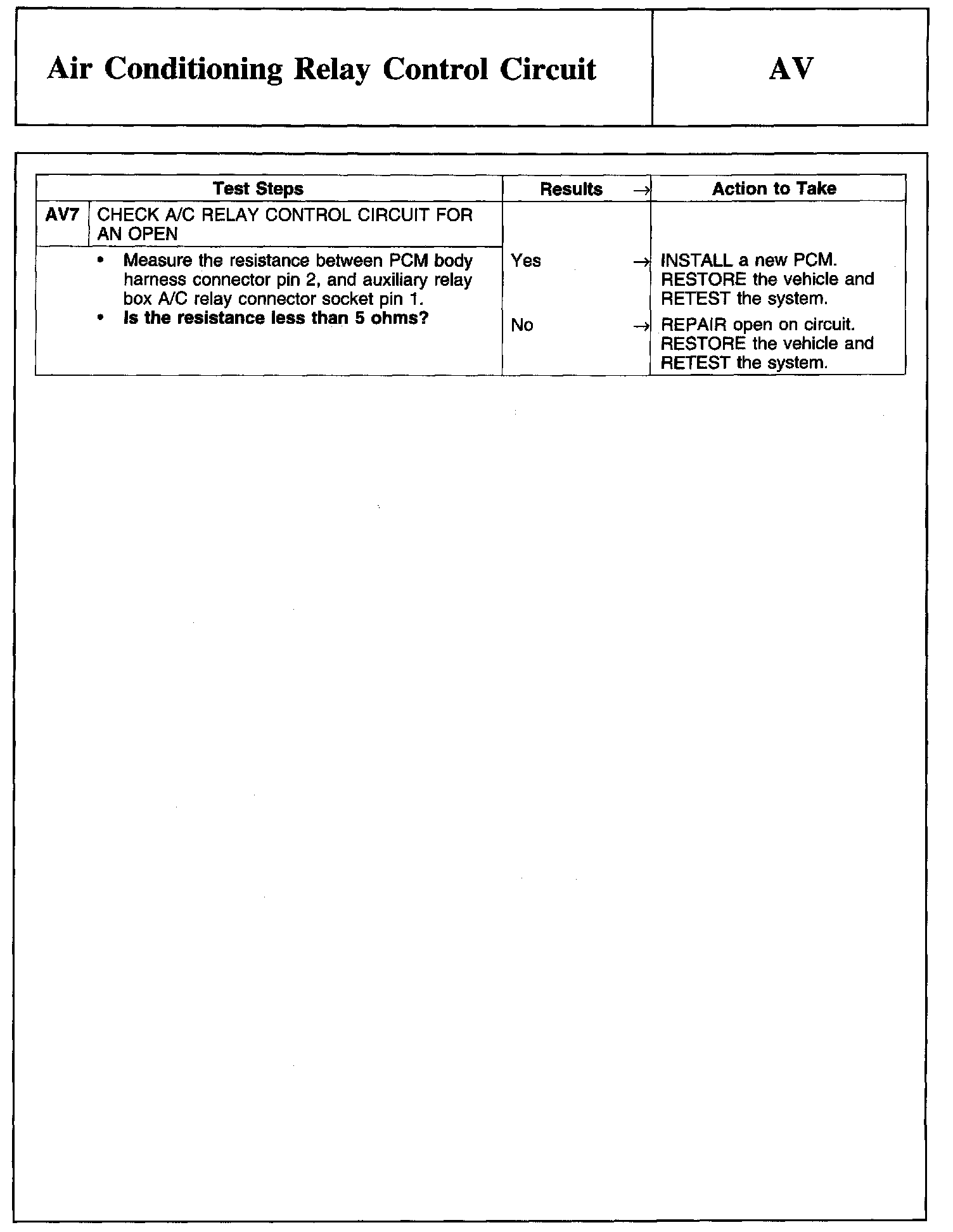

Test AV7:
