PINPOINT TEST AG: ACCELERATOR PEDAL POSITION (APP) SENSOR

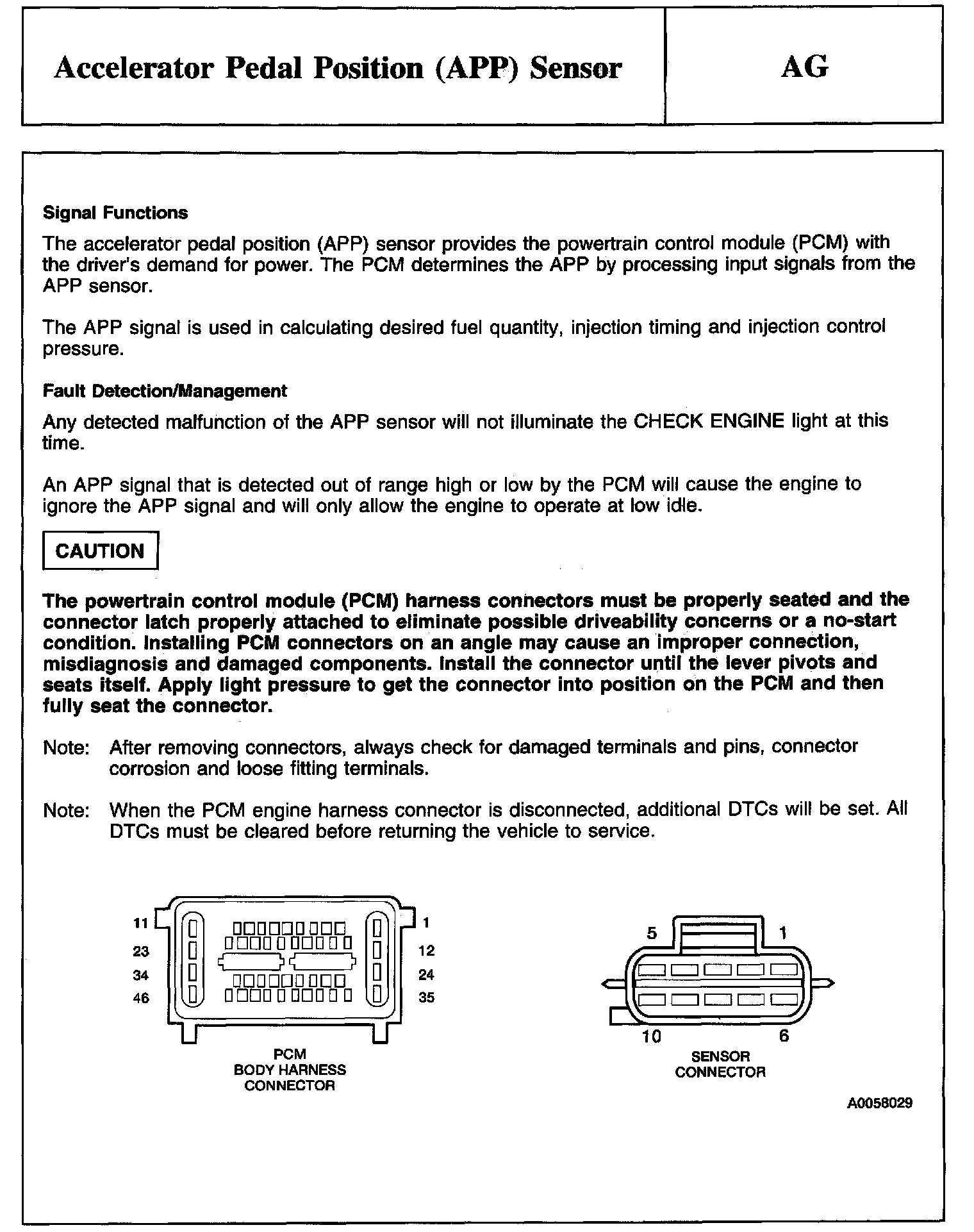

Description, Caution And Schematic:

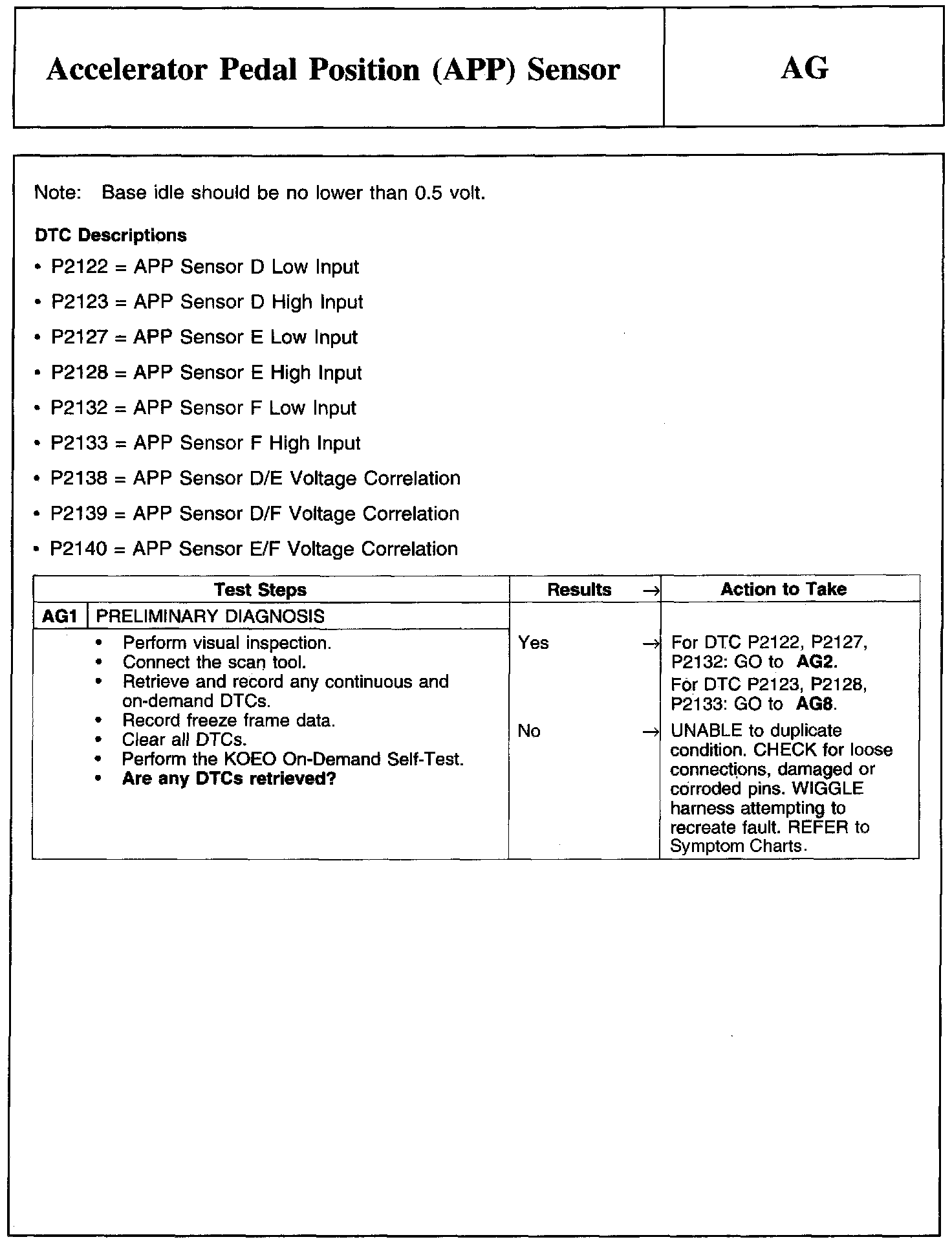

Test AG1:

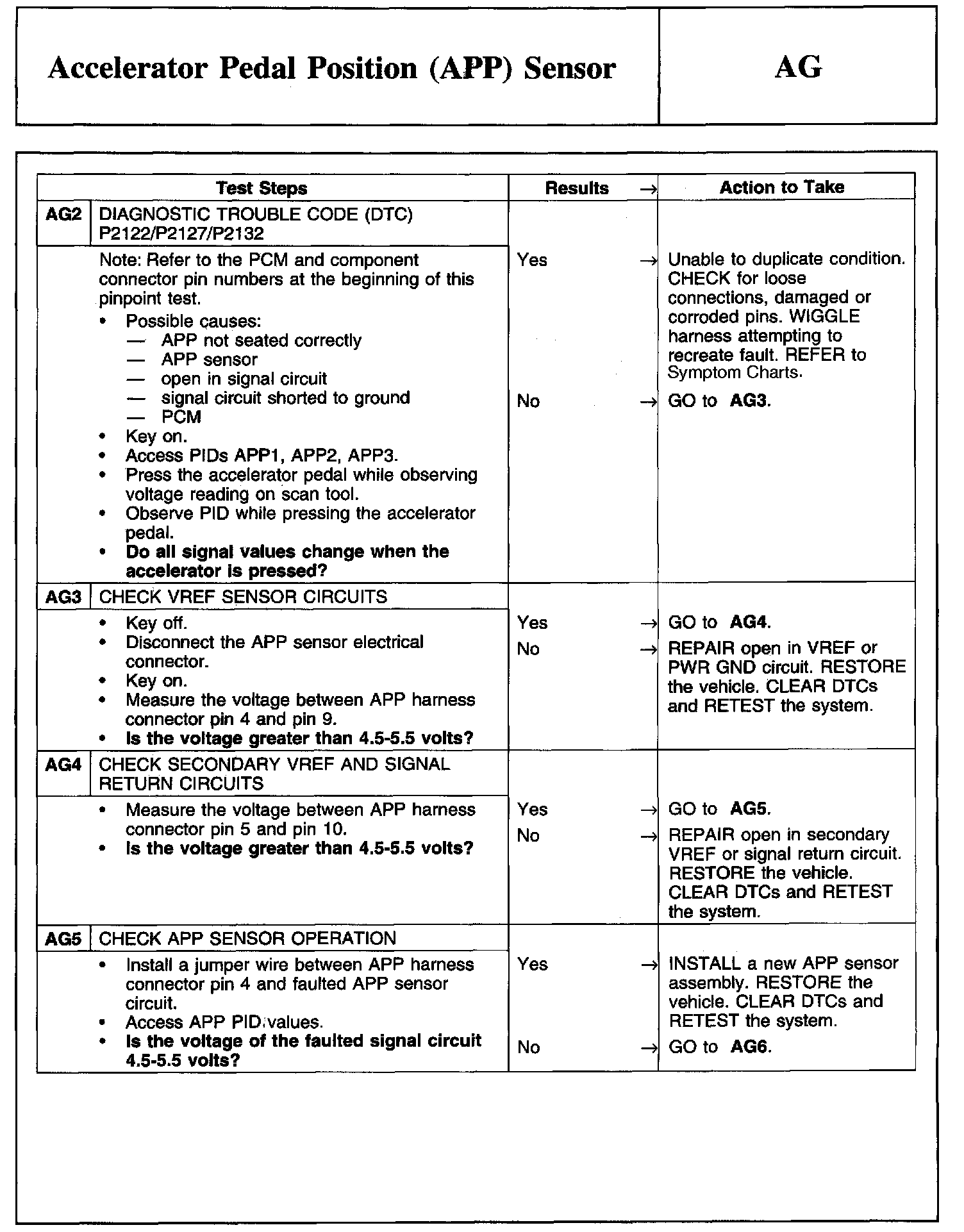

Test AG2-AG5:

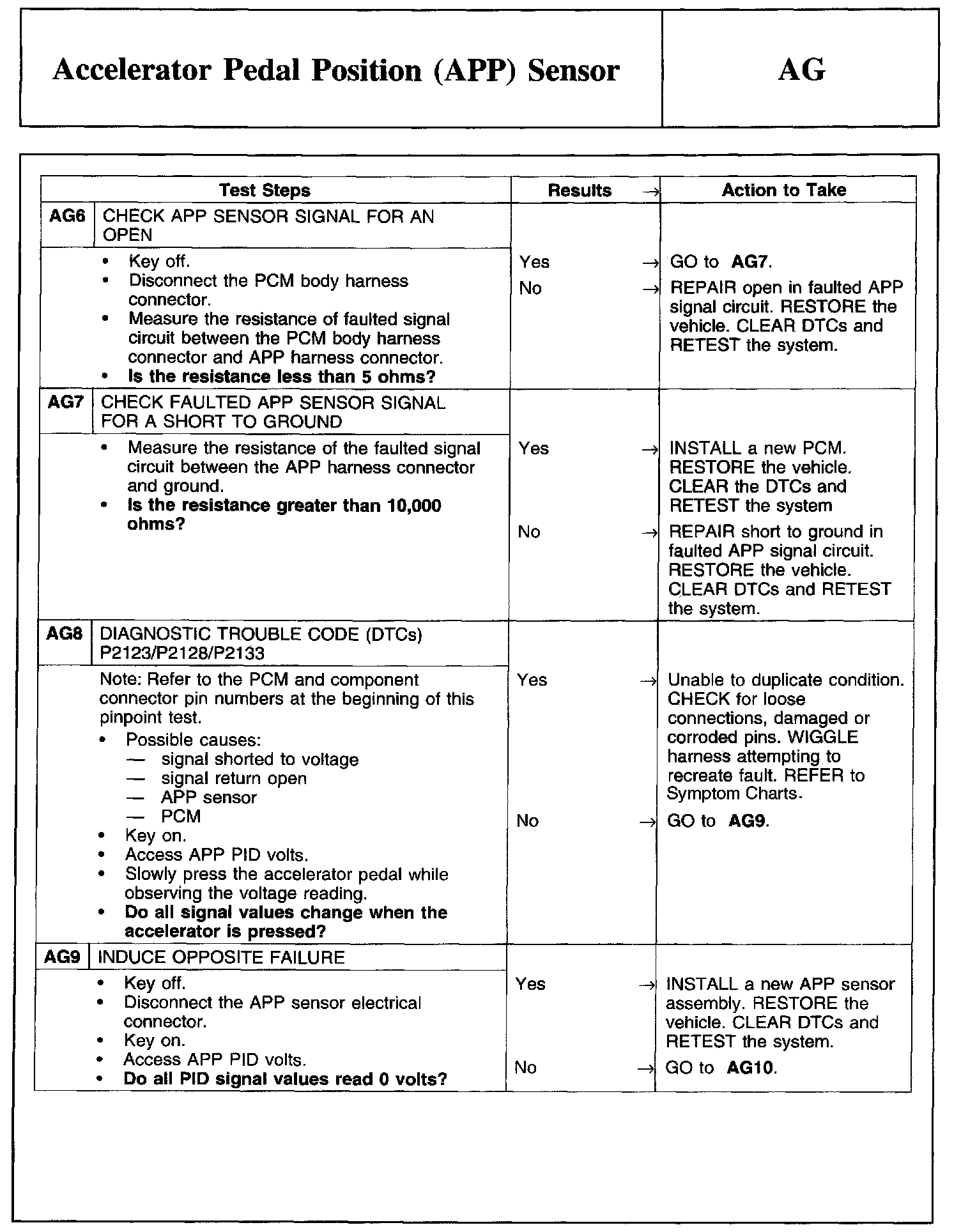

Test AG6-AG9:

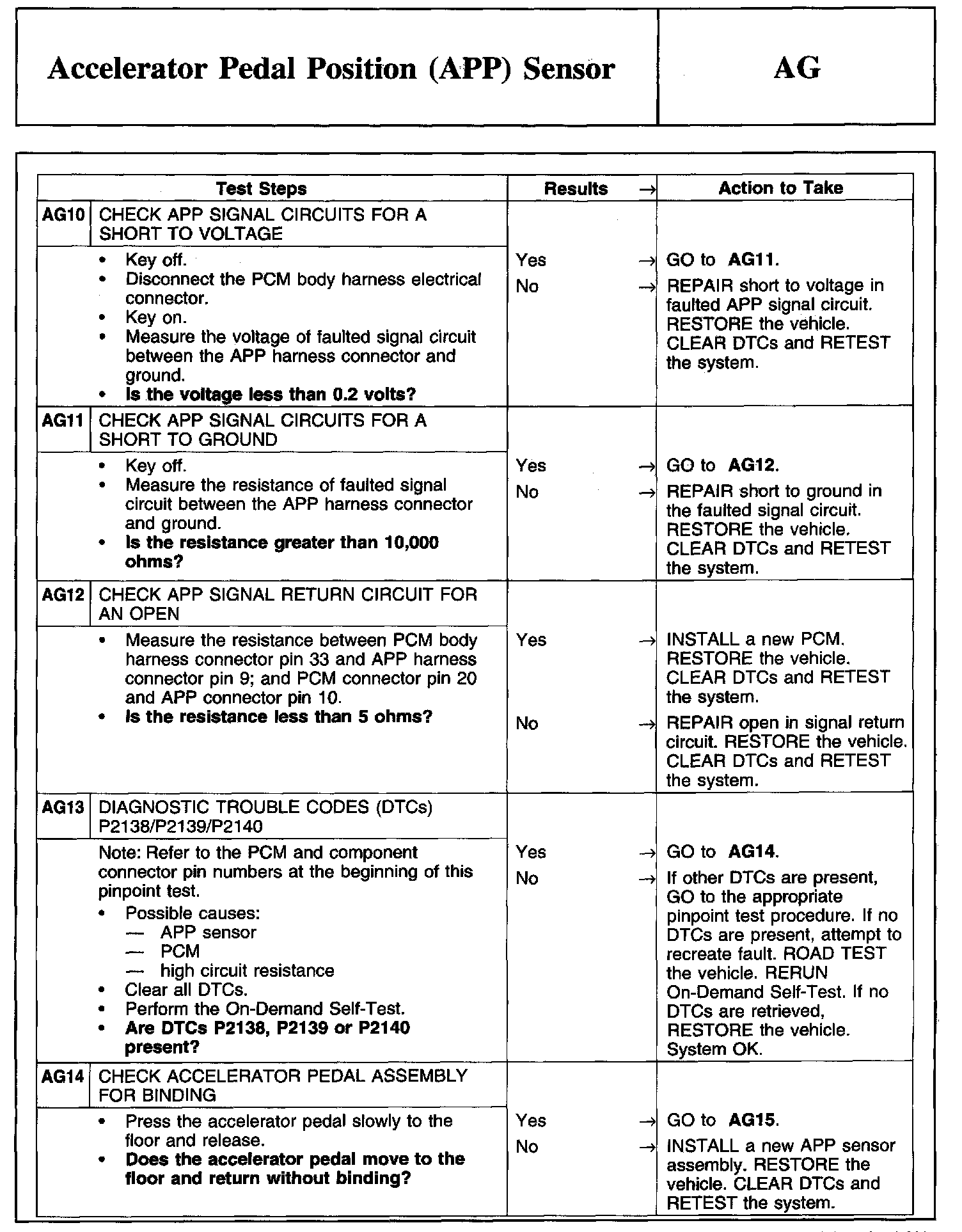

Test AG10-AG14:

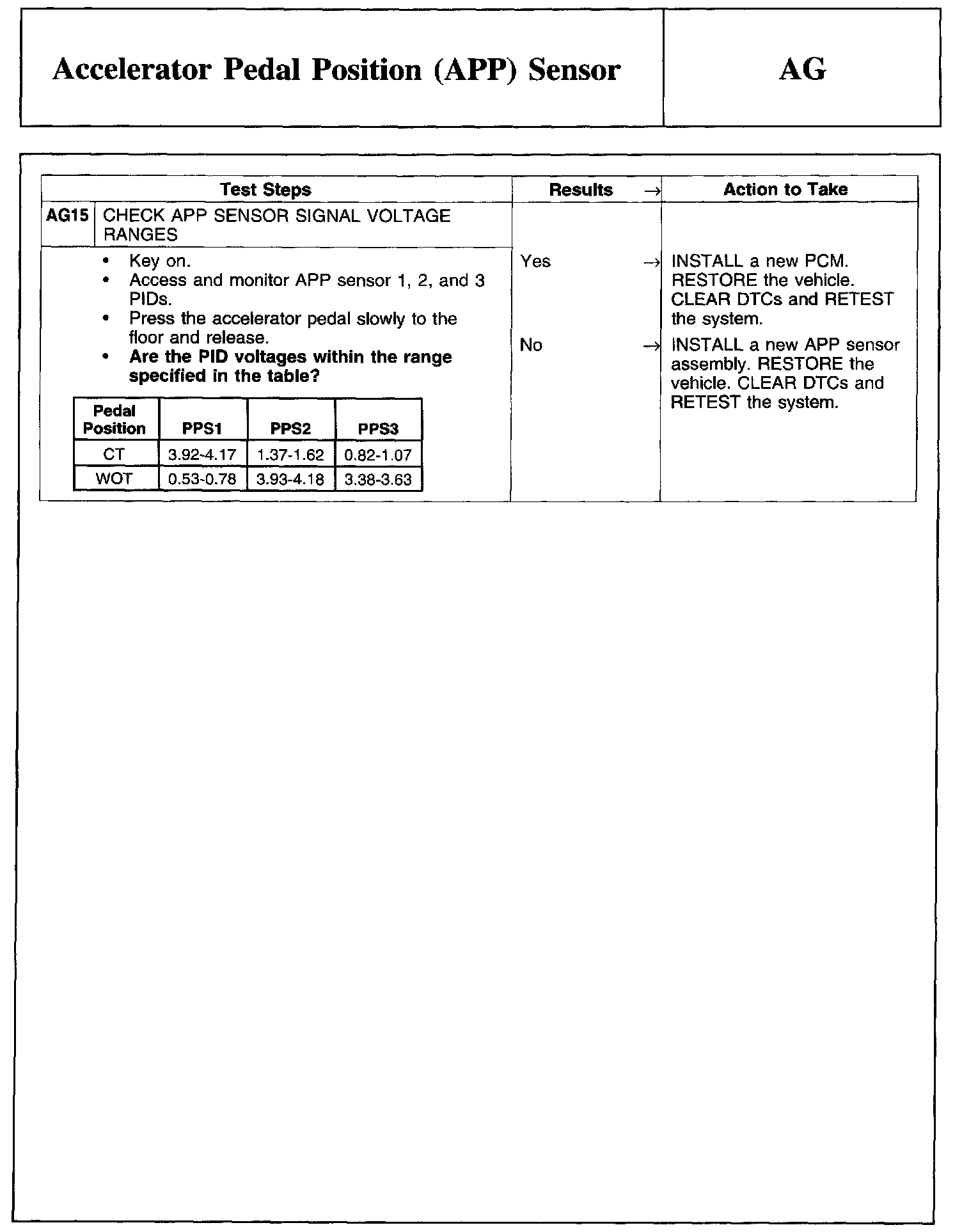

Test AG15:
