Home
>>
Ford
>>
2003
>>
Excursion 4WD V8-6.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

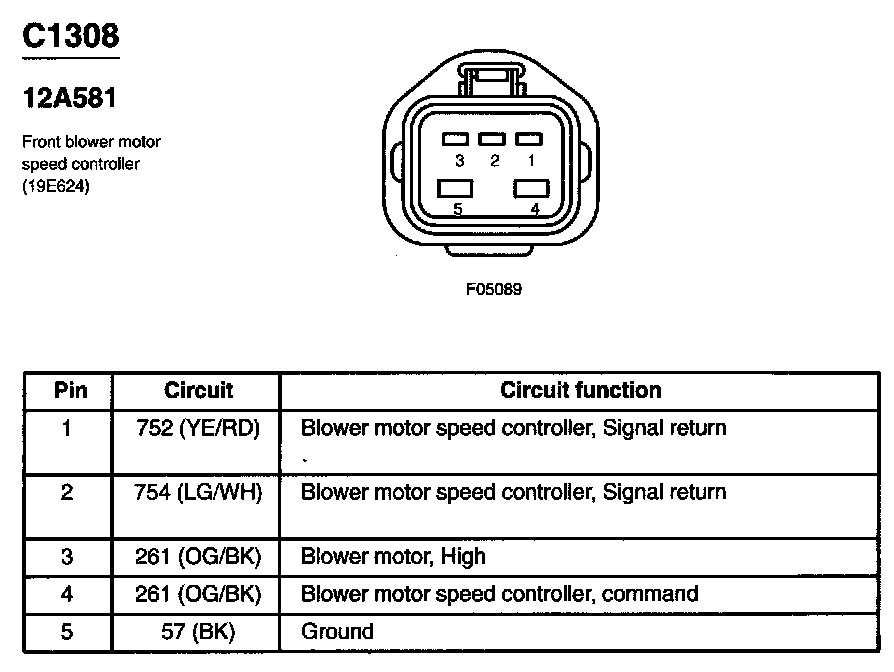

Front Blower Motor Speed Controller
Front Blower Motor Speed Controller
